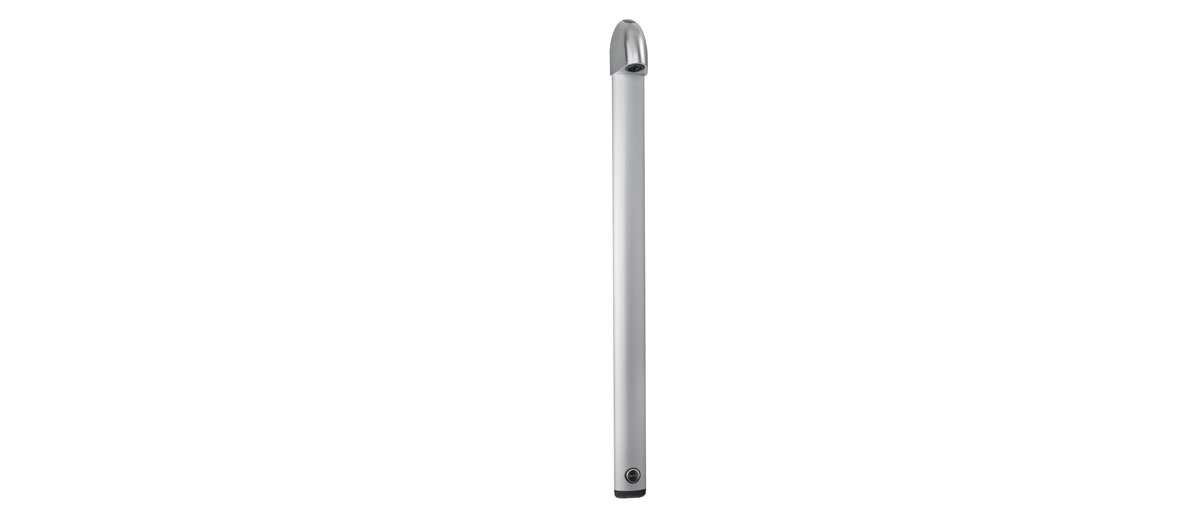

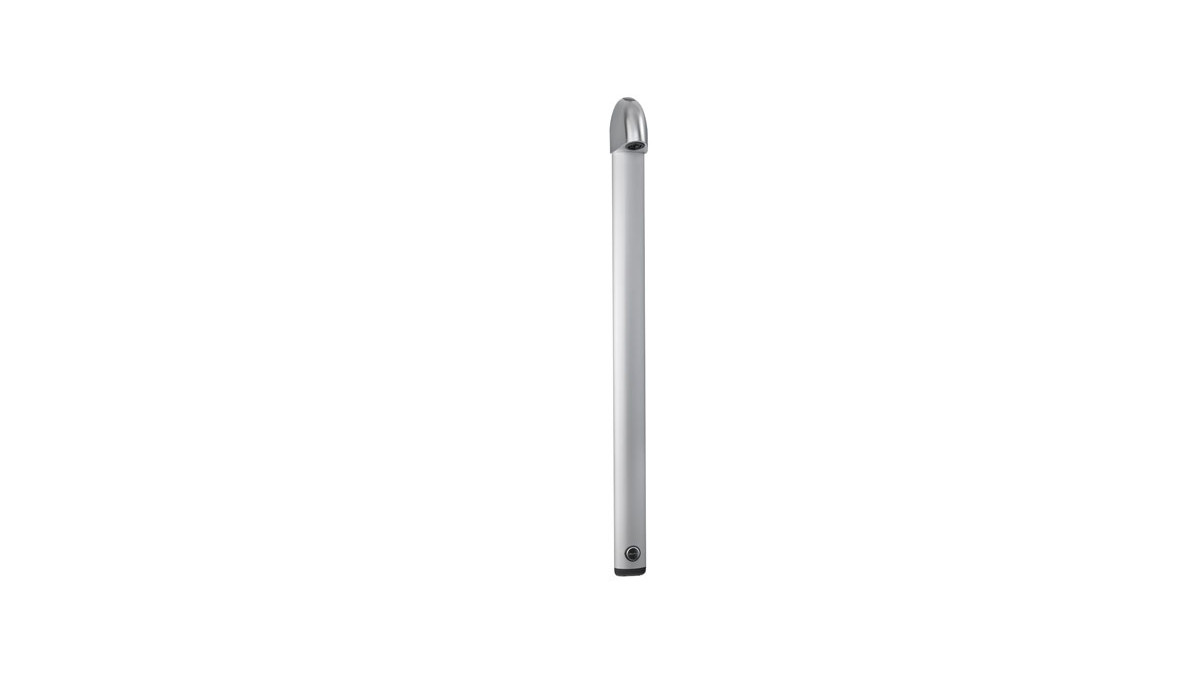

Delabie Sporting 2 Shower Panel — DE714700
Description

Delabie DE714700 is a time flow shower panel for surface mounting with soft touch operation. The water inlet is adjustable for top or back inlet with integrated stopcock. Slimline structure with concealed fixings.

Anodised aluminium panel with satin chrome tamperproof fixed shower head with scale resistant outlet and automatic flow regulator. Adjustable spray angle can be locked in place. Time flow ~30 seconds. Flow rate 6L/min at 300kPa. Operating pressure 100-500kPa, 300kPa is recommended.

Supplied with non-return valve, filter, integrated stopcock and M1/2" connection for mixer water supply. Installation of a thermostatic mixing valve is recommended.

Key Features
  • Slimline structure with concealed fixings
  • Adjustable water inlet for top or back inlet
  • Adjustable spray angle can be locked in place
  • Anodised aluminium panel with satin chrome tamperproof fixed shower head
  • Scale resistant outlet and automatic flow regulator
Categories
Showers
Scope of Use
  • Operating pressure 100-500kPa, 300kPa is recommended
  • Adjustable spray angle can be locked in place
Limitations on Use
  • Installation of a thermostatic mixing valve is recommended
Other Performance Attributes
  • Flow rate 6L/min at 300kPa
  • Chrome tamperproof fixed shower head
  • Scale resistant outlet
Documents
Data Sheet
