Louvrelite® Gable Sun Shade
Description

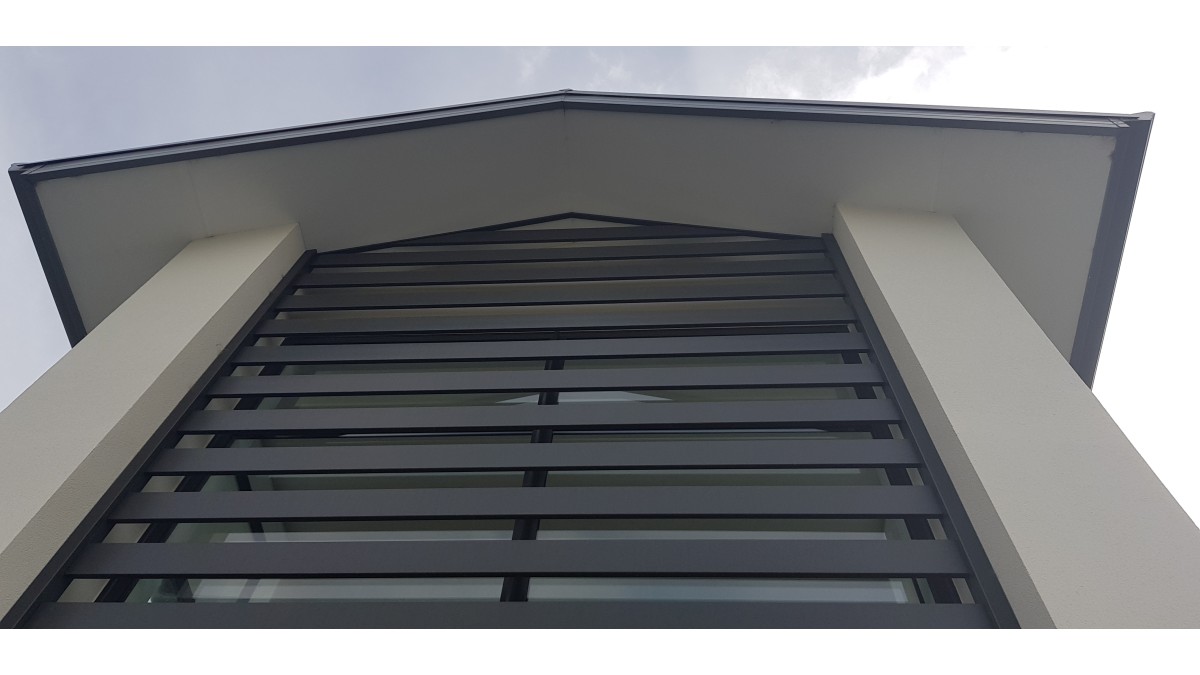

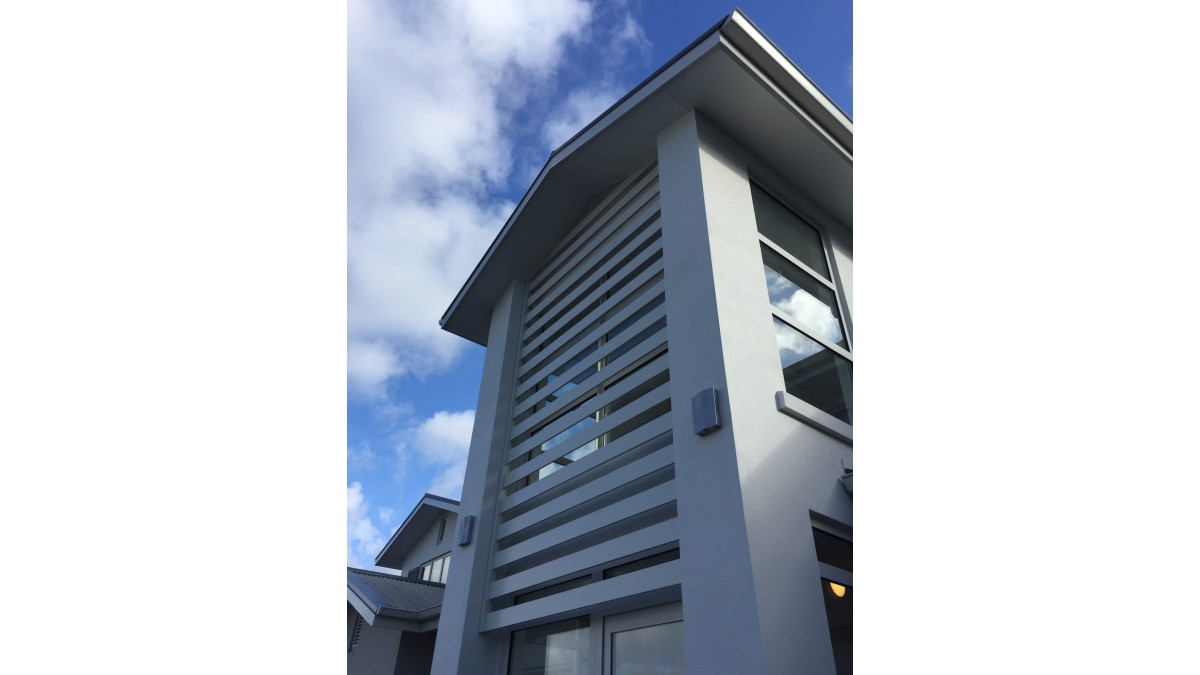

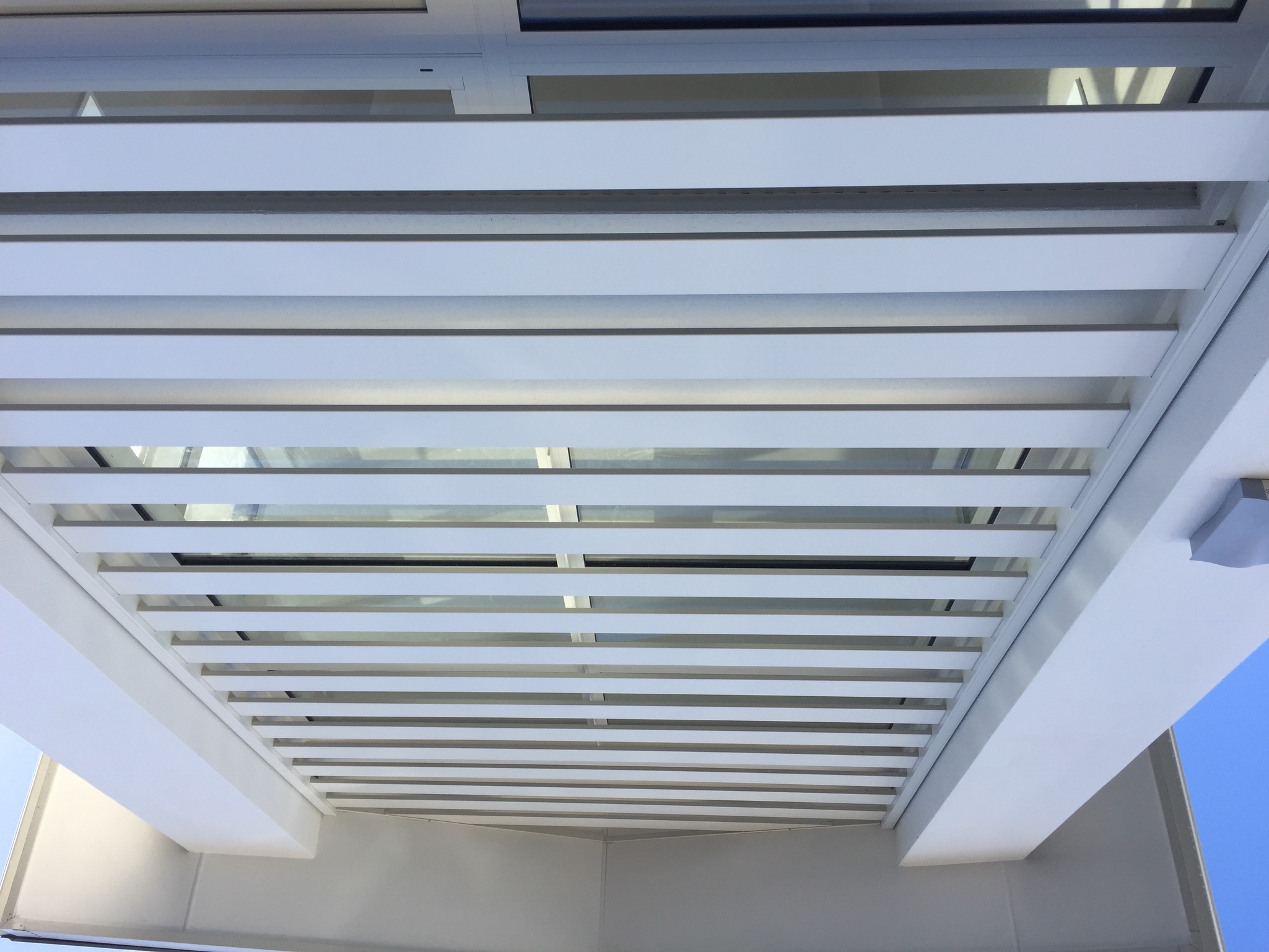

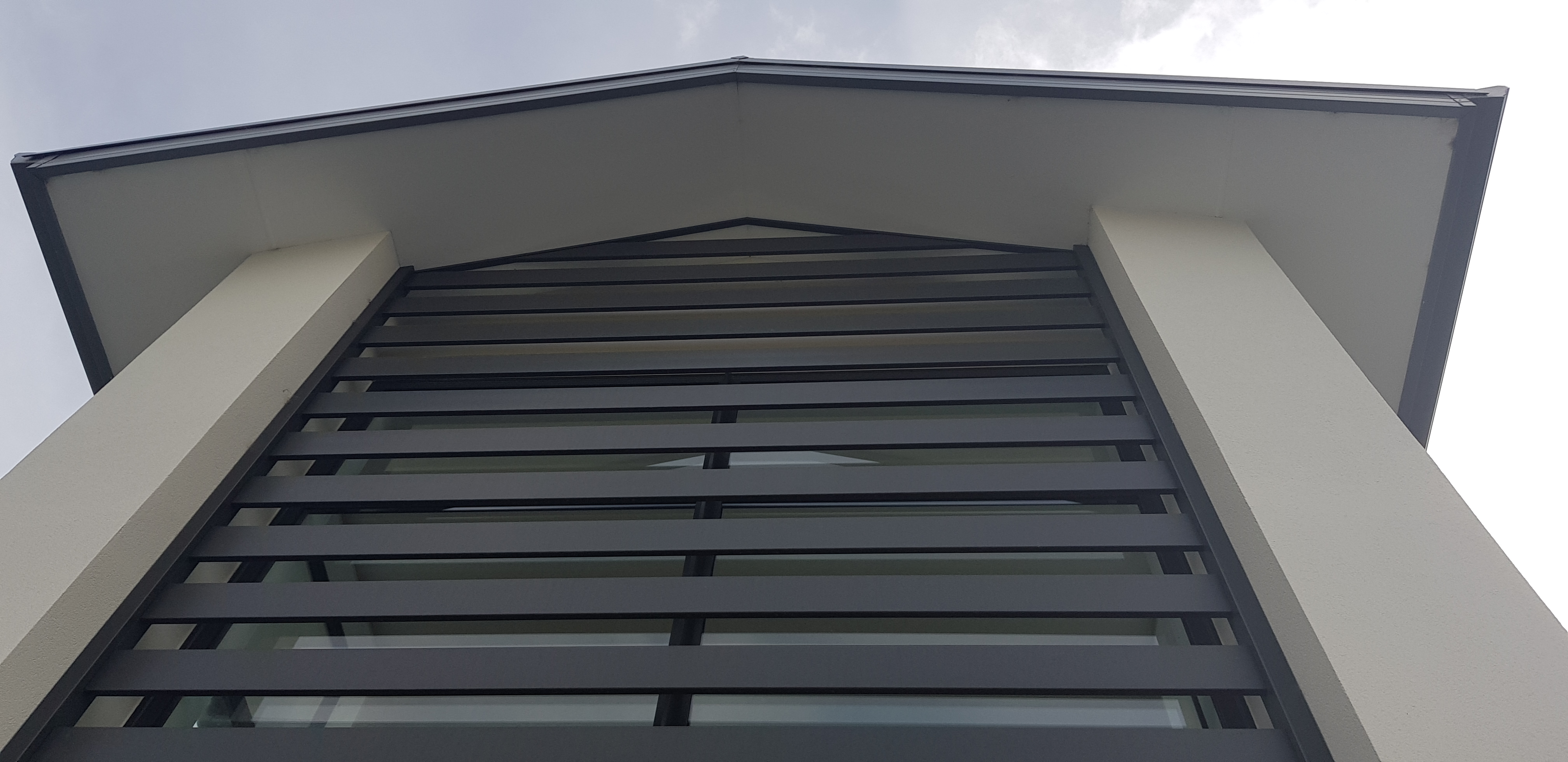

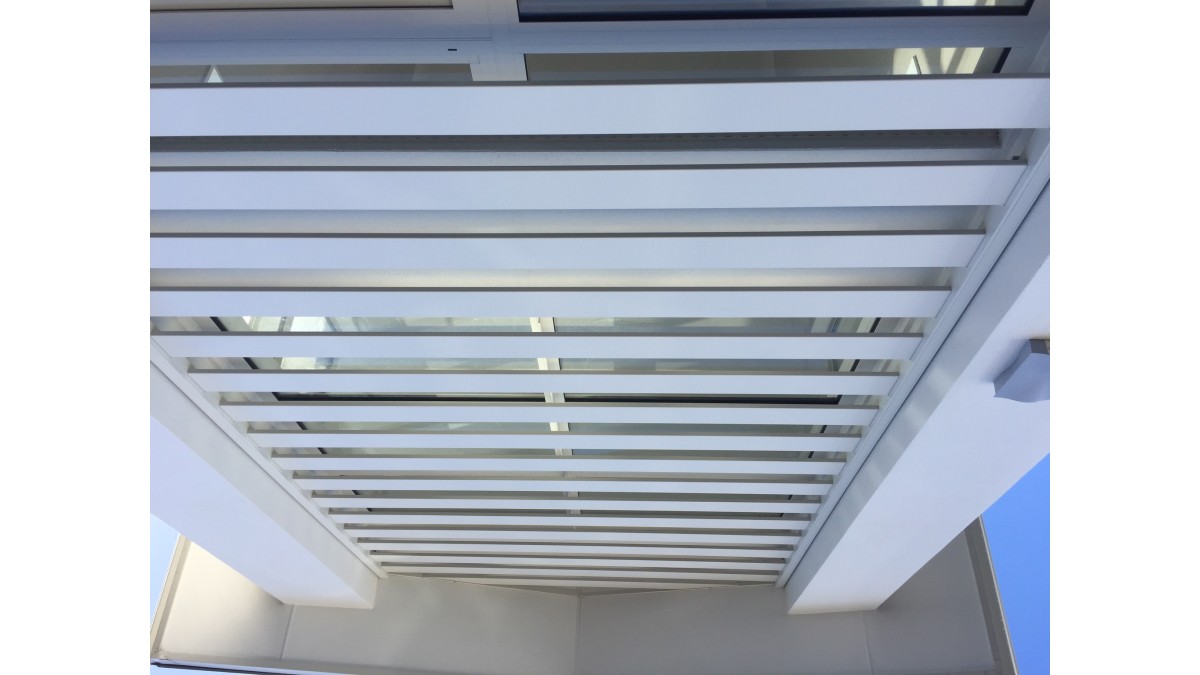

The Louvrelite® Gable Sun Shade System will add architectural interest to a building. Ideal and practical as a fixed louvre system for medium to large building gables that receive intense sunlight. As the system is a passive design feature, it can be easily integrated into the architecture of a building.



Key Features
  • The system is custom made in New Zealand to fit project requirements
  • Hidden fixings maintain a premium design aesthetic
  • Powdercoated to match or contrast building design
  • Architecturally designed for New Zealand environments
  • Made with aluminium and stainless steel for longevity and minimal ongoing maintenance
  • Designed for shading outdoor areas, whilst letting in light and breeze
  • Powder coated in New Zealand in a choice of modern colours

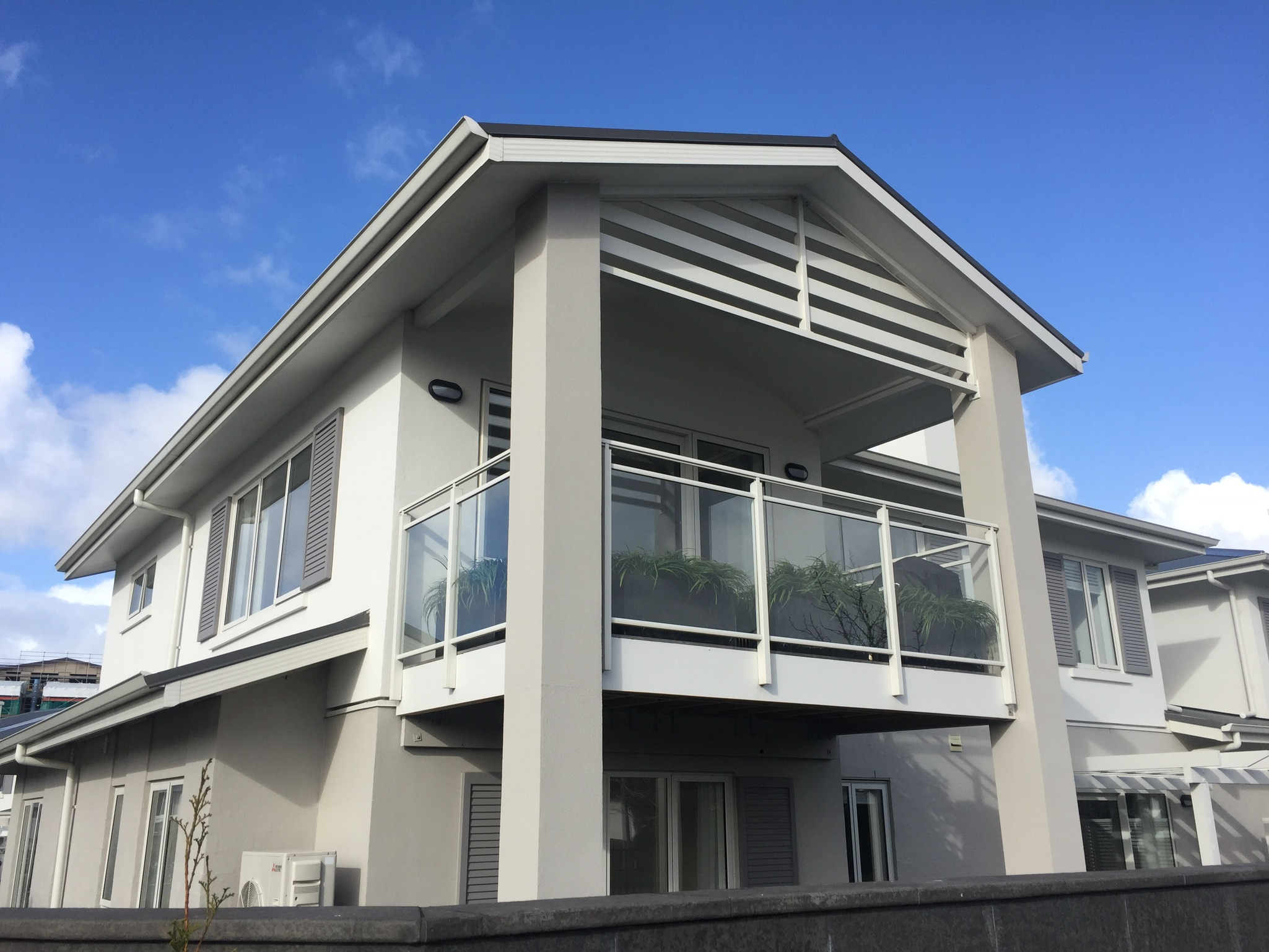

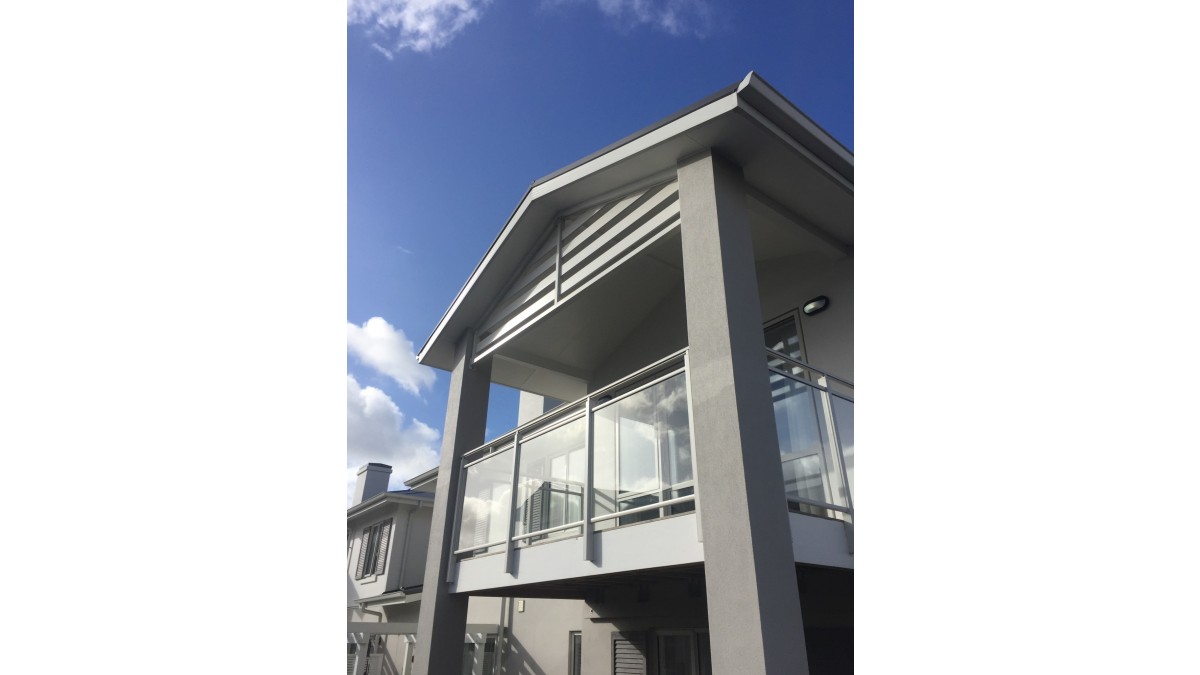

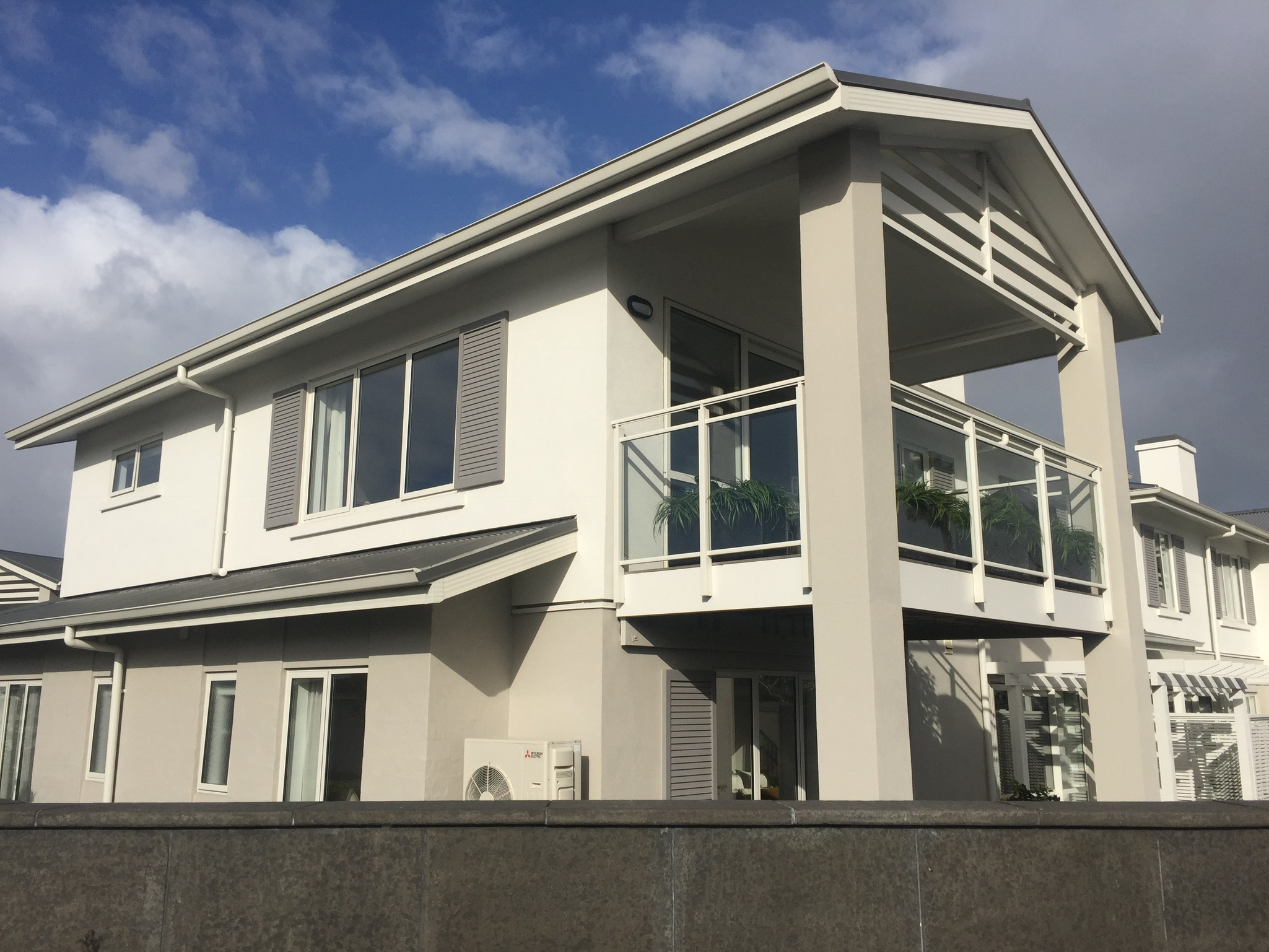

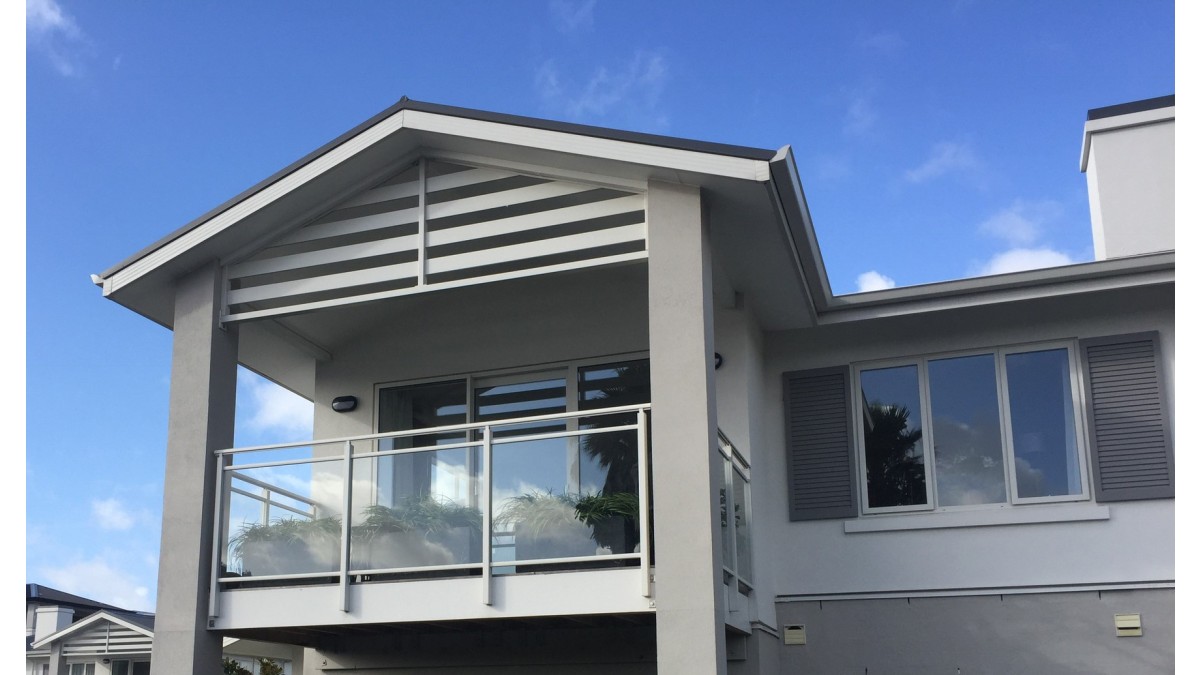

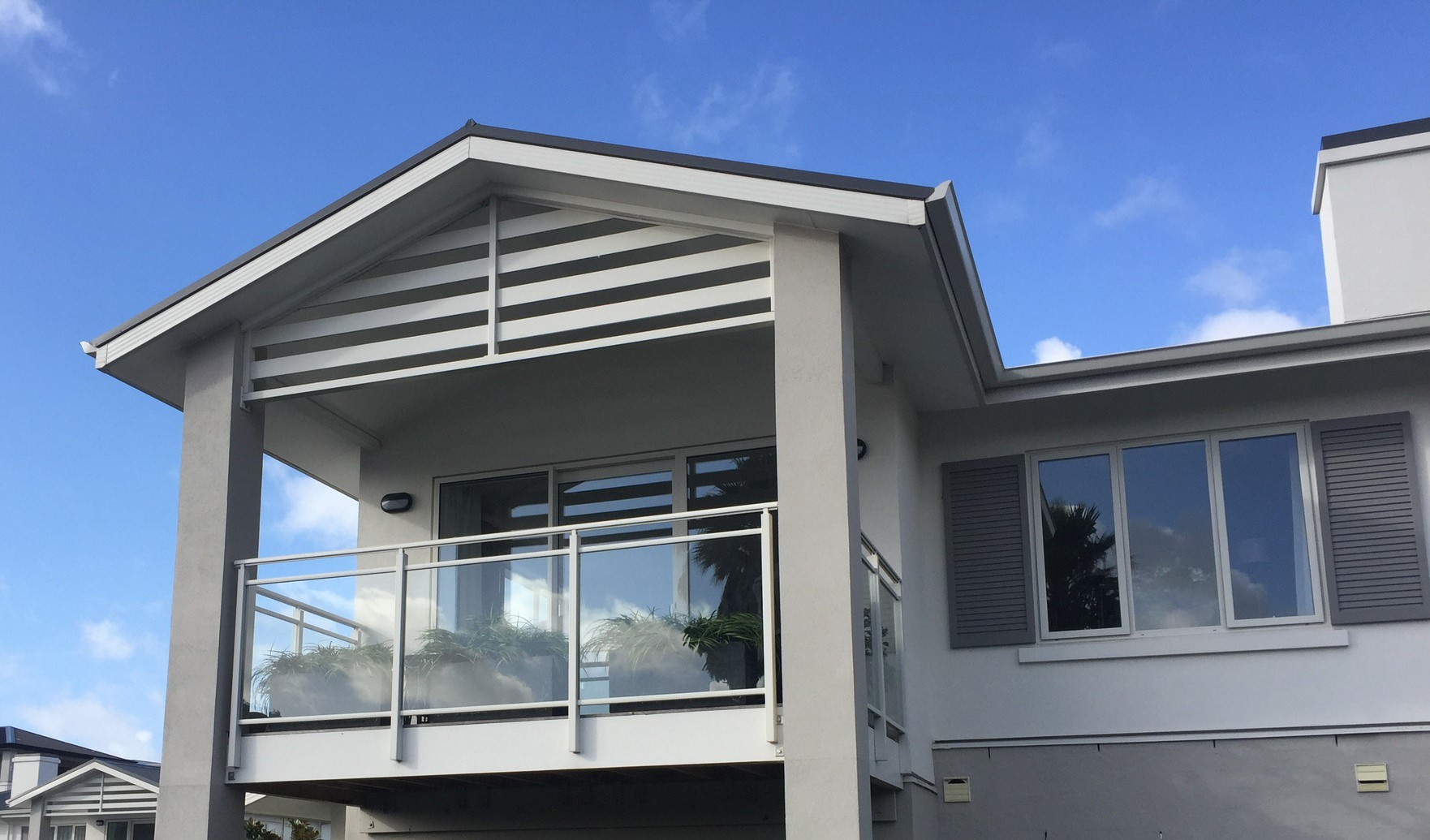

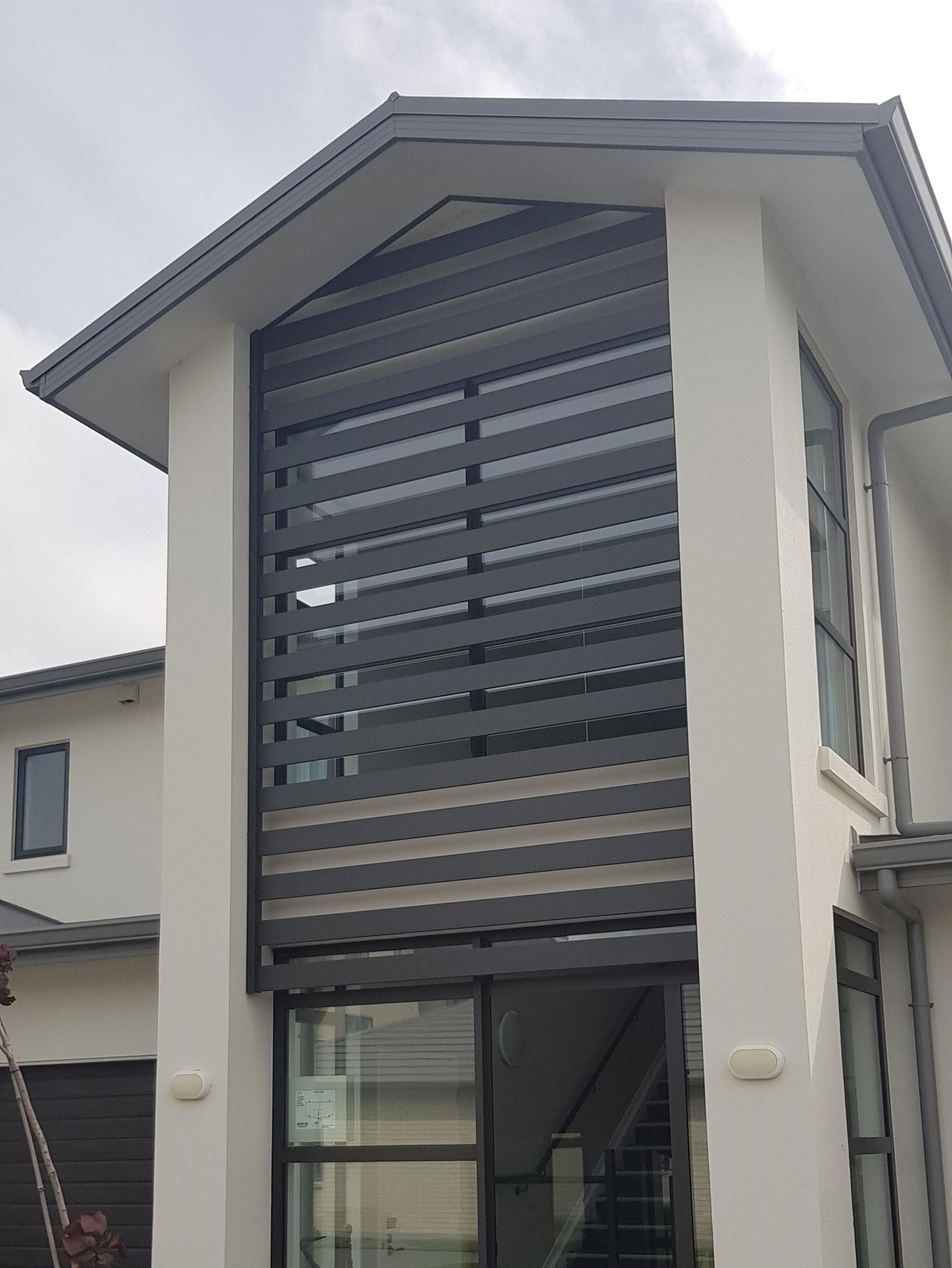

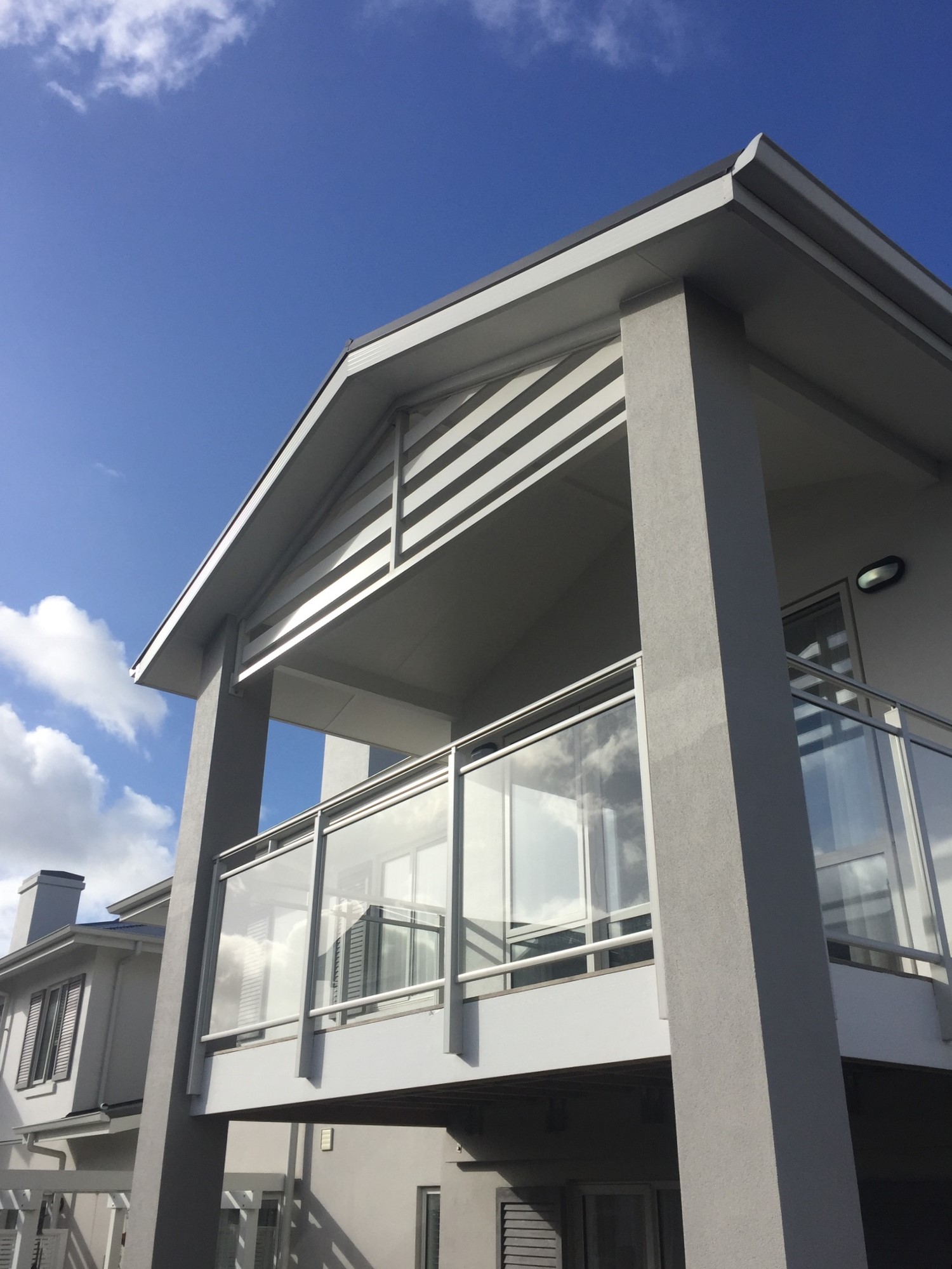

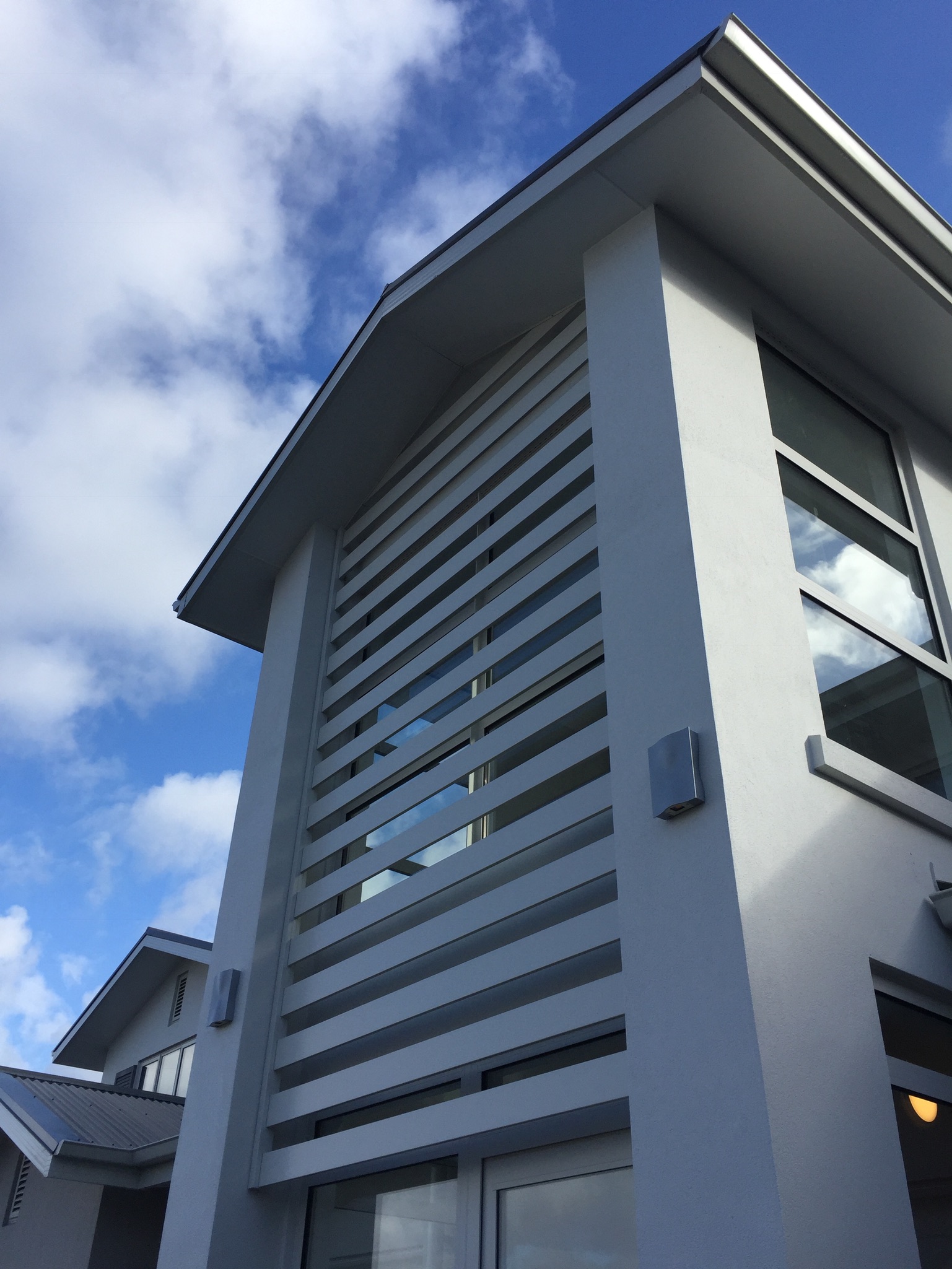

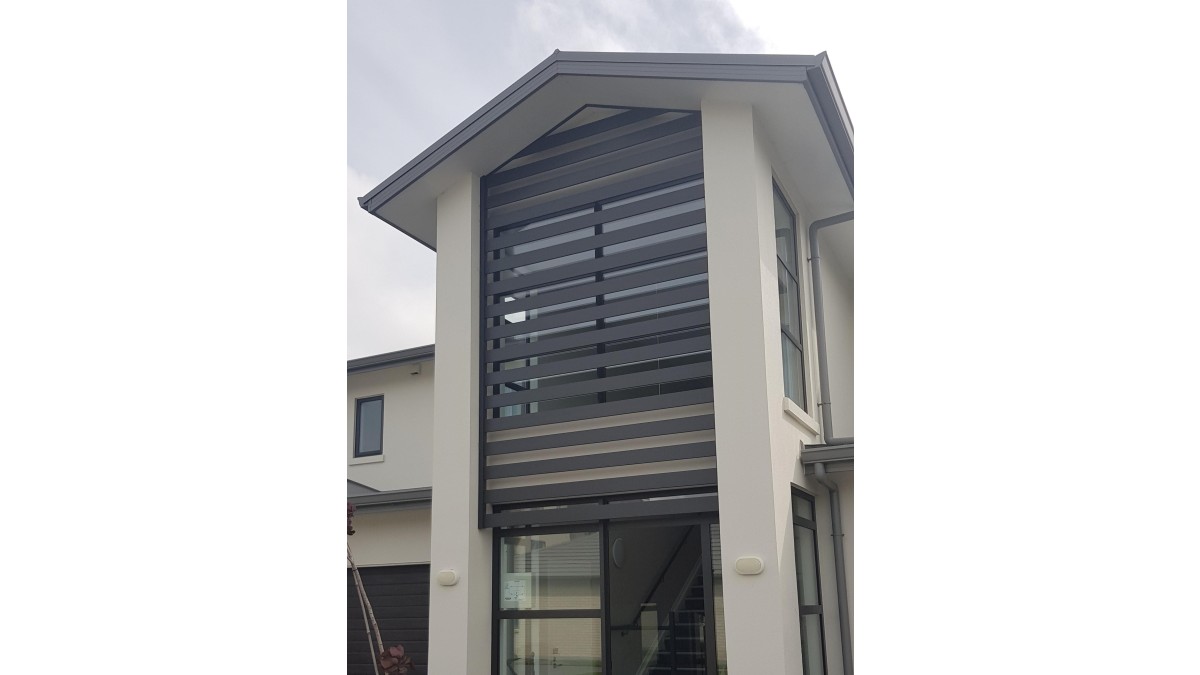

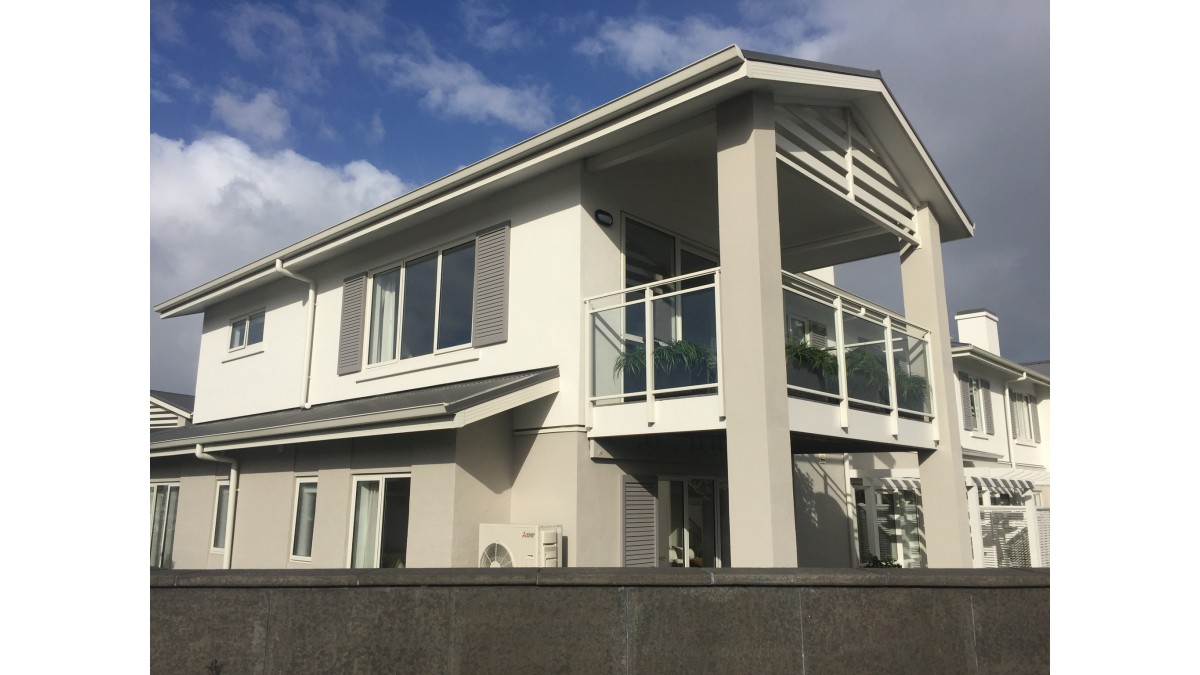

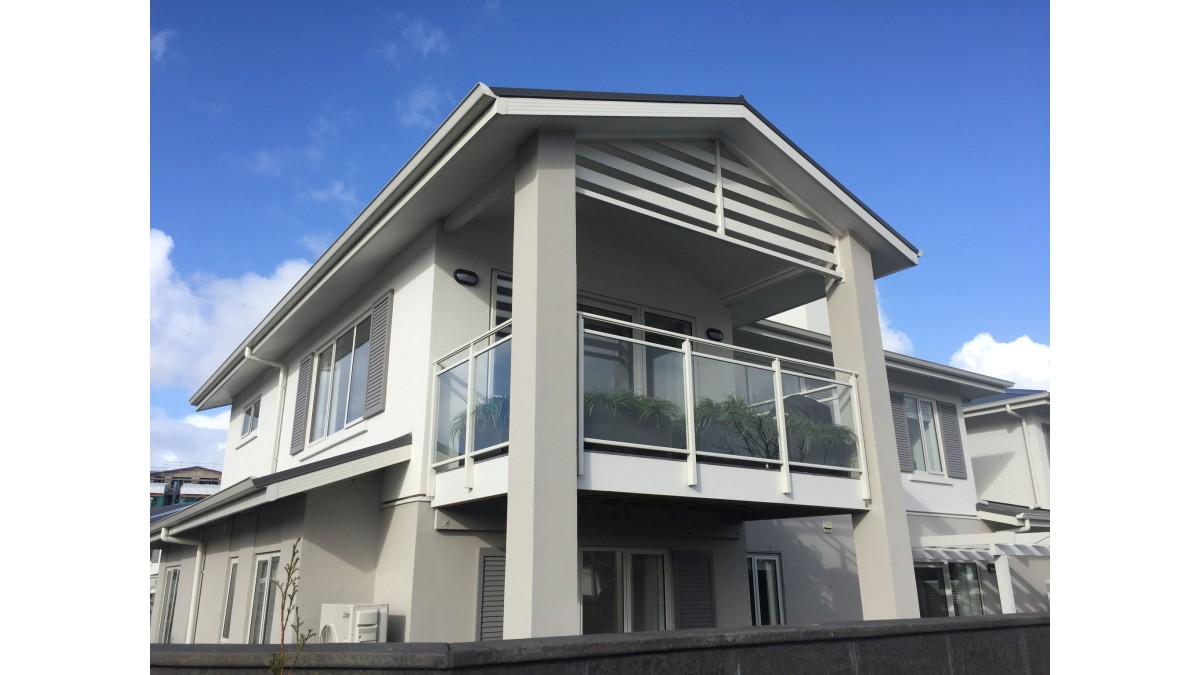

  • 2 configuarations: Entry Foyer and Balcony
NZ Made
NZ Made
NZ-Owned Business
NZ-Owned Business
Scope of Use
  • Suitable for Residential or Commercial applications
  • Occupancy A, A Other, and C3
  • NZS 3604 Low, Medium, High, and Very High wind zones
  • PS1 available
Limitations on Use
  • Only extrusions, components and hardware supplied by or specified by JABP may be used in the Juralco© Louvrelite Gable Sun Shade
  • The Juralco Gable Sun Shade must only be installed in accordance with its Manual
  • Any deviation from that specified in the Juralco Gable Sun Shade manual must only be in accordance with the site
  • Specific PS1 with site specific calculations and drawings listing the non standard details
  • The Juralco Gable Sun Shade must only be fabricated/installed by a Juralco approved fabricator
  • Upon completion of the installation the fabricator must supply the owner with a PS3 (Construction)
  • Important instructions for Powder Coatings near Salt Water: The standard Dulux powder coating system used by Juralco is Duralloy® and is suitable for installations greater than 100 metres from high tide
NZS 3604 Wind Zone High suitable
High Wind Zone
NZS 3604 Wind Zone Low suitable
Low Wind Zone
NZS 3604 Wind Zone Medium suitable
Medium Wind Zone
NZS 3604 Wind Zone Very High suitable
Very High WInd Zone
Statement of Building Code Compliance

The Juralco Gable Sun Shade has been reviewed by Lautrec Technology Group Ltd to demonstrate compliance with the structural requirements of the New Zealand Building Code and AS/NZS 1170 : 2002 occupancy A, A Other, and C3, NZS 3604 Low, Medium, High, and Very High wind zones

  • The Structural Engineering design includes the requirements of B1 Structure, B2 Durability, F2 Hazardous material all from the Building Code
  • Verification Method B1 / VM1, B2/AS1
  • Complies with NZS 4223.3.2016
  • Aluminium extrusions, components and hardware — unless specified are manufactured to 6060 T5 specifications
  • Stainless steel components, hardware, fixings — all components to 316 grade
Documents
Louvrelite Gable Sun Shade

11-22-v1

Brochure
