JESANI Appliance Channel
Description

The JESANI Appliance Channel is designed as a prevention for in-house flooding from Dishwashers, Washing Machines/Laundry Tubs, Plumbed Fridges and Hot Water cylinders.

This will eliminate flooding to other areas of the home and the channel can be located to maximise its flooding prevention capabilities.

Key Features
  • BRANZ Appraised
  • LIFEMARK Product Approved
  • Eliminates flooding
  • Is classed as an emergency overflow for plumbing system
  • Easy installation method
  • 2 bar grill finish
  • 40mm wide trough
  • 38mm threaded outlet
  • Finished grill can be stainless steel finish or powder coated to match floor colours
  • Custom design lengths and outlet positioning
Lifemark Product Partner
Lifemark Product Partner
NZ Made
NZ Made
Scope of Use

The JESANI Appliance Channel is suitable to contain accidental overflow from water using appliances:

  • Dishwashers
  • Washing Machines
  • Plumbed Fridges
  • Hot Water Cyclinders

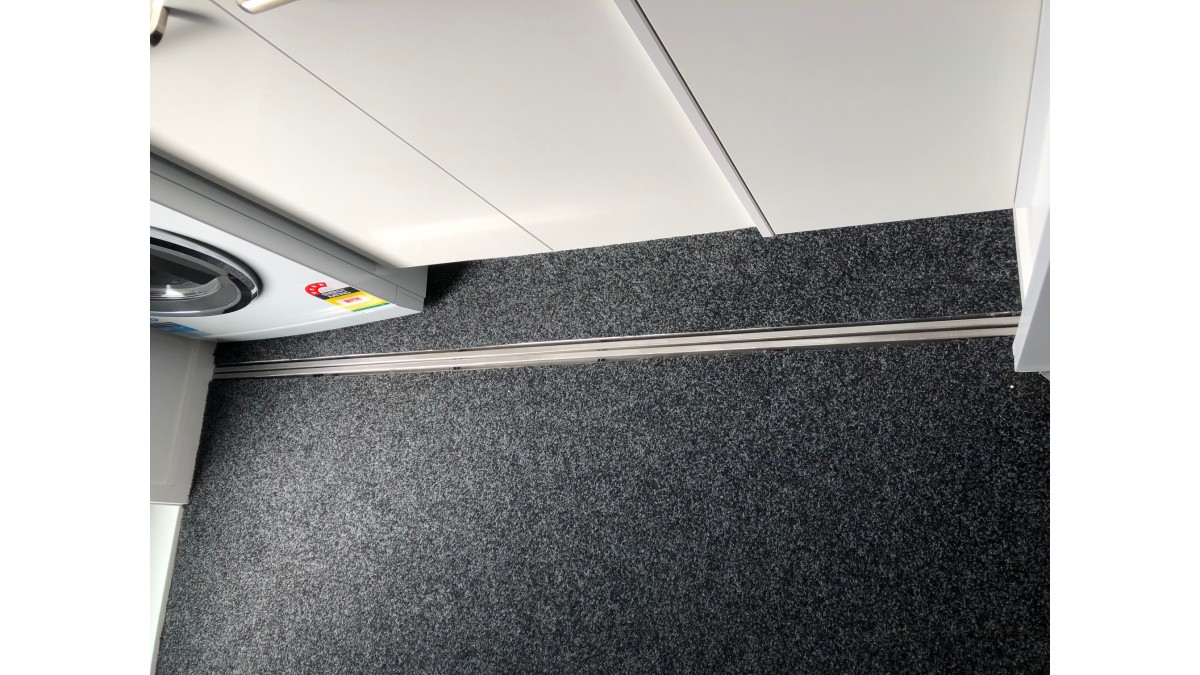

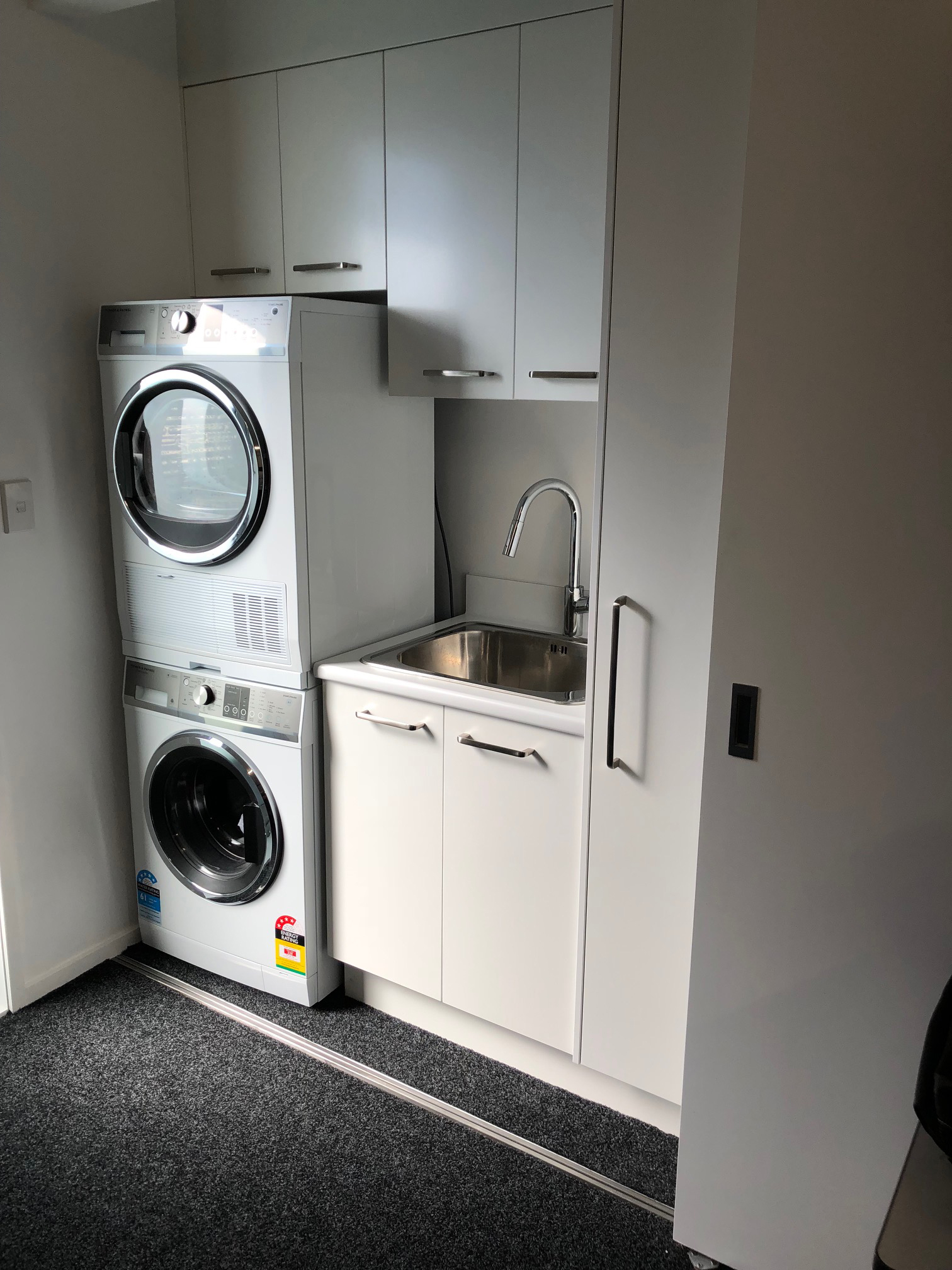

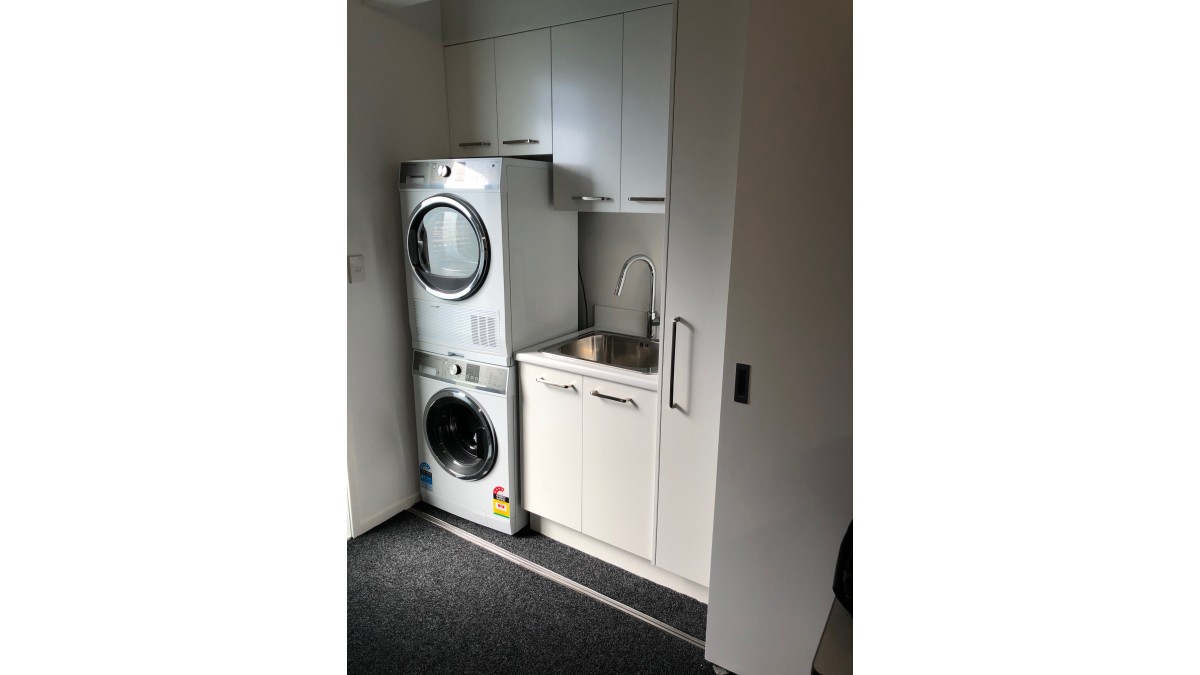

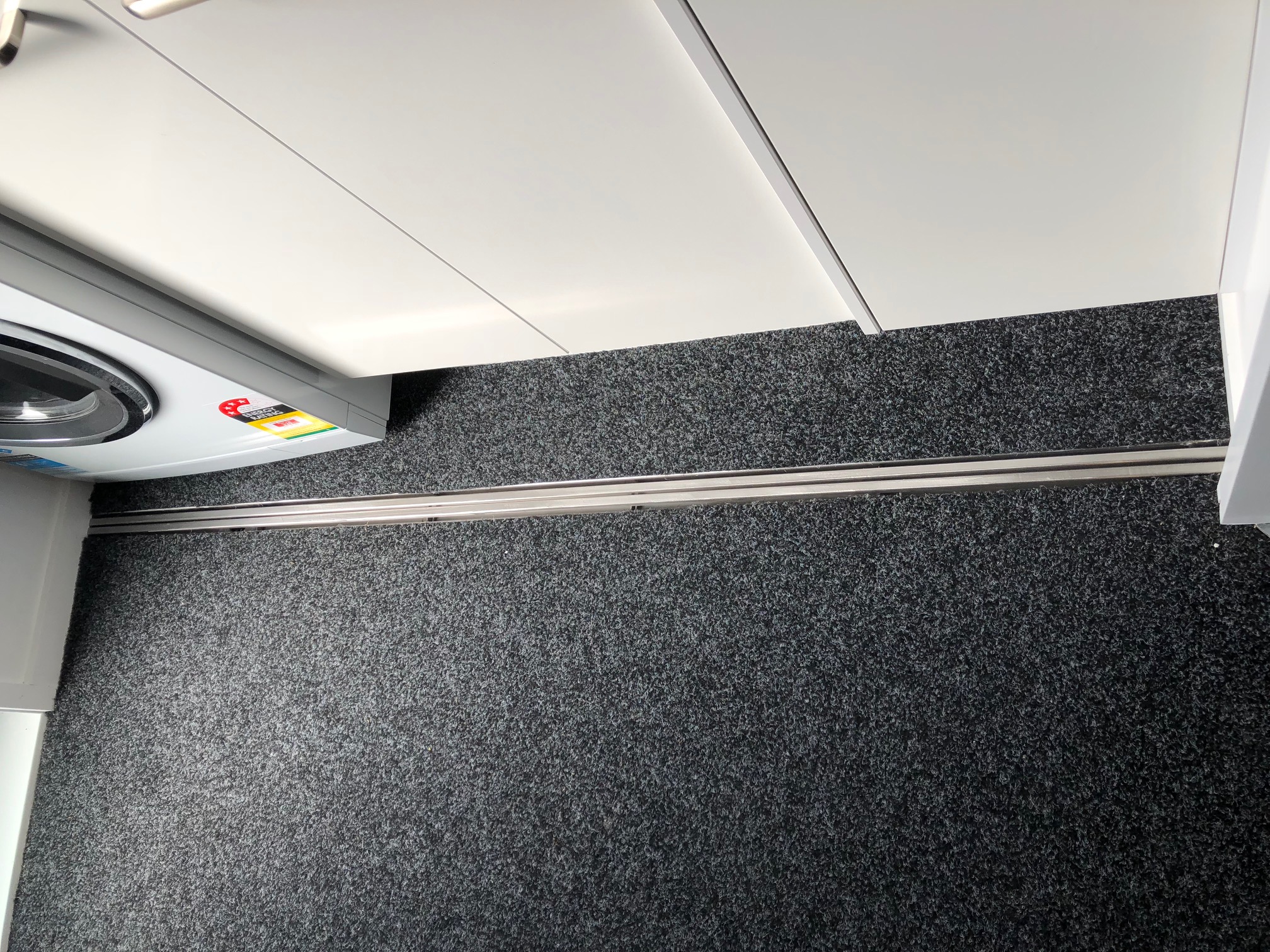

The channel can be installed at any located position to suit, either at the front or rear of the appliance.

This channel can be classified as an emergency overflow, which allows for an alternative option from the normal charged plumbing system.

See BRANZ Appraisal 934 for full information.

Limitations on Use
  • Designed for interior use only
Statement of Building Code Compliance

This product if designed, used, installed and maintained in accordance with the statements and conditions of the technical literature, will meet or contribute to meeting the following provisions of the NZBC:

  • Clause B2 Durability: Performance B2.3.1 (b), 15 years and B2.3.2
  • Clause E3 Internal Moisture: Performance E3.3.2 and E3.3.6
  • Clause F2 Hazardous Building Materials: Performance F2.3.1
  • Clause G13 Foul Water: Performance G13.3.1 (a), G13.3.1 (b) and G13.3.1 (d)

See BRANZ Appraisal 934 for full information.

In-Service History
  • The Appliance Channel has been in use since 2016
Other Performance Attributes
  • BRANZ Appraisal #934
  • LIFEMARK product approved
  • Grade 304, 1.5mm thick stainless steel (Grade 316 if requested/required)

Durability

The serviceable life of JESANI Shower and Door Channels, when subjected to normal conditions of environment and use, is expected to be compatible with the waterproofing membrane and floor finishes to which they are fitted.

Maintenance

Cleaning care of the stainless steel channel:

  • Avoid carbon steel brushes or steel wool and abrasive detergents; the brushes and wool may leave particles embedded on the surface which can lead to rusting, and abrasive cleaners could introduce the possibility of scratching the surface
  • Clean warm water and wipe are the simplest and safest method, followed by a clean water rinse and dry wipe. Stainless steels thrive with frequent cleaning
  • Periodically allow a cup of clean water to flow down the drain to keep it clear of dust/lint buildup
BRANZ Appraised
BRANZ Appraised
E3 Internal Moisture compliant
Internal Moisture
G13 Foul Water compliant
Foul Water
Documents
BRANZ Appraisal 934

934 [2021]

Installation and Operation
Video Demonstrations

JESANI deliver New Zealand made custom made linear shower and door channels for residential and commercial use

Product Enquiries

News from JESANI

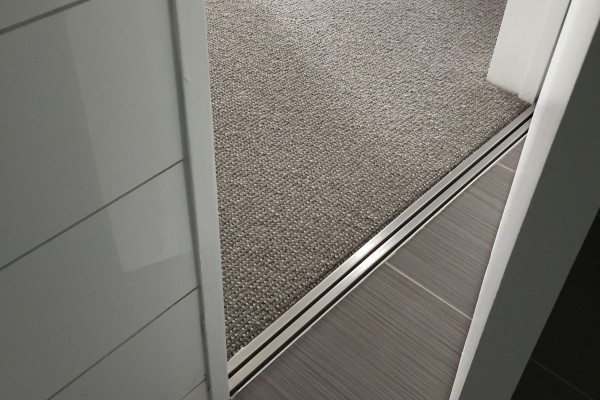

Innovative Flood Prevention with the Jesani Door Channel
