HomeRAB Pre-Cladding
Description

HomeRAB Pre-Cladding is a cost-effective robust rigid air barrier offering resistance to gusting winds to reduce draught and keep homes warm creating comfort inside. Each panel is engineered with a green water repellent sealer to keep moisture out, ensuring the panel remains dry.

The structural stability of fibre cement creates the strength and protection needed for meeting the bracing requirements of Very High wind zones, making it the perfect solution for residential buildings. James Hardie guarantee superior performance and peace of mind.

Rigid air barriers by James Hardie work by equalising the air pressure within the external wall cavity, making the building airtight providing superior weather-tightness, structural bracing and fire protection, whereas traditional flexible wall underlay can struggle to perform in these conditions.

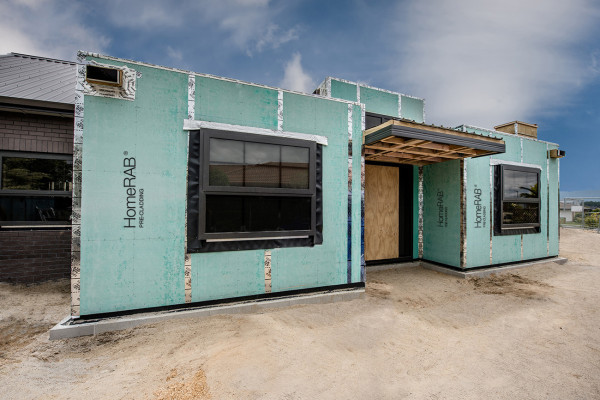

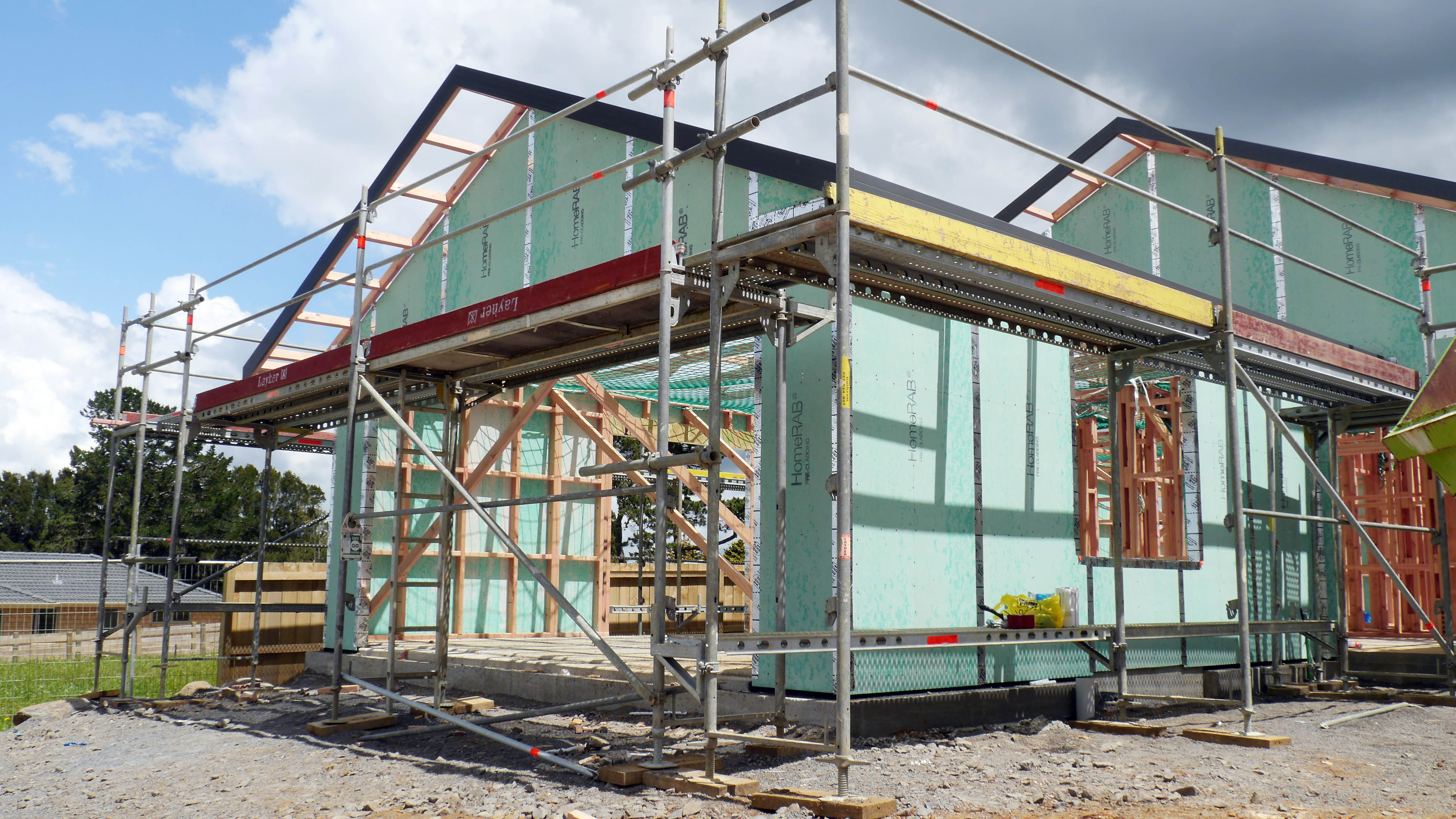

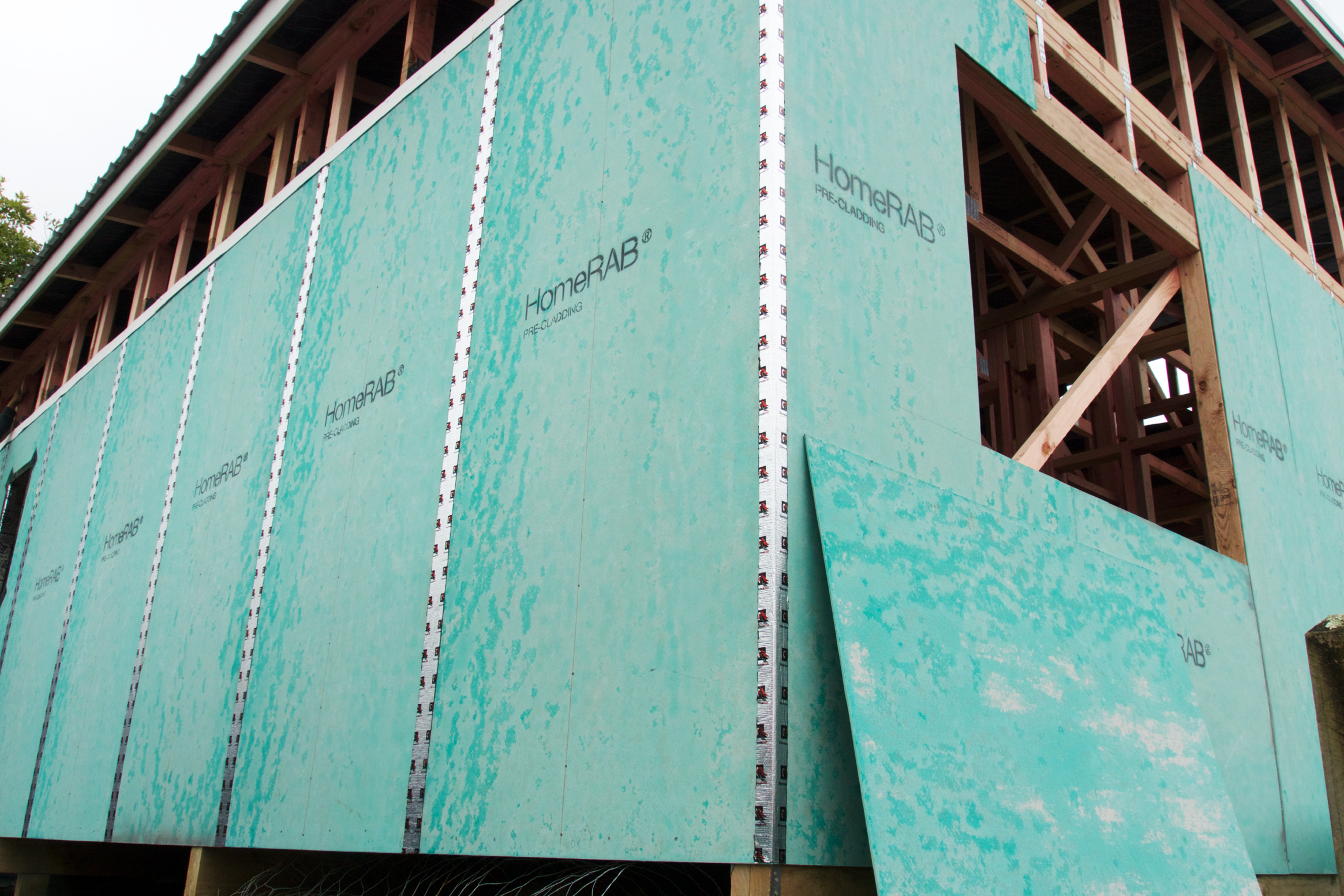

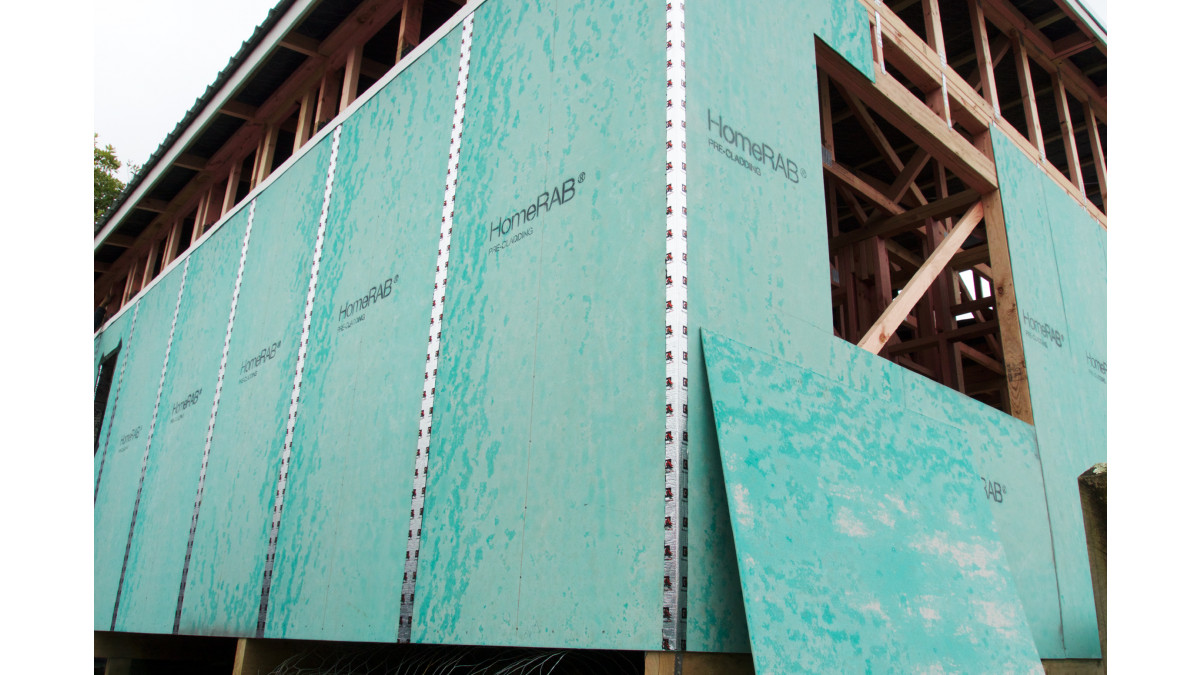

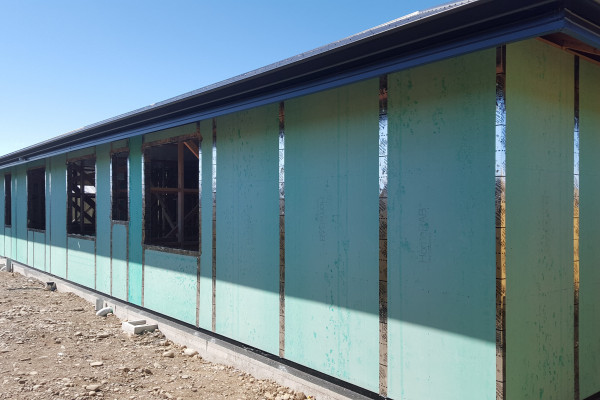

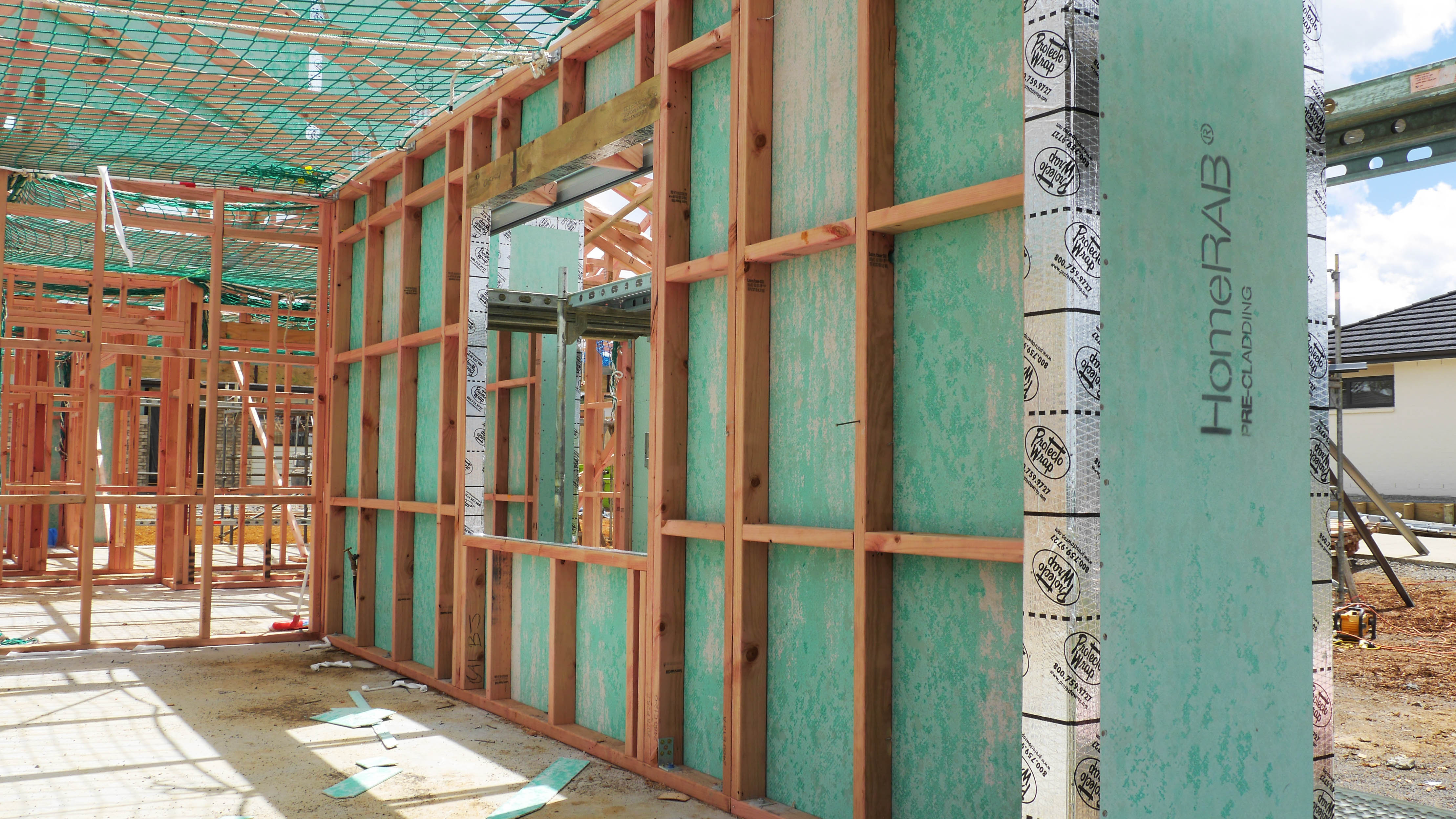

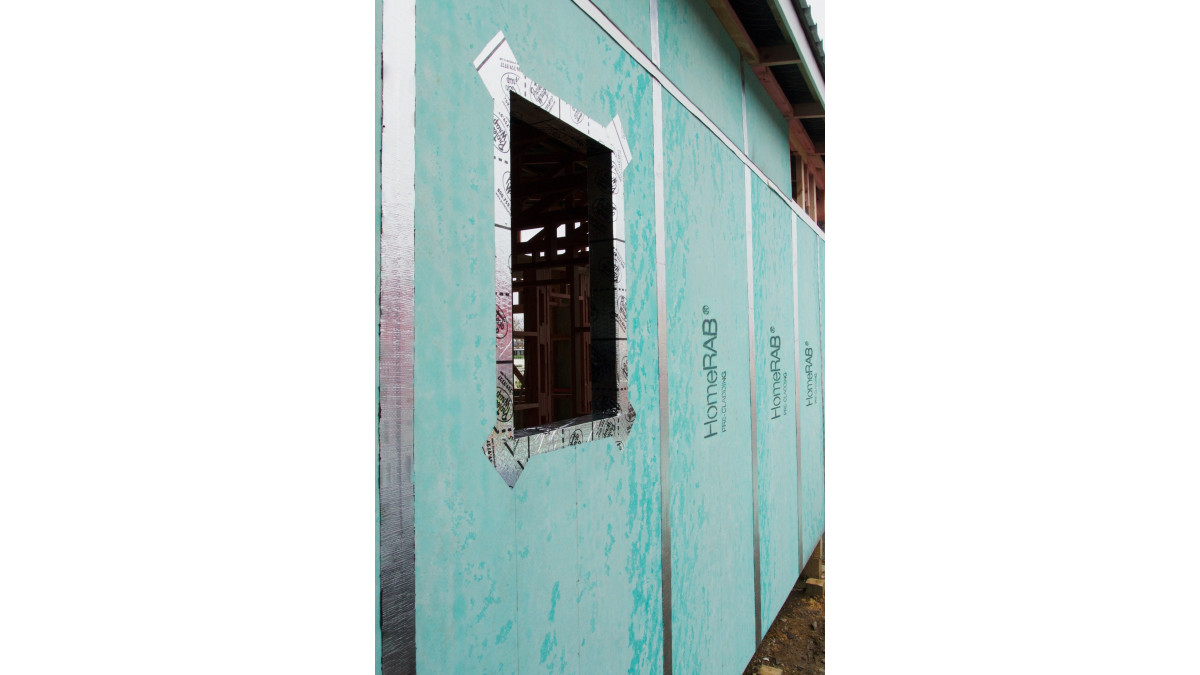

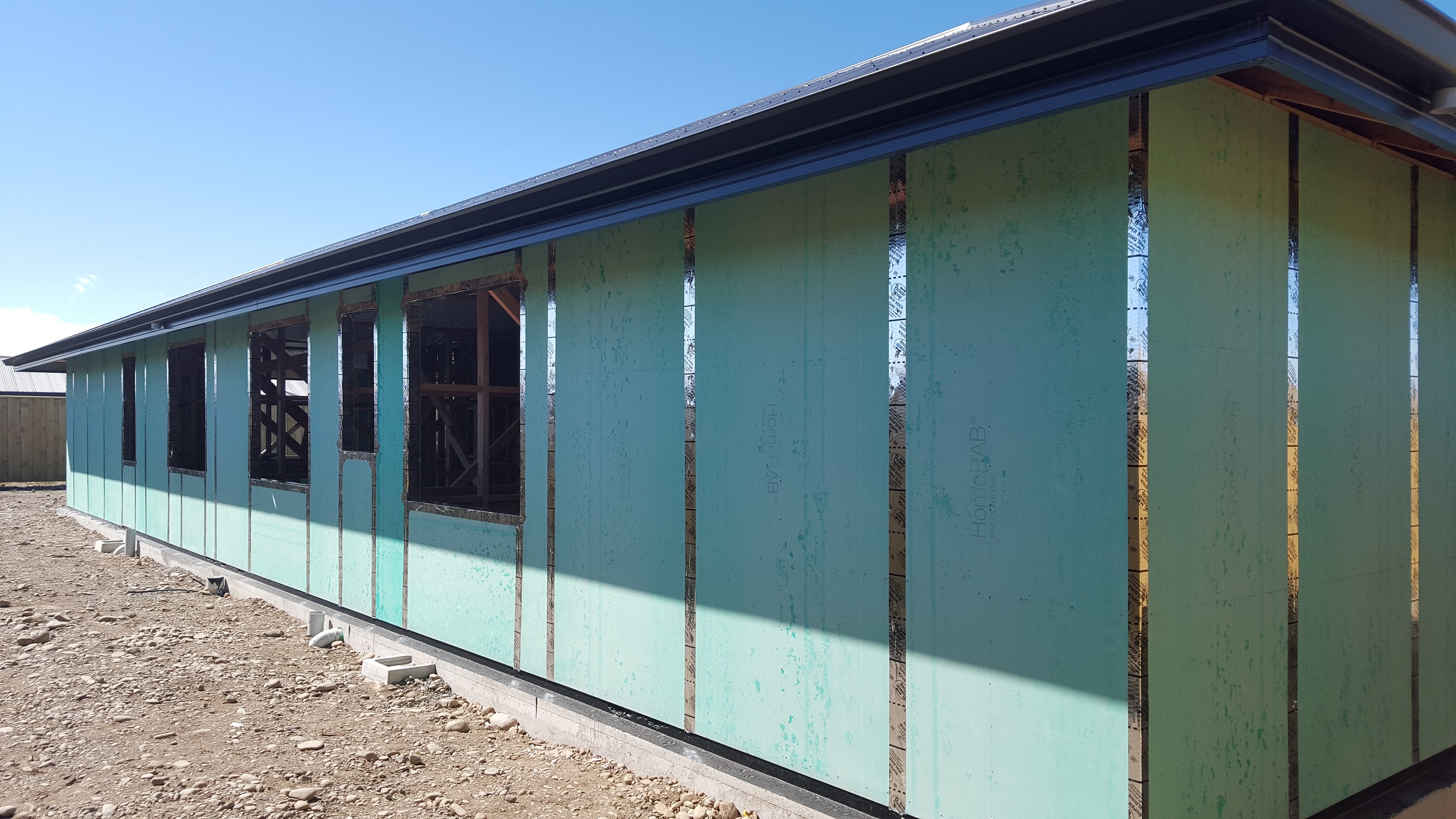

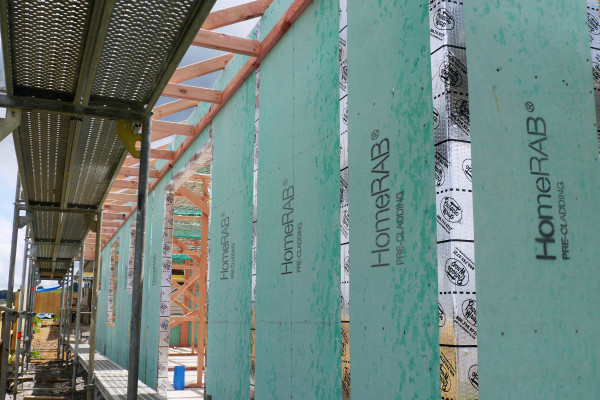

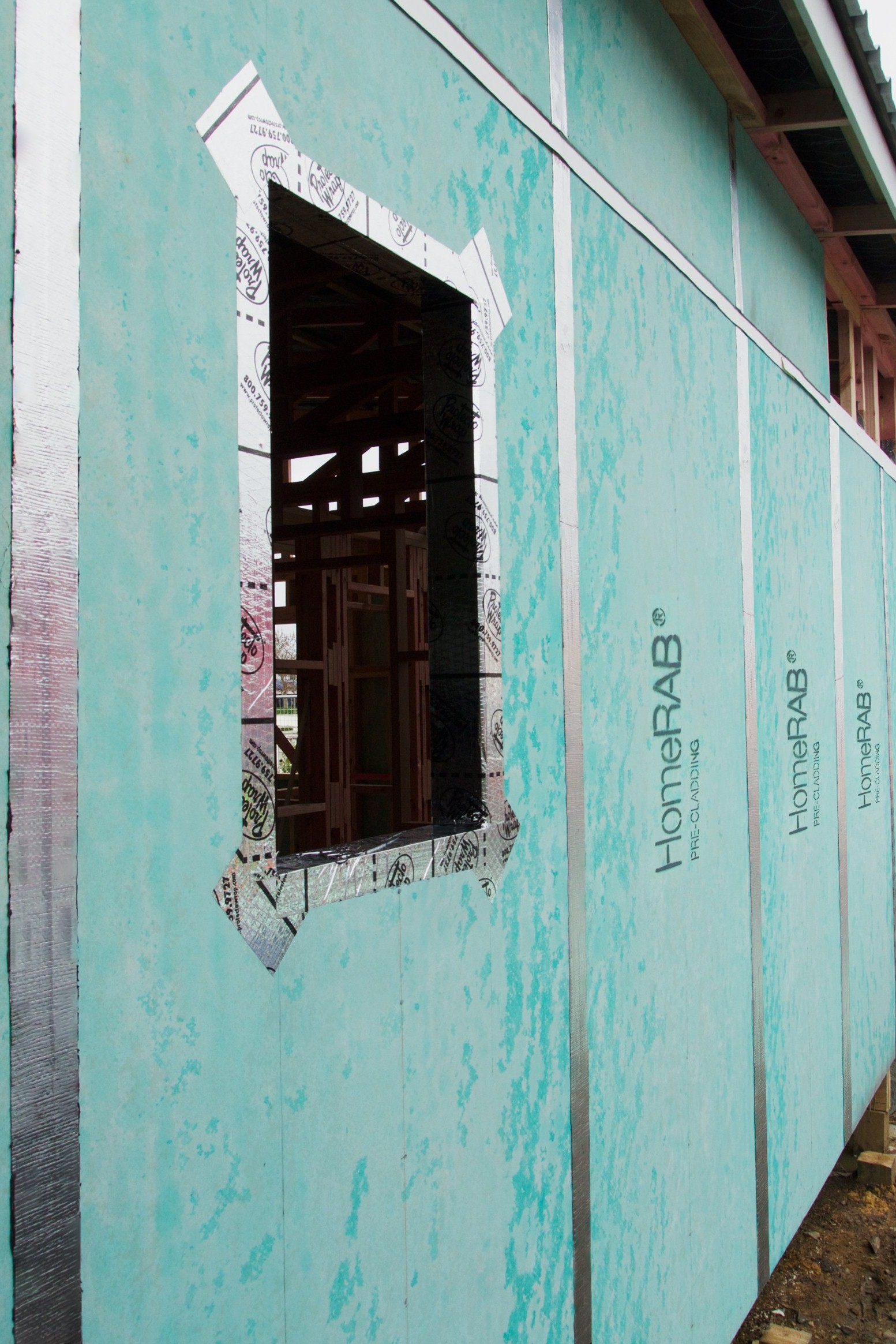

HomeRAB Pre-Cladding is suitable for the exterior of almost all residential buildings including those in Very High wind zones. It is fixed directly to the framing and then vertical joints are sealed over the face.

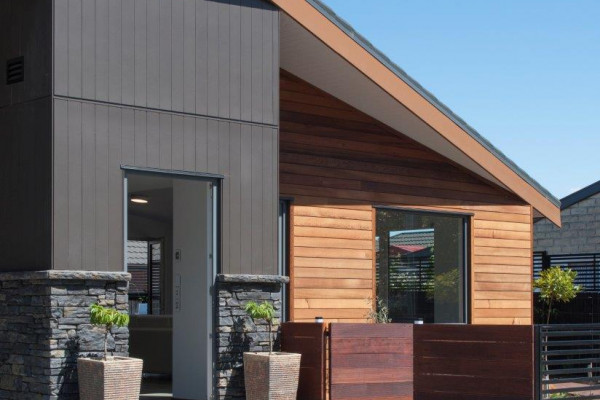

HomeRAB Pre-Cladding is suitable for use behind all James Hardie claddings or alternative claddings such as brick, timber weatherboard and more.

Product Profile:

  • 4.5 mm thick
  • 1200 mm wide
  • 2450, 2750 or 3000mm long
Key Features
  • Reduced construction time with early building lock up
  • Fewer BCA inspections — when Preclad and Preline inspections are combined
  • Reduction in other bracing materials required
  • Improved fire and thermal resistance
  • Improved acoustic performance
  • BRANZ appraised
  • 15 year product warranty
NZ Made
NZ Made
Scope of Use
  • HomeRAB Pre-Cladding is suitable for the exterior of almost all residential buildings including those in Very High wind zones
  • It is fixed directly to the framing and then vertical joints are sealed over the face
  • HomeRAB Pre-Cladding is suitable for use behind all James Hardie claddings or alternative claddings such as brick, and timber weatherboard
NZS 3604 Corrosion Zone D suitable
Corrosion Exposure Zone D
NZS 3604 Earthquake Zone Very High suitable
Very High Earthquake Zone
Statement of Building Code Compliance

In the opinion of BRANZ, James Hardie Rigid Air Barriers, if used, designed, installed and maintained in accordance with the statements and conditions of this Appraisal, will meet, or contribute to meeting the following provisions of the NZBC:

  • Clause B1 STRUCTURE: Performance B1.3.1, B1.3.2 and B1.3.4. James Hardie Rigid Air Barriers meet the requirements for loads arising from earthquake and wind [i.e. B1.3.3 (f) and (h)].
  • Clause B2 DURABILITY: Performance B2.3.1(a), not less than 50 years, B2.3.1(b), 15 years and B2.3.2. James Hardie Rigid Air Barriers meet these requirements.
  • Clause E2 EXTERNAL MOISTURE: Performance E2.3.2. When used as part of the cladding system, James Hardie Rigid Air Barriers will contribute to meeting this requirement.
  • Clause F2 HAZARDOUS BUILDING MATERIALS: Performance F2.3.1. James Hardie Rigid Air Barriers meet this requirement and will not present a health hazard to people.

RAB Board is an Acceptable Solution rigid wall underlay material in terms of compliance with NZBC Acceptable Solution E2/AS1, Table 23.

This is an Appraisal of an Alternative Solution in terms of rigid wall underlay material for HomeRAB Pre-Cladding and an Alternative Solution installation method for both products in terms of the New Zealand Building Code compliance.

Other Performance Attributes
  • Improved fire and thermal resistance
  • Improved acoustic performance
  • BRANZ appraised
  • 15 year product warranty
B1 Structure compliant
Structure
B2 Durability compliant
Durability
E2 External Moisture compliant
External Moisture
F2 Hazardous Building Materials compliant
Hazardous Building Materials
H1 Energy Efficiency compliant
Energy Efficiency
BRANZ Appraised
BRANZ Appraised
Documents
CAD/PDF
Product Technical Statement
Independent Appraisal (BRANZ)
Brochure
Technical Manual
Technical Literature on Supplier Website
