ExoTec Facade Panel
James Hardie
All products

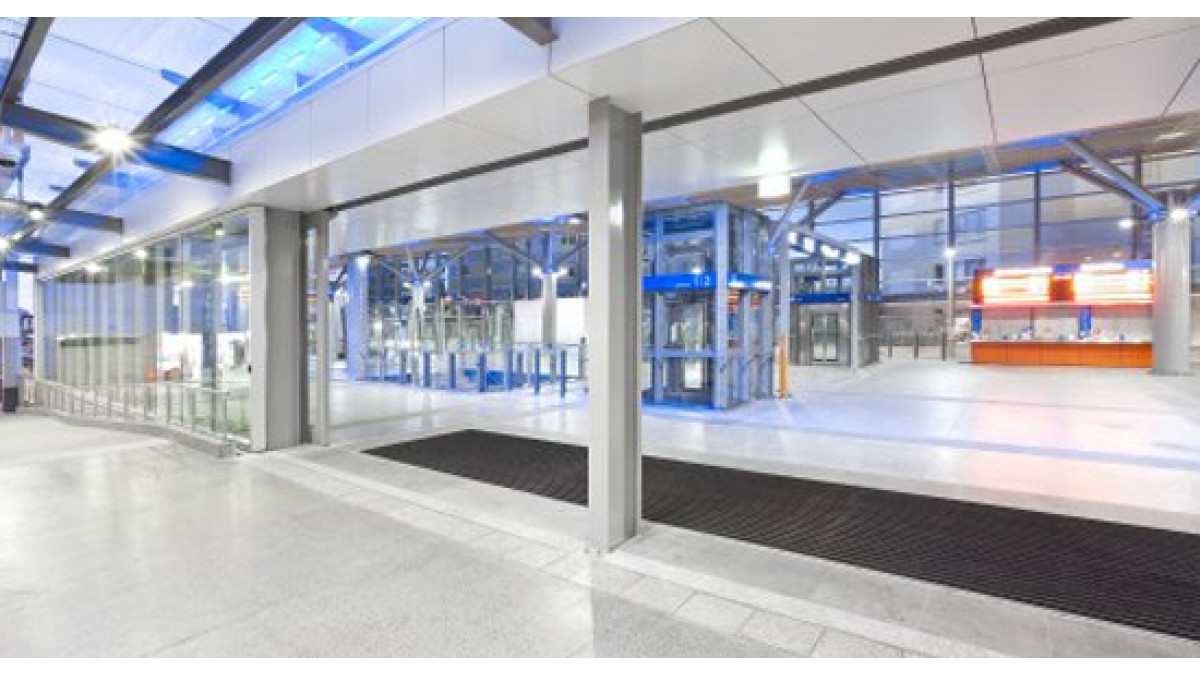

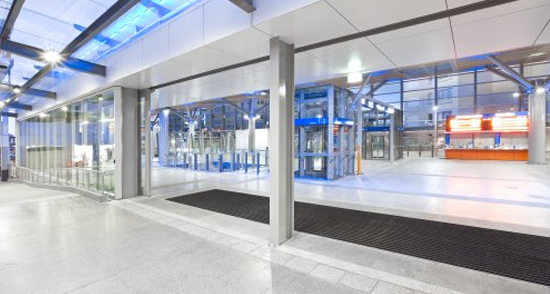

ExoTec Facade Panel3

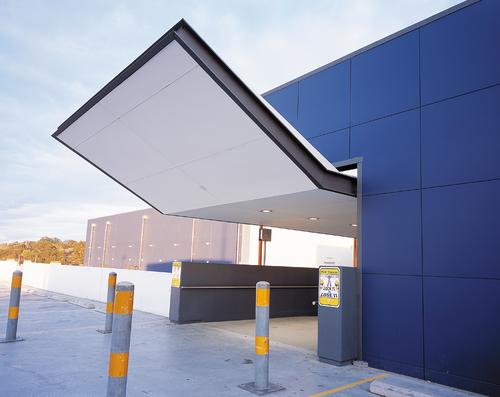

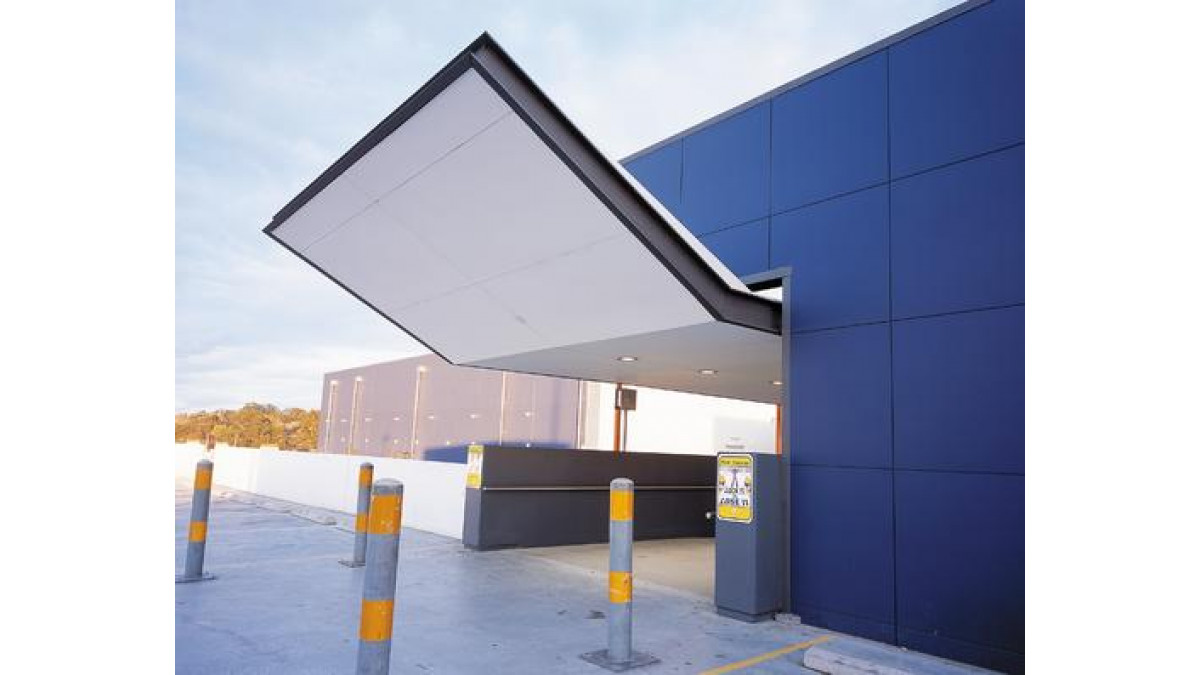

Exotec 1

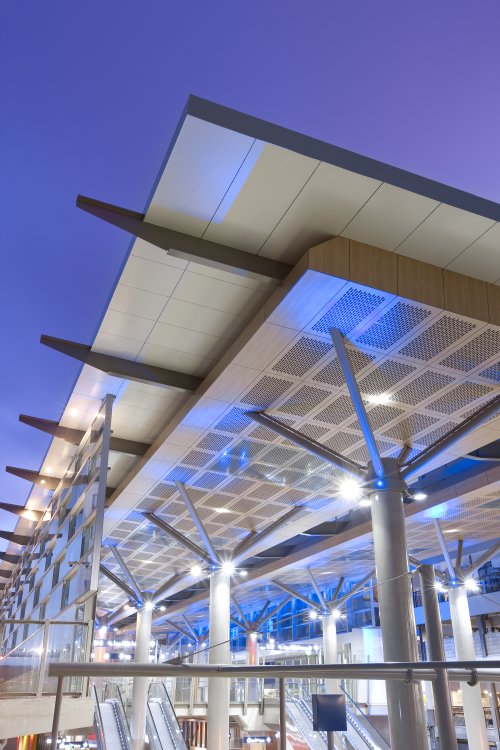

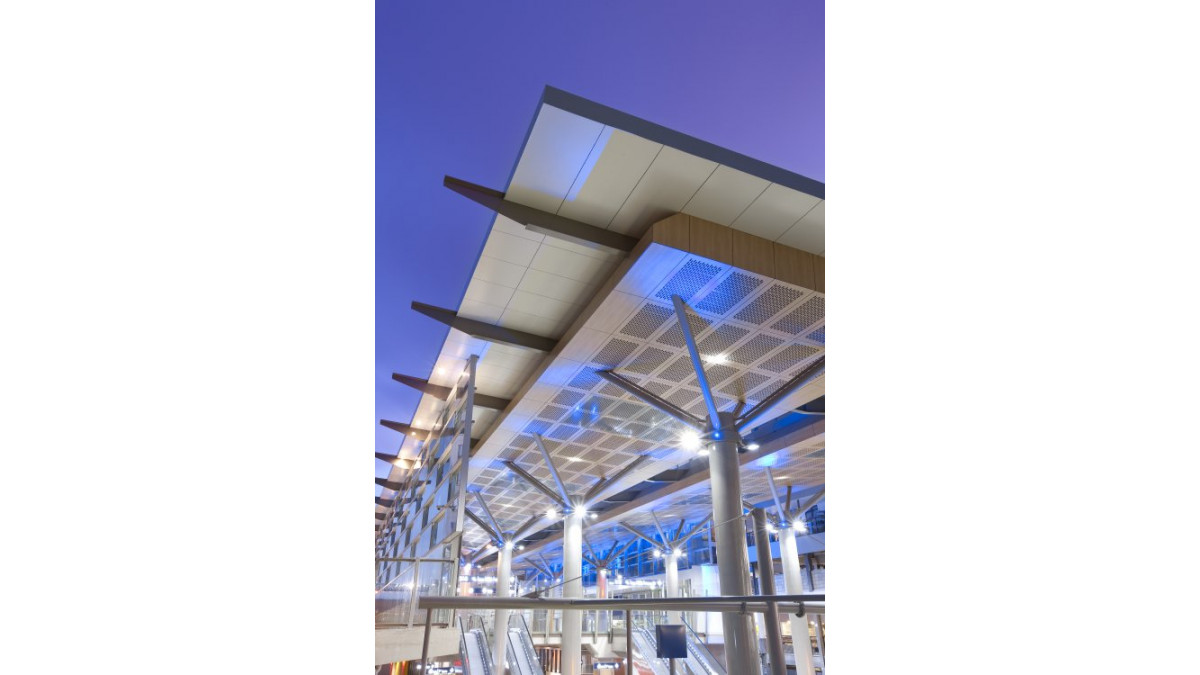

Exotec 6

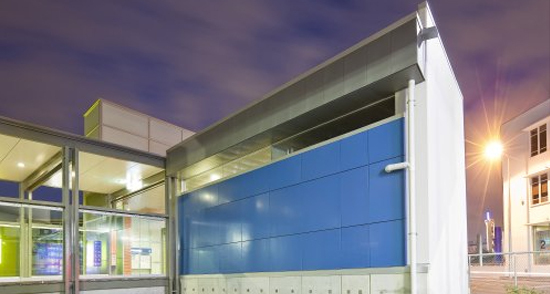

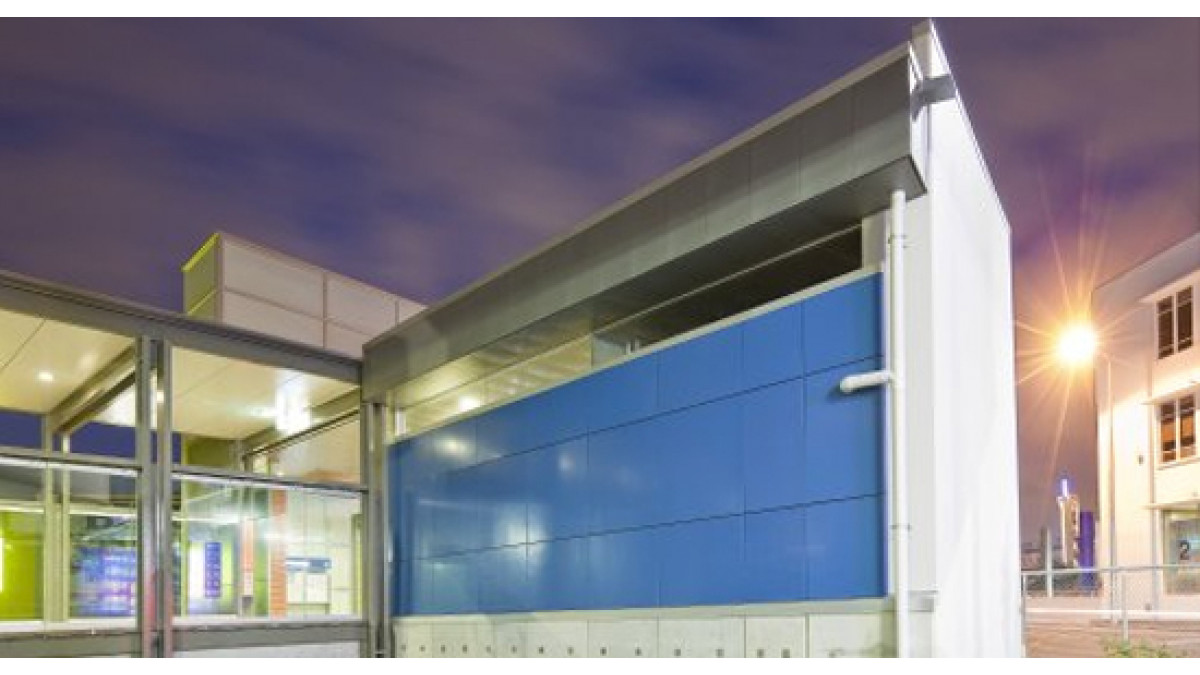

ExoTec Facade Panel5

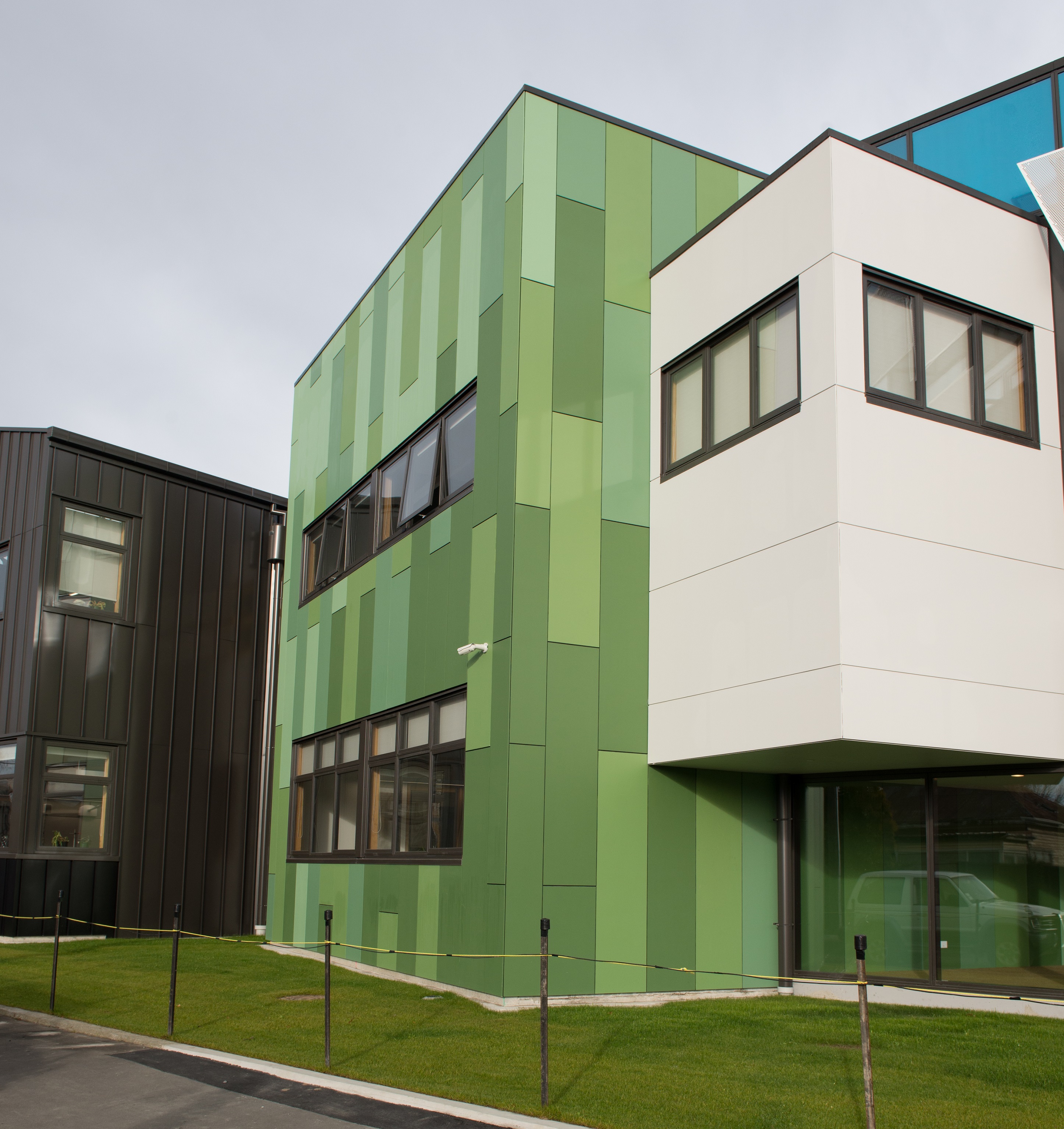

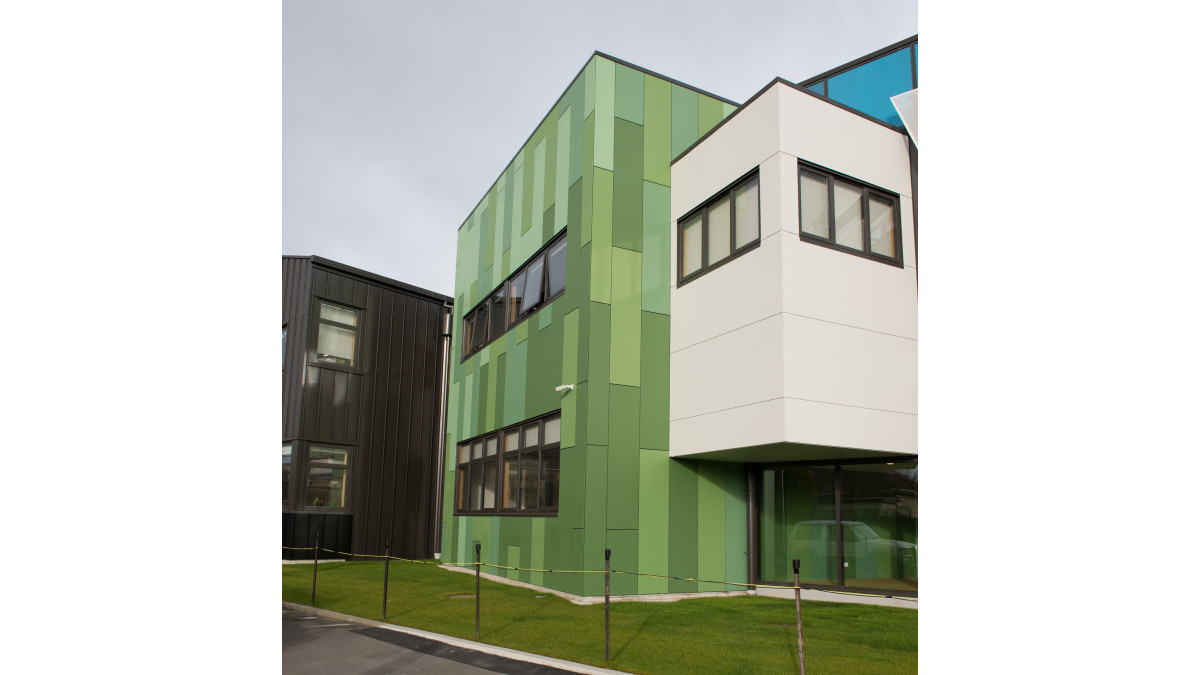

H 3078

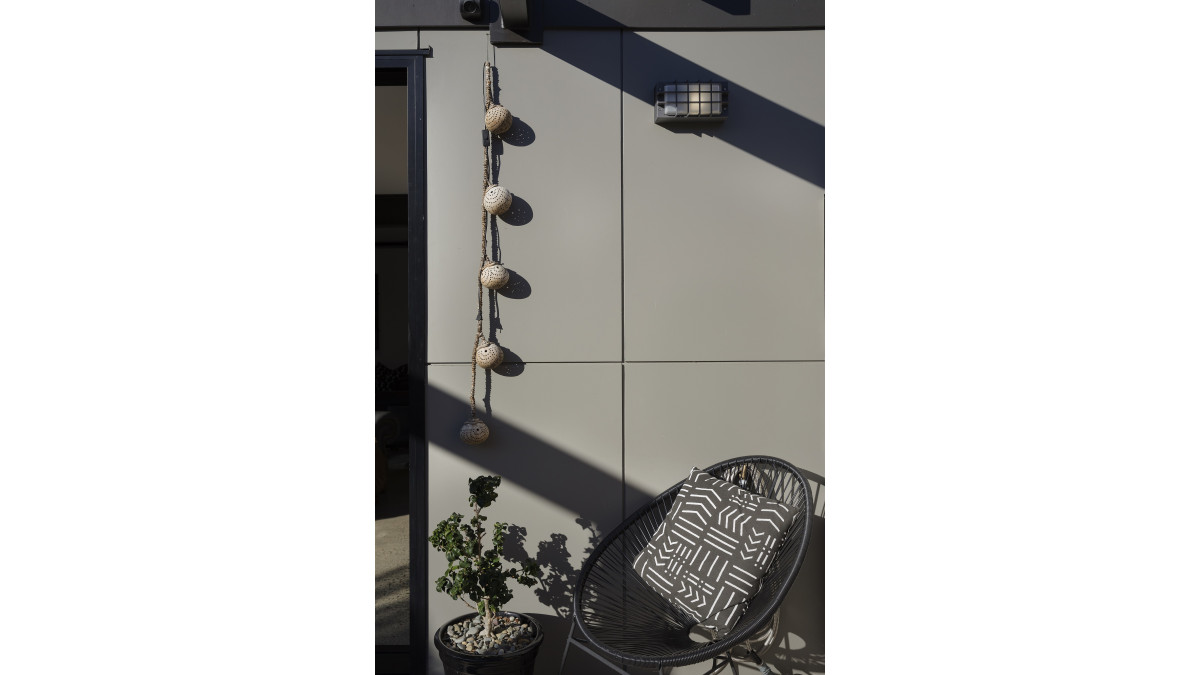

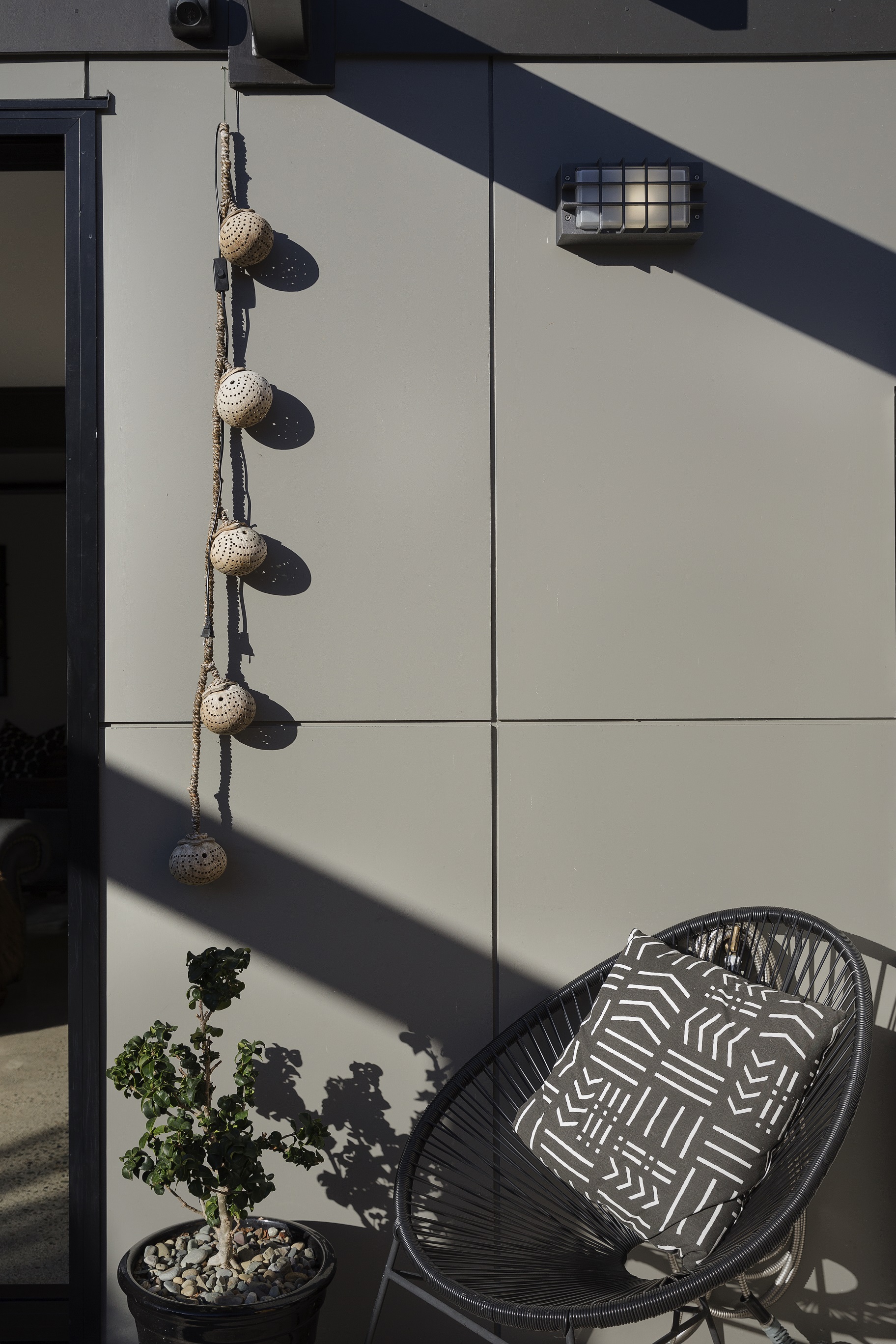

MG 5444sml

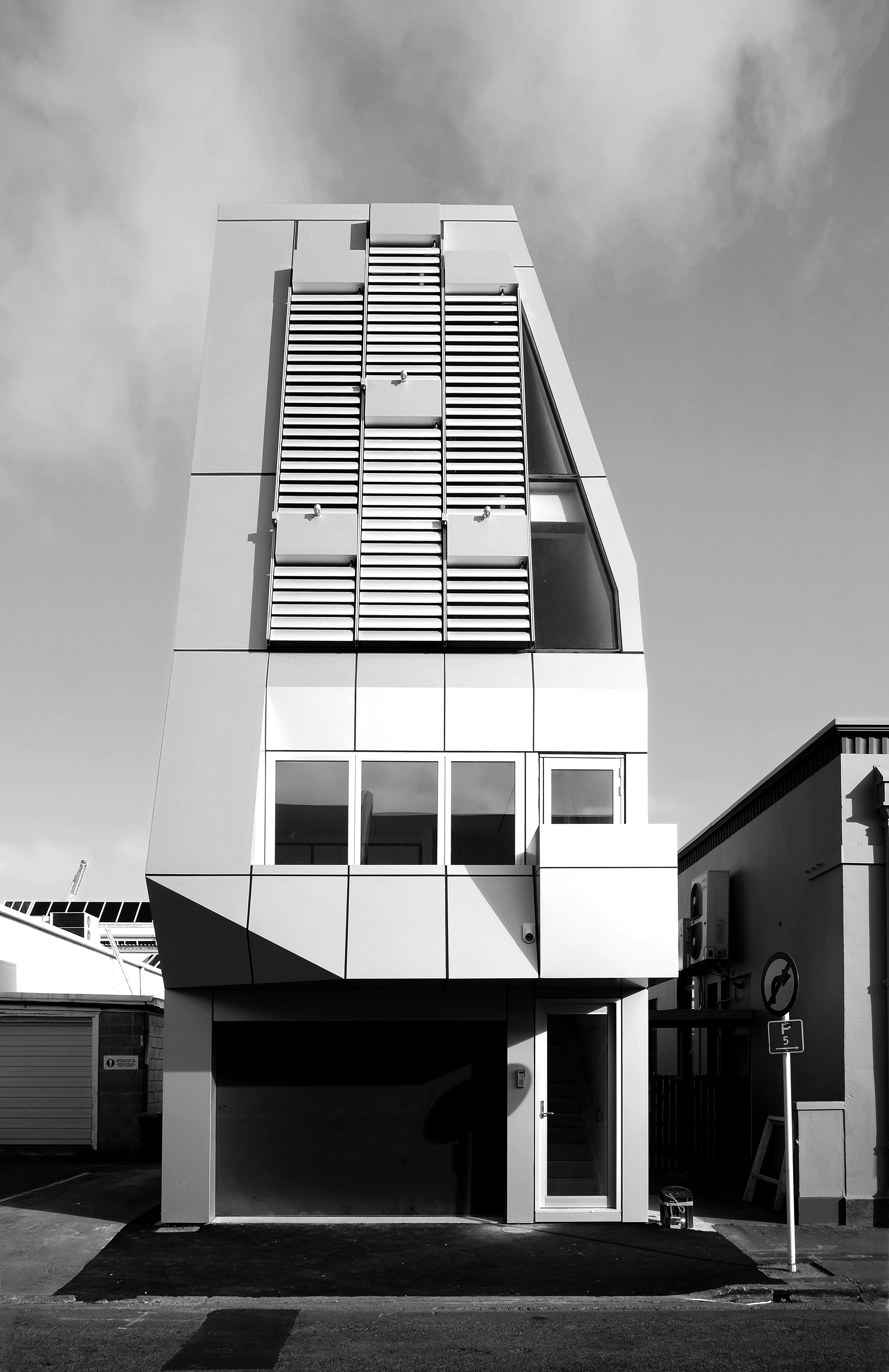

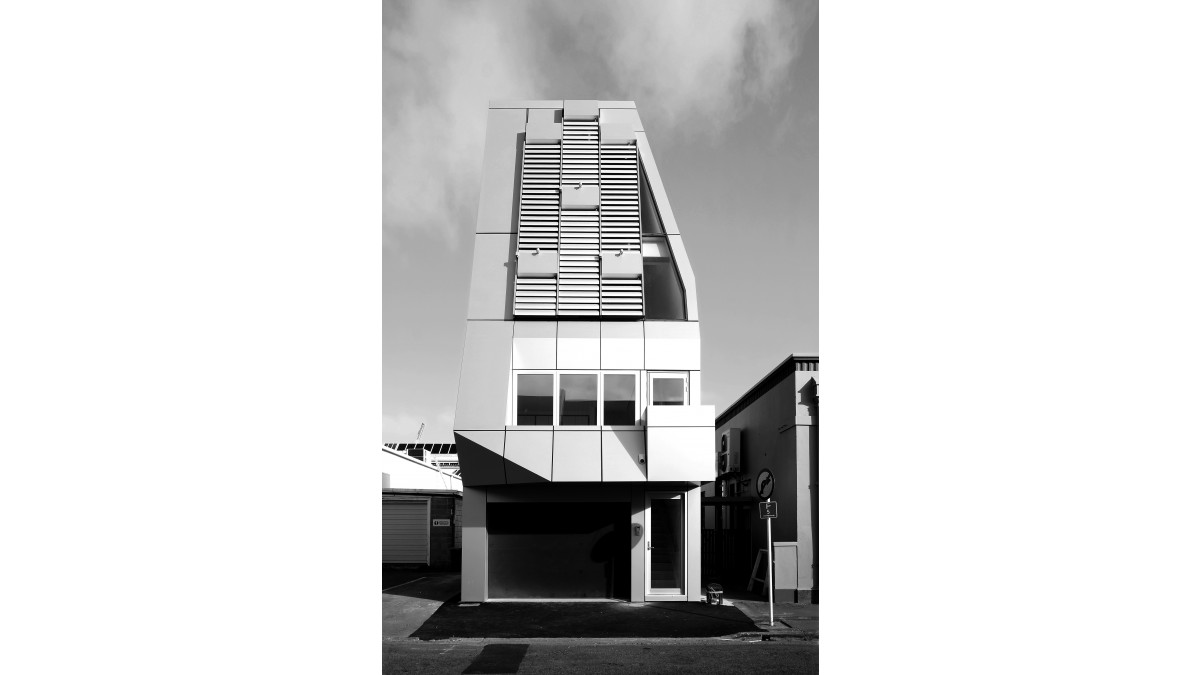

16121149 EFP

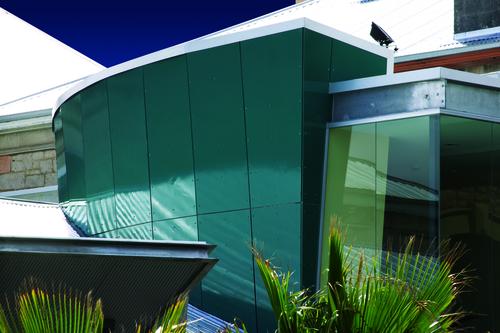

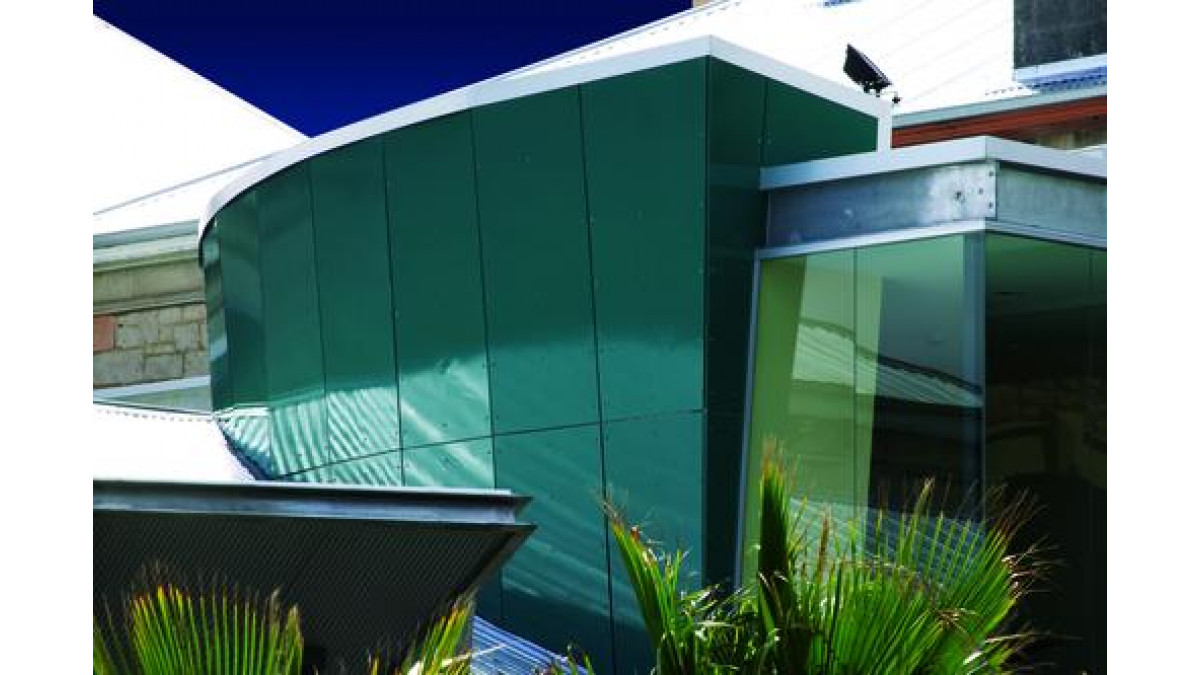

Exotec 4

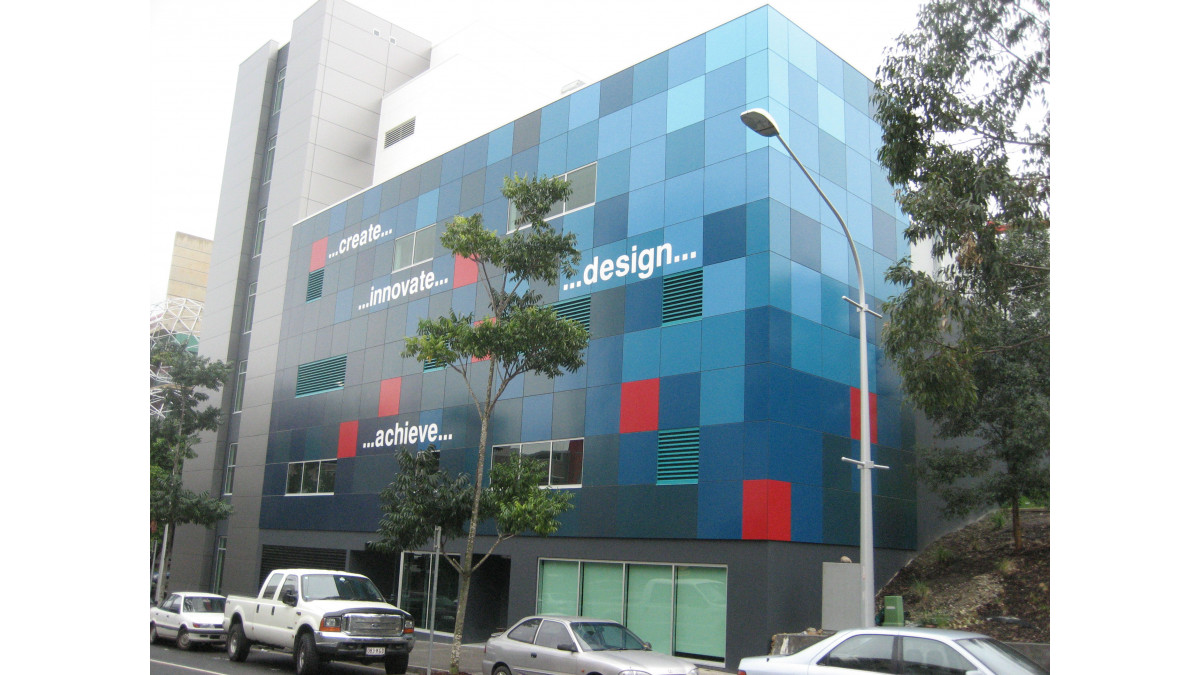

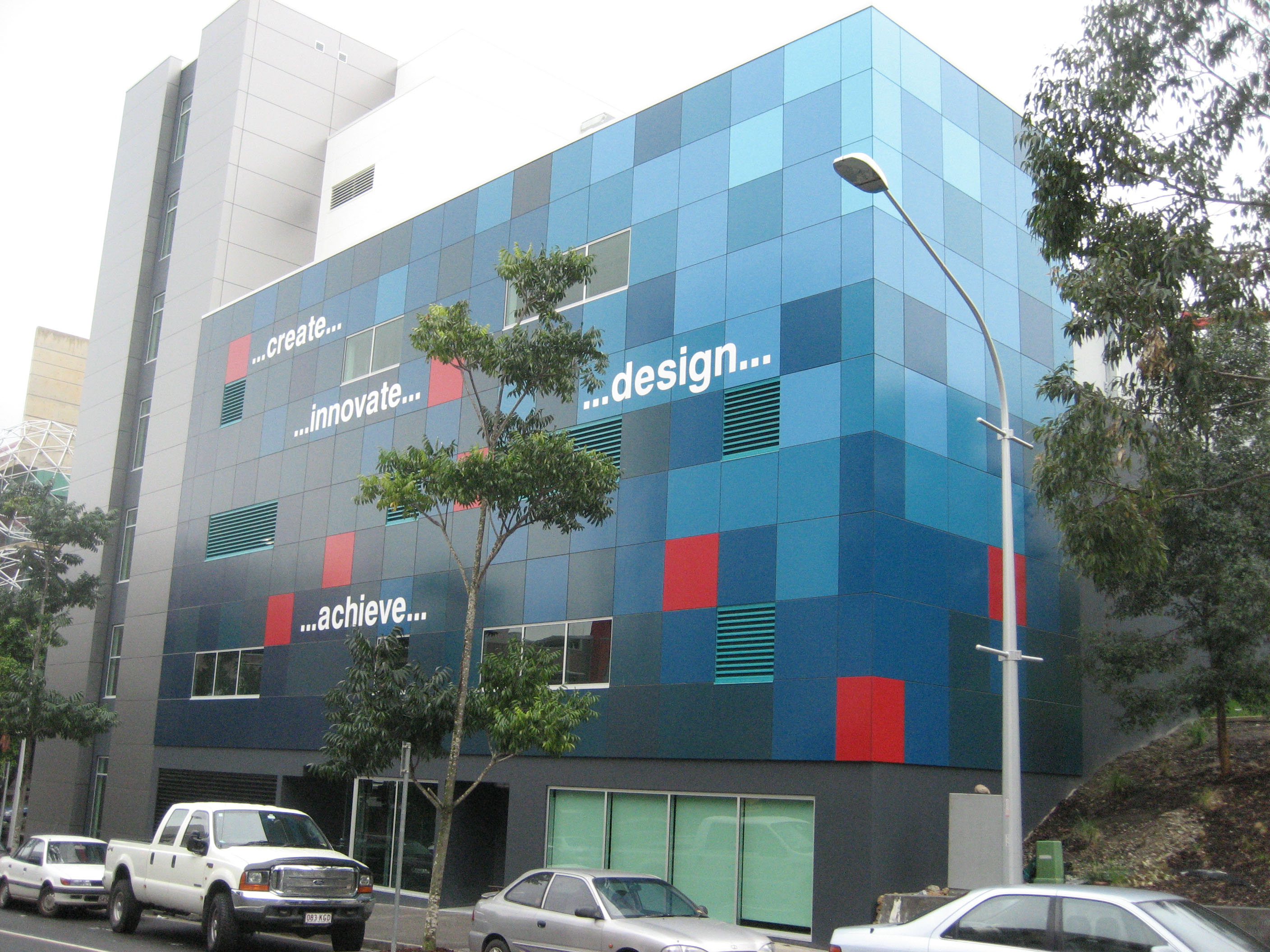

16012811 EFP
Description

ExoTec™ Facade Panels provide a durable, expressed joint panel appearance for building facades, fascias and spandrels.

Suitable for use on high rise buildings exposed to extreme wind pressure and other weather elements. Made from high-density fibre cement, it can be used for commercial and residential properties anywhere in New Zealand.

Product Profile:

  • 9mm thick
  • 2400mm, 3000mm long
  • 1200mm wide
Key Features
  • Engineered to stand up to harsh conditions, including coastal conditions
  • High-density fibre cement 1552 kg/m3
  • Offers expressed joint features
  • ExoTec Facade Panels accept a variety of surface finishes
  • Cost effective and long-lasting
  • Resistant to fire, rot resistant and resistant to moisture damage
  • Up to 60 minute fire resistance rating (FRR) can be achieved when installed as per the James Hardie Fire and Acoustic Design Manual
  • When installed over ExoTec Top Hats it will withstand wind pressures up to 5kPa (ULS)
  • Classified as non-combustible material
  • Low maintenance
  • Quick installation using Top Hat sections
  • 15 year product warranty
Categories
Fibre Cement Cladding
Ranges
Exterior — Cladding
Scope of Use
  • Panel for building facades, fascias and spandrels
  • Commercial and residential properties
  • Suitable for use on high rise buildings exposed to extreme wind pressure and other weather elements
  • Engineered to stand up to harsh conditions, including coastal conditions
  • Up to 60 minute fire resistance rating when installed as per the James Hardie Fire and Acoustic Design Manual
  • Installed with ExoTec Top Hat system for greater stability and moisture management, up to wind pressure of 5kPa (ULS)
NZS 3604 Corrosion Zone C suitable
Corrosion Exposure Zone C
NZS 3604 Wind Zone Specific Design suitable
Specific Design Wind Zone
B1 Structure compliant
Structure
B2 Durability compliant
Durability
C Protection from Fire compliant
Protection from Fire
E2 External Moisture compliant
External Moisture
F2 Hazardous Building Materials compliant
Hazardous Building Materials
G6 Airborne and Impact Sound compliant
Airborne and Impact Sound
H1 Energy Efficiency compliant
Energy Efficiency
  • Case Studies
  • News
Documents
CAD/PDF
URL
Fire and Acoustic Design Manual

2022

URL
Product Technical Statement
URL
Warranty
URL
Technical Manual: Top Hat Rainscreen
URL
Technical Literature on Supplier Website
URL
