Multipurpose Partition System
Description

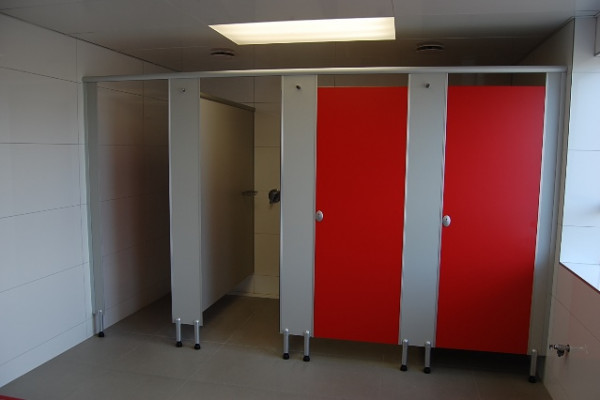

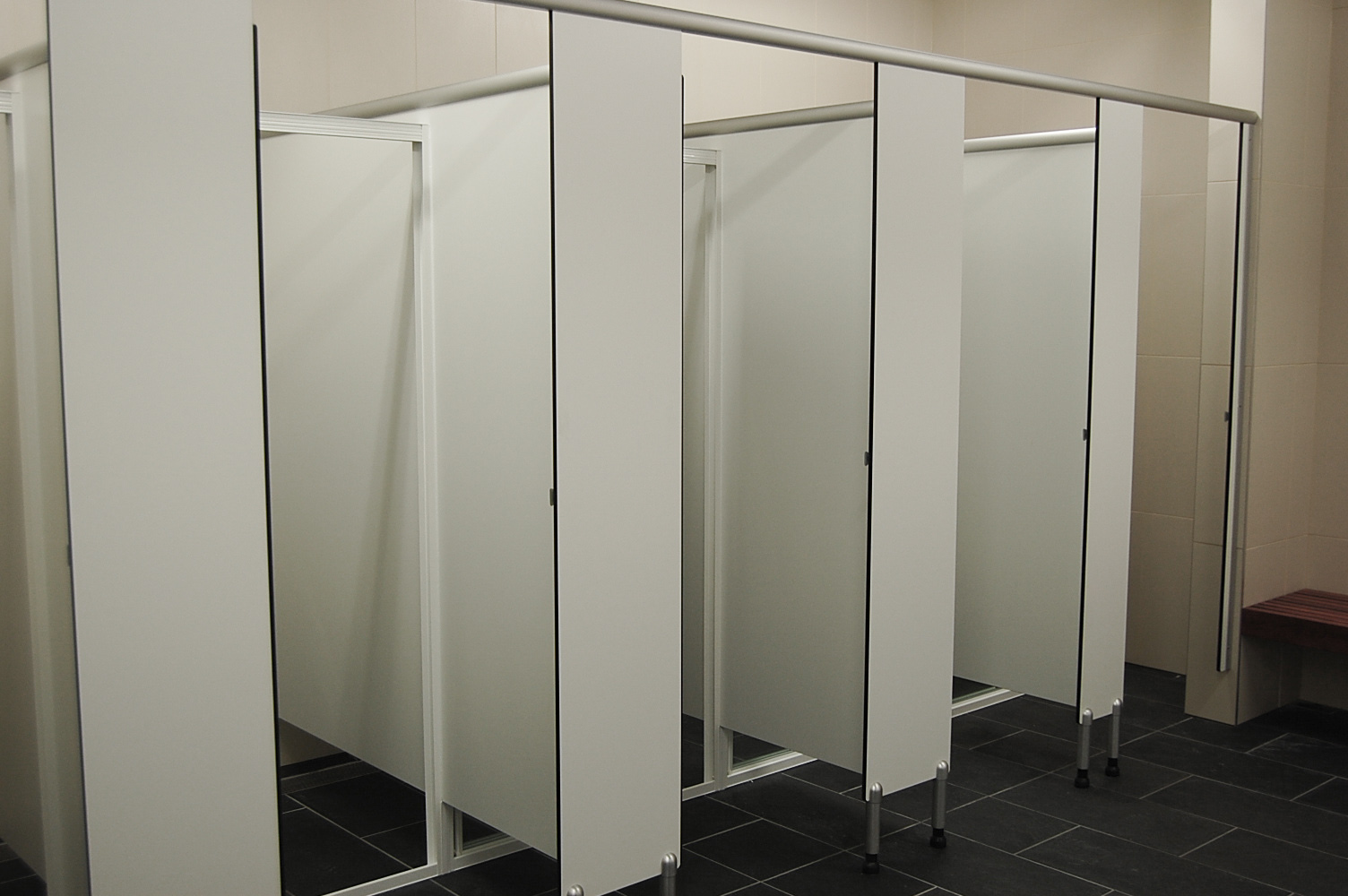

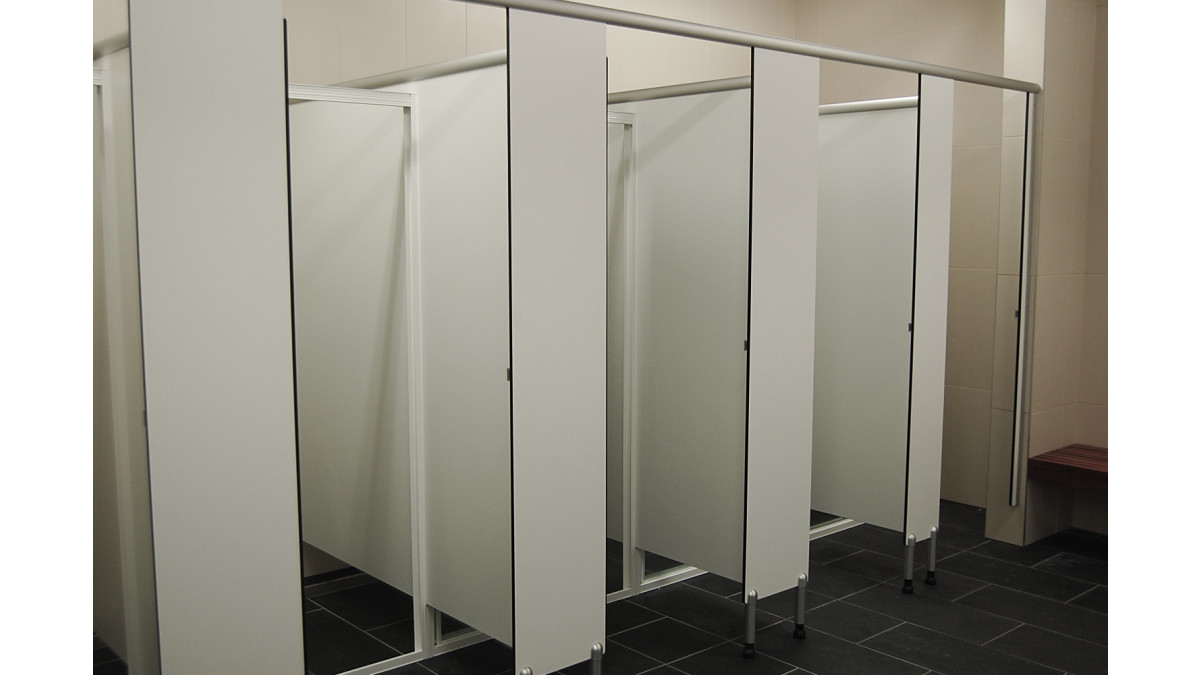

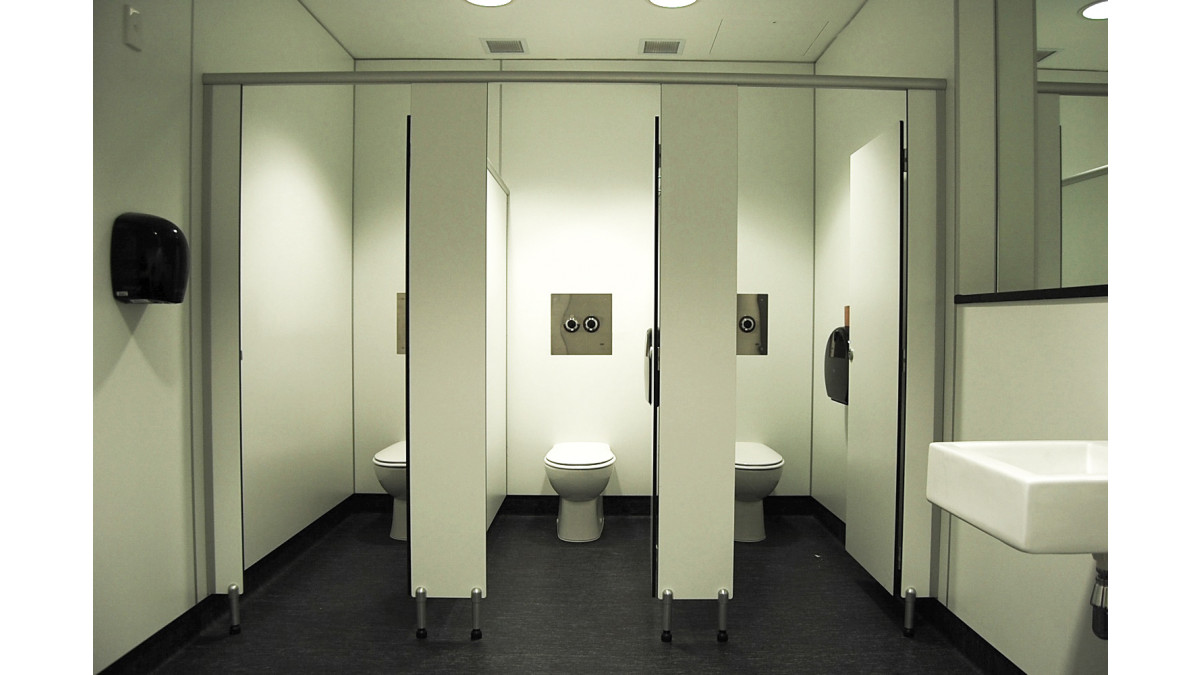

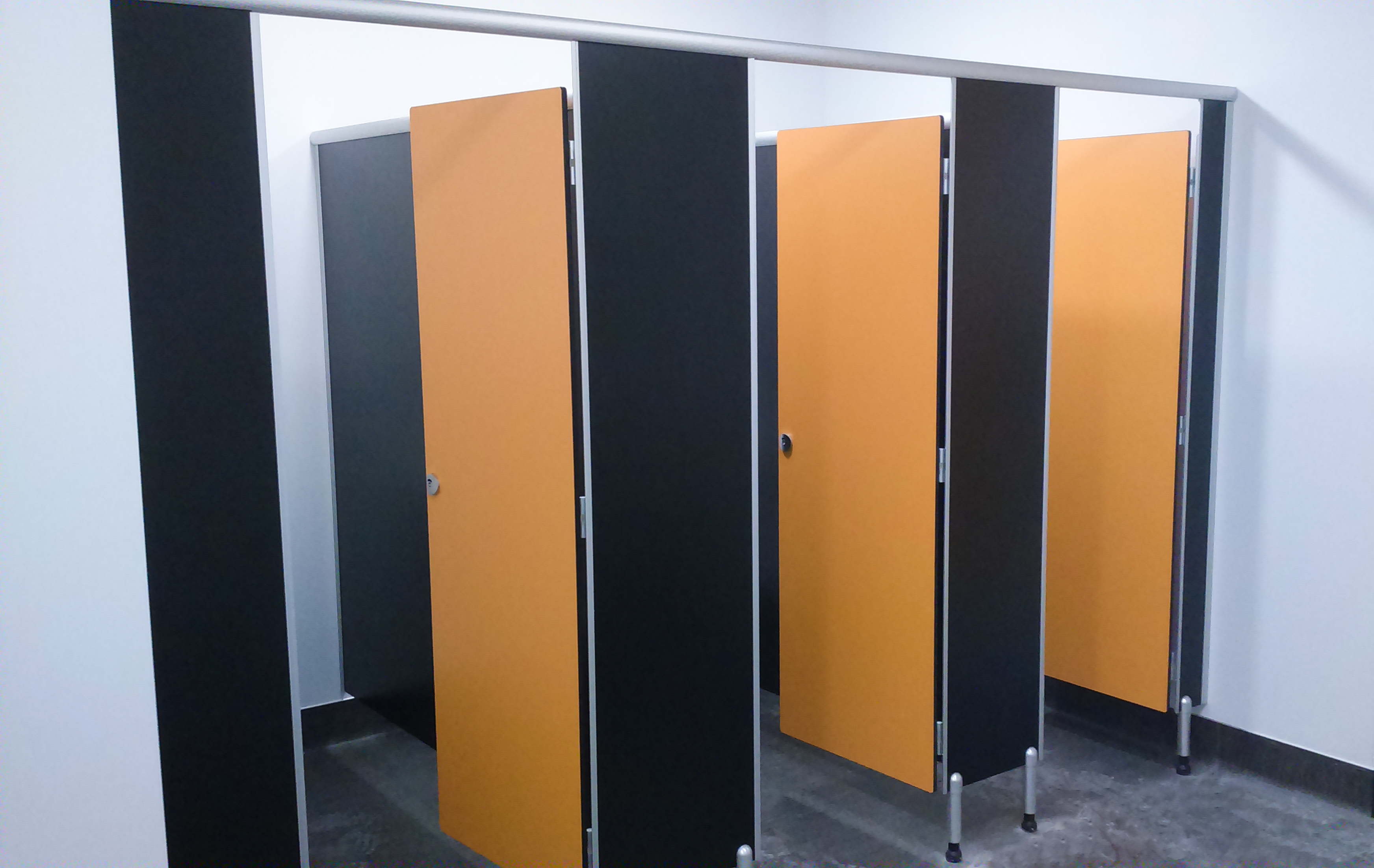

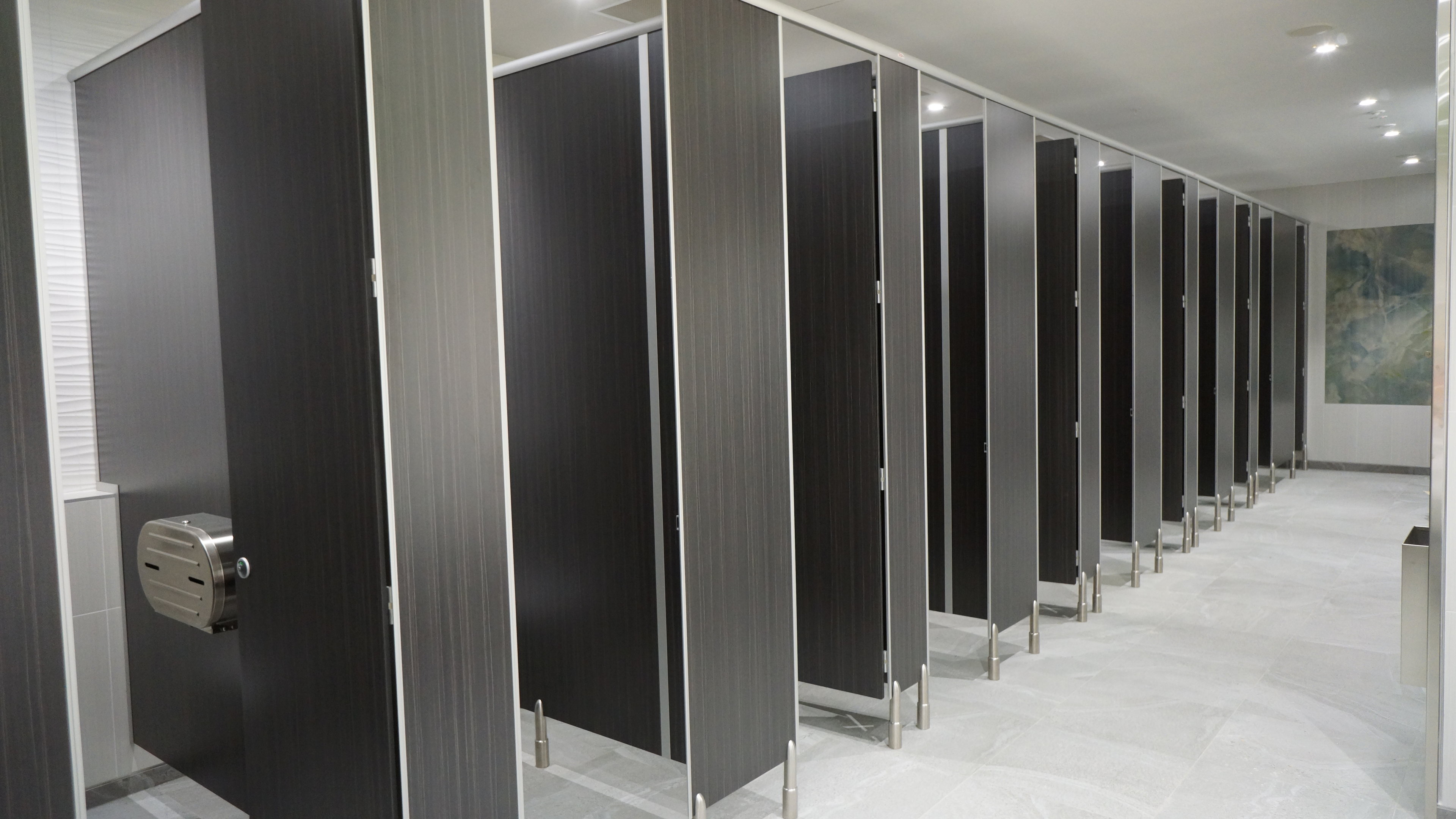

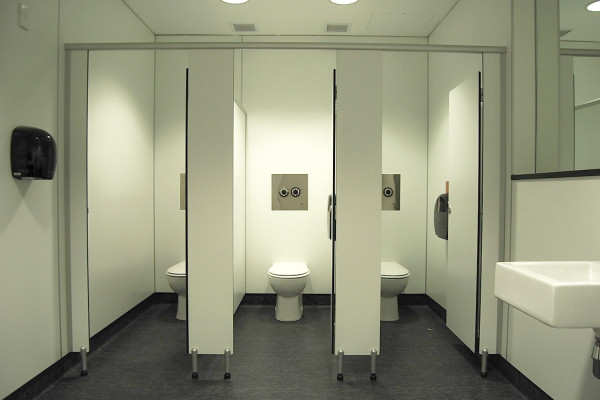

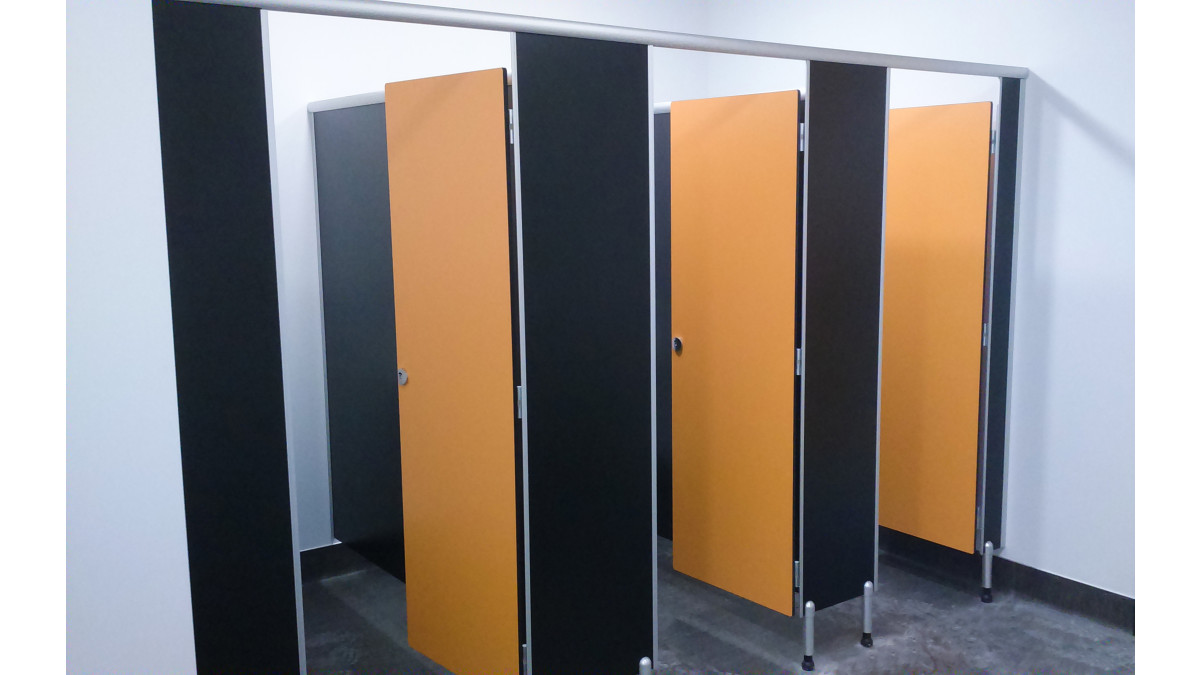

The Hale Multipurpose partition system is an all-purpose system, supreme in design and privacy, using 13mm Compact Laminate. This system features adjustable anodised aluminium pedestals and anodised aluminium headrail with infills. Available in a wide range of colours, this system is aesthetically pleasing and functional.

Key Features
  • Group 3 Fire rating
  • 13mm Antimicrobial Compact Laminate panels
  • Privacy strips along hinge and opening side of door
  • Anodised aluminium concealed fix adjustable (165mm-240mm) pedestal legs
  • Antimicrobial treatment reducing bacteria and fungal growth and reproduction throughout the lifetime of the panel
  • Emergency lift off hinges
  • No edge treatment required, however, oil will enhance black edge
  • Privacy strips to ensure maximum privacy of cubicle
  • Panels are 1800mm wide, eliminating the need for joints in most cases
  • Easy to keep clean and low maintenance
  • Antimicrobial Protection

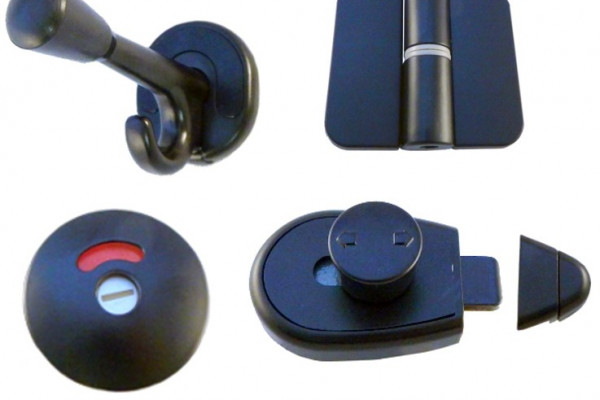

  • Concealed fixed Avanti or Wave indicator lock with combined bumper
  • Concealed fixed Avanti or Wave gravity hinges
  • Concealed fixed Avanti or Wave coat hook and bumper
  • Anodised aluminium slimline headrail with infills
  • Continuous wall channel fixing at all junctions
  • 10 year board warranty
  • Environmentally friendly low emissions board
  • Flexible design, available in ready to install, flat pack complete with shop drawings & installation manual

Optional Extras:

  • Sliding door or open out door to comply with accessibility requirements
  • Powder coating to aluminium trim available
  • CF2 Stainless Steel bullet style feet
NZ Made
NZ Made
NZ-Owned Business
NZ-Owned Business
Scope of Use

The Hale Multipurpose partition system is suitable for use in high or low abuse wet areas such as toilets, changing rooms or showers.

Recommended applications:

  • Offices
  • Factories
  • Hotels
  • Restaurants
  • Educational centres
  • Sporting and Gymnasium centres
  • Clubs and Entertainment centres
  • Recreational centres
  • Shopping centres
  • Public Areas
  • Caravan parks and campgrounds
Limitations on Use

The use of strong acid or alkaline cleaning agents, abrasive or polishing materials should not be used as they may stain or damage the worktop surface.

Statement of Building Code Compliance
  • NZ Building Code: Clause B2 - Durability
  • NZ Building Code: Clause C - Protection from Fire
  • NZ Building Code: Clause E3 - Internal Moisture
  • NZ Building Code: Clause G1 - Personal Hygiene
In-Service History

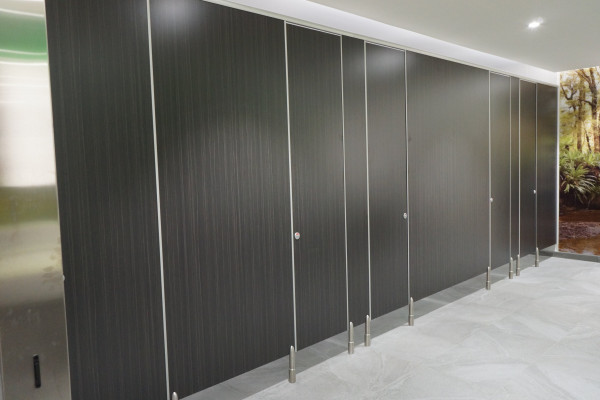

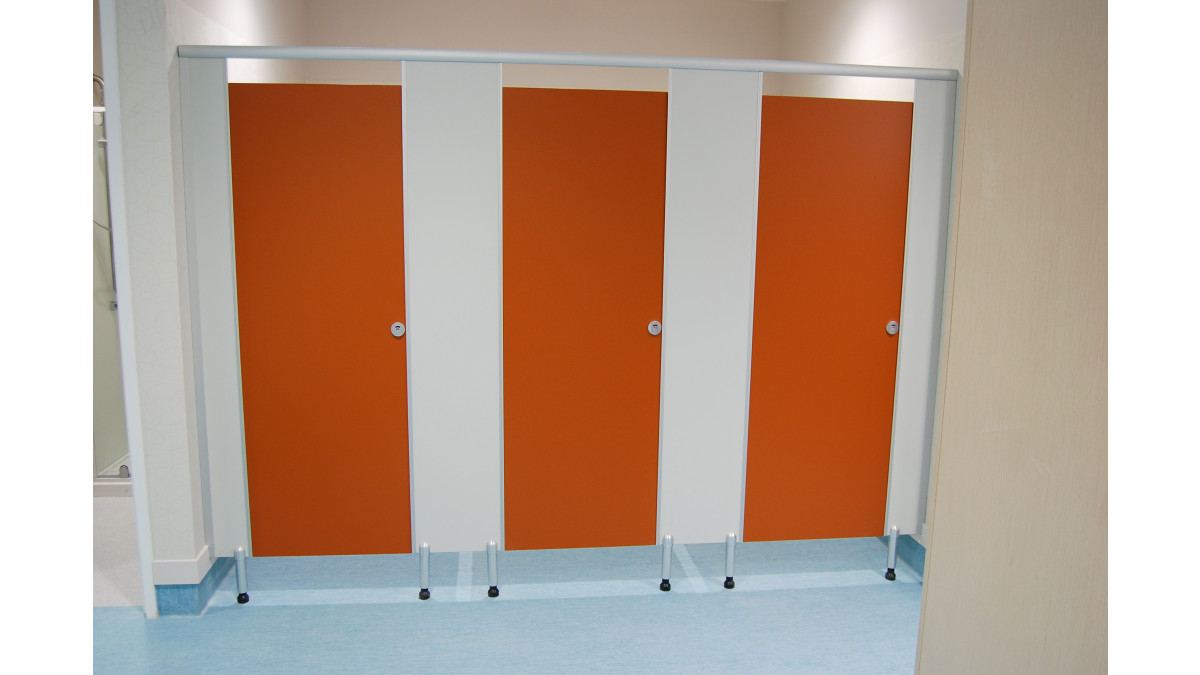

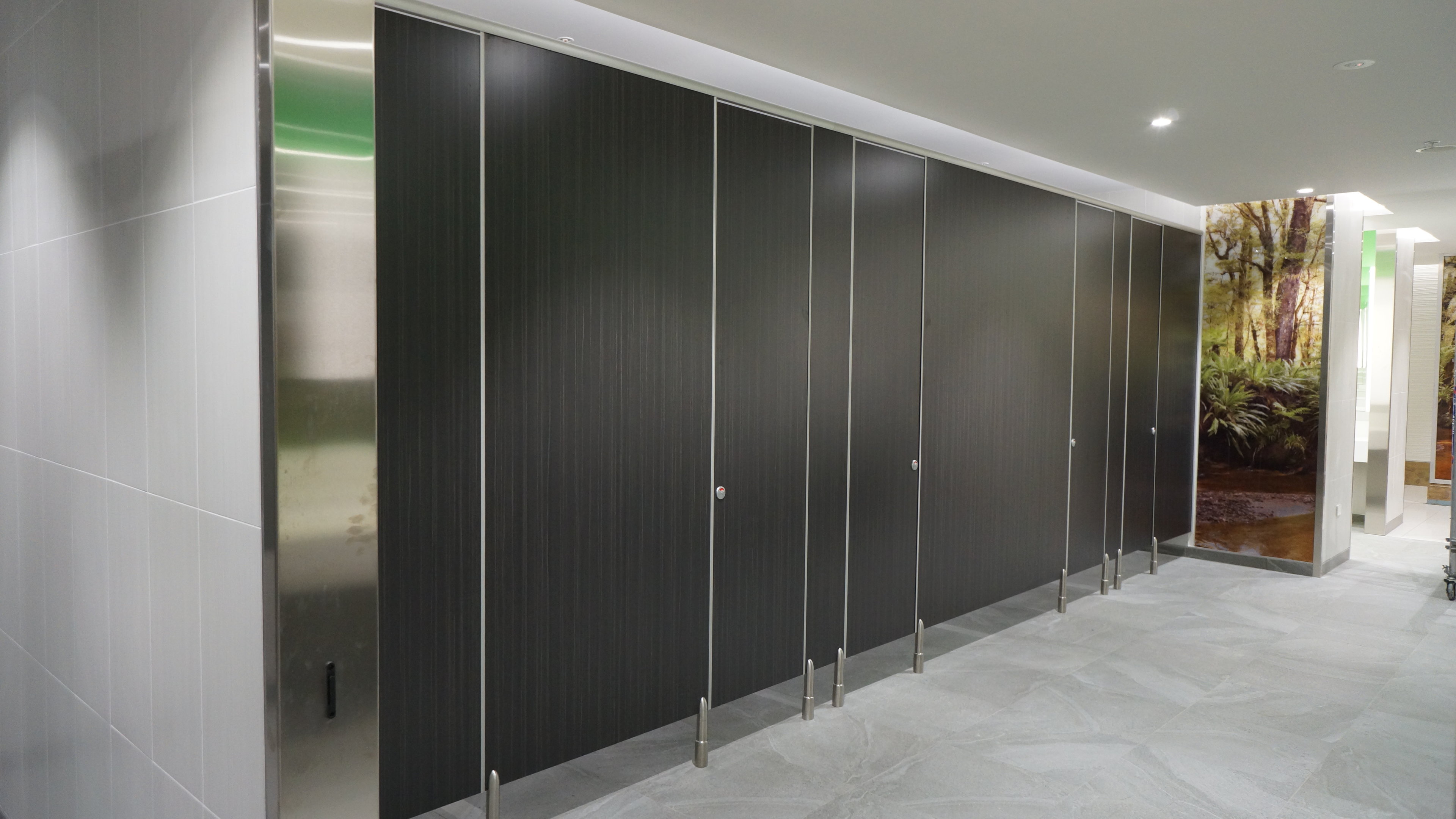

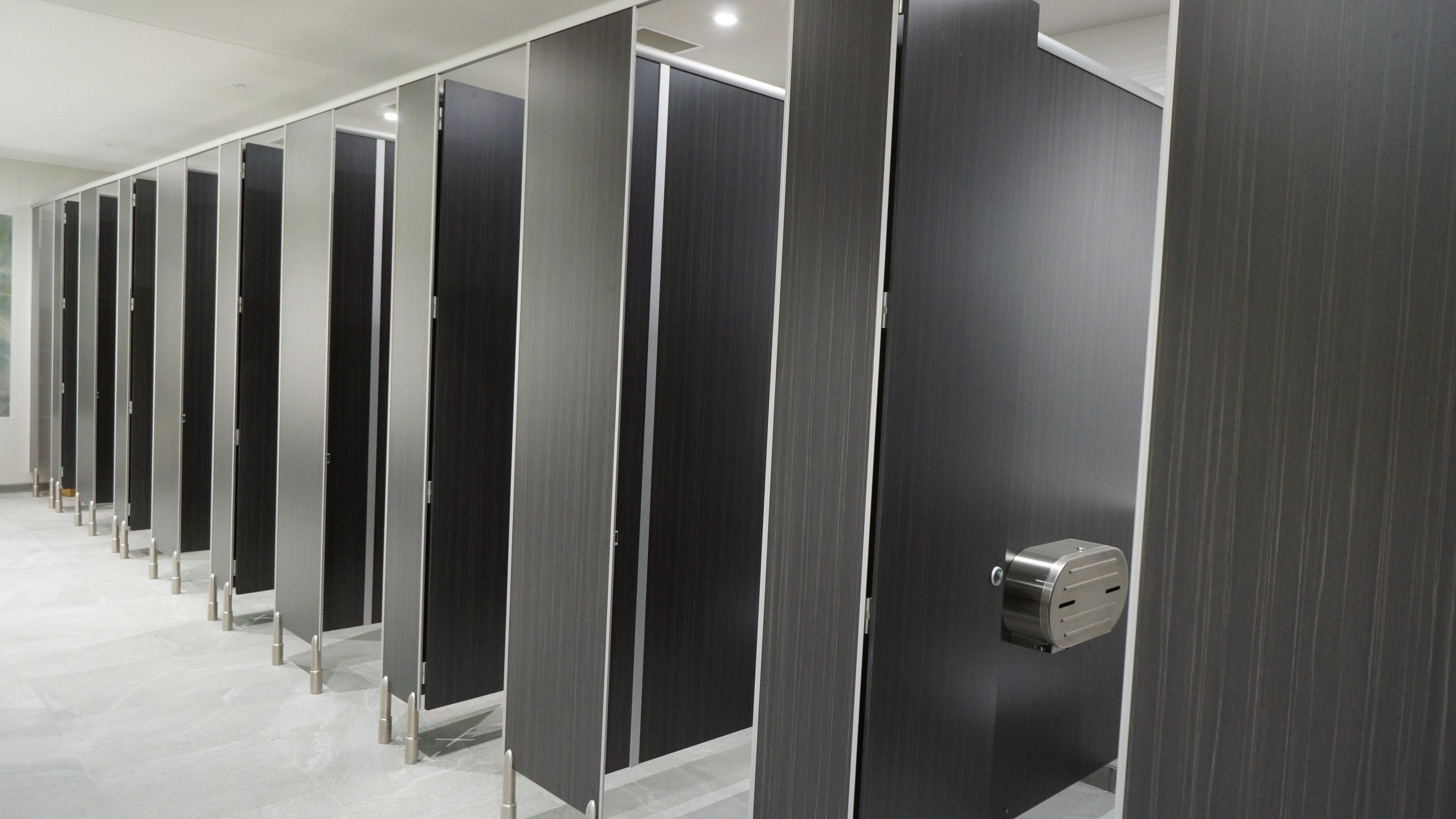

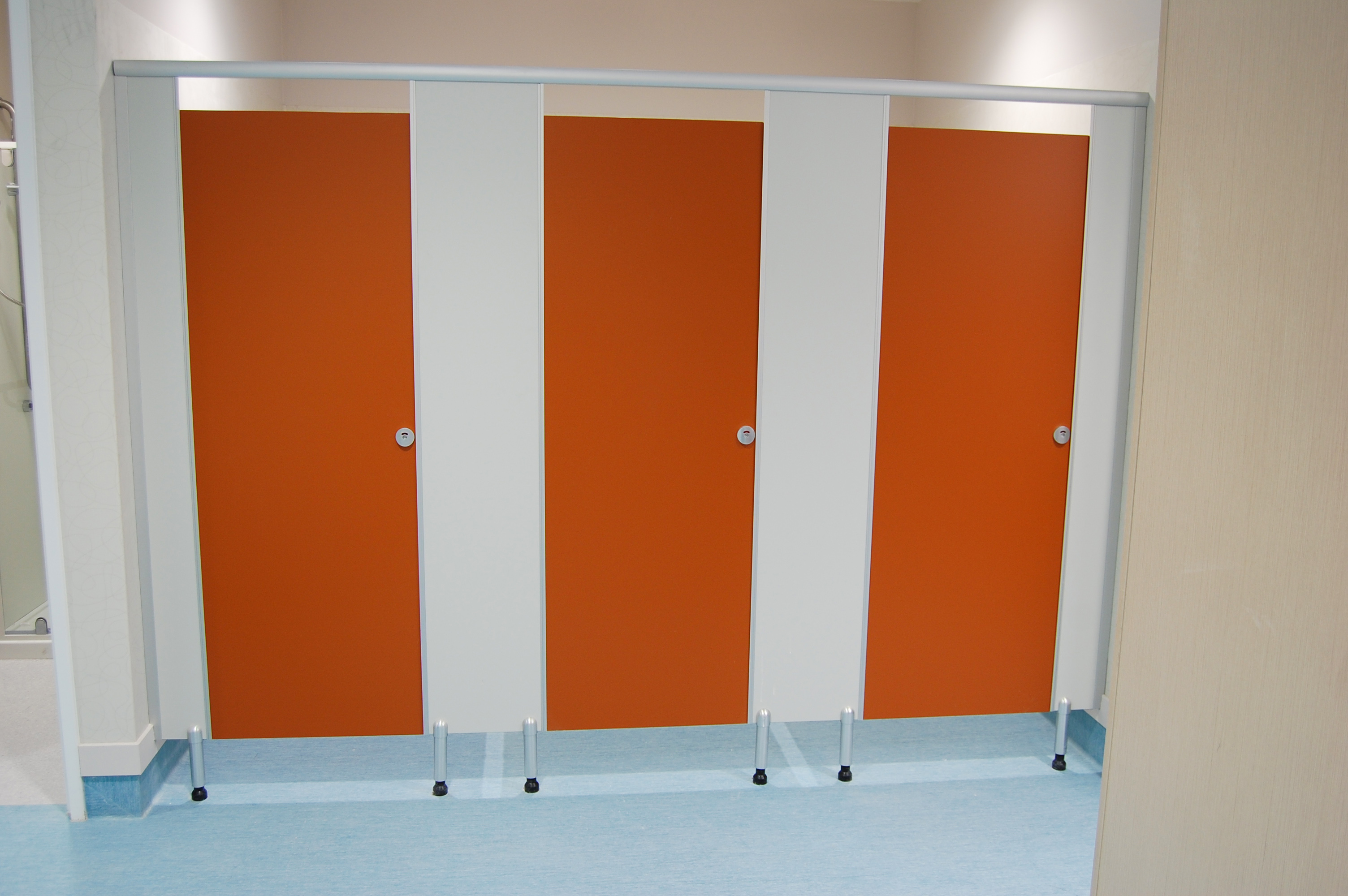

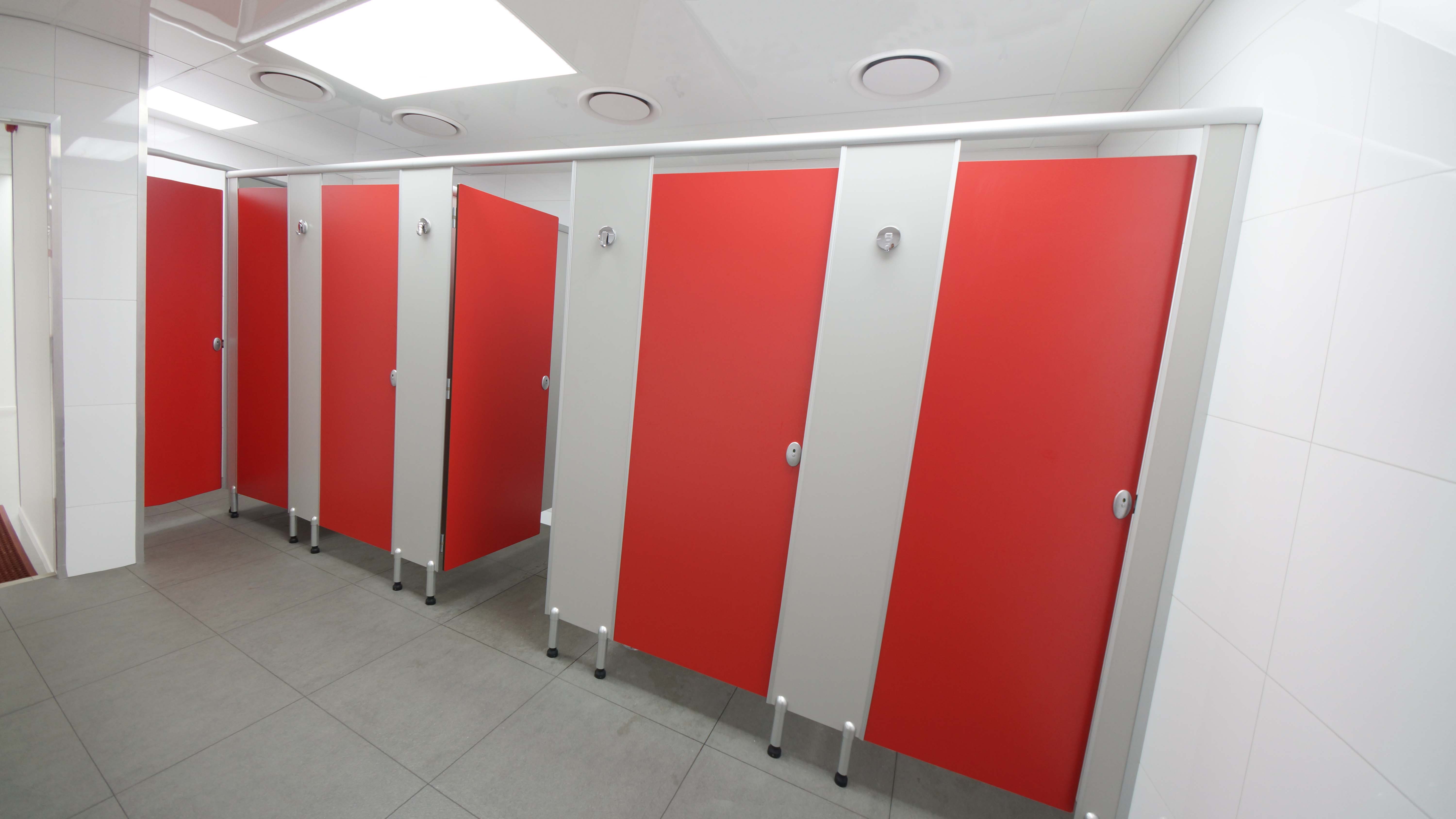

The Hale Multipurpose partition system has been installed in well known buildings in Auckland, the most recent being Auckland International Airport, YMCA Pitt Street, MIT and Middlemore Hospital.

Other Performance Attributes

Laminex Compact Laminate is certified antimicrobial to JIS Z 2801:2001 and proven to prevent the growth of bacteria and fungi on the surface up to 99% within 24 hours.

The Hale In-House Compact Laminate is certified antimicrobial to ASTM G22. It is produced by permanently incorporating a US-EPA approved, well-known and widely used anti-microbial agent to retard the growth of nearly 99% of common form of bacteria on any decorative surface, further adding a spectacular look to the overall décor.

B2 Durability compliant
Durability
C Protection from Fire compliant
Protection from Fire
E3 Internal Moisture compliant
Internal Moisture
G1 Personal Hygiene compliant
Personal Hygiene
Interior Fire Rating 3
3
Literature
CAD
CAD/PDF (link to page on supplier website)
Installation Details
Installation Details (link to page on supplier website)
Product Assurance
Antibacterial Information (Hale Compact)
Antibacterial Information (Laminex)
Data Sheet
Specification Clause
Fire Test Report (Laminex)
Fire Test Report (Hale Compact)
Other Literature
Brochure
Colour Range (Laminex)
Colour Range (Hale Compact)

Hale Manufacturing Ltd are a manufacturer of toilet partitions and bathroom appliances, sold and distributed throughout New Zealand.
