Stratos HPL Partition System
Description

The Hale Stratos High Pressure Laminate (HPL) Partitioning system is an all purpose option covering all applications from office toilets to wet area commercial situations. With a wide range of HPL colours to choose from and the aluminium edge trim to all edging providing excellent durability and protection against bumps and knocks, the Stratos HPL system is durable and cost effective.

Key Features
  • Group 3 Fire rating for MDF Core option
  • 18mm Marine-Ply Core faced with High Pressure Laminate for use in wet areas
  • 16mm MDF Core faced with High Pressure Laminate for use in dry areas
  • All panels have factory fitted natural anodised aluminium edge trim to all edges
  • Cast alloy powder coated standard 150mm pedestal legs or adjustable (80mm - 230mm) supplied as necessary
  • 30mm x 25mm x 3mm silver anodised aluminium channel forming headrail and wall brackets
  • Devon Satin Chrome Plated indicator bolt with large turn lock inside of cubicle and red/green indication with coin operated emergency release to outside
  • Stainless Steel 75mm x 50mm hold open butt hinges
  • Door hook and bumper to all doors
  • A system that is robust, durable and cost effective
  • The ability to have both Ply and MDF core to suit the situation, meaning cost and quality are always maximised
  • Aluminium edge trim to all edging, providing excellent durability and protection against bumps and knocks
  • Concealed fixed Avanti or Wave coat hook to all doors
  • 2 year board warranty
  • Many colour options, including the cost saving range of Hale in-house laminates. If it is high pressure laminate, it can be used!

Optional Extras:

  • Sliding door or open out door to comply with accessibility requirements
  • CF2 Stainless Steel bullet style feet
  • Octagonal headrail channel, providing extra strength
  • Powder coating to aluminium trim available
  • Full length channel at all junctions in lieu of wall brackets, providing extra strength
NZ Made
NZ Made
NZ-Owned Business
NZ-Owned Business
Scope of Use

The Hale Stratos HPL partition system is suitable for use in low and high abuse dry areas such as toilets.

Recommended applications:

  • Offices
  • Factories
  • Hotels
  • Restaurants
  • Shopping centres
  • Educational centres
  • Clubs and Entertainment centres
  • Public areas
  • Sporting and Gymnasium centres
  • Recreational centres
  • Caravan parks and campgrounds
Limitations on Use

Abrasive cleaners or scourer pads are not to be used to clean the board as that may damage the surface.

Statement of Building Code Compliance
  • NZ Building Code: Clause B2 - Durability
  • NZ Building Code: Clause C - Protection from Fire
In-Service History

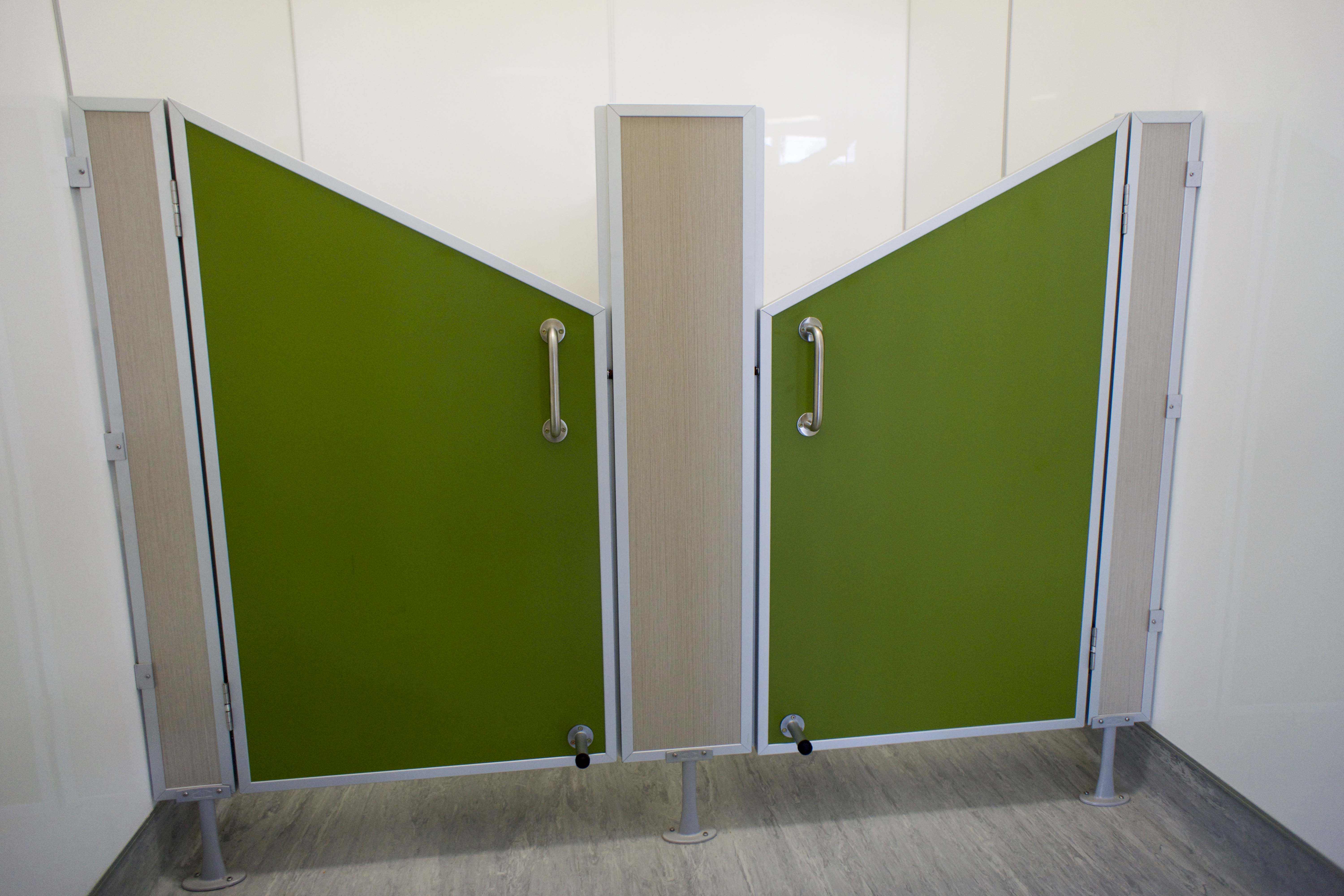

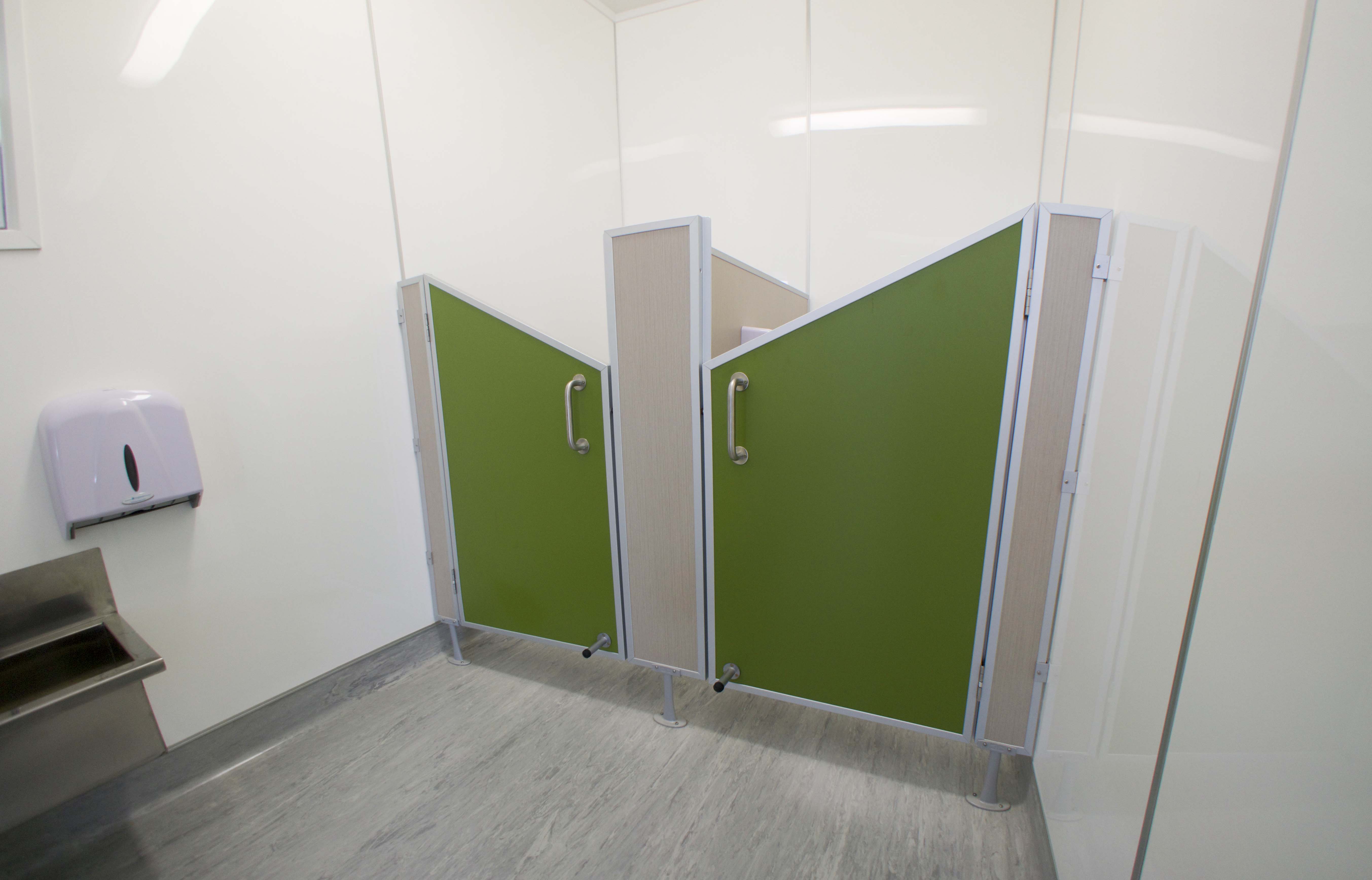

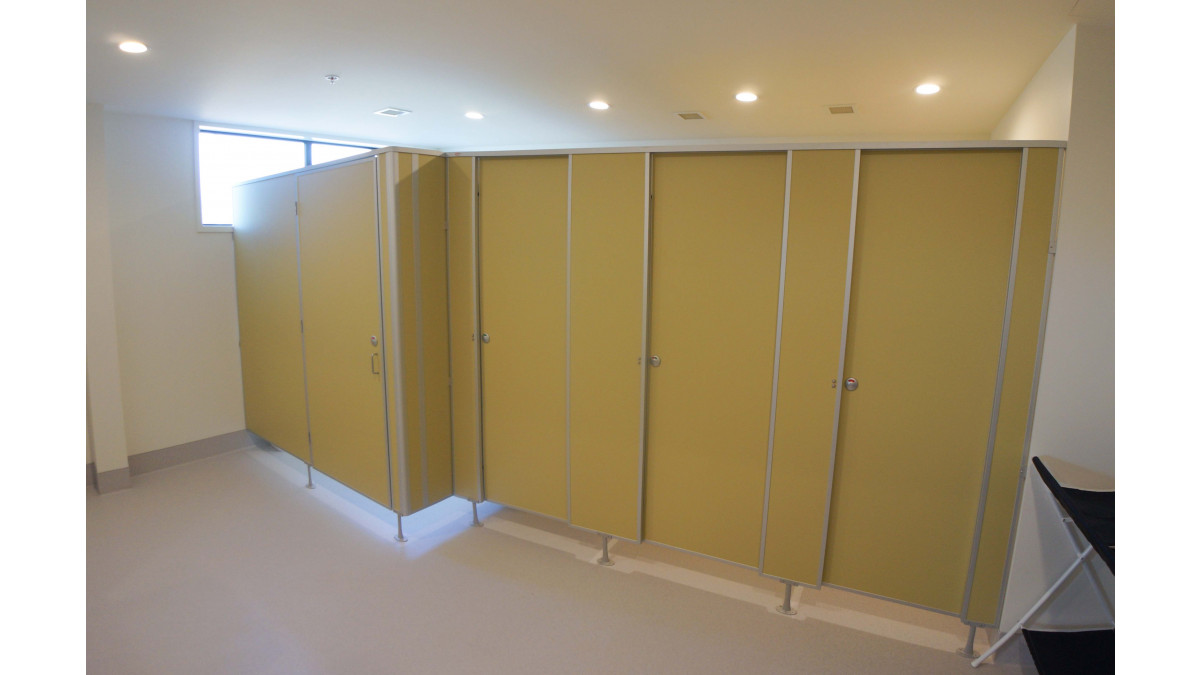

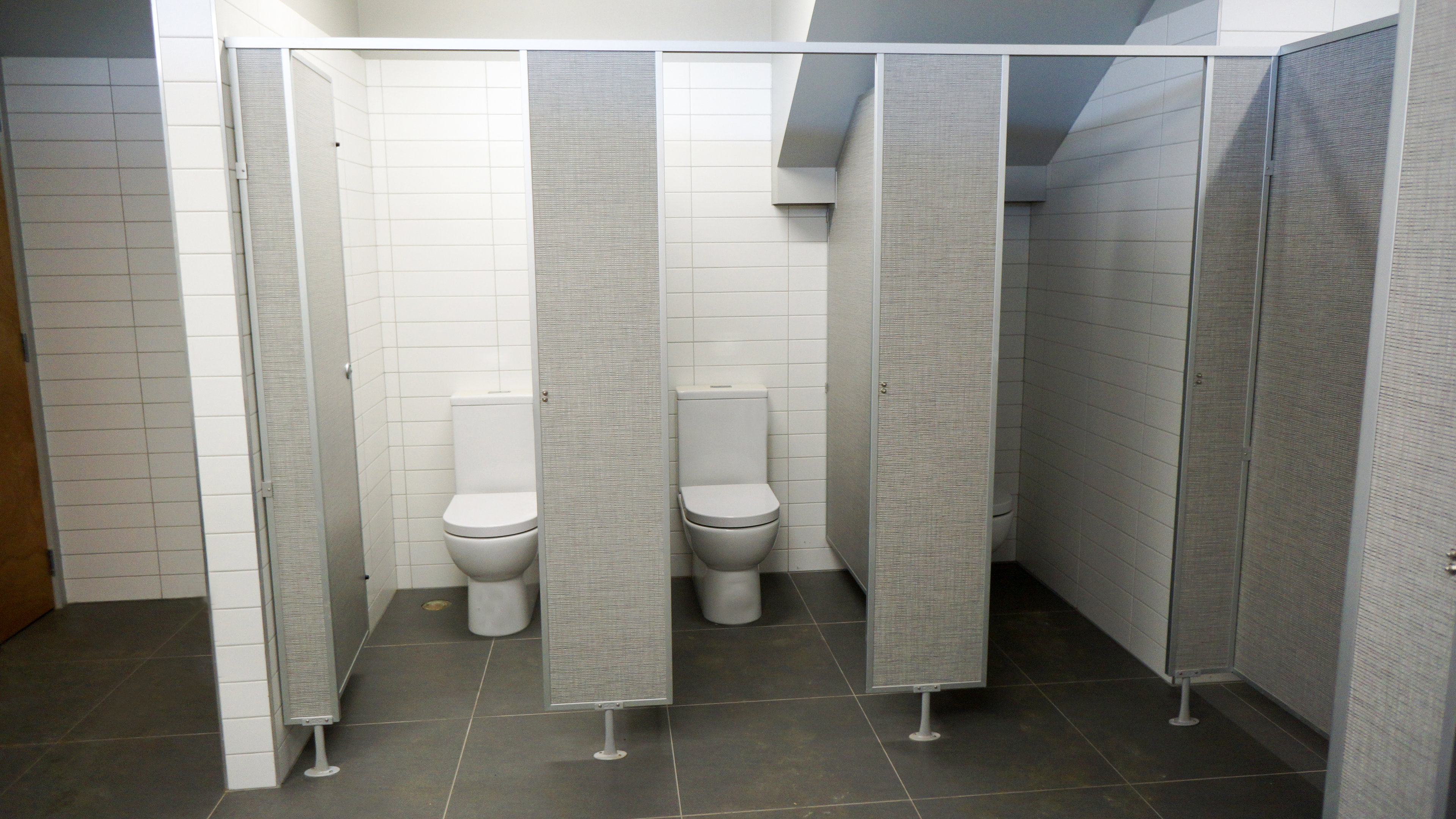

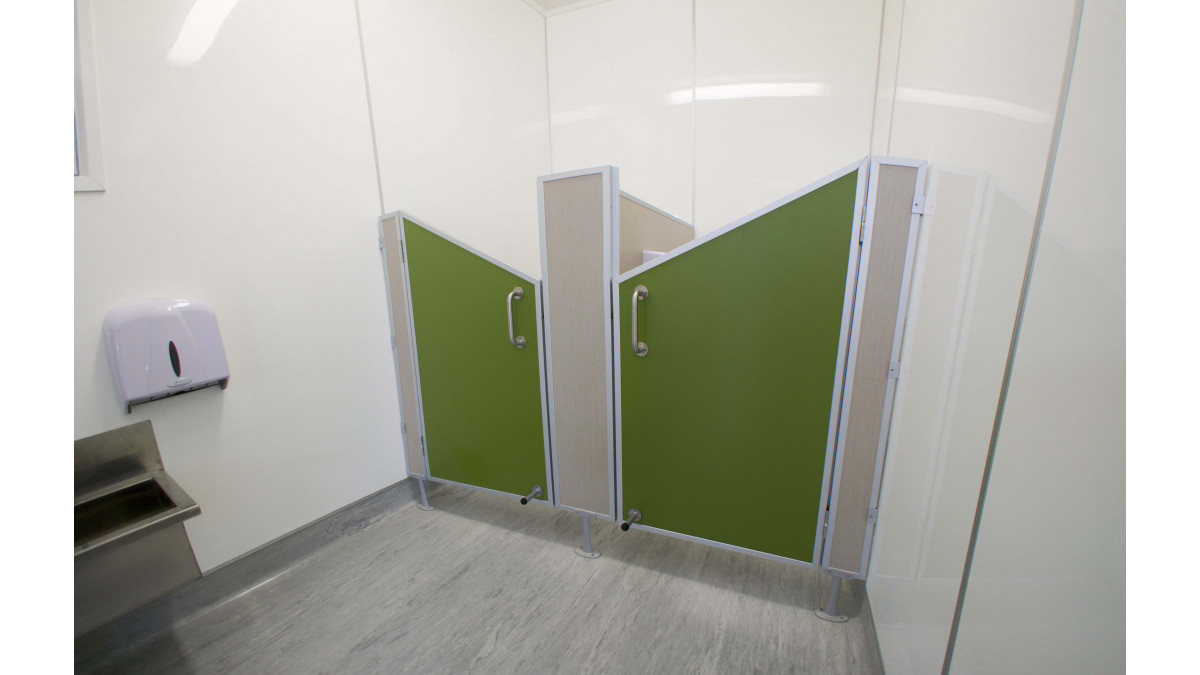

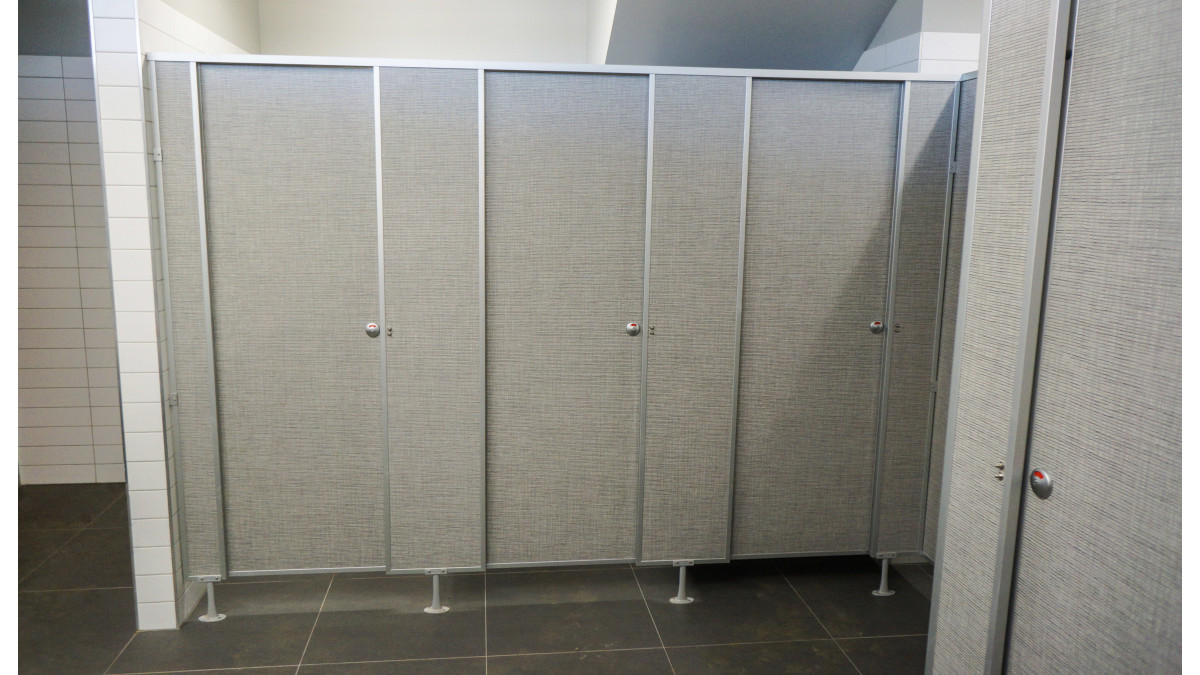

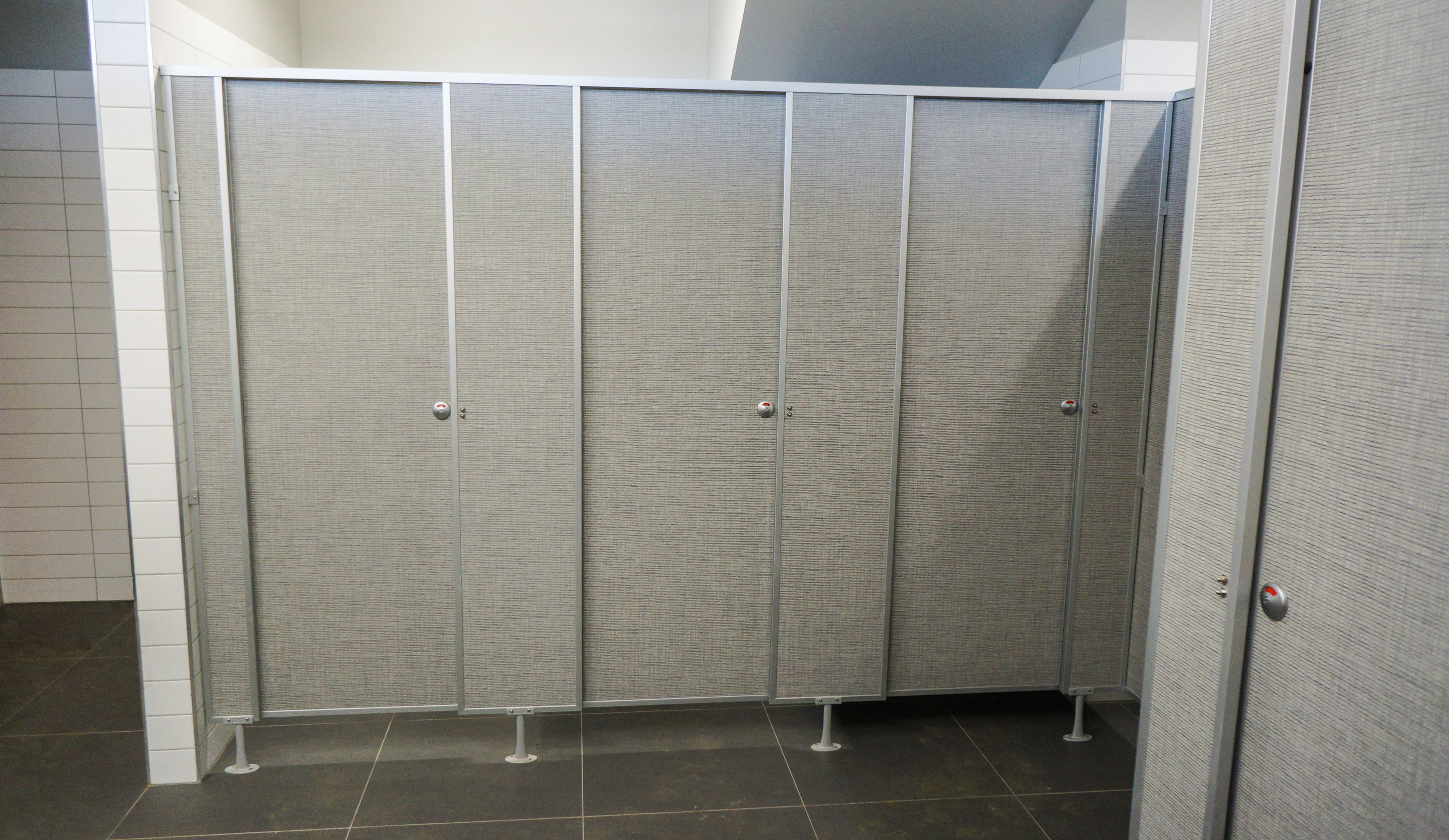

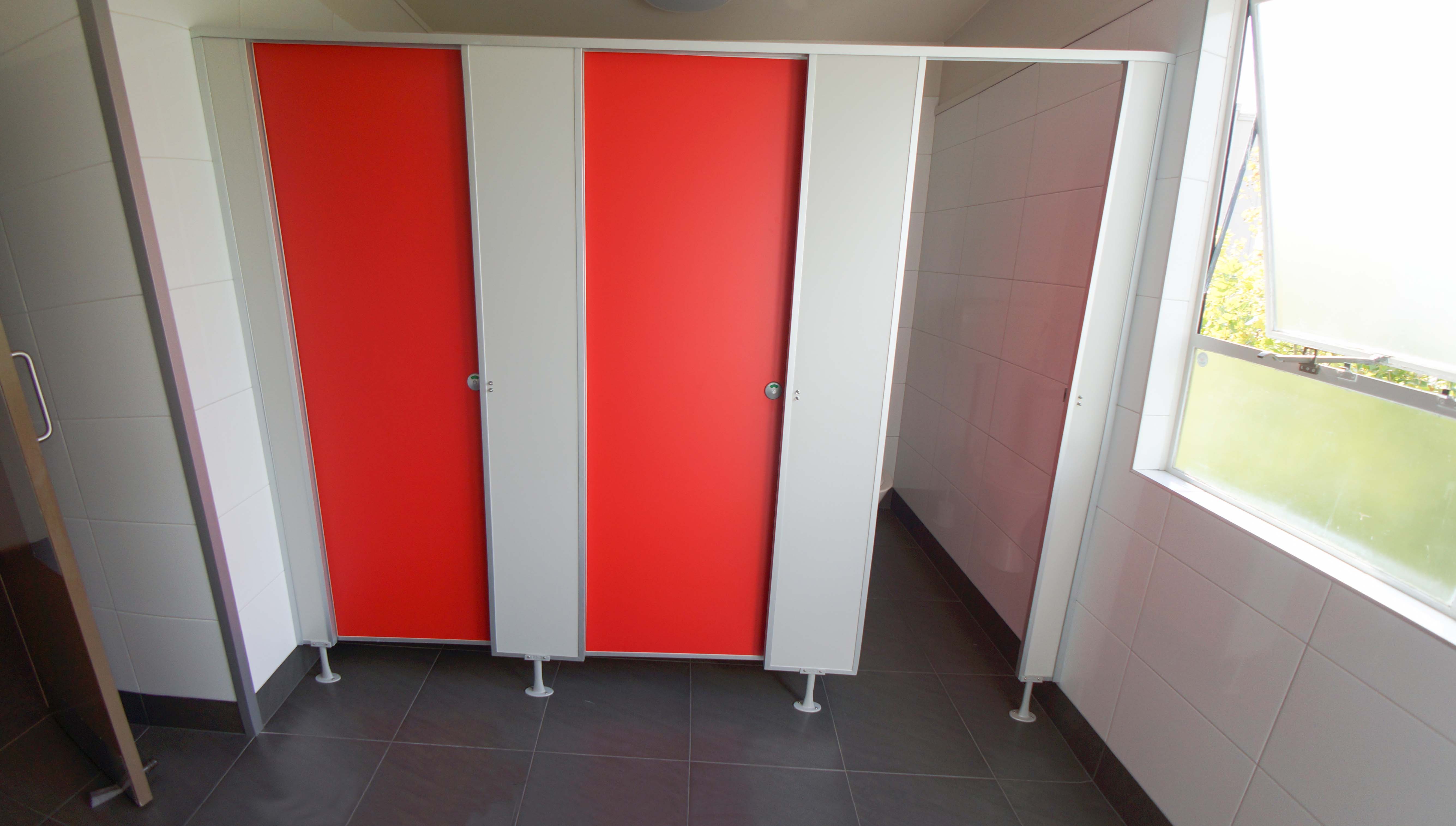

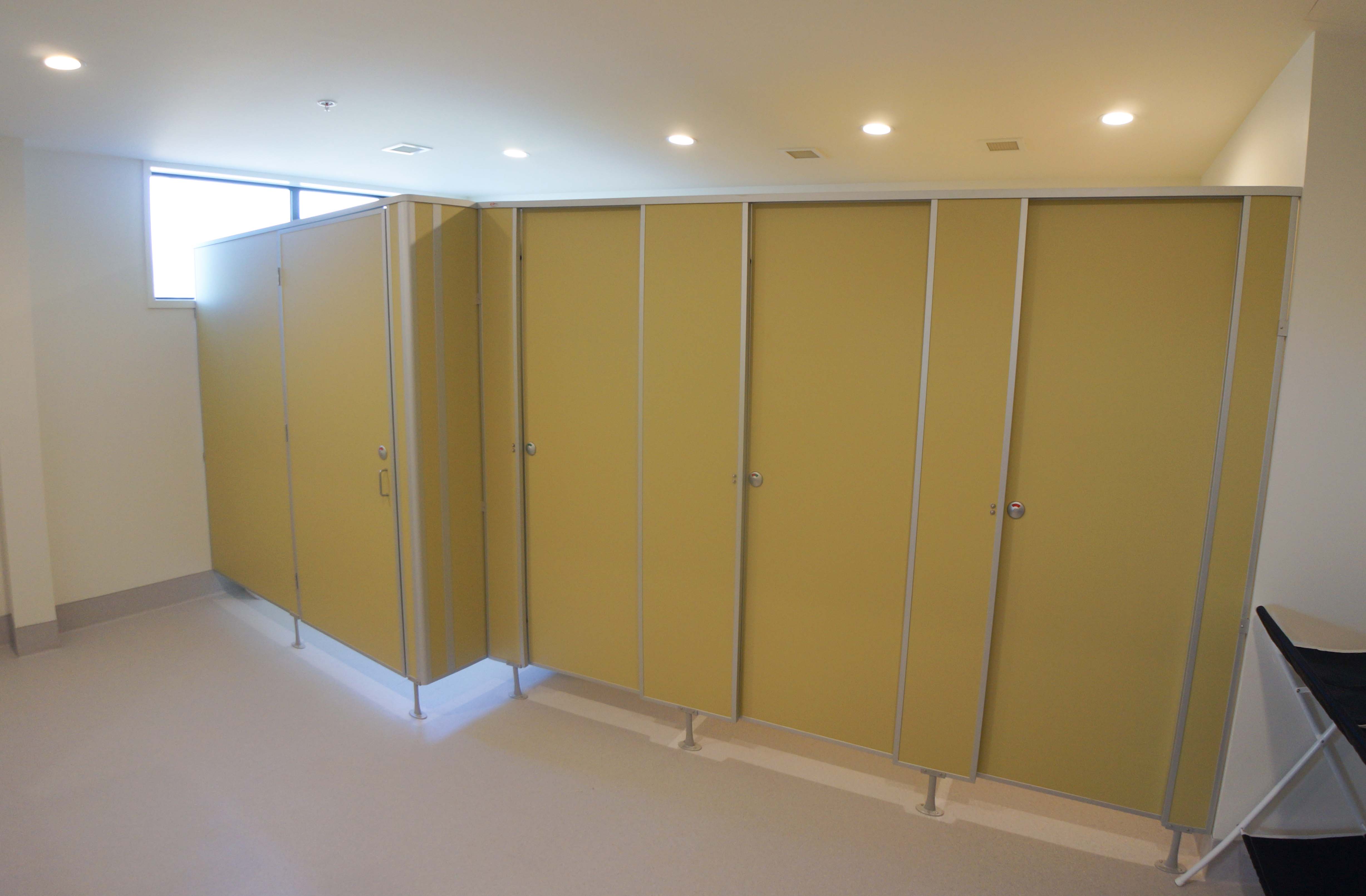

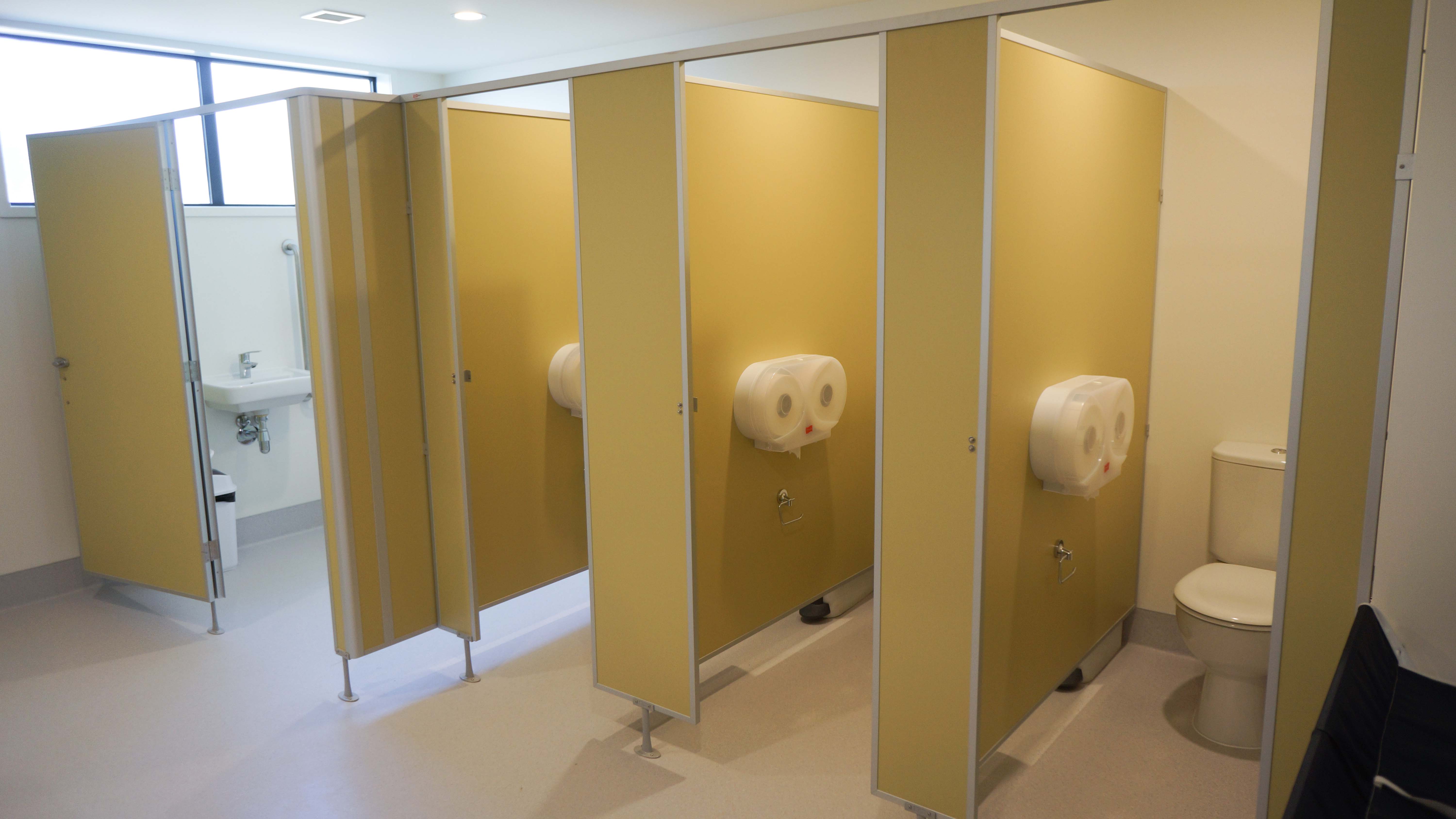

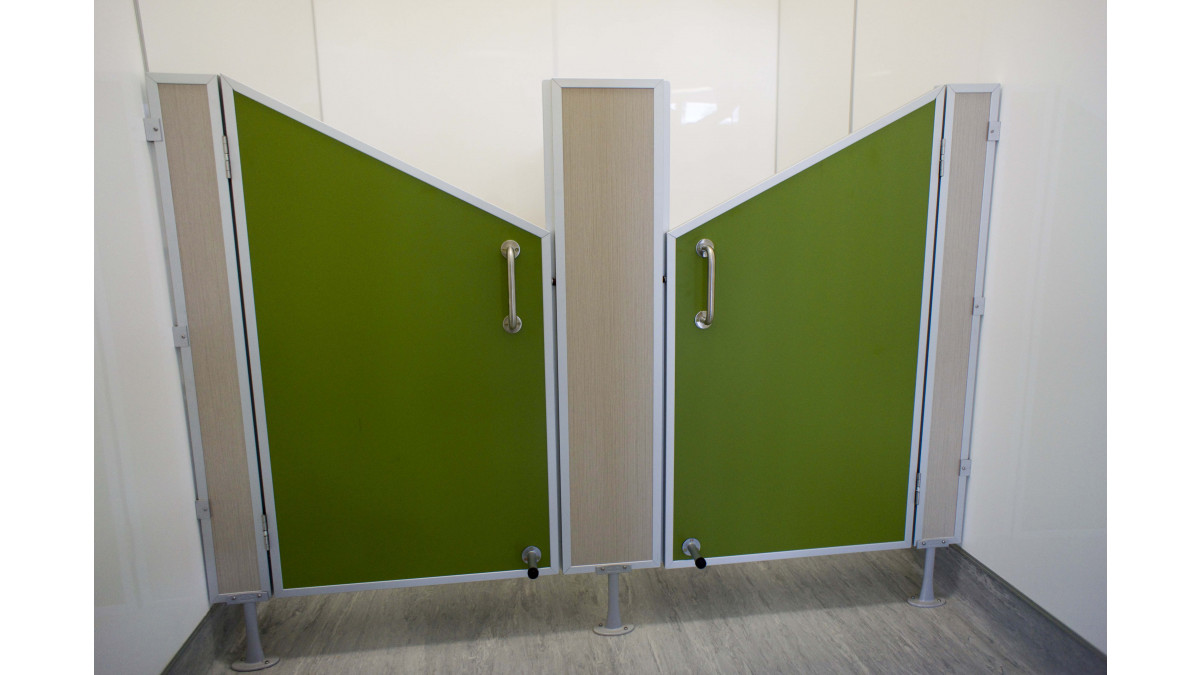

The Hale Stratos HPL partition system has been installed in well known buildings in Auckland, the most recent being Auckland International Airport Limited, Government of Samoa, Mangere Refugee Centre, YMCA Auckland City and Childcare Centre Takanini, to name a few.

B2 Durability compliant
Durability
C Protection from Fire compliant
Protection from Fire
Interior Fire Rating 3
3
Documents
CAD/PDF (link to page on supplier website)
Installation Details (link to page on supplier website)
Test Results
Specification Clause (Masterspec)
Brochure
Colour Range
Colour Range
Colour Range
Colour Range

Hale Manufacturing Ltd are a manufacturer of toilet partitions and bathroom appliances, sold and distributed throughout New Zealand.
