Delta Partition System
Description

The Hale Delta system is a premier system where appearance has priority over price, using 30mm MDF for the doors and fascia's and 18mm MDF for the division panels, all faced with High Pressure Laminate. This system features a tubular pedestal for a sleek look and ease of cleaning and a system with minimal aluminium extrusion for a clean finish. 30mm thick radius edged panels give this system a novel point of difference.

Delta panels are pre-finished with radiused HPL vertical edges and Laminate square clashing to horizontal edges.

Key Features
  • Group 3 Fire rating
  • 30mm MDF core faced with High Pressure Laminate with radius edges for all doors and fascia panels
  • 18mm MDF Core faced with High Pressure Laminate for division panels
  • Fascia and partition junctions are formed with curved extrusion
  • 30mm thick radius edged panels

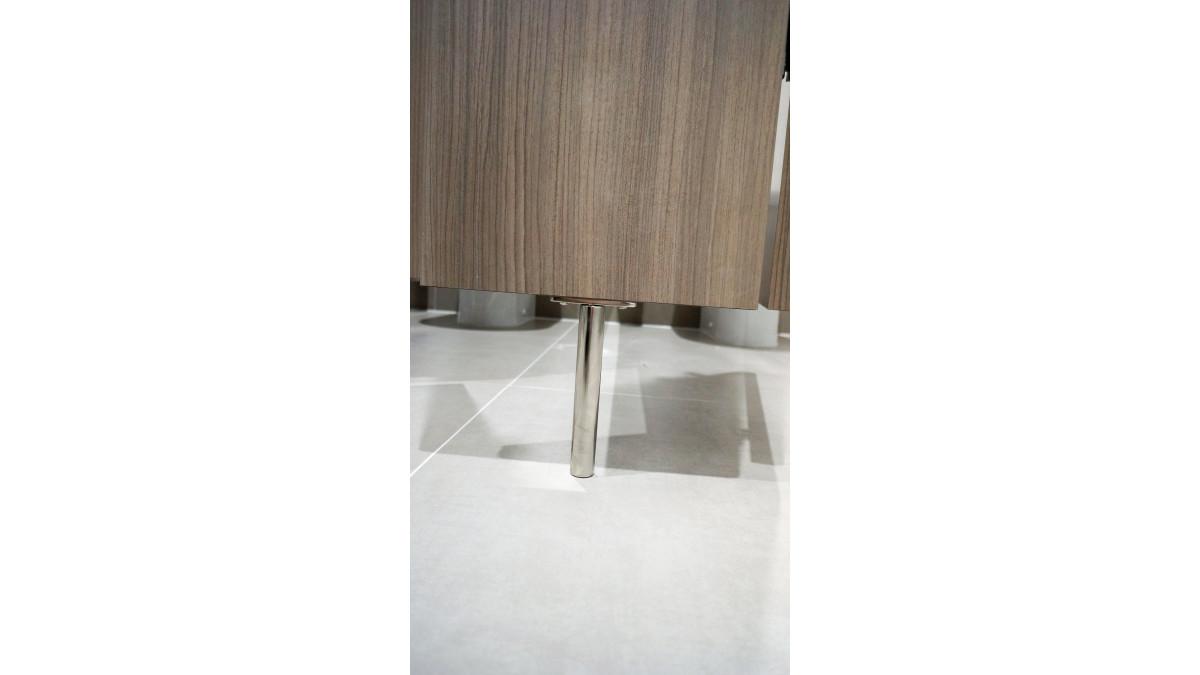

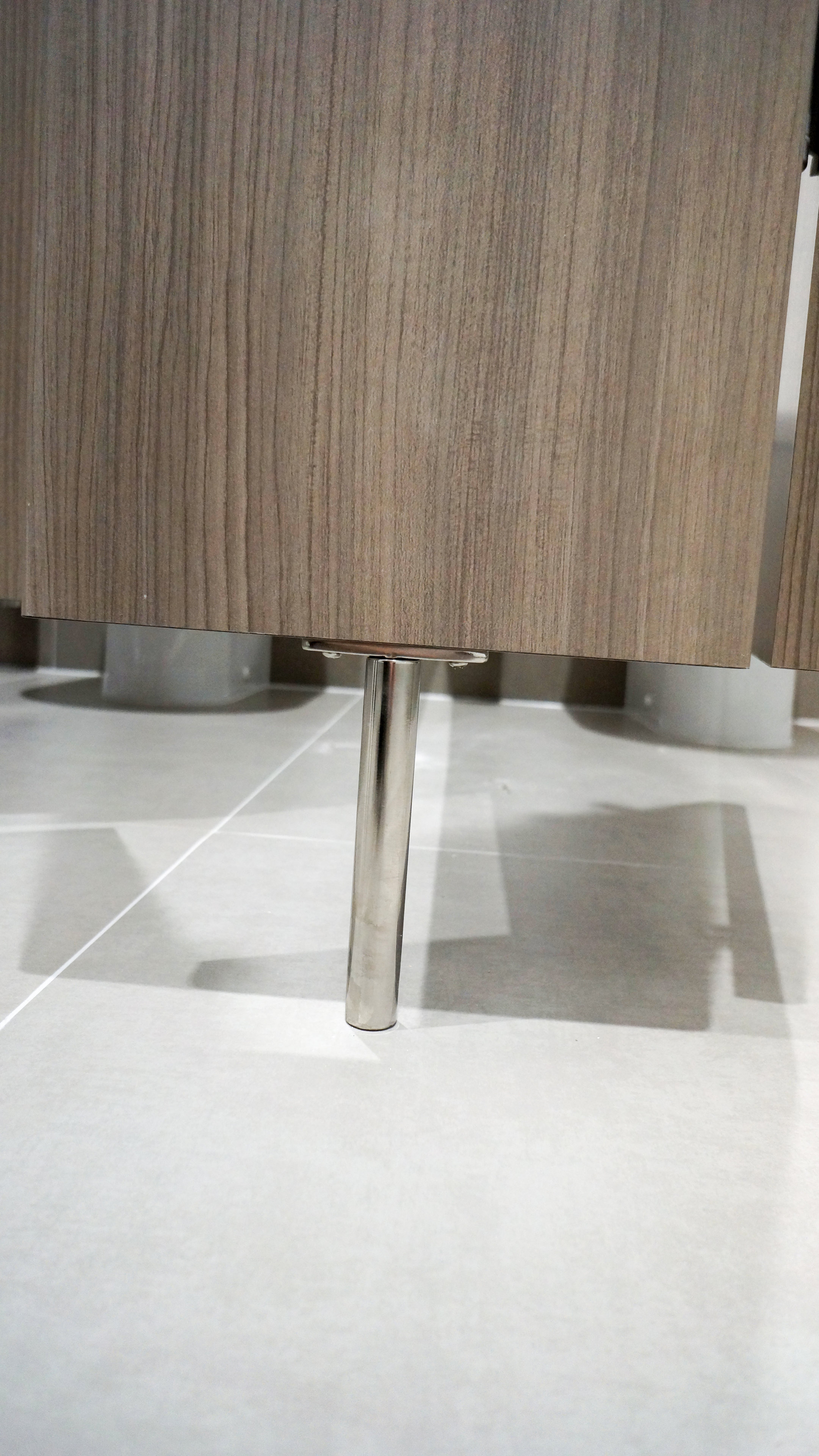

  • Standard 150mm tubular Stainless Steel pedestal legs
  • 30mm x 25mm x 3mm silver anodised aluminium channel forming headrail and wall brackets
  • Devon Satin Chrome Plated indicator bolt with large turn lock inside of cubicle and red/green indication with coin operated emergency release to outside
  • Stainless Steel single acting, spring loaded bomber hinge
  • Concealed fixed Avanti or Wave door hook and bumper to all doors

Optional Extras:

  • Sliding door or open out door to comply with accessibility requirements
  • Powder coating to aluminium trim available
NZ Made
NZ Made
NZ-Owned Business
NZ-Owned Business
Scope of Use

The Hale Delta partition system is suitable for use in low abuse dry areas such as toilets.

Recommended applications:

  • Offices
  • Hotels
  • Restaurants
  • Shopping centres
  • Clubs and Entertainment centres
Limitations on Use

The Delta System has a MDF core, making this system unsuitable for use in wet areas. The use of abrasive cleaners or scourer pads to clean may damage the surface of the board.

Statement of Building Code Compliance
  • NZ Building Code: Clause B2: Durability
  • NZ Building Code: Clause C: Protection from Fire
In-Service History

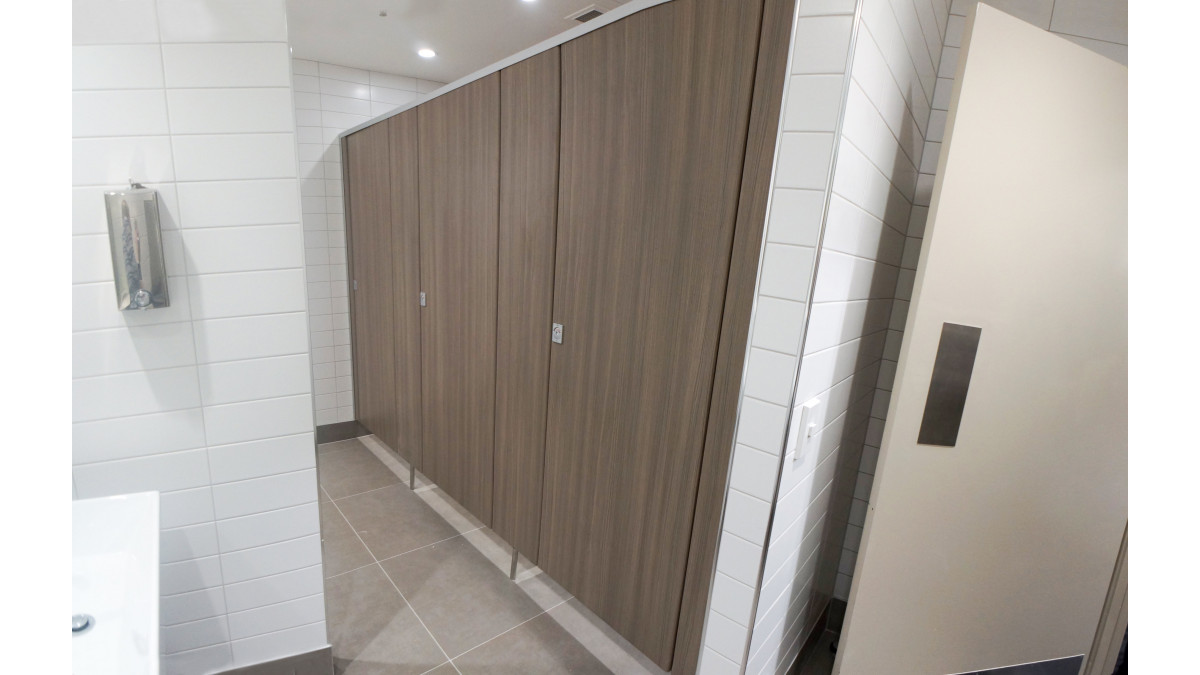

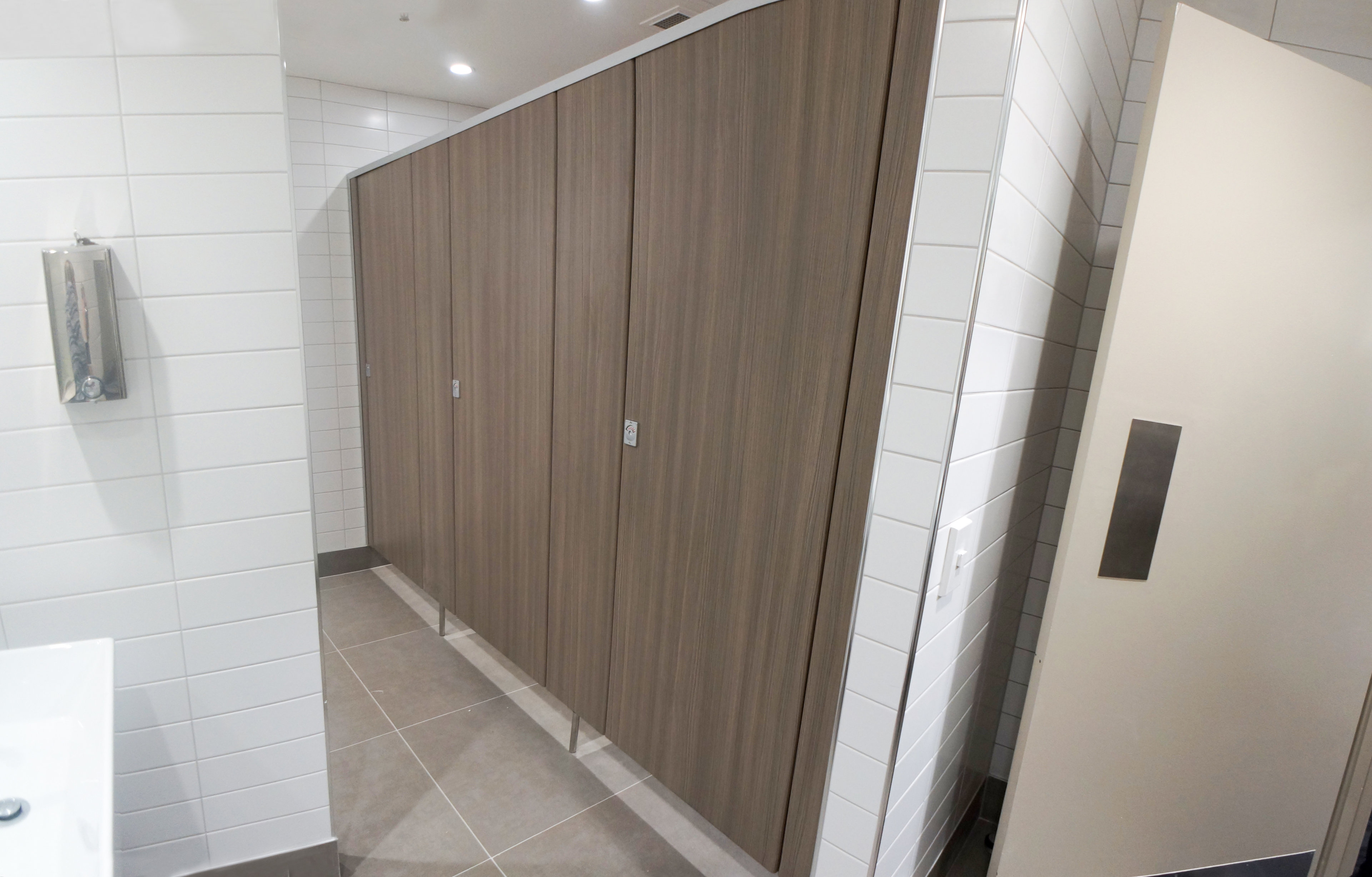

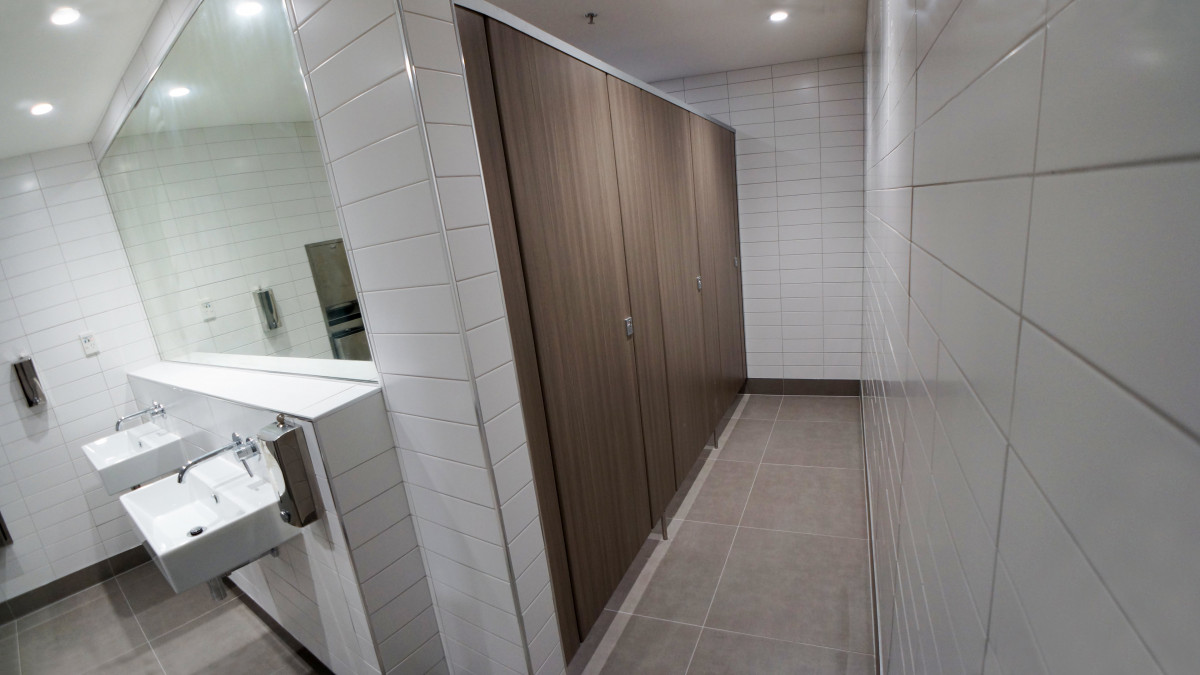

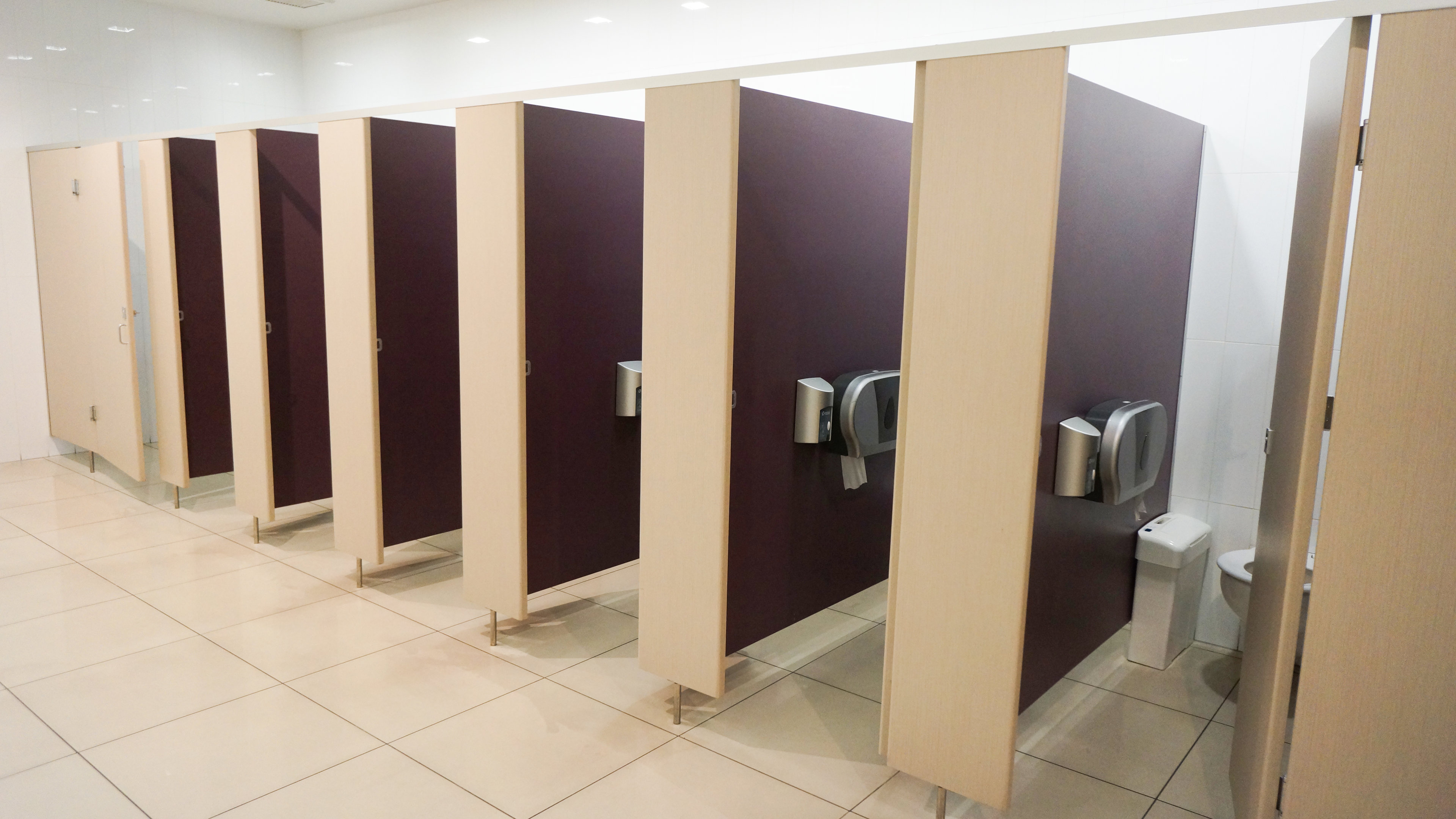

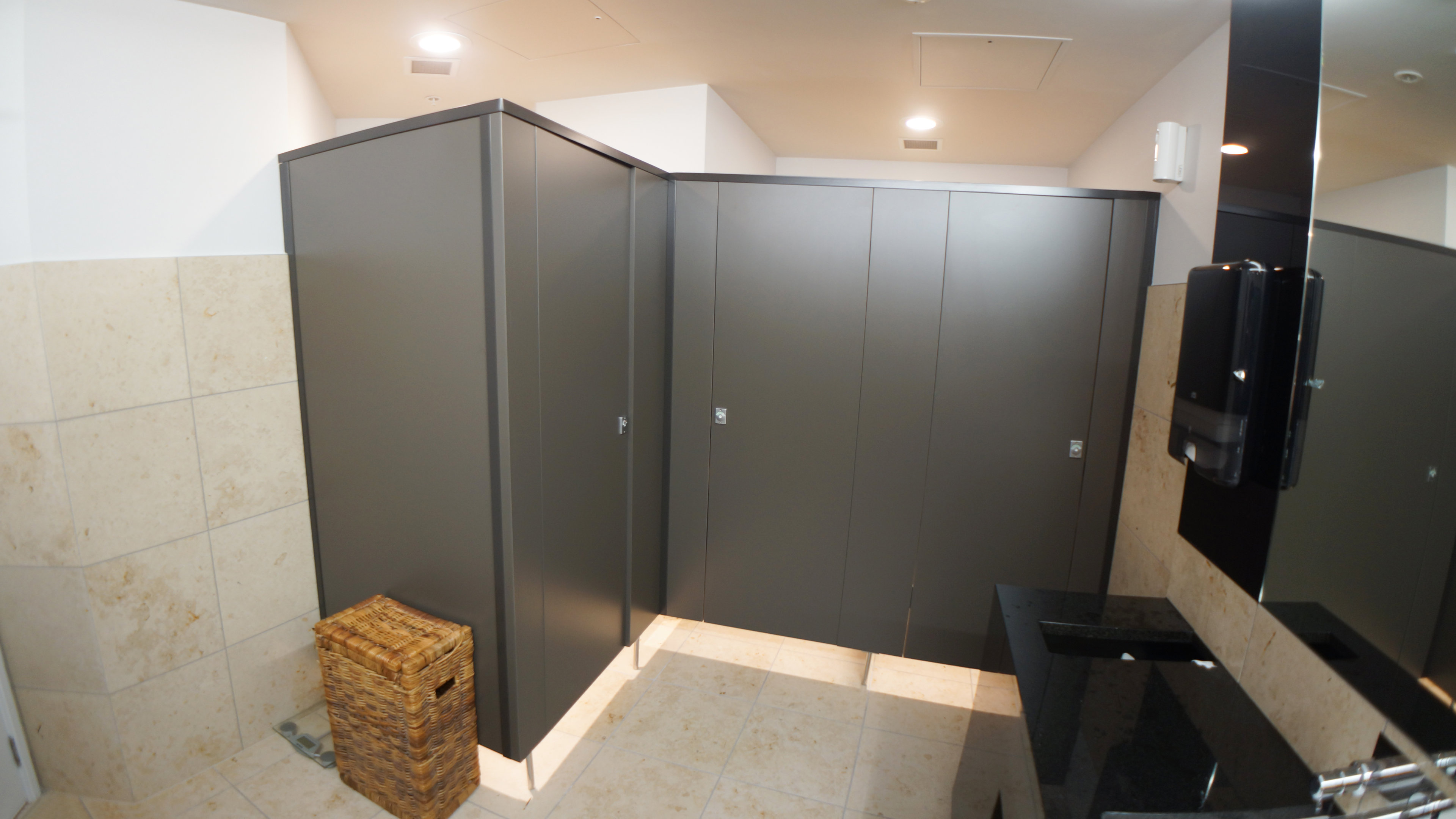

The Hale Manufacturing Delta partition system has been installed in well known buildings in Auckland, the most recent being Botany Town Shopping Centre, Vero Building and Chorus House.

B2 Durability compliant
Durability
C Protection from Fire compliant
Protection from Fire
Interior Fire Rating 3
3
Documents
CAD/PDF (link to page on supplier website)
Installation Details (link to page on supplier website)
Test Results
Specification Clause/Guide
Brochure
Colour Range
Colour Range
Colour Range
Colour Range

Hale Manufacturing Ltd are a manufacturer of toilet partitions and bathroom appliances, sold and distributed throughout New Zealand.
