Description

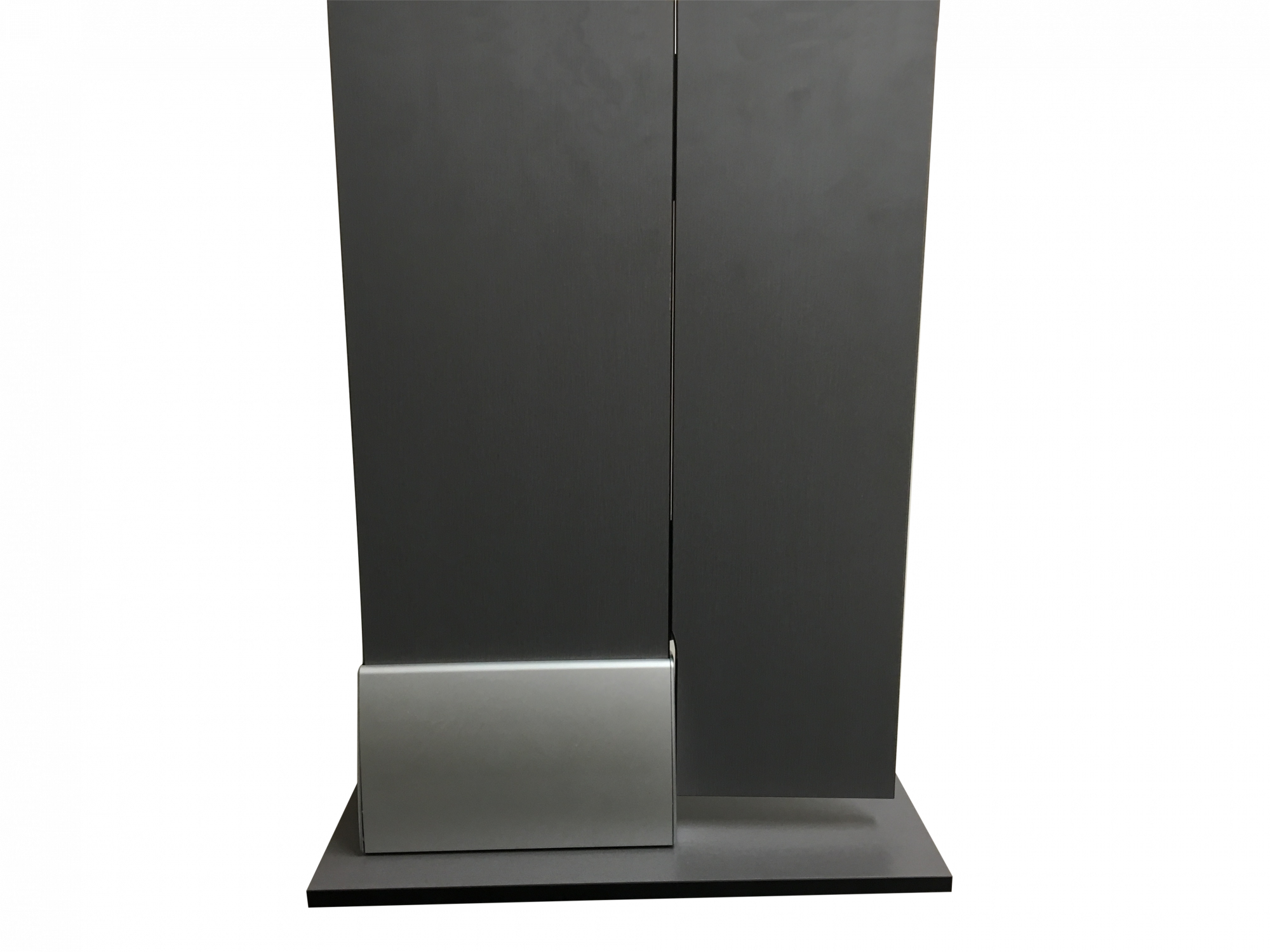

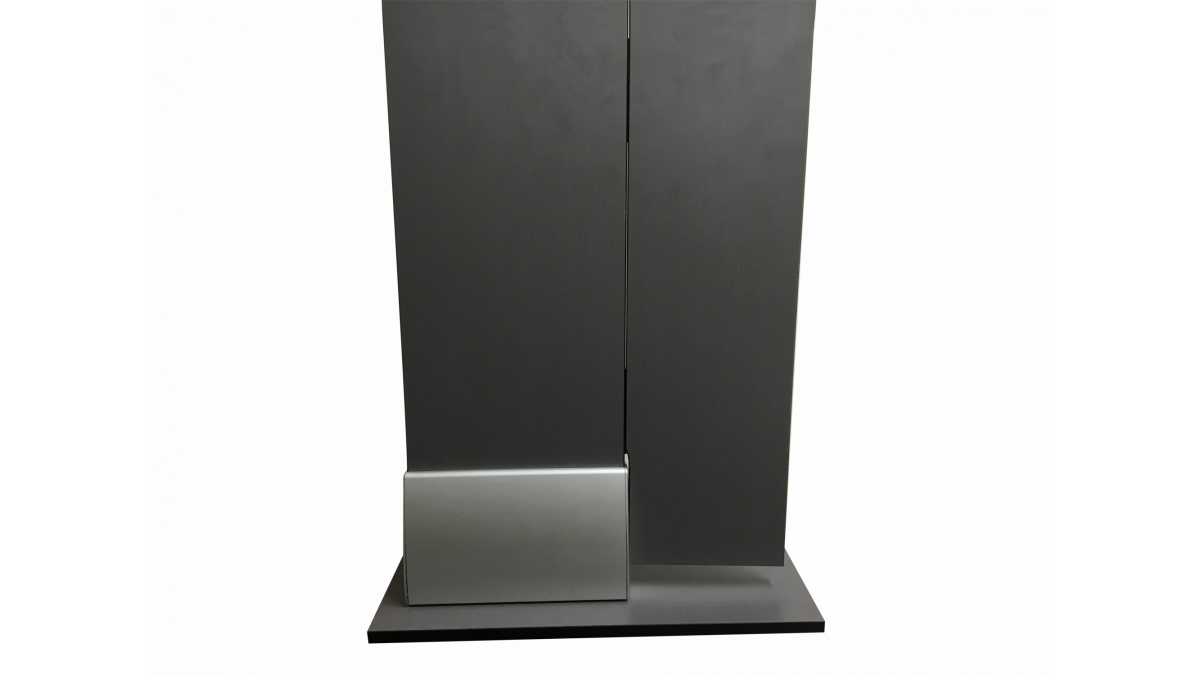

The Hale Privacy partitioning system is an ideal solution for unisex environments or washrooms where full privacy is required. The system offers the option of full height to the ceiling, or uses headrails if not full height to provide optimum washroom privacy.

Using Compact Laminate and offering a custom skirt foot mounting and privacy channels to the floor between cubicles, this is a high grade solution with the utmost flexibility, and is recommended for high and low abuse areas, suitable to be hosed down for cleaning with maximum resistance to graffiti, vandalism, water and impact.

Key Features

Group 3 Fire rating
13mm Antimicrobial Compact Laminate panels

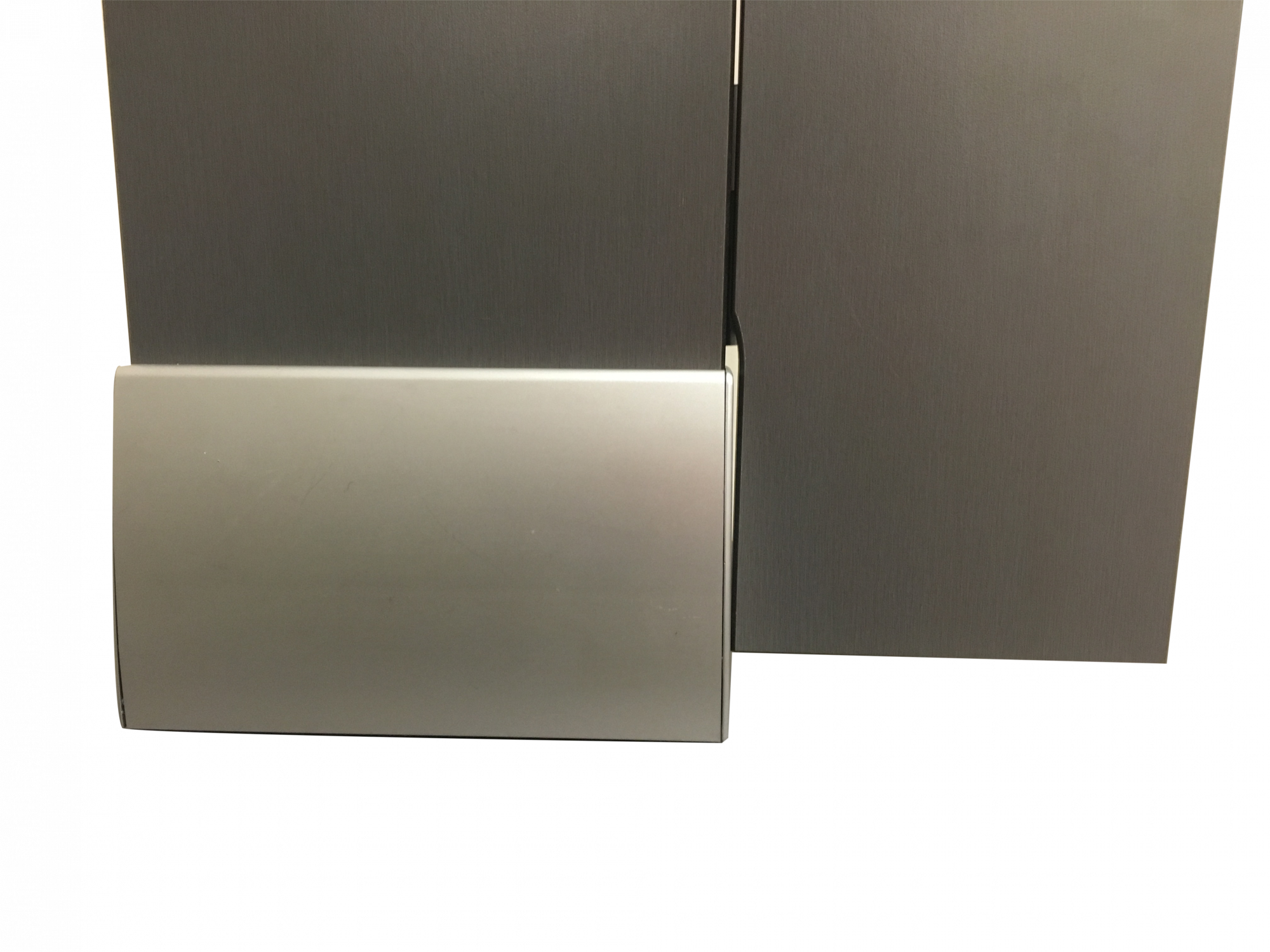

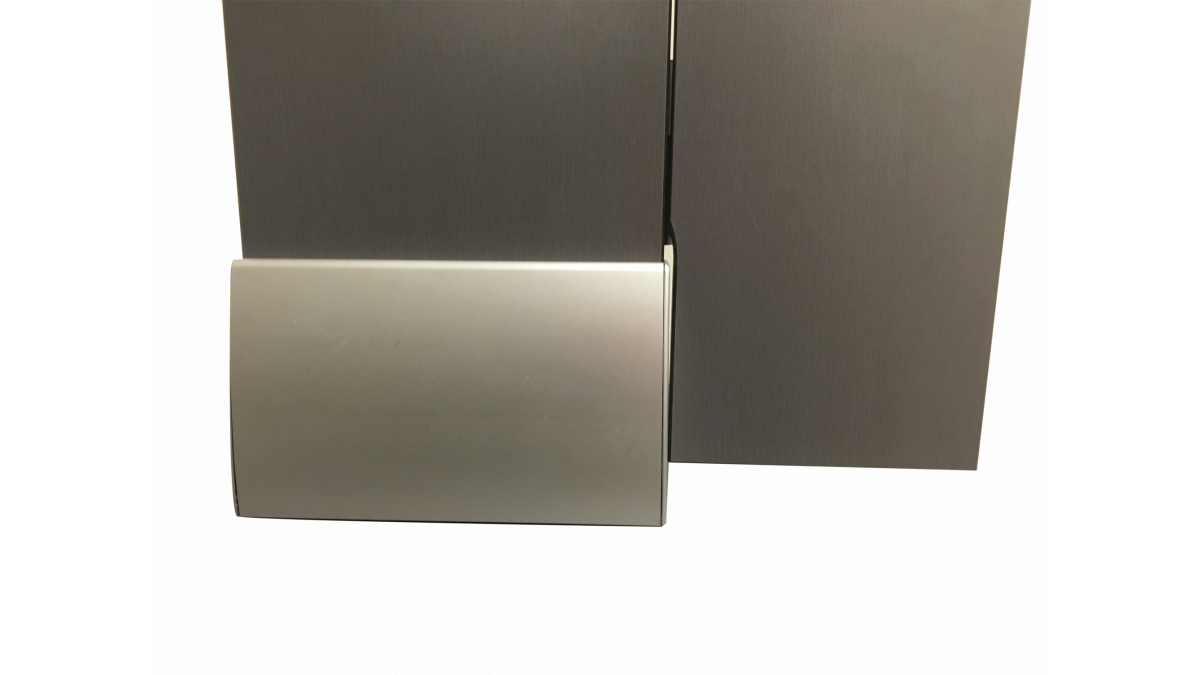

Anodised load supporting custom skirt mount pedestal

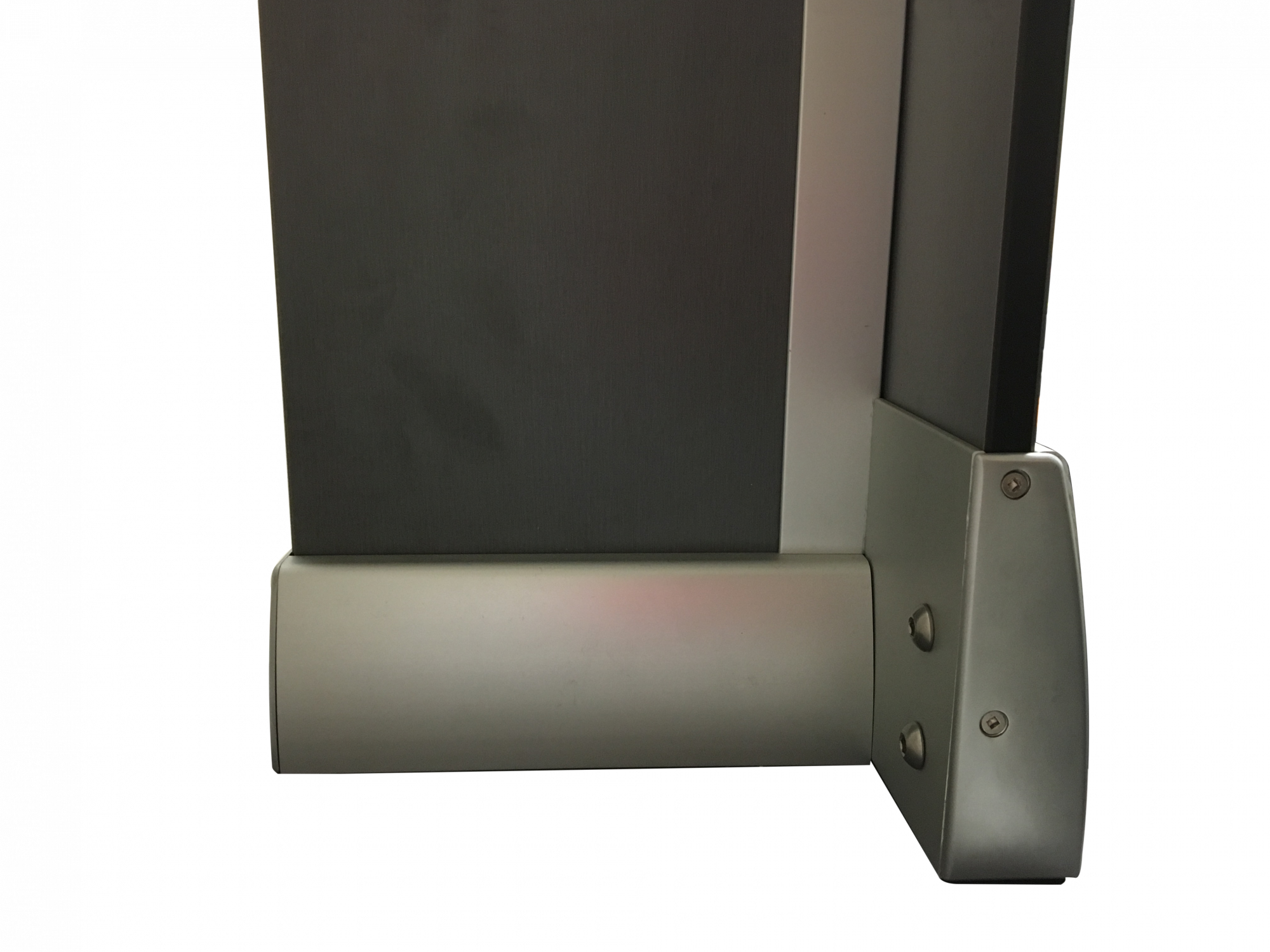

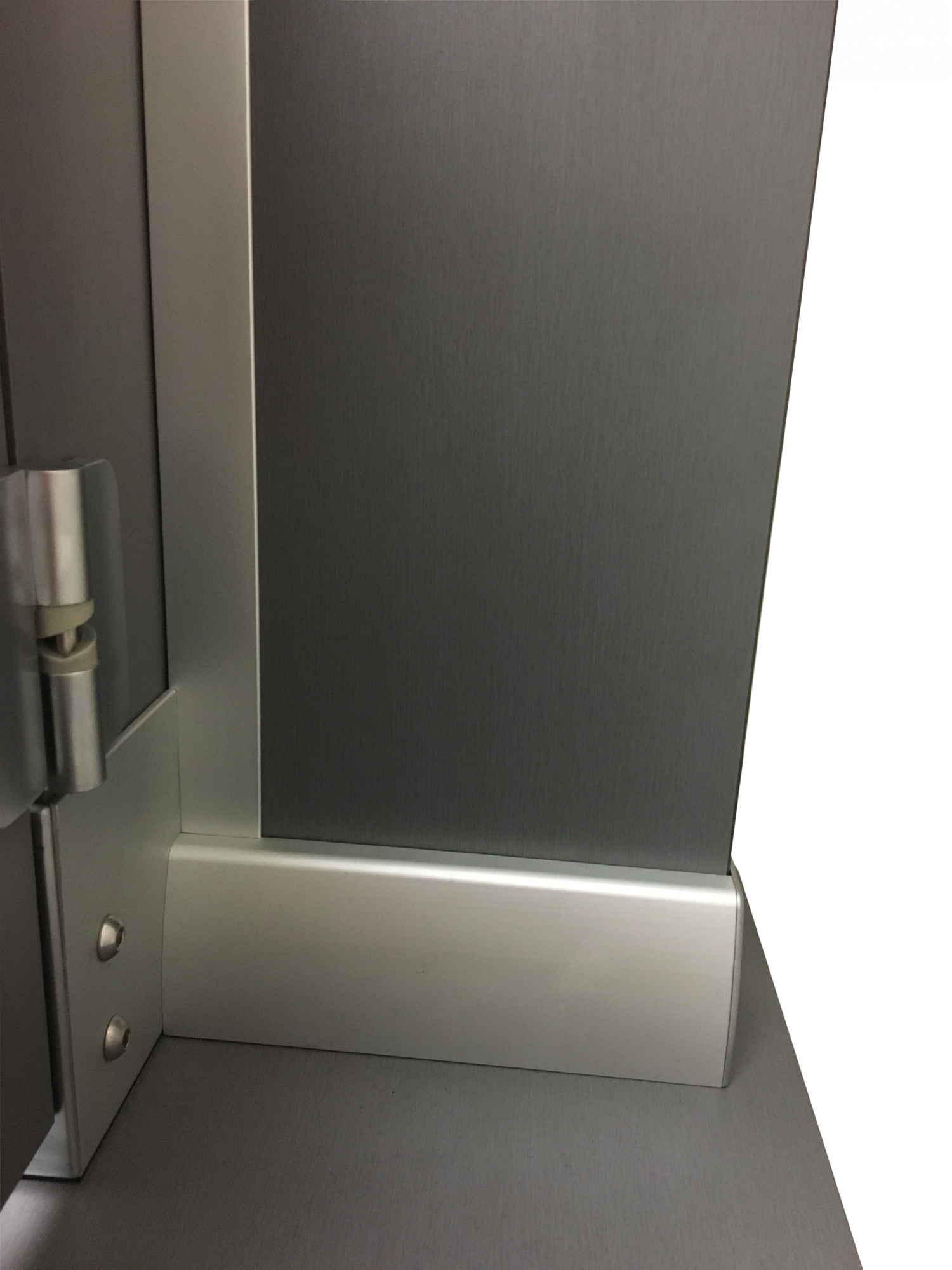

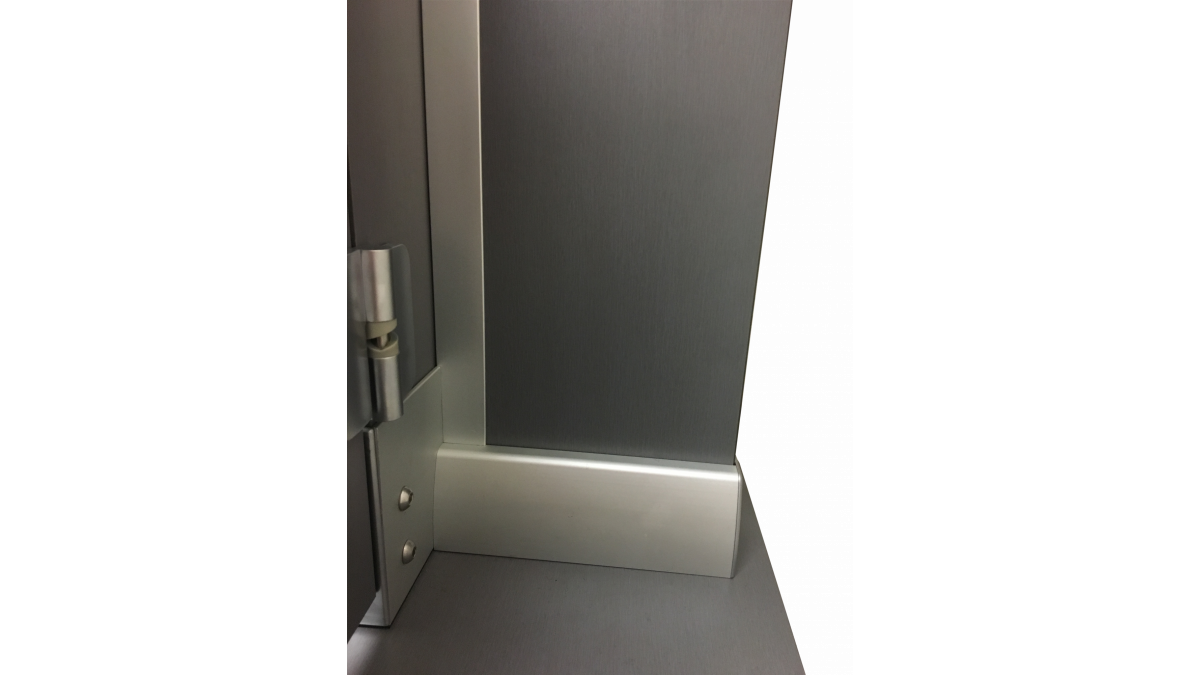

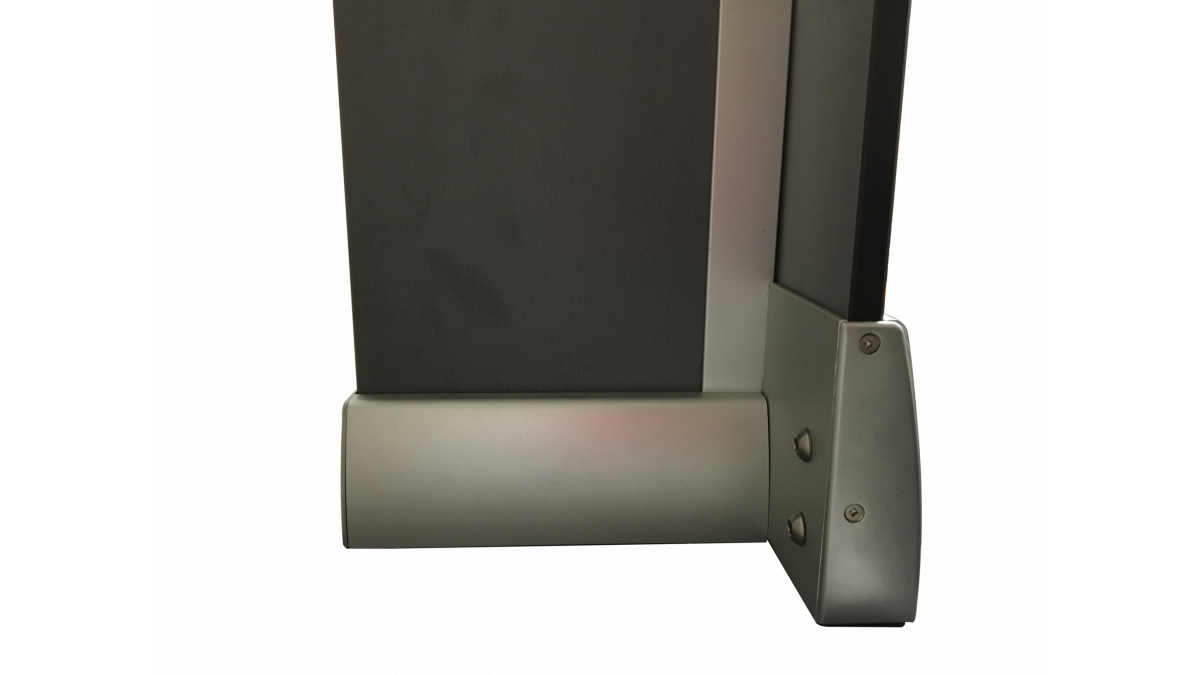

Anodised skirt mount channel supporting partition dividers for additional privacy
Anodised aluminium headrail with infills (unless full height to ceiling)
Doors flush with fascia's when closed for seamless, clean finish
Antimicrobial treatment reducing bacteria and fungal growth and reproduction throughout the lifetime of the panel
Emergency lift off hinges
No edge treatment required, however oil will enhance black edge
Privacy strips to ensure maximum privacy of cubicle
Panels are 1800mm wide, eliminating the need for joints in most cases.
Concealed fixed Avanti or Wave indicator lock with combined bumper
Concealed fixed Avanti or Wave gravity hinges
Concealed fixed Avanti or Wave coat hook and bumper
Continuous wall channel fixing at all junctions
10 year board guarantee.
Environmentally friendly low emissions board.
Flexible design, available in ready to install, flat pack complete with shop drawings and installation manual.

Optional Extras:

Powder coating to aluminium trim available
Full height system to ceiling
Privacy strips along hinge and opening side of door for maximum privacy of cubicle

Ranges

Toilet Partitions Shower Partitions

NZ Made

NZ-Owned Business

Scope of Use

The Hale Privacy partition system is suitable for use in high or low abuse wet areas such as toilets, changing rooms or showers.

Recommended applications:

Wherever Privacy/Unisex cubicles are required
Offices
Factories
Hotels
Restaurants
Educational centres
Clubs and Entertainment centres
Public areas
Sporting and Gymnasium centres
Recreational centres
Caravan Parks and campgrounds

Limitations on Use

The use of strong acid or alkaline cleaning agents, abrasive or polishing materials should not be used as they may stain or damage the worktop surface.

Statement of Building Code Compliance

NZ Building Code: Clause B2 - Durability
NZ Building Code: Clause C - Protection from Fire
NZ Building Code: Clause E3 - Internal Moisture
NZ Building Code: Clause G1 - Personal Hygiene

In-Service History

The Hale Privacy partition system is a newly developed system and our first system has been installed at Tauriko, Tauranga.

Other Performance Attributes

Laminex Compact is certified antimicrobial to JIS Z 2801:2001 and is proven to prevent the growth of bacteria and fungi on the surface up to 99% within 24 hours.

Hale Compact Laminate is certified antimicrobial to ASTM G22. It is produced by permanently incorporating a US-EPA approved, well-known and widely used anti-microbial agent to retard the growth of nearly 99% of common form of bacteria on any decorative surface, further adding a spectacular look to the overall décor.

Durability

Protection from Fire

Internal Moisture

Personal Hygiene

News
Technical Advice

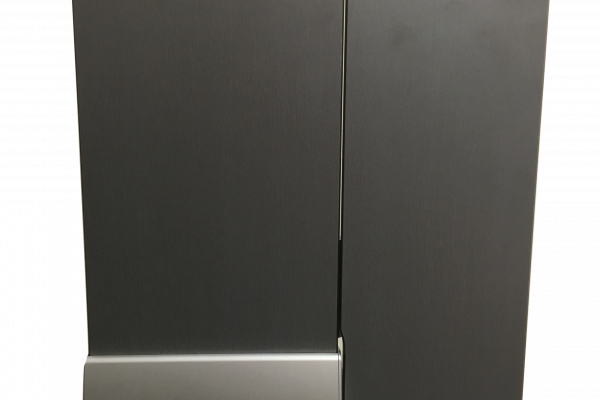

Hale Manufacturing Increases Privacy with Unique New Partition System
