eCLIQ Electronic Locking Platform
Description

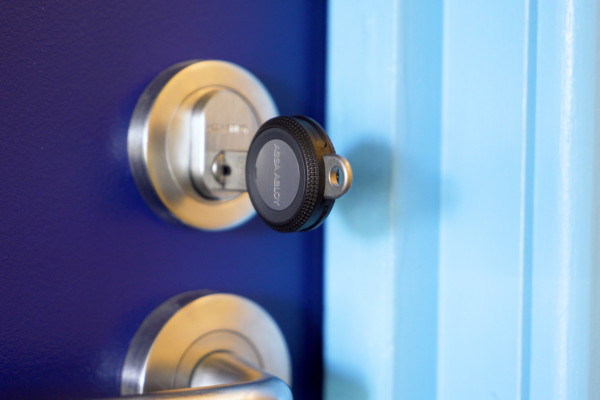

eCLIQ is a purely electronic keying system developed by ASSA ABLOY. It is a cost effective solution which provides electronic access control without the need for wiring. eCLIQ cylinders retrofit into existing doors and locks.

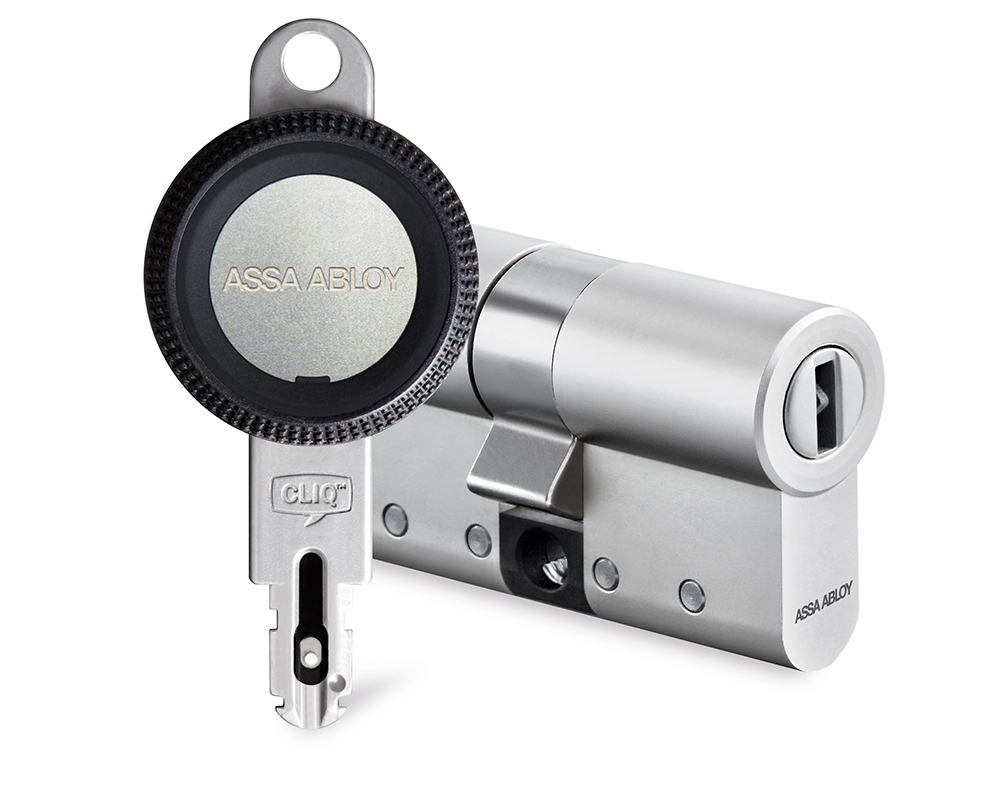

eCLIQ offers the electronic features such as programmable access rights, time scheduling, audit trails, and blocking of lost keys. Both the key and cylinder contain electronics but only the key has a battery. The battery in the key powers up the electronics in the cylinder at key insertion.

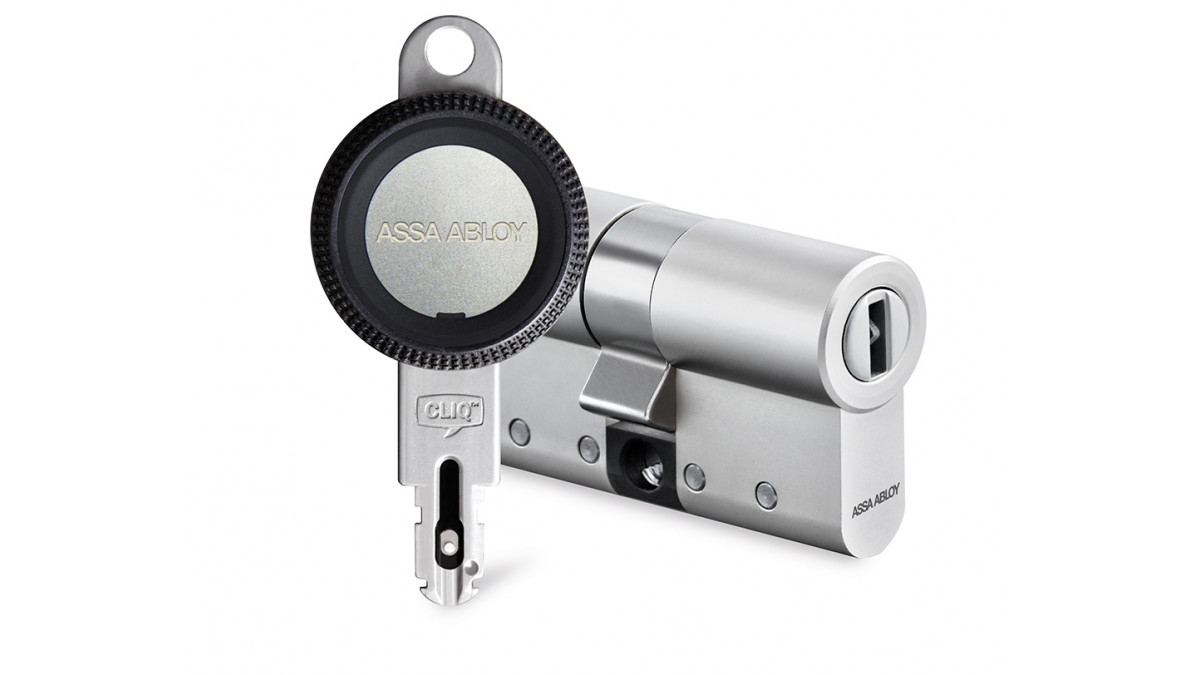

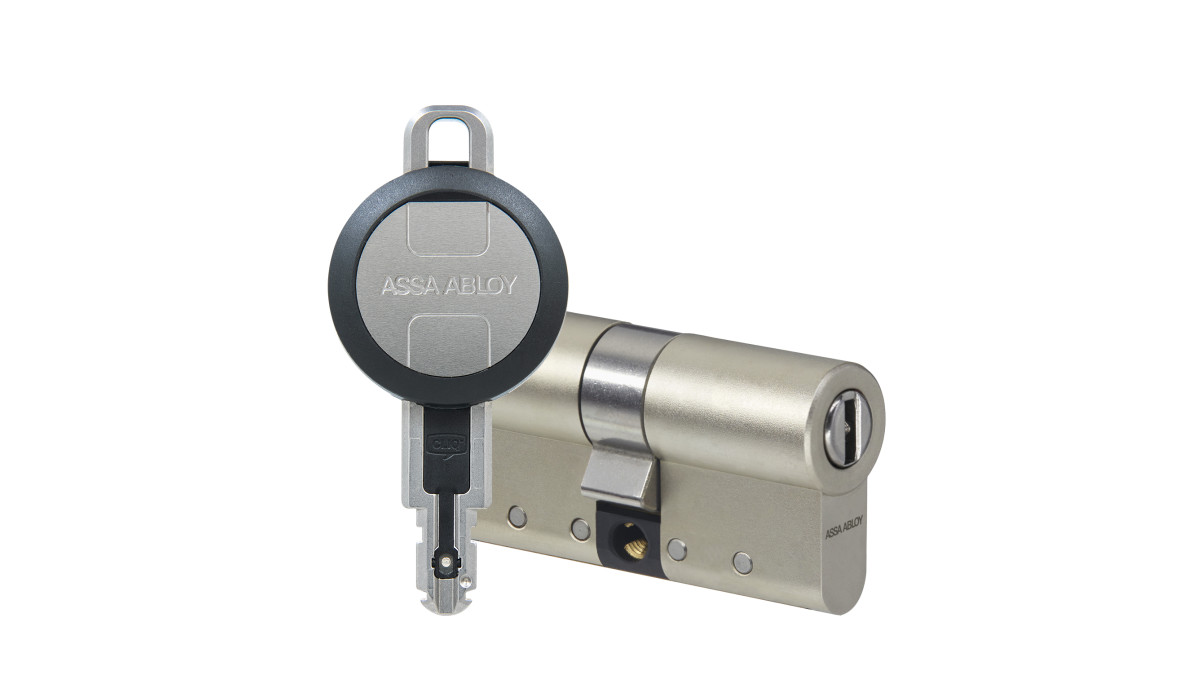

eCLIQ is based on electronics that can be embedded directly inside the key and the core of a cylinder. Each ASSA ABLOY eCLIQ key and cylinder contains a unique electronic code, designated for one individual element only and cannot be altered or corrupted.

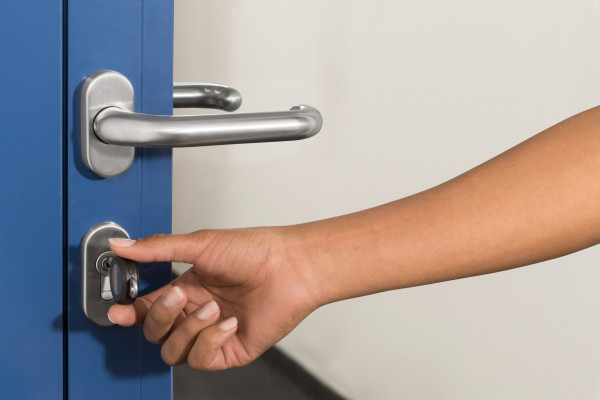

The electronic mechanism embedded in the cylinder, is a self-contained unit. Consequently, the intelligent cylinder installs with ease like any normal cylinder.

Key Features
  • Electronic access control without wiring
  • Audit trails
  • Flexible access permissions
  • IP67 rated keys
  • IP67 rated padlock
  • Easily replaced standard battery in the key
  • Clock and calendar features
Categories
Locks
Scope of Use

ASSA ABLOY eCLIQ is suitable for various industries:

  • Schools
  • City Councils
  • Museums and art centres
  • Nursing homes, smaller hospitals and health centres
  • Commercial buildings and factories
  • Transport and logistics
  • Infrastructure
  • Offices
  • An application with a need for electronic access control in remote locations

The electronic mechanism embedded in the cylinder, is a self-contained unit. Consequently, the intelligent cylinder installs with ease like any normal cylinder.

Temperature Rating:

  • Use temperature: key 0°C …+70°C
  • Use temperature: cylinder -25°C …+85°C

Dust and Water Protection:

  • Cylinder: IP classification IP 54 — protected against dust and water splashed from all directions
  • IP classification IP 55 (if dust covers are used) — protected against dust and low pressure jets of water from all directions
  • Weather Proof Padlock: IP classification IP 67 — No dust can enter the key, and it is protected immersion

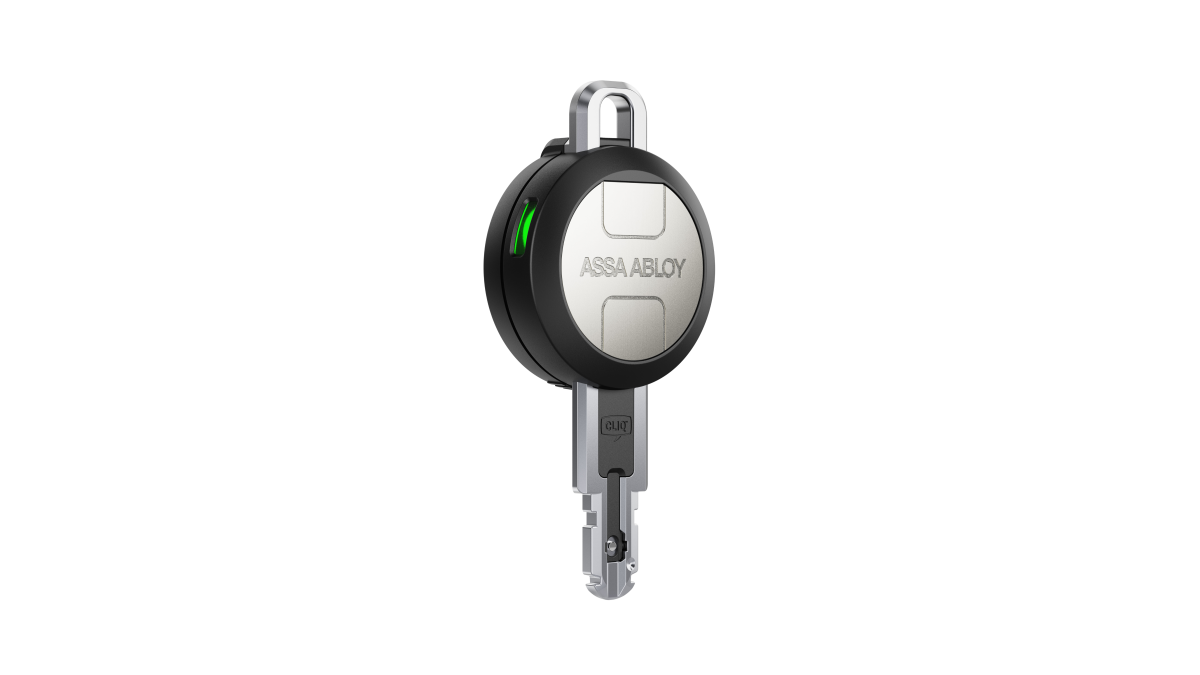

  • Key: IP classification IP 67 —No dust can enter the key, and it is protected immersion

Time Functions:

  • eCLIQ keys have a clock and calendar feature — can be programmed to be: always active, active between certain dates or inactive
  • It is also possible to set a weekly operation schedule to the key. The calendar allows the administrator to specify up to 32 time periods where the key is granted access throughout the week. Cylinder specific time periods can be programmed in the key. The key can for instance be programmed to open all cylinders Mon - Fri 8AM - 5PM except for one (or more) cylinder(s) which can only be opened on Saturdays
  • The clock has an accuracy of minimum +/- 1 minute per month
Limitations on Use

eCLIQ comes in two different system types: CLIQ Go and CLIQ Web Manager:

  • CLIQ Go is a lightweight software developed for smaller systems that can be managed via a mobile phone app. It is simple and intuitive to use but with limited functionality. Your local locksmith will be able to create and extend CLIQ Go systems directly from their shop
  • CLIQ Web Manager is an enterprise full feature software suitable for all types of systems including large ones. It is powerful but a bit more complex and requires training. It has a lot of features designed for large systems. CLIQ Web Manager systems are created and extended in ASSA ABLOY’s factory in Melbourne while being sold and supported by your local locksmith
Other Performance Attributes
  • IP67 rated keys
  • IP67 rated padlock
Documents
Comparison between CLIQ Web Manager and CLIQ Go
eCLIQ Product Brochure
