Triton Trio 85
Description

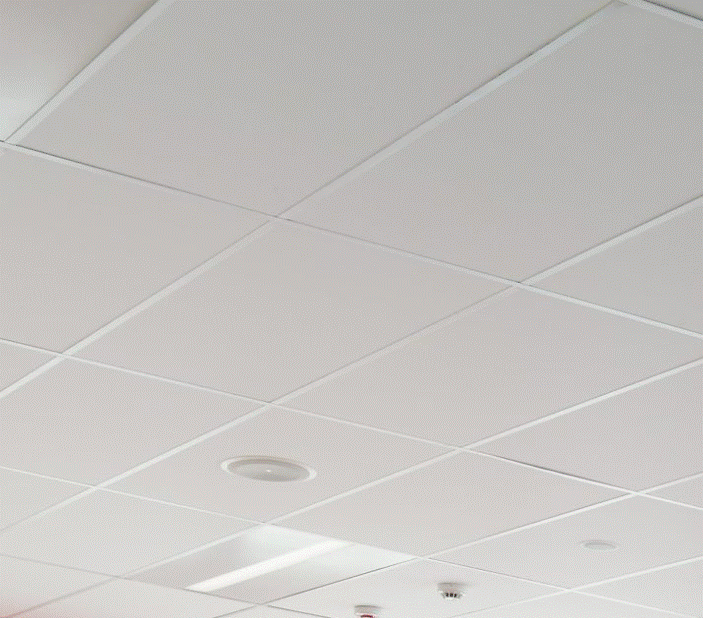

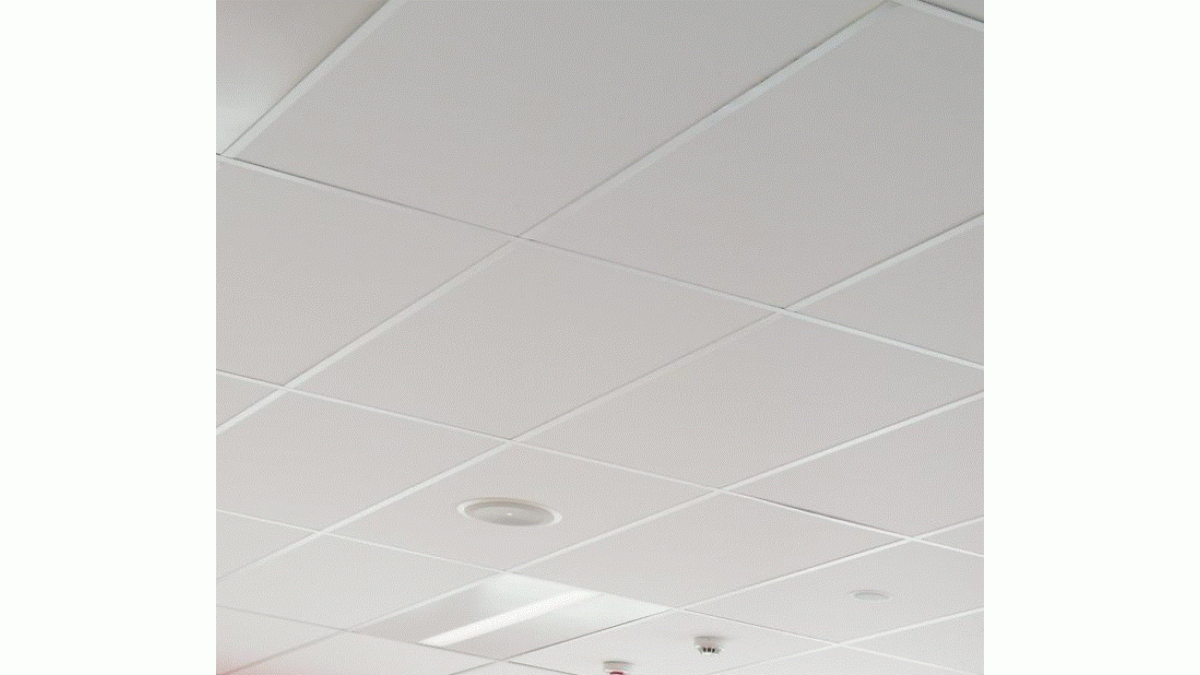

Triton Trio 85™ is a proprietary 85mm thick 3 layer high performance composite acoustic ceiling panel designed to attenuate airborne noise transmission through the ceiling and control plenum and room reverberation. Triton Trio 85 is fully accessible, lays into standard exposed grid system and comes in a range of decorative laminate finishes, colours, wood prints and perforated patterns.

Manufactured in New Zealand from 50mm glass fibre board with a Sonatex™ facing and a high mass plasterboard attenuator core with 25mm high density glass fibre board back.

Key Features
  • Unique 3 layer construction with 50 mm room side absorber, high mass gypsum core and 25 mm plenum side absorber provides NRC 0.95, CAC 48 and STC 25 for effective acoustic control
  • Fire Group 1-S
  • Built in plenum absorption eliminates the need for separate acoustic insulation overlay blanket saving on costs, construction time and ensures reliable system performance
  • Wide range of decorative acoustic laminate finishes for design flexibility
  • Product stewardship renew and reuse program
  • Made in NZ, short lead times including replacement parts
NZ Made
NZ Made
NZ-Owned Business
NZ-Owned Business
Recycled Content (Pre-Consumer)
Pre-Consumer Recycled Content
Scope of Use

Triton Trio 85 is ideally suited to attenuate noise below plenum mounted mechanical services as well as closed plan offices with high room to room privacy requirements and partitions terminating at the ceiling level.

Suitable for fire exit way and all other sprinklered & non sprinklered buildings.

Limitations on Use
  • Not for exterior use
  • Installation shall not commence until the building is watertight and dry
  • Light fittings shall be independently supported
  • Backloading max. 1.5 kg/m², point loads shall be independently supported
  • Max 99% R/H at 45°C
  • Use hold down clips in areas for seismic or wind uplift
  • Not for air return plenums
Statement of Building Code Compliance
  • Fire Reaction — NZBC verification method C/VM2 material group number: 1-S. Suitable for fire exit way and all other sprinklered & non sprinklered buildings
  • Clause B2 — durability, 5 years
In-Service History

Multiple project nationally, including schools.

Other Performance Attributes
  • Light Reflectance - 85% per BS8493:2008, White
  • Very high sound absorption rating to control reverberation, NRC 0.95, ISO 11654 class A, αW 1.0.
  • Combined with attenuation CAC 48 and STC 25 for blocking sound.
  • Board formed from 80% recycled local glass
  • Low VOC < 0.05
  • Product stewardship renew and reuse program available
  • Packaging take back and reuse scheme available
B2 Durability compliant
Durability
F2 Hazardous Building Materials compliant
Hazardous Building Materials
Interior Fire Rating 1S
1S
Test Results
Test Results
Documents
Triton Trio 85

23.12

Environmental Information - GreenTag Level A

230413

Asona Ltd are a manufacturer, distributor and installer of acoustic and decorative ceiling and wall panels.
