Triton 75 by Asona

Triton 75

Description

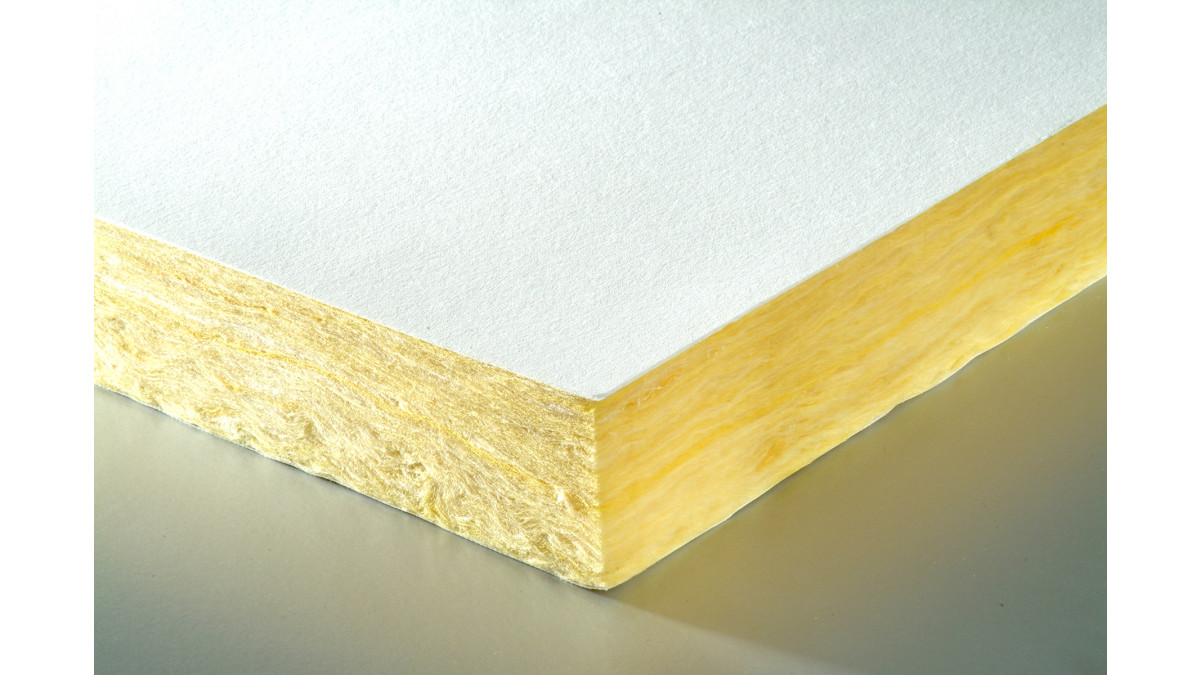

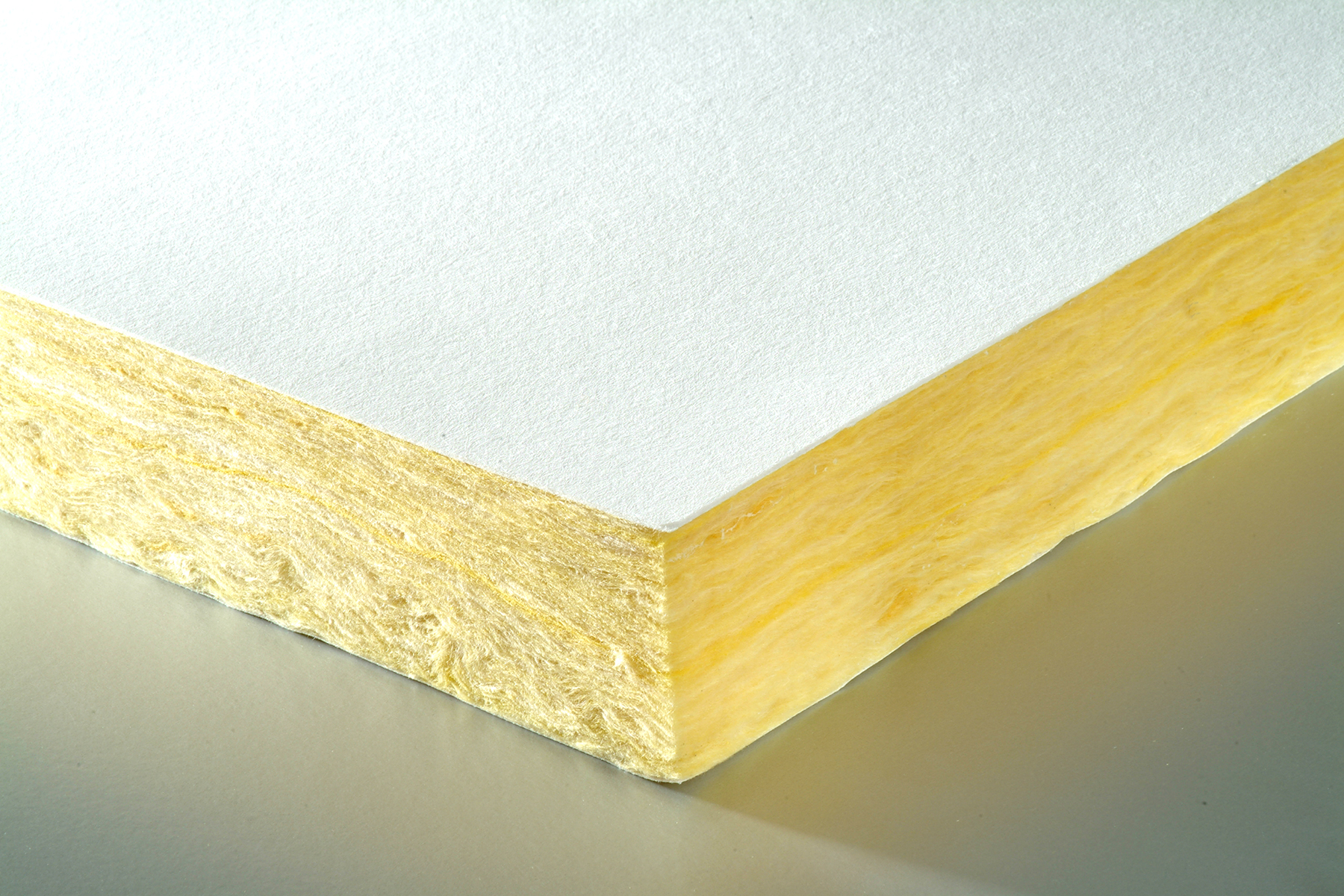

Triton 75™ is a made in NZ 75 mm thick high sound absorbing and thermal insulating ceiling panel. Triton panels are available in a wide range of sizes and decorative colours, wood prints, perforated acoustic patterns and Hygiene laminates for design freedom.

Triton 75™ is designed to provide R2.2 thermal insulation and exceptional low, mid and high frequency sound absorption.

Key Features

75mm thick for ultra high sound absorption especially at low frequency, NRC 1.05, ISO class A, αW 1.0.
R2.2 thermal insulation rating, ideal for retrofits
Fire Group 1-S
Broad range of plain Sonatex™ and perforated Sonaris™ acoustic laminate finishes for design flexibility
Made in NZ for short lead times including replacement parts
Product stewardship renew and reuse program available
Packaging take back and reuse scheme available
Green tag certified, class A
Durable and dimensionally stable in high humidity
Light weight for seismic, easy to work and trim
Large panels to 2400 x 1200 mm, direct fix with frame
Optional Sonatex Hygiene laminate facing.

Ranges

Thermal Triton Sonaris Hygienic

NZ Made

NZ-Owned Business

Pre-Consumer Recycled Content

Scope of Use

Triton 75™ is ideal for thermal and acoustic upgrade of class rooms, halls and applications that require control of low frequency reverberation such as music rooms, recording studios, audiology testing rooms.
Direct fix or suspended ceiling systems
R2.2 thermal insulation rating, ideal for retrofits

Limitations on Use

For interior use only, and not in direct contact with water.
Shall not commence until the building is water tight and dry
For large panels use DXW wide faced grid
Not suitable for negitive air return plenums, exterior/ exposed outdoor areas or direct exposure to water or steam
Services shall be independently supported
Back Loading — Max. 1.5 kg/m², point loads shall be independently supported
Max 99% R/H at 45°C

Statement of Building Code Compliance

NZ Building Act:

This product is not subject to a warning or ban under Section 26.

NZ Building Code Compliance:

B2 Durability – Clause B2.3.1 (c) (i): Asona ceiling tiles with only normal maintenance will have a minimum durability of at least 5 years when installed in accordance with; manufacturer’s installation requirements and AS/NZS 2785:2020.
C3 Fire – Clause C/AS2 4.12.1: Asona Triton 75 has a Fire Material Group Number 1-S by NZBC Building Product Specification Parts 8.5.4 or 8.5.5, tested in accordance with ISO 9705 or ISO 5660. (NCC BCA C1.10 clause 4, spec A2.4 clause 4. Group 1)
