Covered outdoor canopies often need to provide shelter and daylight while maintaining openness and a light structural impression. In these applications, structural glazing pergola systems need careful early-stage planning, because wind exposure, roof geometry and support spacing can all influence how the canopy is designed, detailed and consented.

Design considerations

When specifying structural glazing pergola systems for exposed outdoor applications, the main design issues typically include:

• Span, panel layout and roof form: Standard panel sizes and support spacing often shape the initial concept. Common support centres are 600mm and 750mm, while longer canopy forms may require additional structure or an alternative roof configuration.
• Wind exposure and structural coordination: Wind zone has a direct effect on allowable span. Rafter spacing, bearer design, post sizing and overall frame stability all need to be checked together rather than in isolation.
• Glazing selection: Polycarbonate and glass create different design implications. Polycarbonate is lighter and allows easier handling, but requires allowance for greater thermal movement. Glass offers different surface and maintenance characteristics, but introduces more weight into the roof build-up.
• Pitch, drainage and maintenance: Roof pitch affects water run-off, cleaning frequency and structural loading. Flashings, junctions and gutter interfaces also need to be resolved early to align with NZBC Clause E2 External Moisture.
• Access and long-term use: Glazing bar roofs are not traffickable, so any future maintenance access needs to be considered as part of the wider roof design.

Benefits

For outdoor canopy applications, structural glazing pergola systems can offer several practical advantages:

• Maintain natural light and visual connection
• Reduce roof weight compared with heavier glazed structures
• Allow the roof and support structure to be coordinated as a single system
• Support both attached and freestanding canopy layouts
• Provide a clear path for resolving brackets, flashings and perimeter detailing

UGS ClearSpan illustrates this approach with two system types. The ClearSpan Bar is designed to sit on rafters or purlins and suits retrofit work on existing pergolas and awnings, while the ClearSpan Box uses a hollow RHS profile to achieve longer runs with less support. The system accommodates glazing from 6mm to 16mm and includes matching brackets and accessories, helping architects and building design professionals carry detailing through consistently.

Design guidance

UGS Technical Manager, Mike Dilloway, recommends the following design-stage sequence because it focuses decision-making in the right order:

• Confirm overall canopy size first: Width, panel length and rafter direction establish the structural logic of the roof.
• Verify the site wind zone independently: Wind exposure should be checked before member spacing or span assumptions are locked in.
• Select the system based on structure and visual intent: A box system can reduce interruptions across the roof plane, while a bar system can suit layouts where purlin support is acceptable.
• Resolve interfaces once the structural approach is clear: Bracket connections, wall attachments, flashings and gutters should follow the chosen span and support strategy.
• Set pitch expectations early: A 5-degree pitch is preferred for water run-off. A minimum of 3 degrees may be workable, but it increases cleaning requirements, and anything below that creates ponding risk.

Compliance pathways

UGS offers a standard PS1 based on its span charts to assist with compliance with NZBC Clause B1 Structure.

For projects exceeding these standard parameters, UGS's engineering consultants can prepare a site-specific PS1.

Designers must ensure compliance by referencing the provided span charts, rafter capacities, and fixing requirements. Additional compliance considerations, such as for the Taupo project referenced below, include:

• NZBC Clause B2 Durability: Addressing environmental durability.
• NZBC Clause E2/AS1 External Moisture: Detailing roofing junctions appropriately.

Project example

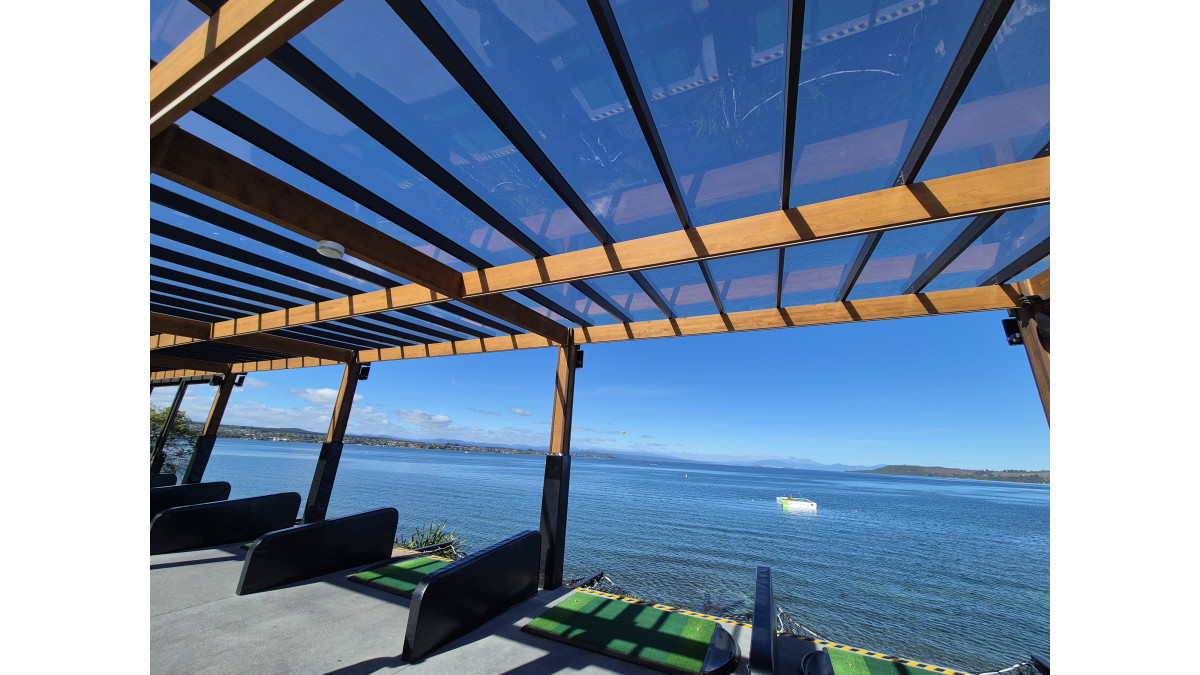

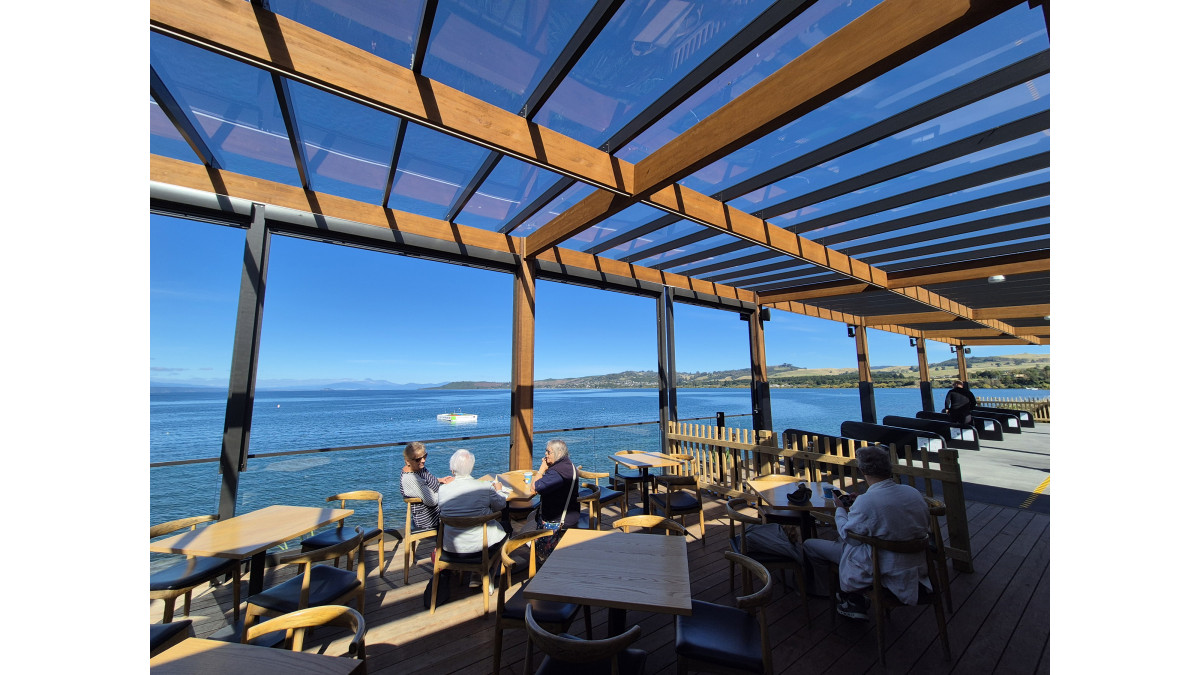

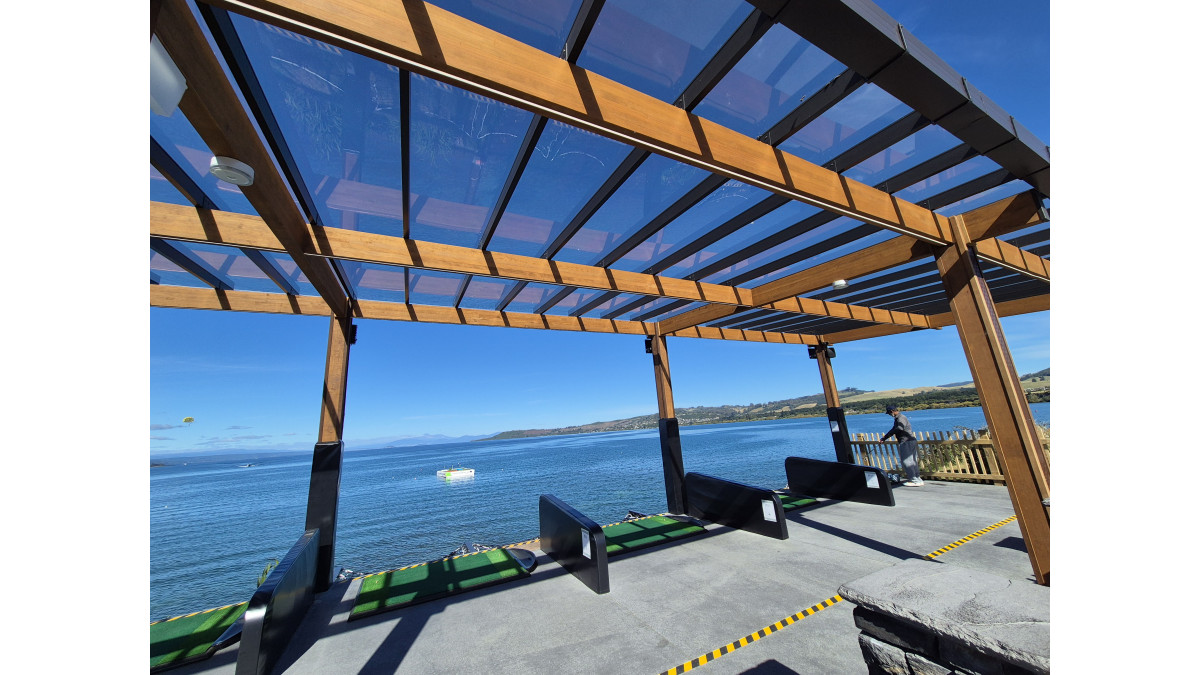

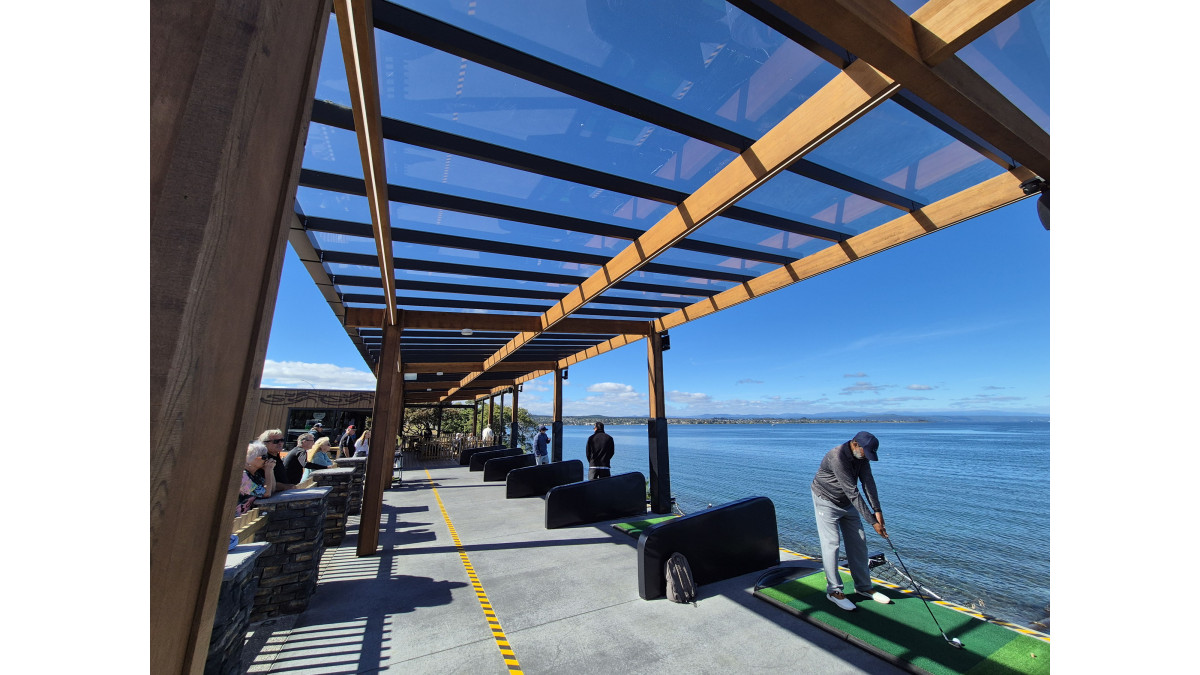

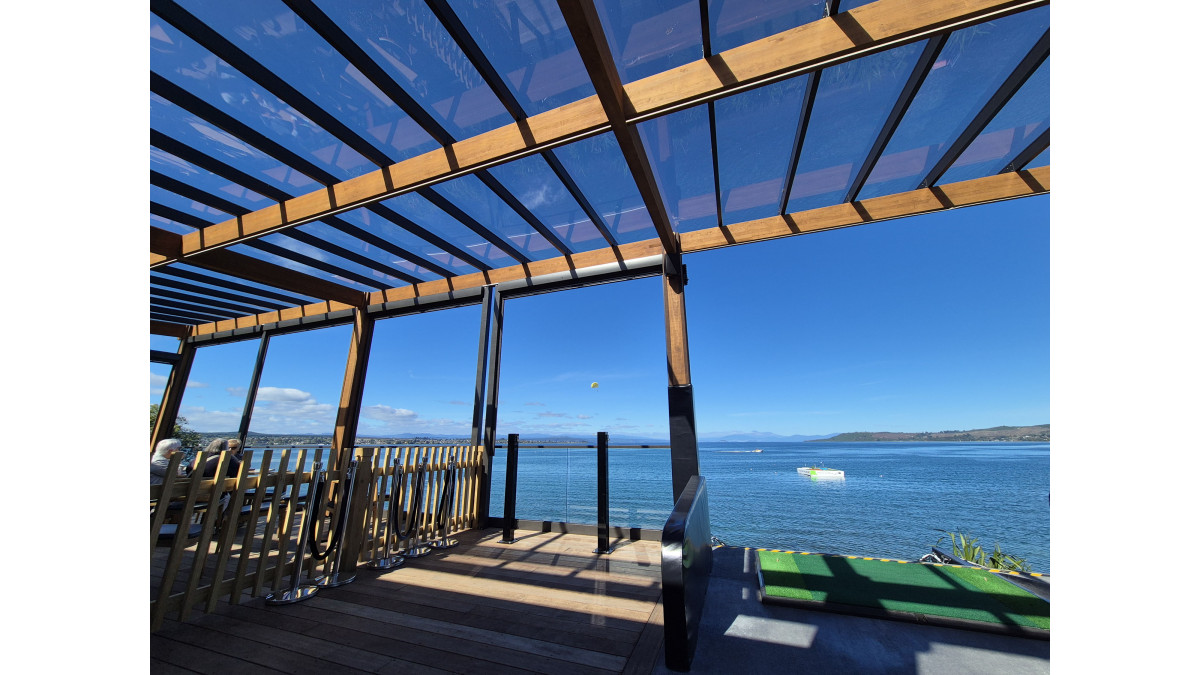

At the Hole in One Challenge in Taupo, UGS ClearSpan Box was used for a 30m-wide x 6m long canopy in an extra high wind zone. The standard span tables did not allow that full span at the required exposure, so the design incorporated a mid-purlin and additional structural support to resolve the load path.

UGS reviewed the drawings, checked the engineering assumptions and supplied span charts and the standard PS1 to support the project team’s consent documentation. Mike also visited the site before delivery to walk the builders through the installation and resolve an interface with a large box gutter using revised plate and overhang detailing. During design development, the canopy remained at 750mm centres rather than moving to 900mm, aligning the roof with structural requirements and keeping replacement panel supply straightforward.

Conclusion

Structural glazing pergola systems perform best when span, exposure, pitch and detailing are resolved as one coordinated design problem. The Taupo project shows how early technical input can help maintain canopy transparency and long runs while keeping the structure aligned with engineering, installation and consent requirements.

Get in touch

For project-specific advice on span tables, system selection and canopy detailing, contact the UGS technical team.
