Introducing KOROK 360: Support for Your Project from Specification Through to Installation

In the ever-changing and challenging world of construction, it's crucial to have the right kind of backup to tackle any project head-on. That's where KOROK has stepped in with something pretty special — KOROK 360. It's KOROK's latest effort to provide top-notch support from start to finish on your construction projects.

What KOROK 360 is all about

KOROK 360 is all about shaking things up a bit in the New Zealand construction industry. The KOROK team thinks it's time to give you a hand with a bit of everything — from getting your project off the ground to crossing the finish line. Their goal is to set a new standard for support, making sure they're there for both new and longstanding clients.

Support and innovation

First of its kind in New Zealand's firewall and acoustic wall systems industry, KOROK 360 covers all bases. Their team is here to make sure every part of your project runs smoothly, blending excellent support with know-how to make your job easier.

All the support you need, when you need it

Expert tech support: Benefit from KOROK's technical experts for guidance, compliance and troubleshooting, ensuring your project keeps moving without difficulty.
Dedicated sales support: KOROK's sales support team is at your disposal, ready to help you in the office, on-site, run training sessions, presentations and more.
Manufactory length service: Just like a tailor-made suit, KOROK will make sure their products fit your project perfectly.

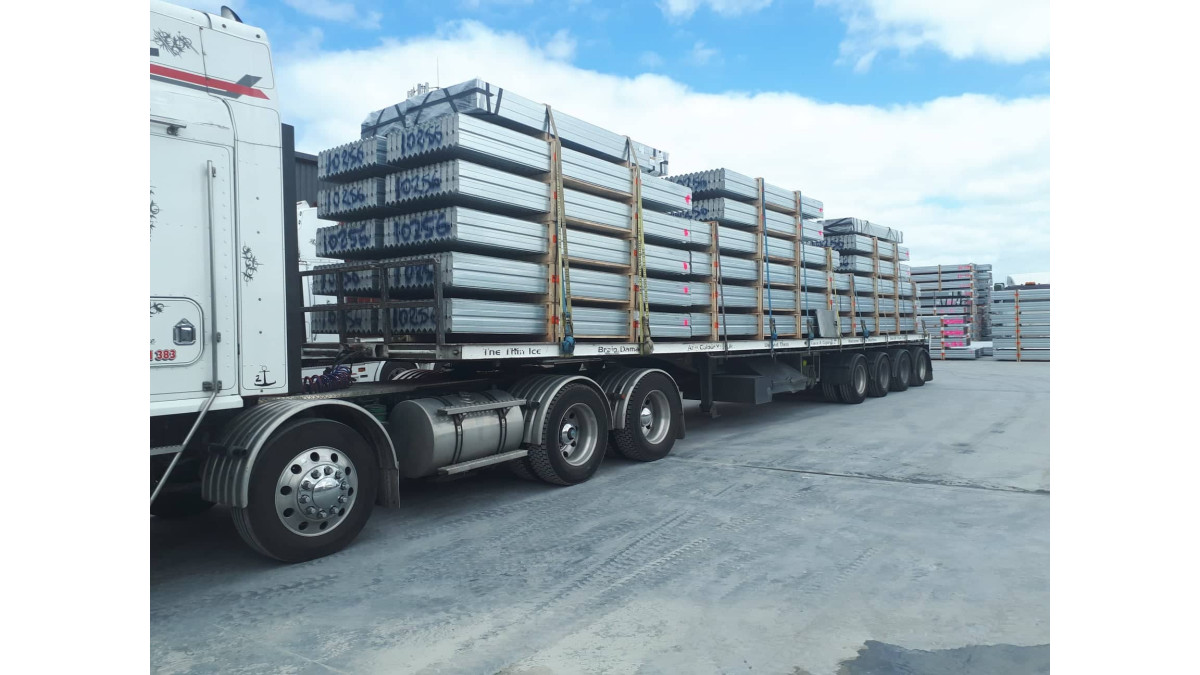

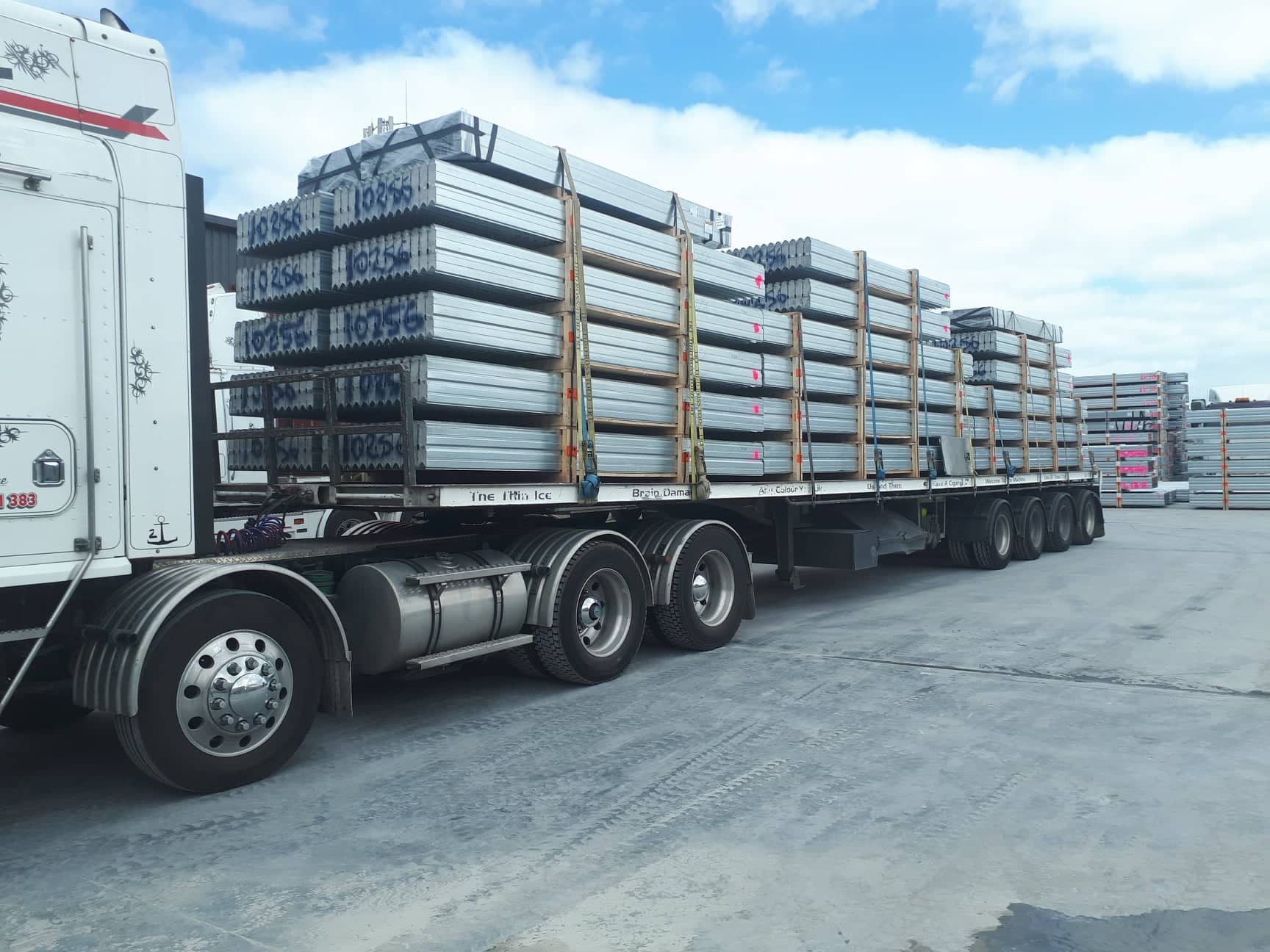

National logistics service: No matter where you are in New Zealand, KOROK will get their products to you right on time, so your project stays on track.

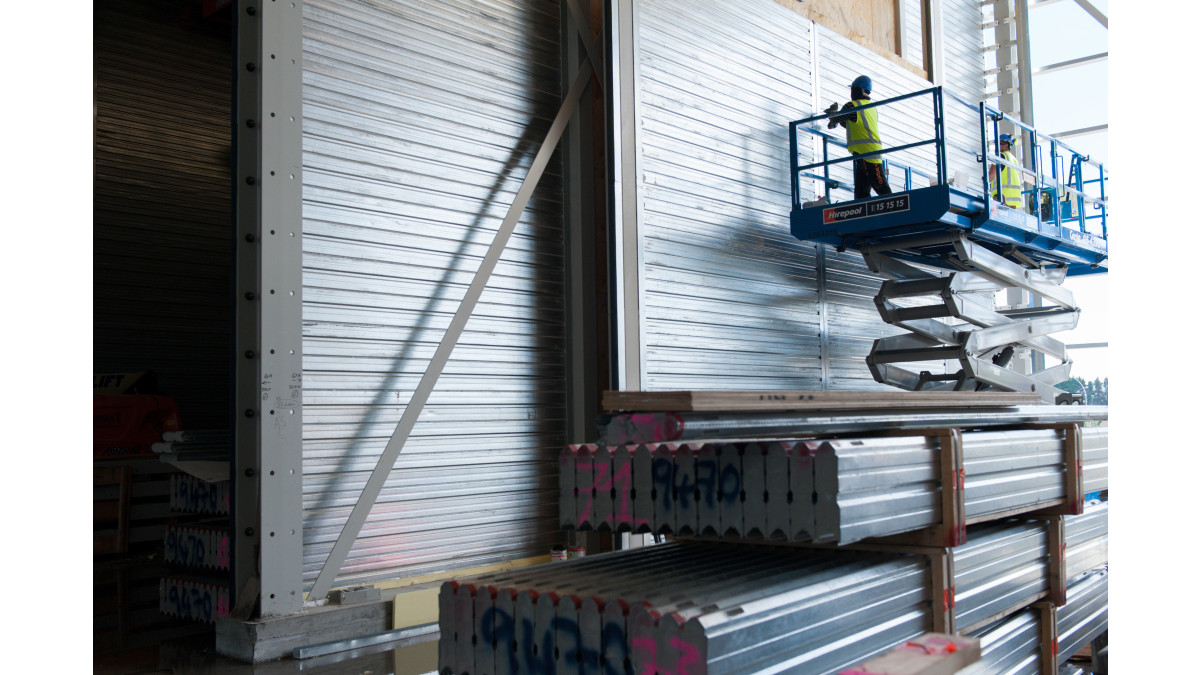

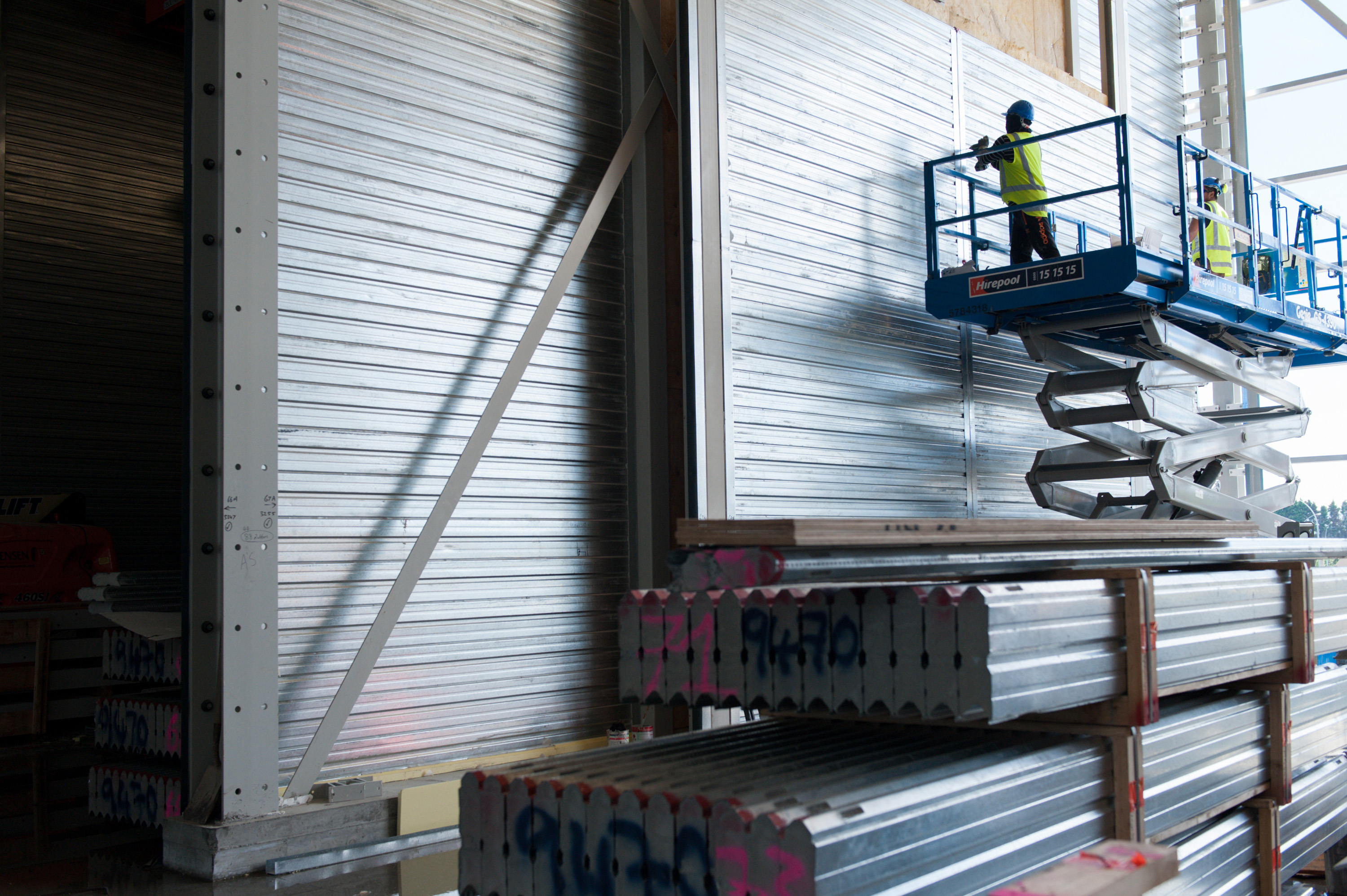

Installation support: KOROK's on-ground support during installation ensures compliance with standards and maximises the performance of their firewall and acoustic wall systems.
Comprehensive training support: KOROK has got loads of training materials ready to help your team get the hang of things, ensuring your project is not just completed, but completed well.

New chapter

KOROK 360 embodies KOROK's commitment to innovation, providing the comprehensive support you need. Welcome to KOROK 360, where your project's needs are met with precision, expertise, and solid support.

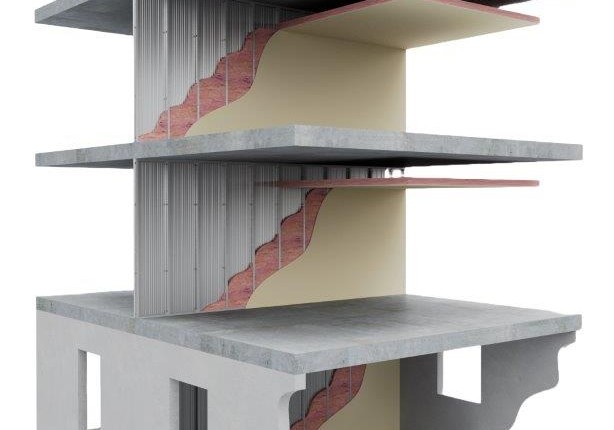

Intertenancy Apartment Systems

KOROK

View Product

Conventional framed wall systems rely on their linings to provide fire resistance and acoustic control performance.

NZ Made

Post-Consumer Recyclable Content

Installed vertically
Fire ratings up to -/120/120
Acoustic ratings up to STC 68

Along with Terraced Housing Intertenancy, KOROK systems are suitable for:

Dividing walls for sheds, factories and warehouses
Cinema walls
Intertenancy walls for apartments, hotels and retirement complexes
Lift shaft, stair and duct walls
Acoustic barriers
External and boundary walls for sheds, factories and warehouses

KOROK systems are suitable for all areas of New Zealand.

The NZBC sets out both the legal minimum sound transmission between tenancies (Clause G6) and minimum levels of fire resistance (Clauses C3 and C6). The KOROK Intertenancy Systems Manual provides guidance on the specification and construction of systems that will both meet and exceed those minimum levels. However, designers should consider the comfort of occupants when selecting a system that will satisfy the occupants' expectations when using the space rather than the minimum required by law.

NZBC:

Clause B1: Structure — The KOROK Systems meet the requirements for loads arising from self-weight, earthquake, wind, impact and creep and shrinkage
Clause B2: Durability — Under normal conditions of dry internal use KOROK Intertenancy Systems have a serviceable life in excess of 50 years and satisfy the requirements of NZBC Clause B2 Durability
Clauses C3: Fire Affecting Areas Beyond the Source — KOROK Intertenancy Systems can be used to provide passive fire protection in accordance with the requirements of NZBC Clause 3: Spread of Fire
Clause C6: Structural Stability —Compliance with (NZBC) Clause C6 'Structural Stability'. In order to satisfy the requirements of the New Zealand Building Code (clause 6) relating to Structural Stability designers must ensure that KOROK elements are supported by primary elements that have at least the same fire rating as the KOROK system that is used
Where the primary elements supporting the KOROK system are outside the fire cell, there is no requirement to apply the same FRR as the KOROK system. Notwithstanding, post fire stability requirements of the NZBC must also be satisfied
Clause G6: Airborne and Impact Sound — KOROK Intertenancy Systems, both meet and exceed the minimum requirements outlined in NZBC Clause G6. Consideration should be given to both the minimum requirements and the comfort of occupants

BRANZ Appraised

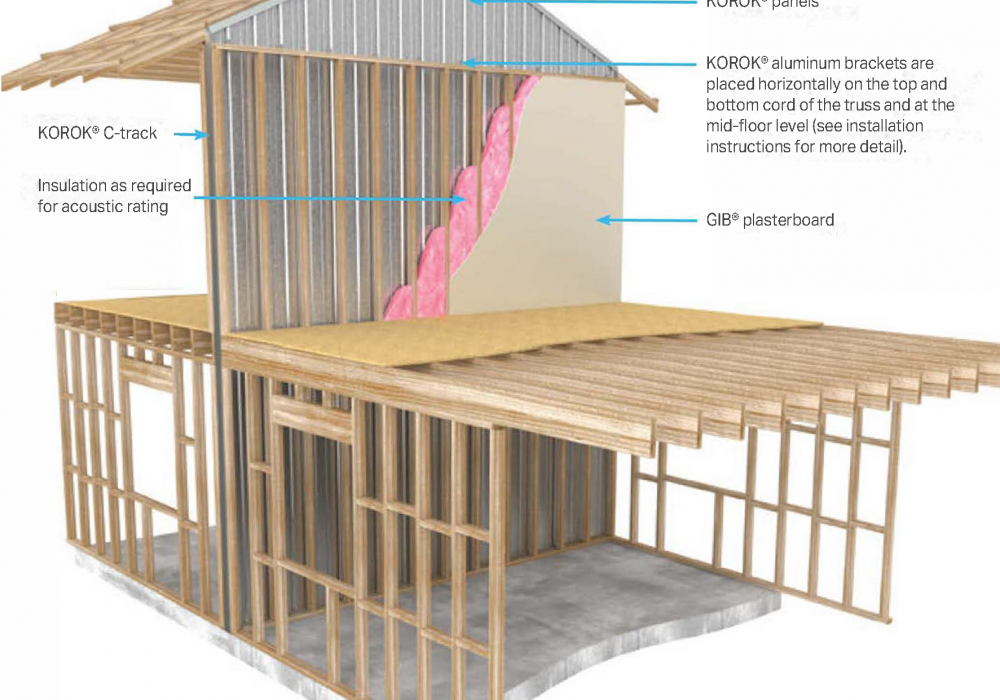

Terraced Housing Intertenancy Wall System

KOROK

View Product

Manufactured from rolled steel and aerated concrete, KOROK fire and acoustic clip-together intertenancy wall systems are high performance and lightweight.

NZ Made

Post-Consumer Recyclable Content

Fire ratings up to 120/120/120
Acoustic ratings up to STC 69

The KOROK 51mm Wall System and KOROK KIT Wall Systems are used to construct fire and acoustically rated walls and partitions within building envelopes.

The KOROK panels are made from aerated concrete encased in profiled galvanised steel sheet formwork and are non-loadbearing, whilst the structural elements of the wall system can be loadbearing.

BRANZ Appraisal 1059 [2019] Scope:

The KOROK 51mm Wall System and KOROK 51mm Wall System and KOROK KIT Wall Systems have been appraised for use as non-loadbearing fire and acoustically rated internally located walls and partitions for all buildings of all importance levels as defined by AS/NZS 1170
The KOROK KIT Wall System panels are installed in vertical orientation. For the intertenancy wall systems the panels are fixed to the timber or steel framing with aluminium brackets at the panel face or joints at maximum 3.5m intervals vertically and 0.6 m intervals horizontally. The total height of the KOROK panels in a single wall must not exceed 14m
For the KOROK 51 mm plain wall panel the maximum unsupported span for the panels between structural supports is 8m. The overall height or length of a KOROK 51mm plain wall will be determined by the structural support. When used as part of a fire rated system, the maximum unsupported span of the KOROK panels is 6m for vertical orientation and 4m for horizontal orientation. Greater spans are subject to specific engineering design and/or fire engineering assessment and are outside the scope of this Appraisal.
The KOROK 51mm Wall System and KOROK KIT Wall Systems have been appraised for use in intertenancy walls when used with the wall framing, wall insulation and wall lining specified in this Appraisal.

The NZBC sets out both the legal minimum sound transmission between tenancies (Clause G6) and minimum levels of fire resistance (Clauses C3 and C6). The KOROK Intertenancy Systems Manual provides guidance on the specification and construction of systems that will both meet and exceed those minimum levels. However, designers should consider the comfort of occupants when selecting a system that will satisfy the occupants’ expectations when using the space rather than the minimum required by law.

NZBC:

Clause B1: Structure — The KOROK Systems meet the requirements for loads arising from self-weight, earthquake, wind, impact and creep and shrinkage
Clause B2: Durability — Under normal conditions of dry internal use KOROK Intertenancy Systems have a serviceable life in excess of 50 years and satisfy the requirements of NZBC B2 Durability
Clause C3: Fire Affecting Areas Beyond the Source — KOROK Intertenancy Systems can be used to provide passive fire protection in accordance with the requirements of Clause C3
Clause C6: Structural Stability — Compliance with (NZBC) Clause C6 ‘ Structural Stability’. In order to satisfy the requirements of the New Zealand Building Code (clause 6) relating to Structural Stability designers must ensure that KOROK elements are supported by primary elements that have at least the same fire rating as the KOROK system that is used.
Where the primary elements supporting the KOROK system are outside the fire cell, there is no requirement to apply the same FRR as the KOROK system.
Notwithstanding, post fire stability requirements of the NZBC must also be satisfied
Clause G6: Airborne and Impact Sound — KOROK Intertenancy Systems, both meet and exceed the minimum requirements outlined in NZBC Clause G6. Consideration should be given to both the minimum requirements and the comfort of occupants.

BRANZ Appraised

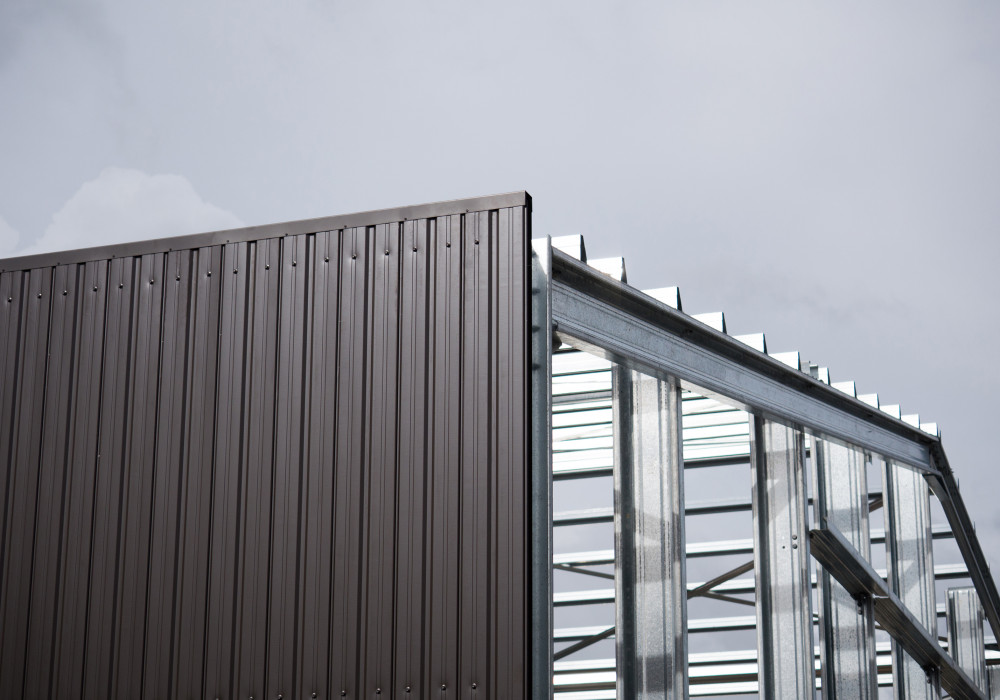

External Wall Systems

KOROK

View Product

The KOROK External Wall Systems are all-in-one wall solutions for fire, acoustic and weather protection in external applications.

NZ Made

Post-Consumer Recyclable Content

Fire ratings up to –/240/240
Acoustic ratings up to STC 76

Along with External and boundary walls for sheds, factories and warehouses, KOROK systems are suitable for:

Dividing walls for sheds, factories and warehouses
Cinema walls
Intertenancy walls for apartments, hotels and retirement complexes
Lift shaft, stair and duct walls
Acoustic barriers
External and boundary walls for sheds, factories and warehouses
Terraced housing intertenancy

KOROK systems are suitable for all areas of New Zealand

CLAUSE B1 STRUCTURE: Performance B1.3.1, B1.3.2 and B1.3.4. The KOROK External Wall System meets the requirements for loads arising from self-weight, earthquake, wind, impact and creep and shrinkage [i.e. B1.3.3 (a), (f), (h), (i), (j) and (q)].
CLAUSE B2 DURABILITY: Performance B2.3.1 (b), 15 years, Performance B2.3.1 (c), 5 years. The KOROK External Wall Systems meet these requirements.
CLAUSE C3 FIRE AFFECTING AREAS BEYOND THE FIRE SOURCE: Performance C3.4, C3.5 andC3.6. The KOROK External Wall Systems will meet or contribute to meeting these requirements.
CLAUSE C6 STRUCTURAL STABILITY: Compliance with (NZBC) Clause C6 'Structural Stability' In order to satisfy the requirements of the New Zealand Building Code (clause C6) relating to Structural Stability designers must ensure that KOROK elements are supported by primary elements that have at least the same fire rating as the KOROK system that is used.
Where the primary elements supporting the KOROK system are outside the fire cell, there is no requirement to apply the same FRR as the KOROK® system. Notwithstanding, post fire stability requirements of the NZBC must also be satisfied
CLAUSE E2 EXTERNAL MOISTURE: Performance E2.3.2. The KOROK External Wall Systems will meet this requirement
CLAUSE F6 HAZARDOUS BUILDING MATERIALS: Performance F2.3.1. The KOROK External Wall Systems meet this requirement and will not present a health hazard to people.

BRANZ Appraised

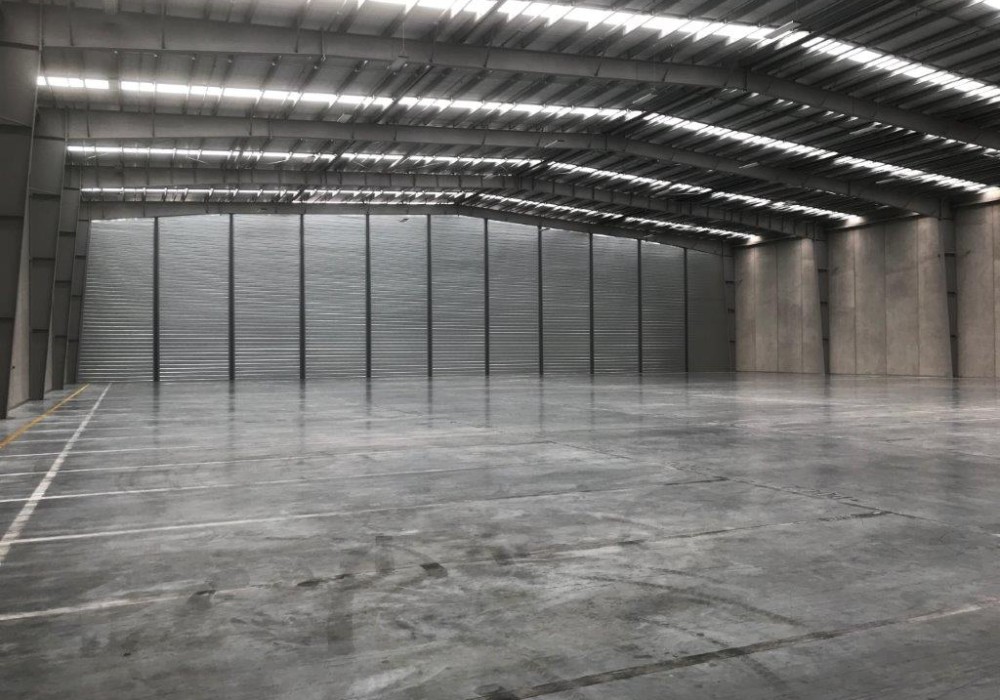

Warehouse, Factory and Retail Wall Systems

KOROK

View Product

Manufactured from rolled steel and aerated concrete, KOROK fire and acoustic clip-together simplicity wall systems are high performance and lightweight.

Along with dividing walls for sheds, factories and warehouses, KOROK systems are suitable for:

Cinema walls
Intertenancy walls for terraced housing
Lift shaft, stair and duct walls
Acoustic barriers
External and boundary walls for sheds, factories and warehouses
Intertenancy walls for apartments, hotels and retirement complexes

KOROK systems are suitable for all areas of New Zealand.

NZBC:

Clause B1: Structure — The KOROK Systems meet the requirements for loads arising from self-weight, earthquake, wind, impact and creep and shrinkage
Clause B2: Durability — Under normal conditions of dry internal use KOROK Intertenancy Systems have a serviceable life in excess of 50 years and satisfy the requirements of NZBC Clause B2 Durability
Clause C3: Fire Affecting Areas Beyond the Source — KOROK Intertenancy Systems can be used to provide passive fire protection in accordance with the requirements of NZBC Clause 3: Spread of Fire
Clause C6: Structural Stability —Compliance with (NZBC) Clause C6 'Structural Stability'. In order to satisfy the requirements of the New Zealand Building Code (clause 6) relating to Structural Stability designers must ensure that KOROK elements are supported by primary elements that have at least the same fire rating as the KOROK system that is used
Where the primary elements supporting the KOROK system are outside the fire cell, there is no requirement to apply the same FRR as the KOROK system. Notwithstanding, post fire stability requirements of the NZBC must also be satisfied
Clause G6: Airborne and Impact Sound — KOROK Intertenancy Systems, both meet and exceed the minimum requirements outlined in NZBC Clause G6. Consideration should be given to both the minimum requirements and the comfort of occupants
