J-Frame Certified for Truss Systems

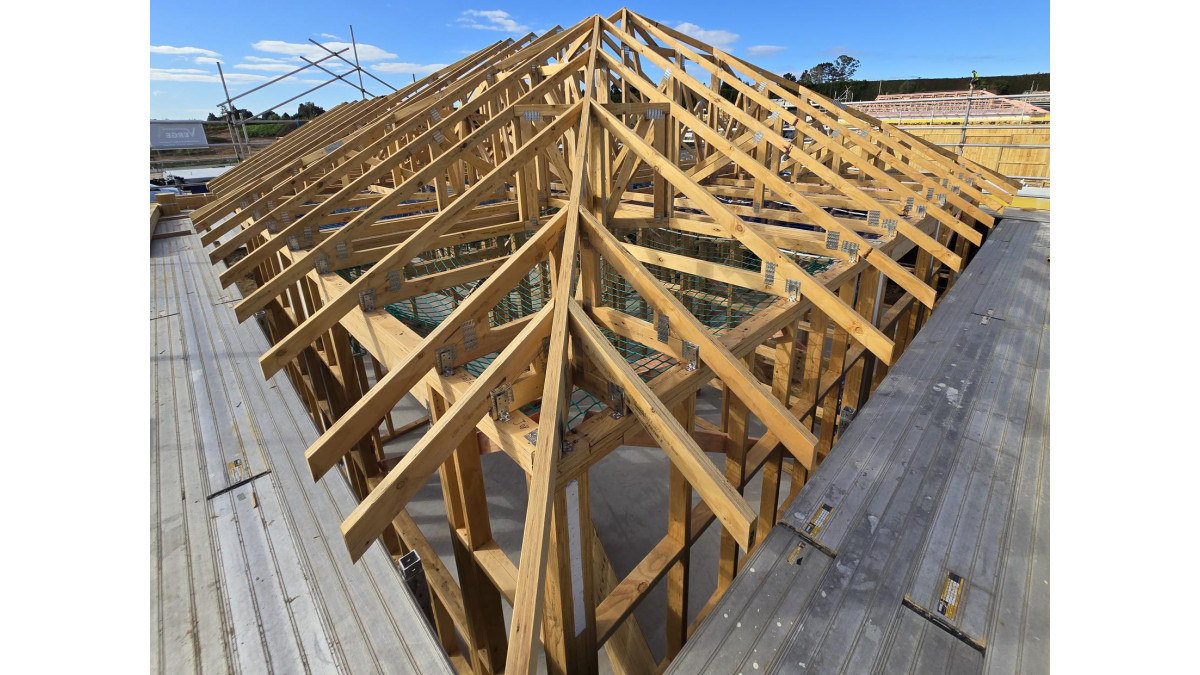

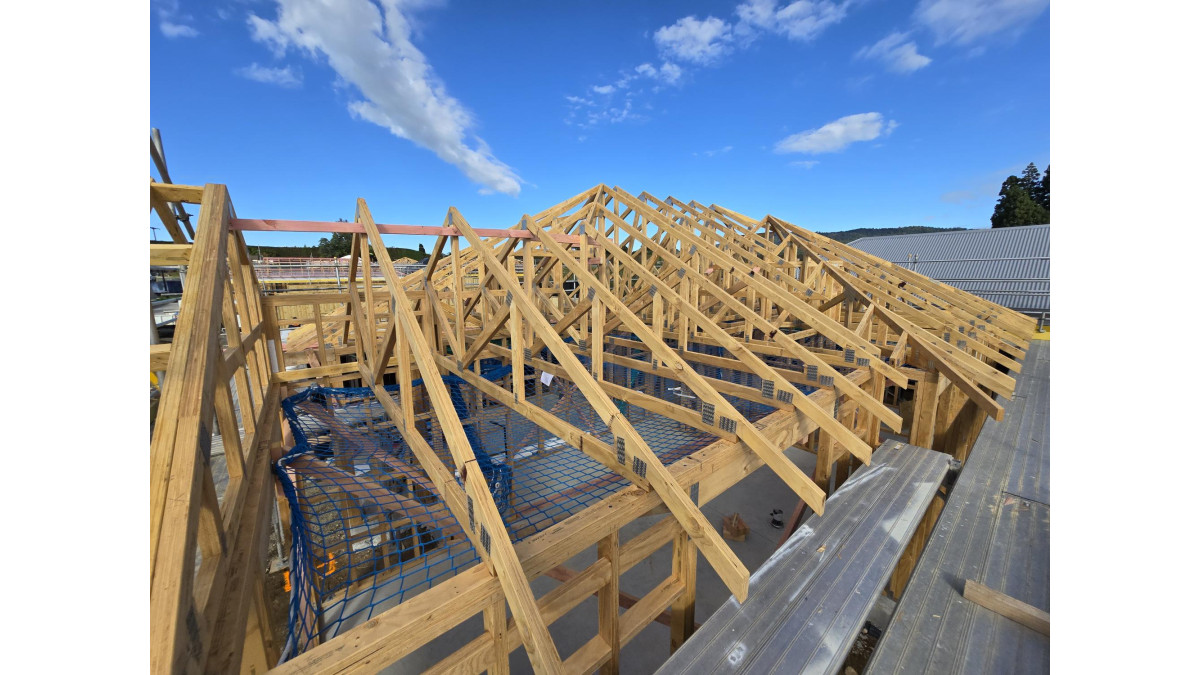

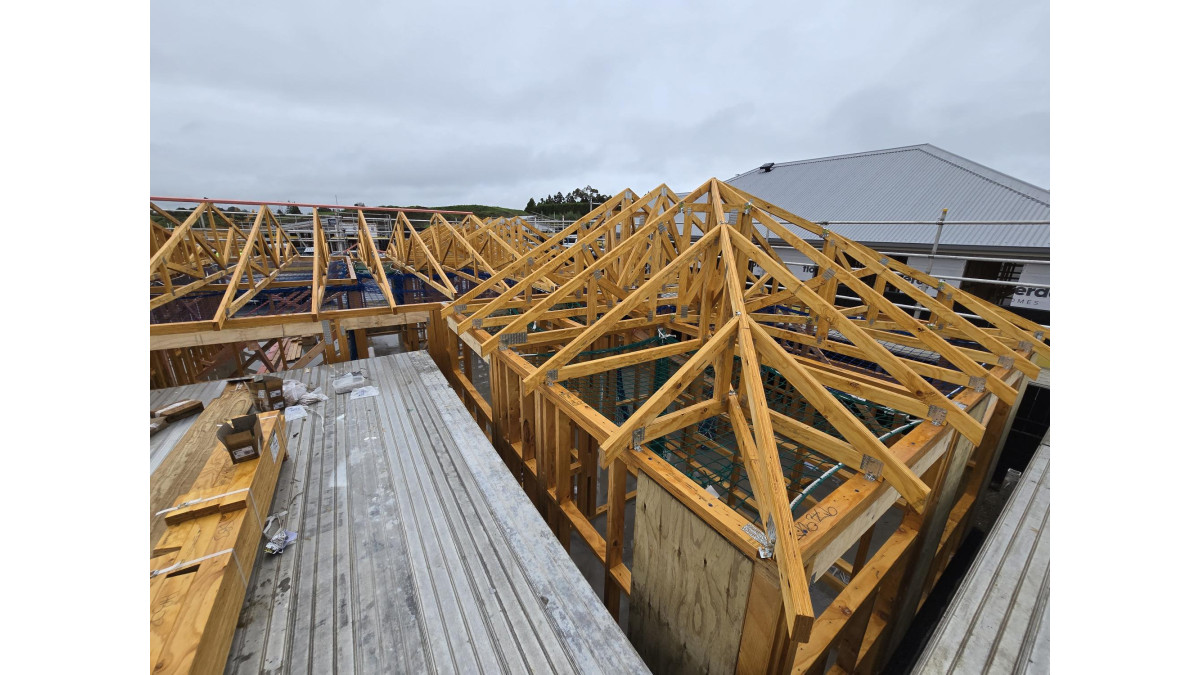

As project teams look for greater accuracy, consistency and design confidence in timber construction, Juken New Zealand's J-Frame provides a high-performance LVL solution for prefabricated structural roof trusses and frames.

J-Frame 08 and J-Frame 11 are now available in Pryda and MiTek design software, helping truss manufacturers integrate J-Frame into established specification and design workflows and gives designers practical options where additional strength or design capability is required.

The J-Frame engineering support package includes span tables for beams, rafters, lintels, bearers, joists and studs, prepared by PTL Structural & Fire Engineering and aligned with NZS 3604 residential construction requirements. For architects and designers, this means clearer pathways for selecting appropriate J-Frame members and specifying with confidence across residential applications.

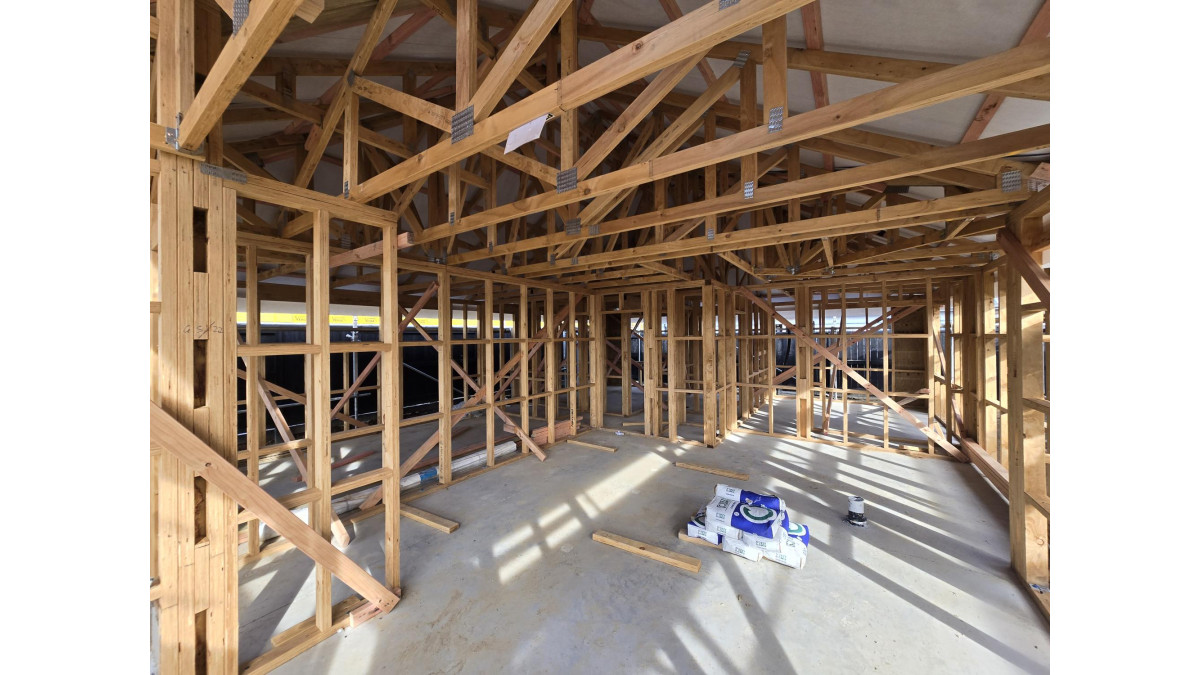

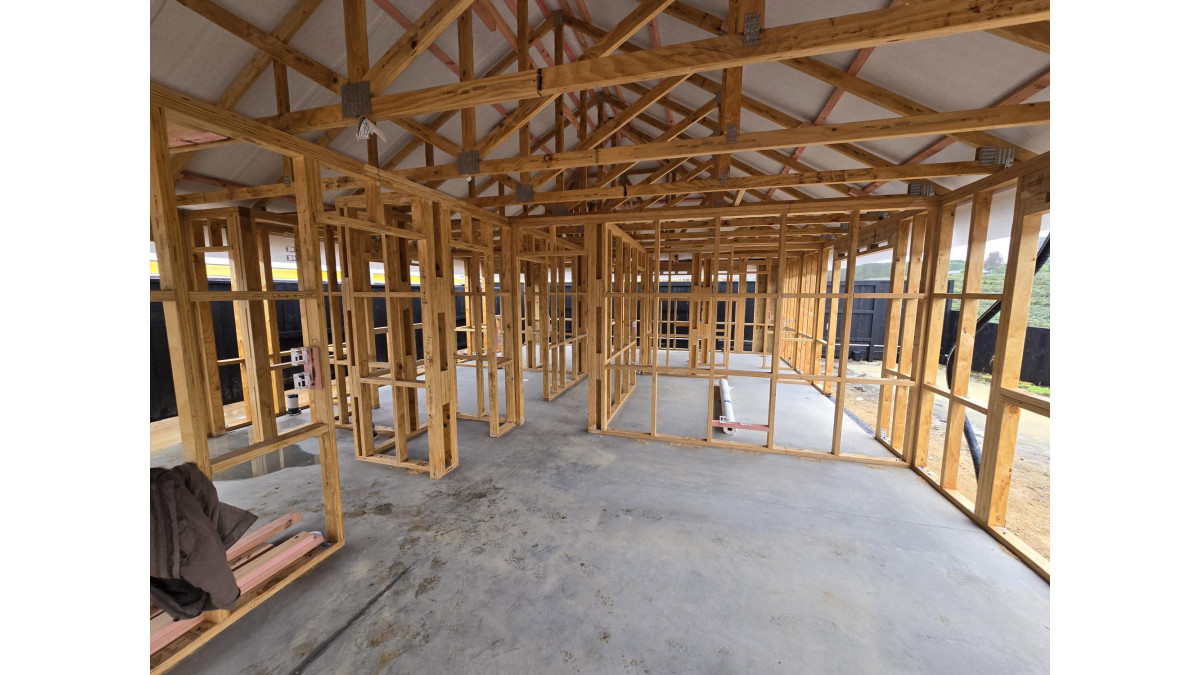

J-Frame is approved for use in prefabricated structural roof trusses and frames when designed and manufactured by licensed truss and frame manufacturers.

J-Frame 8

Juken New Zealand

View Product

Engineered straight, strong and durable, J-Frame 8 is suitable for a wide range of uses; including residential and commercial framing and truss systems. J-Frame is a general purpose Structural Laminated Veneer Lumber (LVL) gauged framing timber product manufactured by Juken New Zealand (JNL) from 100% renewable Radiata Pine, plantation forest.

J-FRAME 8 is a general purpose Structural Laminated Veneer Lumber (LVL) gauged Framing timber manufactured by Juken New Zealand from Radiata Pine. A reliable straight and durable product, J-Frame 8 can be used in a wide range of applications including residential and commercial framing and truss systems. J-FRAME 8 is CodeMark certified, an engineered wood product, being manufactured to AS/NZS 4357 (Structural LVL), AS/NZS 1491 (Finger Jointed Structural Timber), supported by ISO 9001 (Quality Management System). (Refer Product & Process Integrity comments).

Span Tables: See Documents section.

J-Frame is Codemark Certified. All details are available at jnl.co.nz

BRANZ Appraised

CodeMark

J-Frame 11

Juken New Zealand

View Product

Engineered straight, strong and durable, J-Frame 11 is suitable for a wide range of uses; including residential and commercial framing and truss systems. J-Frame is a general purpose Structural Laminated Veneer Lumber (LVL) gauged framing timber product manufactured by Juken New Zealand (JNL) from 100% renewable Radiata Pine, plantation forest.

J-FRAME 11 is a general purpose Structural Laminated Veneer Lumber (LVL), gauged Framing timber, manufactured by Juken New Zealand Ltd (JNL) from Radiata Pine. A reliable straight and durable product, J-Frame 11 can be used in a wide range of applications including residential and commercial framing and truss systems. J-FRAME 11 is CodeMark certified, an engineered wood product, being manufactured to AS/NZS 4357 (Structural LVL), AS/NZS 1491 (Finger Jointed Structural Timber), supported by ISO 9001 (Quality Management System).

Span Tables: see Documents section

J-Frame is Codemark Certified. All details are available at jnl.co.nz

BRANZ Appraised

CodeMark
