In the opinion of BRANZ, Equus Soprema Warm Roof System, if designed, used, installed and maintained in accordance with the statements and conditions of Appraisal 1169, will meet or contribute to meeting the following provisions of the NZBC:

• Clause B2 DURABILITY: Performance B2.3.1 (b) 15 years.
• Performance E2.3.1 and E2.3.2.
• Clause F2 HAZARDOUS BUILDING MATERIALS: Performance F2.3.1.
• Clause H1 ENERGY EFFICIENCY: Performance H1.3.1 (a). Equus Soprema Warm Roof System contributes to meeting this requirement.

See BRANZ Appraisal 1169 for full information.

Show more

Equus Soprema Warm Roof System has been appraised for use as an insulating roof or deck on buildings within the following scope:

• the scope limitations of NZBC Acceptable Solution E2/AS1, Paragraph 1.1 with regards to building height and maximum floor plan areas; and,
• on limited access flat roofs with concrete, timber, cross-laminated timber (CLT), Strandsarking® (roofs only) or steel substrates and incorporation of the Equus Soprema Warm Roof System subject to specific structural design; and,
• with roofs and decks constructed to drain water to gutters and drainage outlets complying with the NZBC; and,
• with roofs and decks constructed to suitable falls (refer to Paragraphs 15.3 and 15.4); and,
• with no integral roof gardens and no direct discharge from downpipes; and,
• situated in NZS 3604 Wind Zones up to, and including, Extra High.

Equus Soprema Warm Roof System has also been appraised for durability and thermal performance as an insulated roofing system on buildings that are the subject of specific design with no building height restriction.

See BRANZ Appraisal 1169 for full information.

Show more

BRANZ Appraised

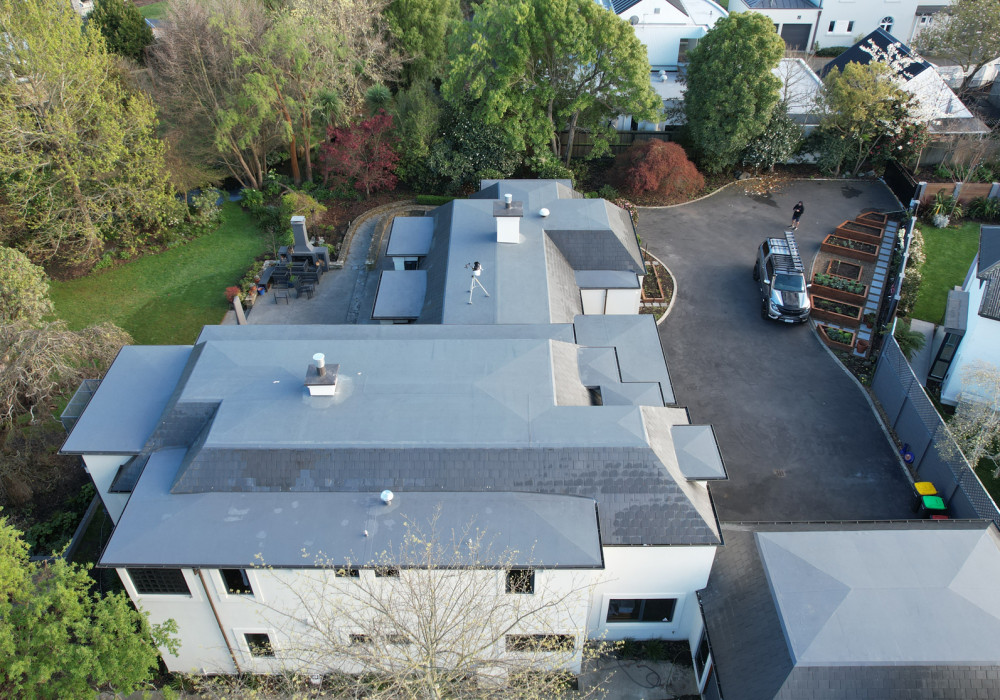

Soprema Flag Flagon TPO Waterproofing Systems have been appraised as roof and deck waterproofing membranes on buildings within the following scope:

• the scope limitations of NZBC Acceptable Solution E2/AS1, Paragraph 1.1 with respect to building height and maximum floor plan areas; and,
• with building structures designed and constructed to meet the requirements of the NZBC; and,
• with roof supporting structures of timber framing with substrates of plywood sheet; and, ¬ with substrates of suspended concrete slabs; and,
• with minimum falls for roofs of 1:30 and decks of 1:40; and, ¬ with deck size limited to 40m², and,
• situated in NZS 3604 Wind Zones up to, and including, Extra High.

Soprema Flag Flagon TPO Waterproofing Systems have also been appraised for use as roof and deck waterproofing membranes on specifically designed buildings within the following scope:

• with building structures designed and constructed to comply with the NZBC; and,
• with roof supporting structures of timber framing with substrates of plywood sheet; and,
• with substrates of suspended concrete slab; and,
• subjected to maximum wind pressures; and,
• with the weathertightness design of all junctions being the subject of specific design by the designer.

See BRANZ Appraisal 1157 for full information.

Show more

In the opinion of BRANZ, Soprema Flag Flagon TPO Waterproofing Systems, if designed, used, installed and maintained in accordance with the statements and conditions of Appraisal 1157, will meet the following provisions of the NZBC:

• Clause B2 DURABILITY: Performance B2.3.1 (b) 15 years and B2.3.2.
• Clause E2 EXTERNAL MOISTURE: Performance E2.3.1 and E2.3.2.
• Clause F2 HAZARDOUS BUILDING MATERIALS: Performance F2.3.1

See BRANZ Appraisal 1157 for full information.

Show more

BRANZ Appraised

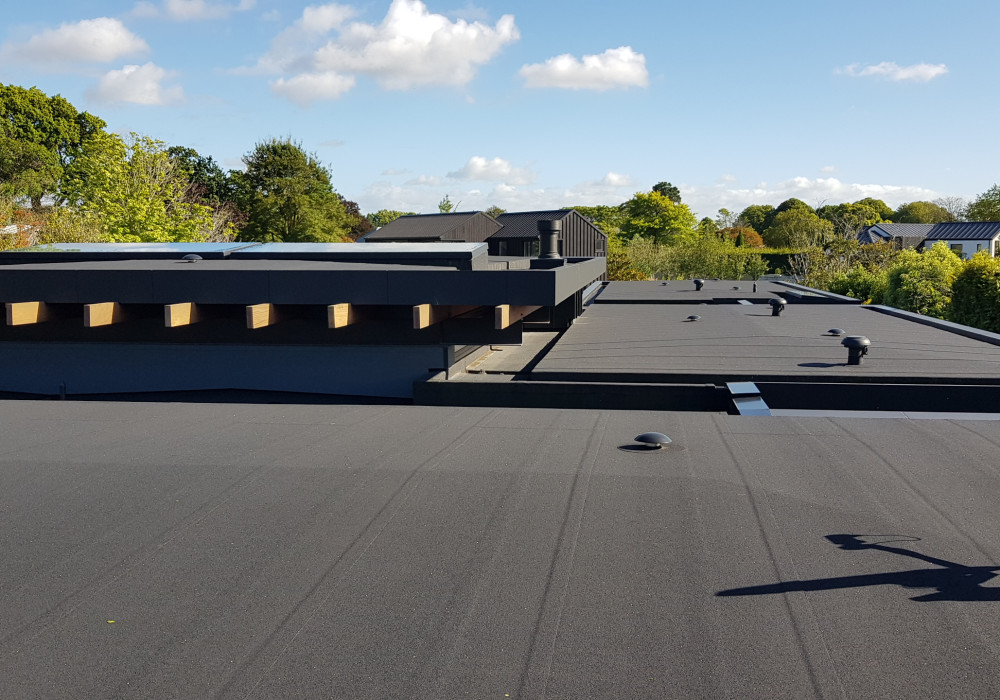

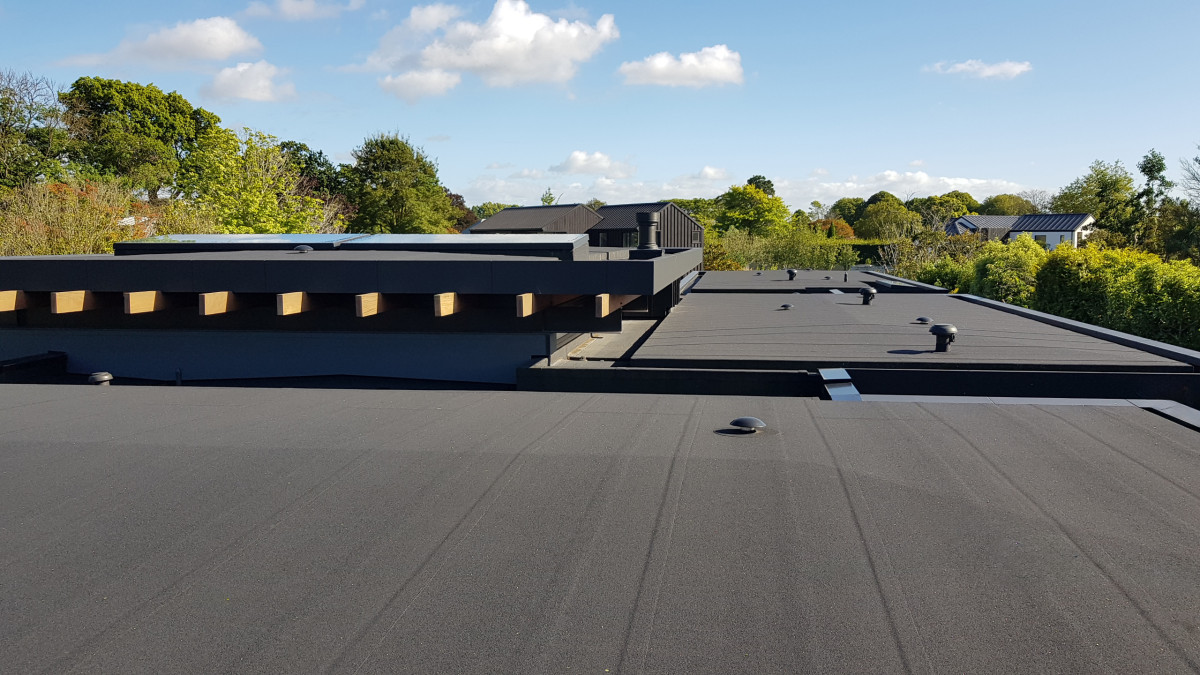

Duo is specifically designed for roofs, decks, balconies, terraces and podiums. It is suitable for new builds and refurbishments, residential and commercial construction, in any location and wind zone in New Zealand.

Soprema Duo Roof and Deck Membrane Systems have been appraised as roof and deck waterproofing membranes on buildings within the following scope:

• the scope limitations of NZBC Acceptable Solution E2/AS1, Paragraph 1.1; or,
• the scope limitations of NZBC Acceptable Solution E2/AS1, Paragraph 1.1 with regard to building height and floor plan area when subject to specific structural design; and,
• situated in NZS 3604 Wind Zones up to, and including, Extra High.

Approved for substrate with finished falls of:

• Roofs: Minimum 1:80 (0.7°)
• Decks: Minimum 1:80 (0.7°)
• Gutters: Minimum 1:100 (1%)

See BRANZ Appraisal 685 and CodeMark for full information.

Show more

In the opinion of BRANZ, Soprema Duo Roof and Deck Membrane Systems, if designed, used, installed and maintained in accordance with the statements and conditions of Appraisal 685, will meet the following provisions of the NZBC:

• Clause B2 DURABILITY: Performance B2.3.1 (b) 15 years.
• Clause E2 EXTERNAL MOISTURE: Performance E2.3.1 and E2.3.2.
• Clause F2 HAZARDOUS BUILDING MATERIALS: Performance F2.3.1

See BRANZ Appraisal 685 for full information.

Show more

BRANZ Appraised

CodeMark

Duo is specifically designed for roofs, decks & balconies where thermal insulation is required. It is suitable for new builds and refurbishments, residential and commercial construction, in any location and wind zone in New Zealand.

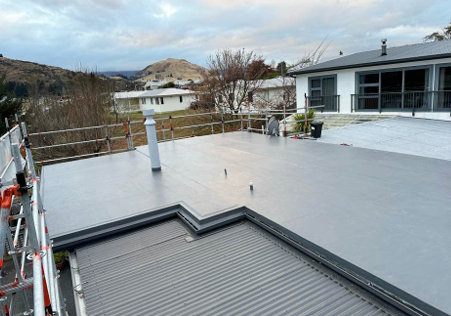

Equus Soprema Warm Roofs have been appraised for use as an insulating roof or deck on buildings within the following scope:

• the scope limitations of NZBC Acceptable Solution E2/AS1, Paragraph 1.1; or,
• the scope limitations of NZBC Acceptable Solution E2/AS1, Paragraph 1.1 with regard to building height and floor plan area when subject to specific structural design; and,
• situated in NZS 3604 Wind Zones up to, and including, Extra High.

Approved for substrate with finished falls of:

• Roofs: Minimum 1:80 (0.7°)
• Decks: Minimum 1:80 (0.7°)
• Gutters: Minimum 1:100 (1%)

See BRANZ Appraisal 685 or CodeMark for full information.

Equus Soprema Warm Roof System has also been appraised for durability and thermal performance as an insulated roofing system on buildings that are the subject of specific design with no building height restriction.

See BRANZ Appraisal 1169 for full information.

Show more

In the opinion of BRANZ, Equus Soprema Warm Roof System, if designed, used, installed and maintained in accordance with the statements and conditions of Appraisal 1169, will meet or contribute to meeting the following provisions of the NZBC:

• Clause B2 DURABILITY: Performance B2.3.1 (b) 15 years.
• Clause E2 EXTERNAL MOISTURE: Performance E2.3.1 and E2.3.2.
• Clause F2 HAZARDOUS BUILDING MATERIALS: Performance F2.3.1.
• Clause H1 ENERGY EFFICIENCY: Performance H1.3.1 (a). Equus Soprema Warm Roof System contributes to meeting this requirement.

See BRANZ Appraisal 1169 for full information.

Show more

BRANZ Appraised

CodeMark
