Tuff Post Anchor
Total Height Safety
All products

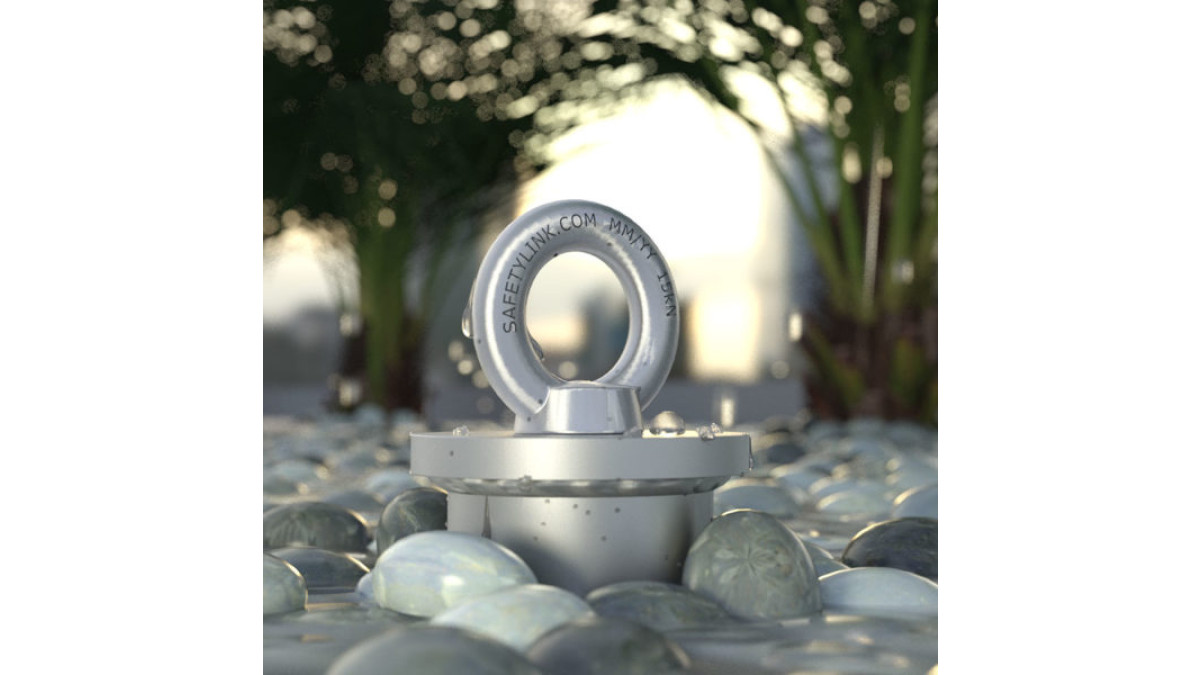

Tuff Post 150 collared eyebolt 600x600

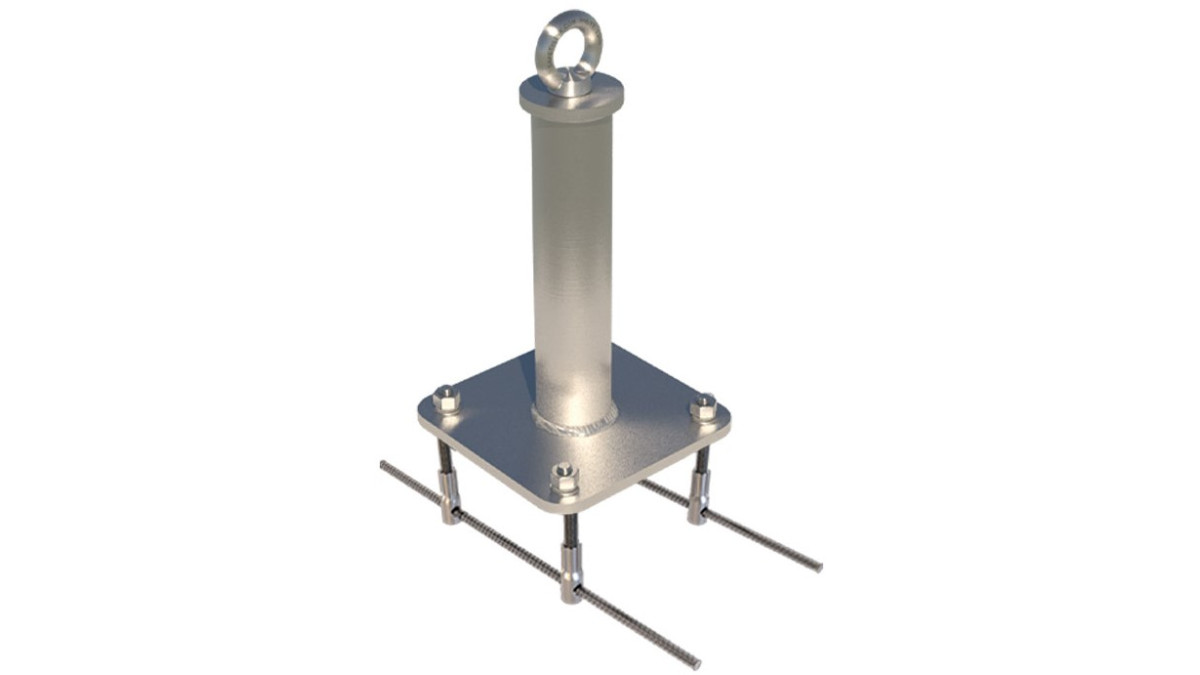

Cast In Cage Collared 300mm Tuff Post

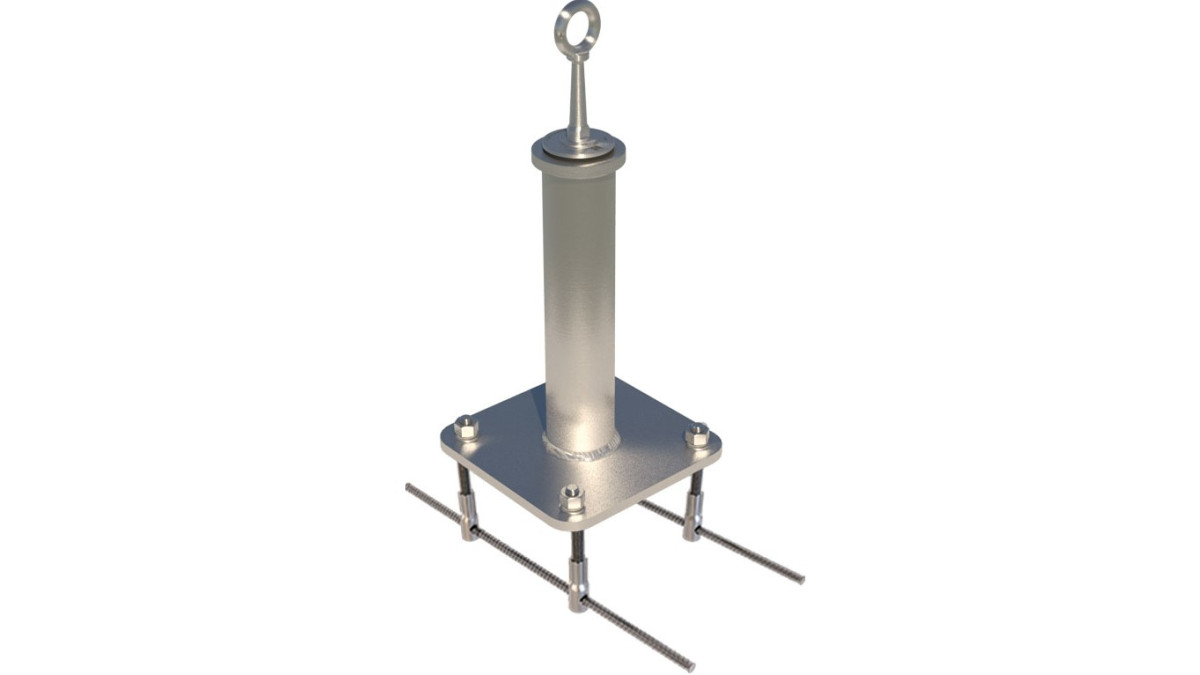

Cast In Cage Retro 300mm Tuff Post

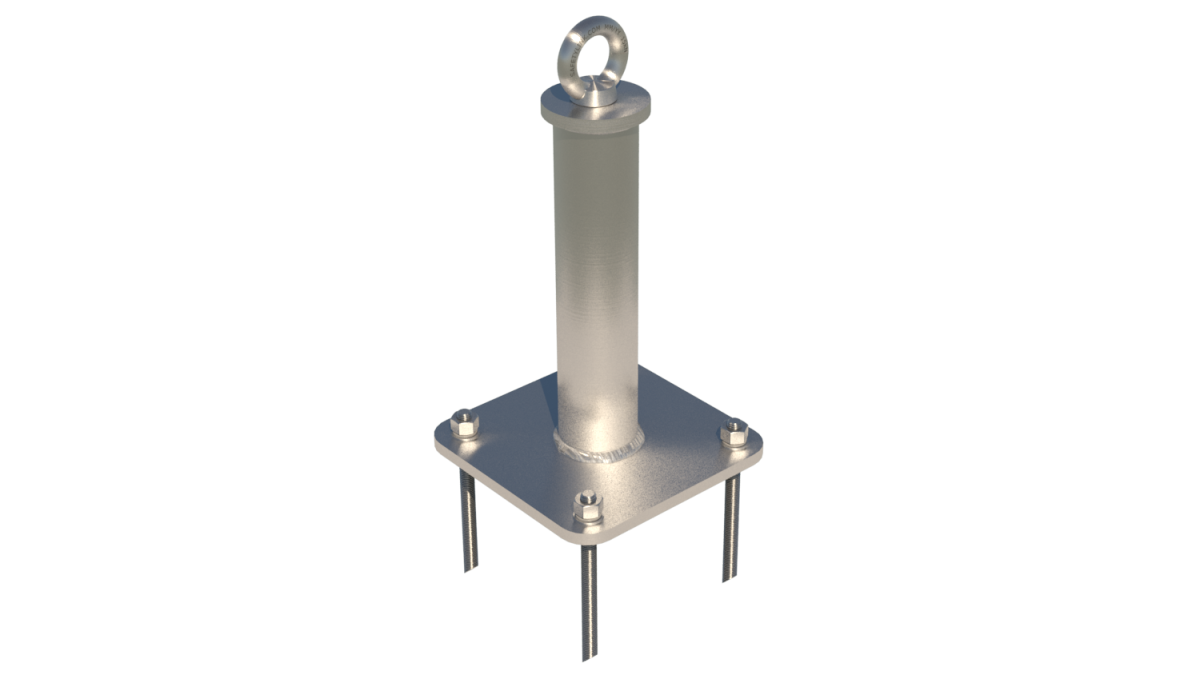

TUFF POST300R C COL
Description

The SafetyLink TUFF-POST Warm Roof Anchor is a permanent roof anchor system designed for warm roof construction where the waterproof membrane is flashed directly to the post, maintaining the integrity and weatherproof performance of the roofing system. The TUFF-POST raises the anchorage point above the finished roof level, allowing the membrane build-up to continue uninterrupted while providing a permanent attachment point for fall arrest and rope access applications.

The system is available in 300, 600 and 900mm post heights to suit varying insulation depths and roof build-ups. Depending on the roof structure, the TUFF-POST can be installed using chemical anchors into reinforced concrete or mechanically fixed to structural steel. Manufactured from 316 stainless steel, the system provides a durable, corrosion-resistant solution for commercial and industrial roof access systems.

Key Features
  • Designed specifically for warm roof construction.
  • Waterproof membrane flashed directly to the TUFF-POST.
  • Maintains the integrity of the roof waterproofing system.
  • Available in 300mm, 600mm and 900mm heights.
  • Manufactured from 316 stainless steel.
  • Suitable for reinforced concrete or structural steel substrates.
  • Installed using chemical anchors or mechanical fixings, depending on substrate.
  • Single-person 15 kN anchor.
  • Suitable for fall arrest, rope access and abseiling applications.



Categories
Roof Access, Walkways and Fall Protection
Ranges
Concrete Roof Access Systems Concrete Warm-Roof Access Systems Green Roof | Garden Bed Access Systems Roof Anchor Systems — Fall Arrest Abseil Anchorage Systems
Scope of Use
  • Commercial, industrial and institutional buildings.
  • Warm roof construction with membrane waterproofing systems.
  • Reinforced concrete and structural steel roof structures.
  • New construction and retrofit applications.
  • Permanent roof access and fall protection systems.
  • Maintenance access to rooftop plant and equipment.
  • Available in 300mm, 600mm and 900mm heights.
  • Single-person 15 kN anchor.
Limitations on Use
  • Suitable only for compatible roof structures.
  • System supplied, installed and certified by Total Height Safety in accordance with the manufacturer's requirements.
  • Inspection and recertification in accordance with AS/NZS 1891.4.
Statement of Building Code Compliance

Contributes towards compliance with NZBC:

  • B1 Structure
  • B2 Durability
  • F4 Safety from Falling

Manufactured and tested to AS 5532.

Selection, inspection and maintenance in accordance with AS/NZS 1891.4.

Other Performance Attributes
  • 316 stainless steel construction
  • 15 kN anchor

Warranty & Maintenance

  • Manufacturer's warranty applies when installed in accordance with SafetyLink requirements.
  • Inspect and re-certify by a competent person in accordance with AS/NZS 1891.4.
Documents
Height Safety Systems and Design Guide
pdf
Data Sheet: SafetyLink Tuff Post Anchor
pdf
7938TH Product Specification
docx
DESIGN: No Substitution Principle
pdf
Specification Guide
pdf
Total Height Safety on Masterspec
docx
Handbook: Tuff Post Anchor
pdf
Flyer: SafetyLink Tuff Post Anchor
pdf
