Purpose-designed for New Zealand’s demanding climate, Dimond Roofing’s new Advanced Roofing Systems offer cost-effective, high-performance fully integrated warm roof solutions that are backed by CodeMark certification for straightforward compliance.
Key benefits:
- Six warm roof build-up options to suit project demands, including vented and non-vented, and for retrofit overlay
- Exceptional thermal efficiency, enhancing comfort and energy savings — including an option for cold climates with high snowfall
- Customisable R values and height build-ups
- Manages condensation risk to ensure long-term durability
- Streamlined construction timelines, allowing for early close-in
- Design flexibility with various top sheet options
- NZBC compliance, including 50 year durability
The Advanced Roofing System range features six metal skin warm roof build-ups designed to fit the requirements of different projects:

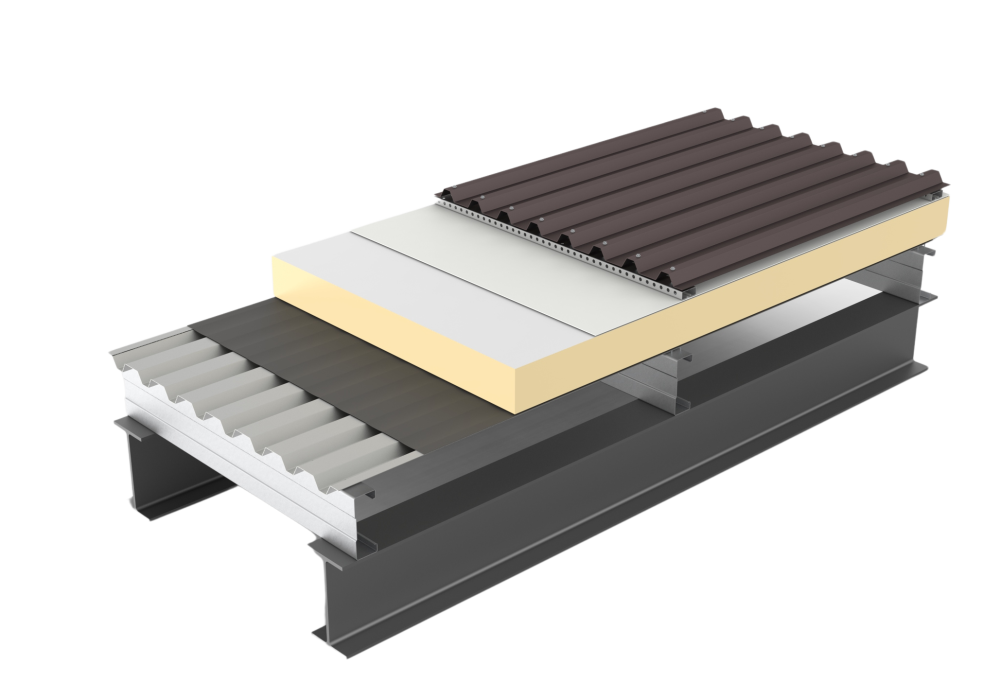

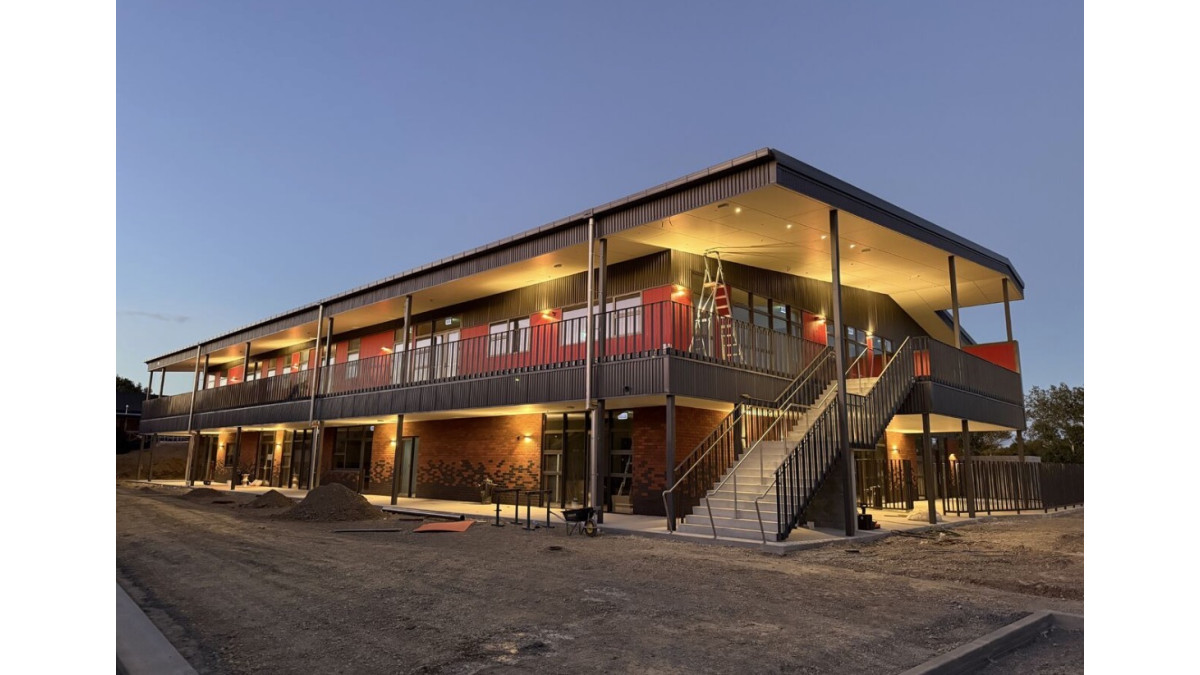

Advanced Vented
For maximum thermal performance while managing condensation in cold climates
Dimond Advanced Vented incorporates a vented structural rail to facilitate airflow and thermal expansion control, with added features to prevent ice dams in cold climates with high snowfall. The system is recommended for roof sheets over 25m and in freezing climates.
- Incorporates PIR insulation with customisable R-values from R2.0 to R7.0
- Designed to maintain cold top roof deck temperature, preventing ice dams in cold climates
- Features a complete vapour barrier layer, eliminating condensation risk by separating internal and external environments.
- Includes a vented structural rail for airflow and thermal expansion control, further reducing condensation risks.
+ Advanced Vented Retrofit build-up available for retrofit projects

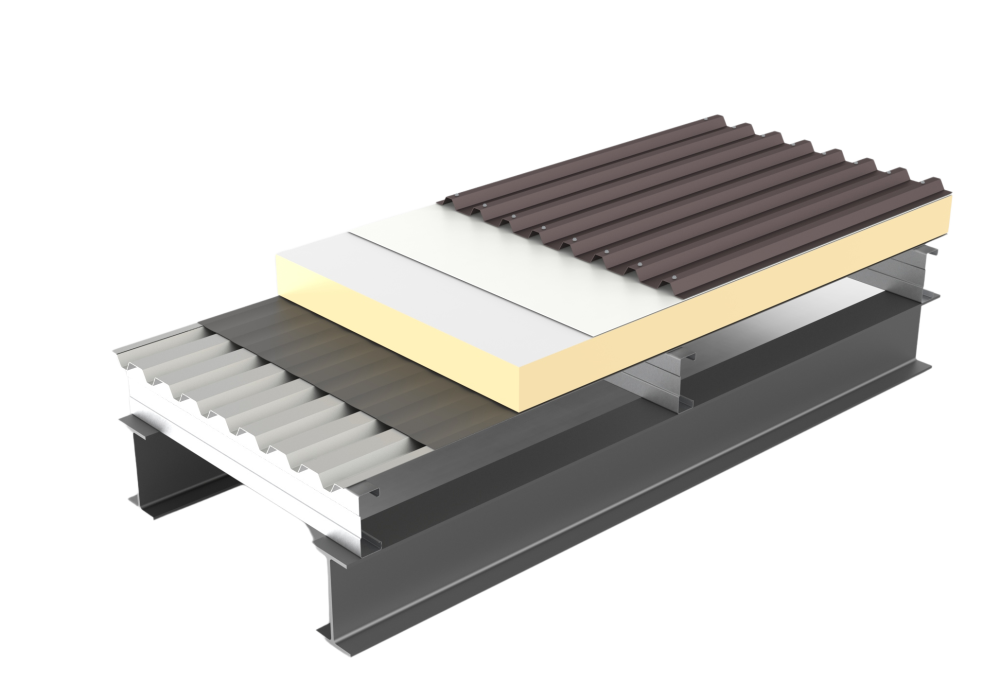

Advanced Non-Vented
Thermal efficiency with customisable R-values, effectively mitigating condensation challenges in diverse climates.
Dimond Advanced Non-Vented, features a two-part water vapour and condensation control system, designed to perform effectively in all environments.
- PIR board core with customisable R-values (R2.0 to R7.0), ensuring tailored efficiency.
- Features a complete vapour barrier layer, separating internal and external environments to eliminate condensation concerns.
- Includes a two-part water vapour and condensation control system with vapour barrier and underlay.
+ Advanced Non-Vented Retrofit build-up available for retrofit projects

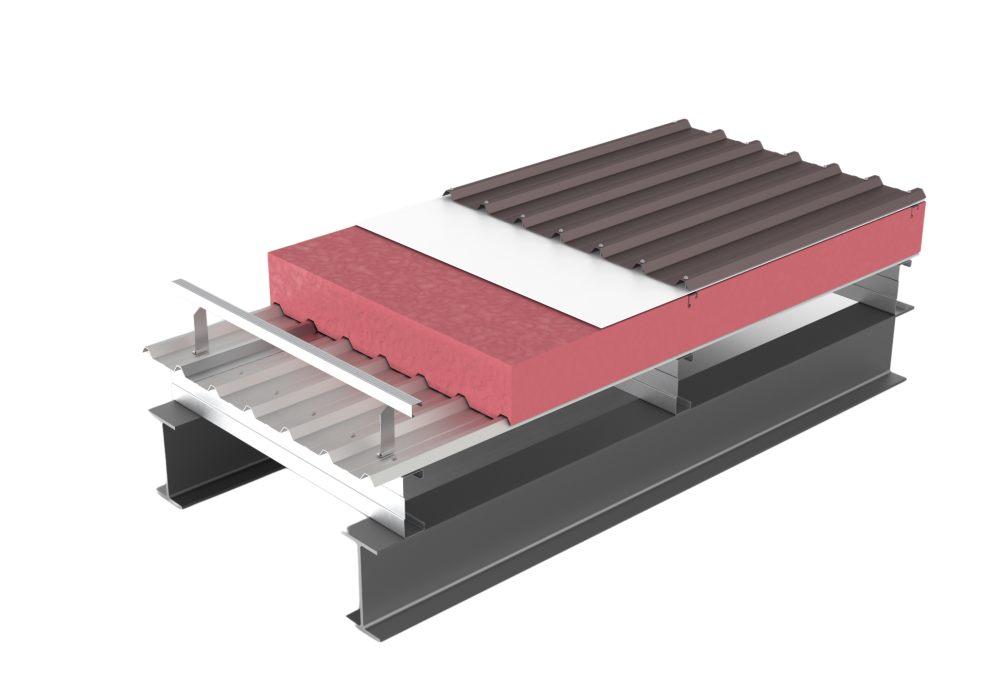

Advanced Standard
A composite post and rail warm roof system engineered to manage condensation risks, maximising thermal performance.
- Excellent thermal efficiency, enhancing comfort and energy savings.
- Various heights available to meet H1 energy efficiency requirements across different Climate Zones in New Zealand
- Designed to prevents interstitial condensation risks, preserving structure integrity and longevity.
- Broad choice of roof profiles including Dimondek 630 clip-fastened roof sheets in continuous lengths up to 90m*.
+ Advanced Standard Retrofit build-up available for retrofit projects
CodeMark certified for straightforward compliance
As the first CodeMark certified site assembled metal skin warm roof system in New Zealand, Diamond’s Advanced Warm Roof systems provide a pre-validated route to Building Code compliance. A clearer compliance pathway, backed by proven system performance, makes it easier to move forward with confidence — and deliver better building outcomes.
Even where CodeMark compliance isn’t possible due to unknowns in existing structures, Dimond’s warm roof retrofit systems offer a practical path to better building performance for refurbishment projects without the need for a full roof replacement.
