Drainage Systems Made from 100% Recycled Plastic

New Zealand recycles 45,000 tonnes of plastic each year[i], of this 55% comes from household sources collected through kerbside waste services. The New Zealand government has recently invested $124 million into the local recycling infrastructure[ii] to reduce our impact on the environment and boost the industry. Household waste often consists of single use plastic packaging, the greatest proportion of the plastic industry's greenhouse gas emissions can be attributed to the supply of raw materials for these single use items. By recycling and reusing single use plastic, such as Polypropylene (PP), it’s possible to greatly reduce the carbon footprint of products while repurposing waste that would otherwise be sent to landfill.

Single use PP plastic such as ice cream tubs, yoghurt pots and takeaway containers are collected from kerbside waste bins around New Zealand. The recyclables are then sorted and bailed ready to be sent to the next processing facility. The plastic is cleaned, chipped and fed into extrusion machines turning it into pellets (recolouring is completed during this phase). These pellets are then sent to Allproof where they are used to manufacture a wide range of drainage and passive fire protection products.

Allproof’s Domestic Channel (DC), Commercial Channel (CC), round and square pits along with cast in fire collars are all made from 100% recycled plastic. Once installed these products have a long service life often lasting as long as the building itself. Through this range of products manufactured from recycled plastic Allproof prevents over 12 tonnes of plastic from going to landfill every month. That’s the equivalent of more than 152,000 two litre ice cream containers per month.

Additionally, Allproof use solar to power their fleet of injection moulding machines. The 449 solar panels installed on the roof of Allproof’s main production facility provide 50% of its energy needs. Allproof generates on average 750kWh per day (in excess of 1000kWh per day during the summer months); this is enough power to supply approximately 34 average New Zealand homes. This clean energy saves a further 50 tonnes of CO2 from entering the atmosphere every year reducing the carbon footprint of Allproof’s recycled drainage and passive fire products even further.

[i] National Resource Recovery Project - Situational Analysis Report
[ii] Government steps up action on waste - funds recycling infrastructure and expands levy scheme

200mm Clear Opening Commercial Channel

Allproof Industries

View Product

The Allproof Commercial Channel is a New Zealand made linear channel drain with a 200mm clear opening.

NZ Made

NZ-Owned Business

Pre-Consumer Recycled Content

The design has been developed to utilise the strength of the surrounding concrete to create a strong, durable solution for commercial drainage applications.

Optional channel levelling rebar clips available
Load class tested

Load class tested
Made from recycled polypropylene

Cast In Fire Collars

Allproof Industries

View Product

Allproof Cast In Fire Collars are designed to reduce the labour content of passive fire rating plumbing pipe penetrations on concrete floors that are poured on site.

NZ Made

NZ-Owned Business

Pre-Consumer Recycled Content

Seals penetraions for plastic plumbing services in the event of a fire
Prevents spread of fire and smoke
To be cast into solid masonry floors

All products are tested to AS1530.4 — 2005 and AS4072.1 — 2005
Allproof fire collar product and technical data BRANZ Appraised — Appraisal No. 1088 [2019]
The product will, if employed in accordance with the supplier's installation and maintenance requirements, assist with meeting the following provisions of the building code:
- Clause C3 Fire affecting areas beyond the fire source: Performance C3.9
- Clause C4 Movement to place of safety: Performance C4.3

The product will, if employed in accordance with the supplier's installation and maintenance requirements, assist with meeting the following provisions of the building code:

Clause C3 Fire affecting areas beyond the fire source: Performance C3.9
Clause C4 Movement to place of safety: Performance C4.3

BRANZ Appraised

Test Results

Protection from Fire

Round Drainage Pit

Allproof Industries

View Product

Allproof’s round drainage pit is the ideal solution for exterior surface stormwater catchment.

NZ-Owned Business

Pre-Consumer Recycled Content

Ideal for exterior surface stormwater catchment
Heel-proof grate for pedestrian access
Optional pit riser addition — can add up to an extra 200mm depth

Compliant with E1/AS1 clause 3.6

Commercial Channel - 200mm Clear Opening

Allproof Industries

View Product

The Allproof Commercial Channel is a New Zealand made linear channel drain with a 200mm clear opening.

NZ Made

NZ-Owned Business

Pre-Consumer Recycled Content

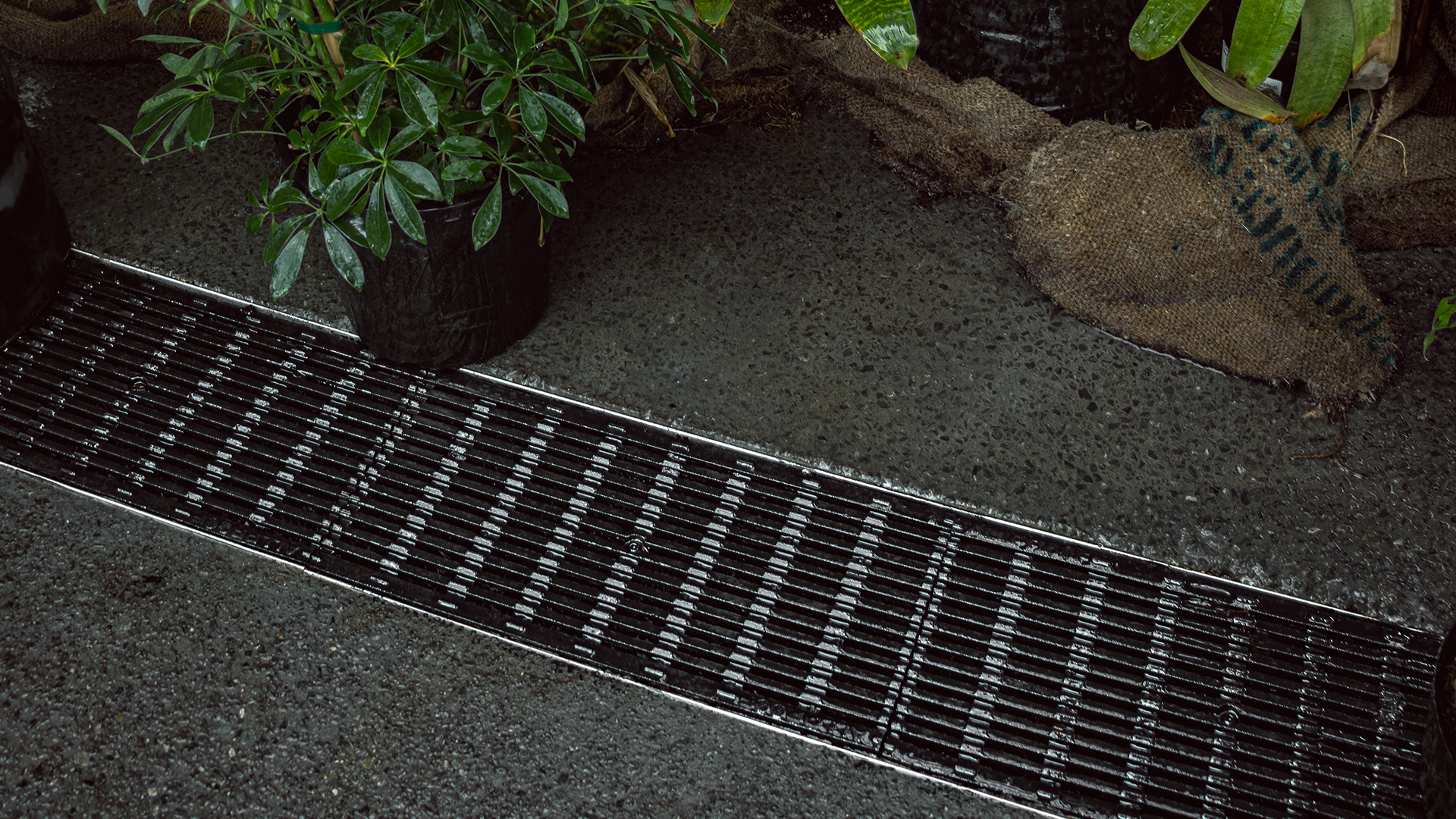

The Allproof CC200 commercial linear channel drain is a medium duty high-capacity solution for external stormwater and surface water drainage. It has been designed for installation in concrete, pavers or epoxy finished floors. The trench drain gains its strength from the surrounding concrete, the 100% recycled polypropene creates an easy to handle and install system. The grates include black plastic, heelproof cast iron and 316 stainless steel wedge wire.

This system is ideal for urban pedestrianised areas, all the grates are heelproof and the 316 SS wedge wire has an R11 slip resistance rating. These features also make it an excellent option for educational facilities.

The cast iron grate is load class rated up to a classification of D allowing this versatile strip drain to also be used in loading bays, car parks and other commercial applications requiring a durable drainage solution.

Designed for compliance with all elements of NZBC E1. Product testing compliant with AS3996-2006 standard for load rating and AS4586 slip resistance classification.
