• Suitable for indoor general purpose installations where point-of-use RCD protection is required.
• Appropriate for IP30 environments protected from solid objects but not water ingress.
• Suitable for use in residential, commercial, and institutional buildings including schools, hospitals, and hotels.
• Operating temperature range of -5° to +40° makes it suitable for all standard NZ climate zones.

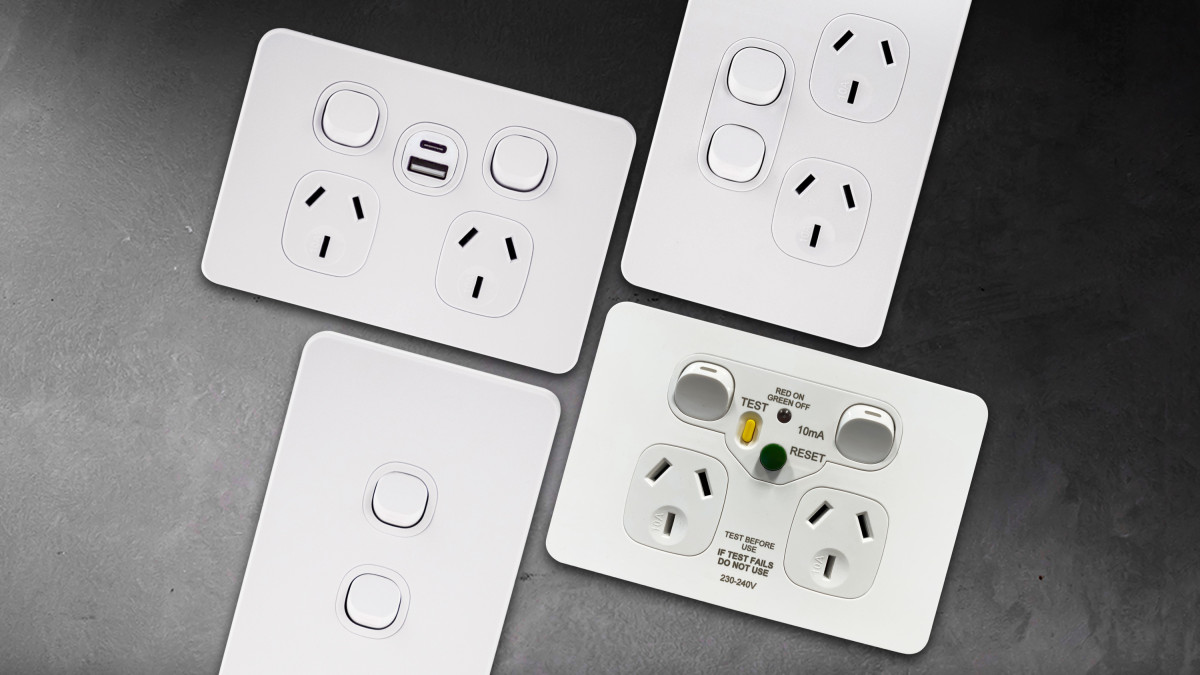

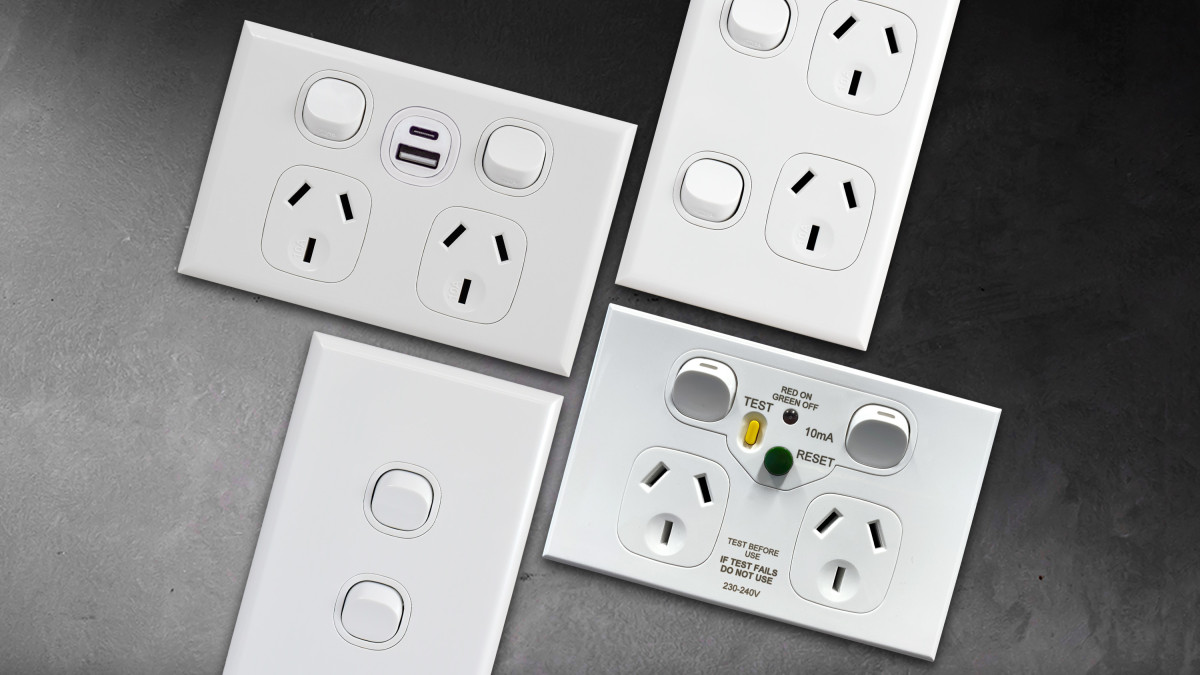

• Matches Vynco Metro & Home switchgear range

• Not suitable for outdoor or exposed wet area installations without additional weatherproof enclosure -IP30 rating limits use to dry, indoor environments only.
• Maximum operating current of 10A limits suitability for high-draw appliances.
• Short circuit breaking capacity of 3kA requires use with 20A HRC fuse.
• Must be installed by a registered electrician in accordance with AS/NZS 3000 wiring rules.
• Not suitable for use in highly corrosive or chemically aggressive environments.

The product is designed to comply with AS/NZS 3112 (plugs and socket outlets) and AS/NZS 3000 (wiring rules) when installed by a registered electrician. The integrated RCD provides protection against electric shock in accordance with the intent of Clause G9, which requires electrical installations to safeguard occupants from injury.

Vynco's Metro & Home switchgear range has an established in-service history across residential, commercial, and institutional projects throughout New Zealand and Australia. RCD-protected sockets as a product type have been widely used in these markets for several decades, with point-of-use RCD protection a well-established technology in electrical installations globally.

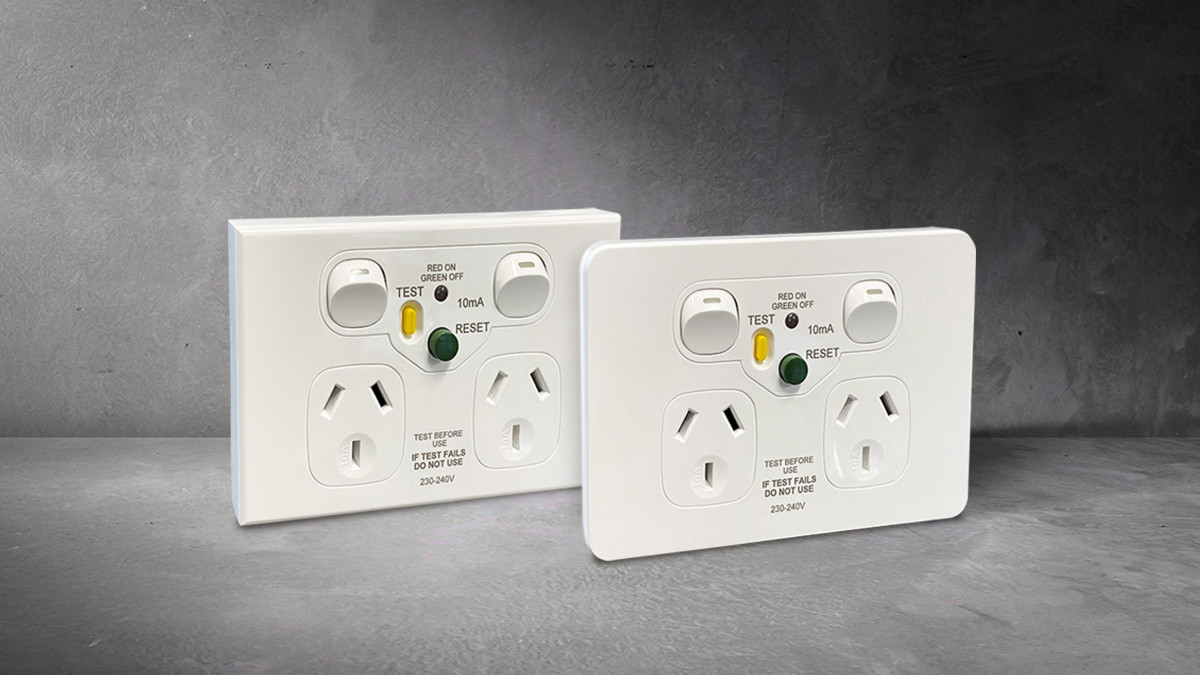

The Metro & Home RCD Protected Switch Socket is a new addition to the Vynco range. As a product category, RCD sockets with equivalent specifications have been successfully deployed in schools, hospitals, hotels, and residential buildings across New Zealand and Australia, where they are commonly specified to meet safety requirements in these occupancy types.

• IP30 rated
• 10mA or 30mA rated trip current
• 250V AC, 50Hz, 10A rated
• 20A RCD protected circuit rating
• 3kA short circuit breaking capacity (with 20A HRC fuse)
