Glacier LED Under Verandah IP65
Description

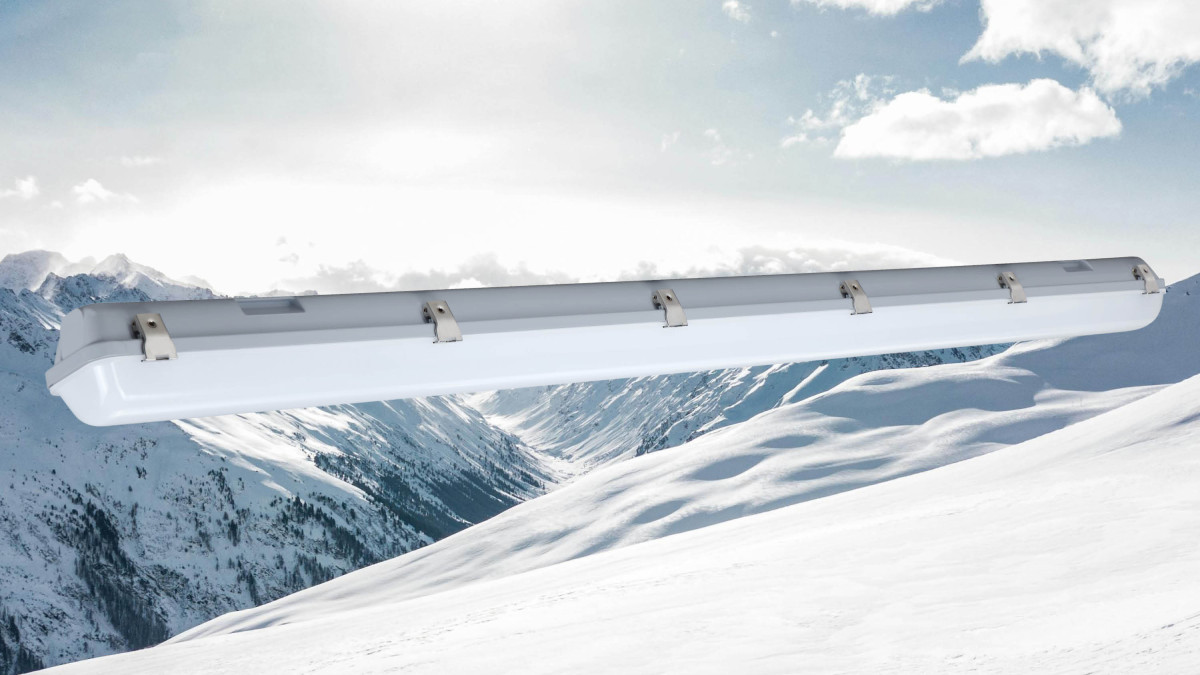

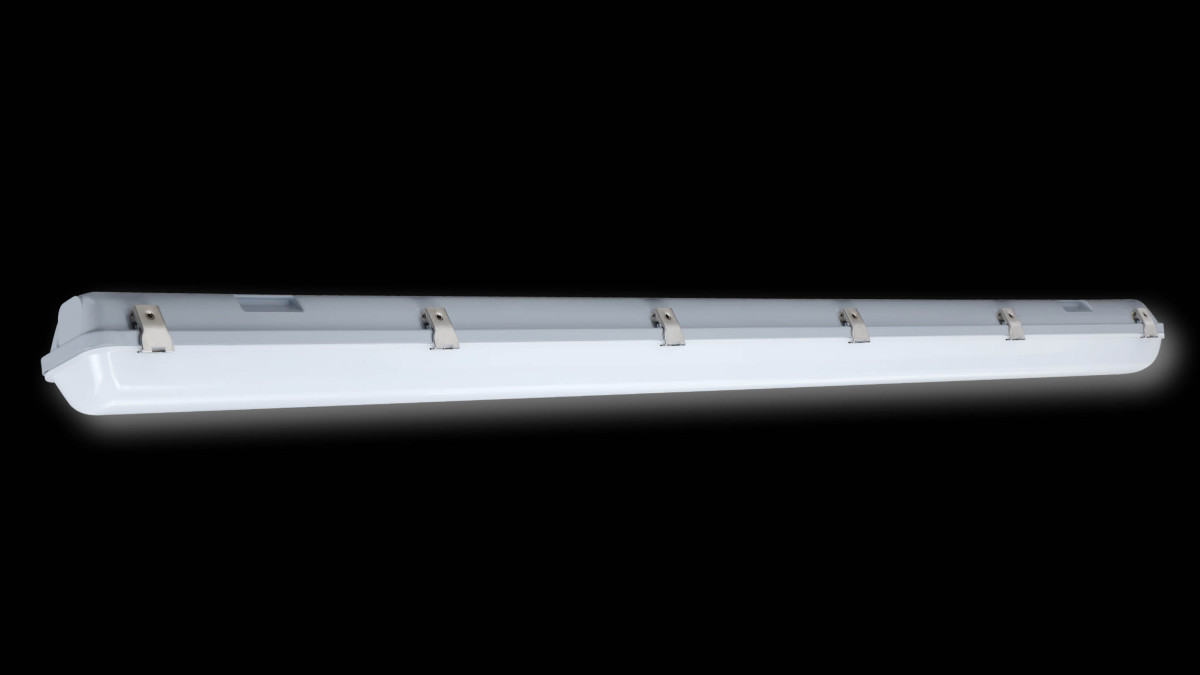

Vynco’s Glacier LED Under Verandah weatherproof light fitting delivers the perfect balance of durability, performance, and sustainability for commercial and industrial spaces. The LGL546 Glacier is a wall-mounted LED weatherproof batten light designed for underverandah and outdoor covered area installations. It features selectable colour temperatures (2700K/4000K/6500K), adjustable wattage (36-51W), and an IP65/IK08 rating suitable for exposed exterior environments.

Made from post-consumer recycled and bio-based plastics, each Glacier reduces carbon emissions by 3.5kg, compared to a traditional plastic light. That's like running a 100W lamp non-stop for a full weekend.

With three selectable colour temperatures, four adjustable wattage settings, and outstanding efficiency, the Glacier is built to perform while reducing impact.

Key Features
  • IP65 weatherproof rated
  • IK08 impact resistant rated
  • Adjustable wattage settings: 36/40/45/51W
  • Selectable colour temperature: 2700K / 4000K / 6500K
  • Lumen output: 4460 to 6300lm dependent on wattage setting
  • Efficacy: 125lm/W
  • 120° beam angle
  • CRI Ra≥80
  • LED rated lifetime: 50,000 hours
  • Class 1 appliance — earth required
  • 220-240V AC input voltage
  • Operating temperature range: -20°C to +45°C
  • Constructed from recycled and bio-based polycarbonate (PC)
  • Dimensions: 1560mm (L) x 98mm (W) x 93mm (D)
  • Complies with A/NZS 60598.1 and AS/NZS 60598.2.1
NZ-Owned Business
NZ-Owned Business
Scope of Use
  • Suitable for residential and commercial under verandah, soffit, and covered outdoor area installations
  • IP65 rated — suitable for installation in wet areas protected from direct water immersion, including areas subject to NZ wind-driven rain conditions
  • IK08 rated — suitable for installations where moderate impact resistance is required
  • Suitable for all NZ corrosion zones when installed in covered outdoor areas - not recommended for direct coastal salt spray exposure without additional protection
  • Operating temperature range of -20°C to +45°C covers all NZ climatic zones including alpine and high-altitude environments
  • Suitable for NZ 230V AC 50Hz electrical supply

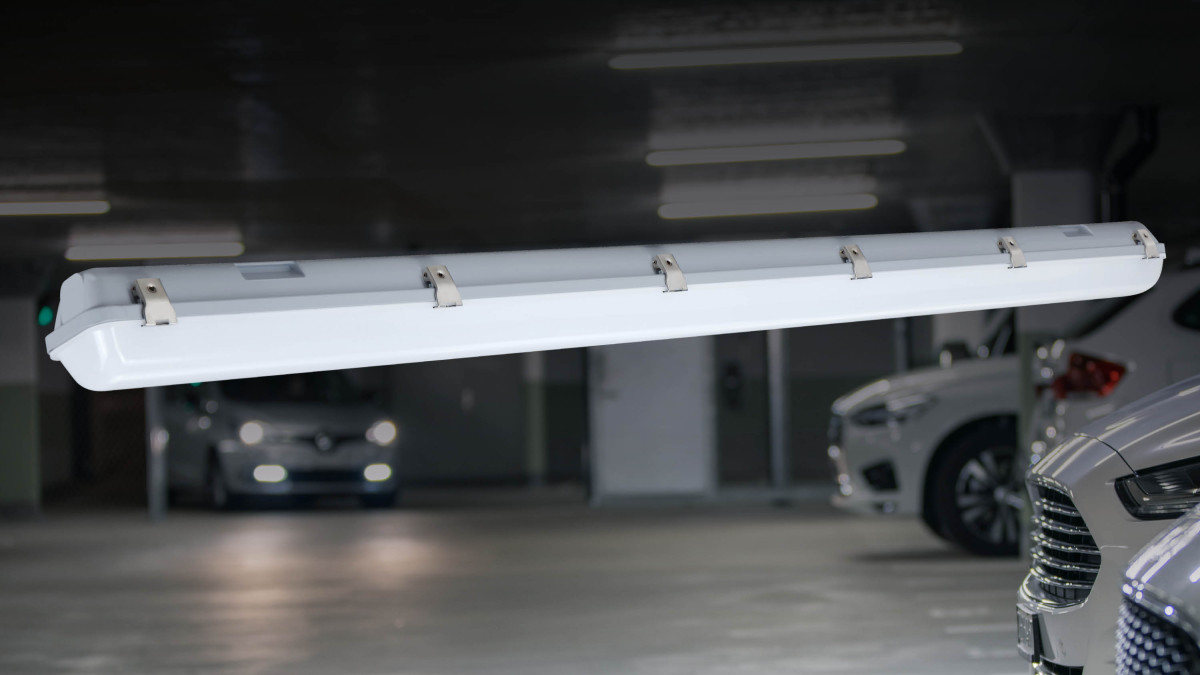

  • Suitable for commercial and industrial applications including carparks, warehouses, walkways, and covered loading areas
Limitations on Use
  • Not suitable for fully exposed outdoor installation without overhead weather protection
  • Not recommended for direct coastal salt spray exposure without additional protection
  • Not suitable for submerged or direct water jet applications
  • Class 1 appliance — earth required
Statement of Building Code Compliance
  • The IP65 rating and polycarbonate (PC) construction support a service life appropriate to the intended installation environment.
  • The 50,000-hour rated LED lifetime and compliance with A/NZS 60598.1 and AS/NZS 60598.2.1 provide evidence of durability under normal intended use conditions.
  • The adjustable wattage settings (36/40/45/51W) and high efficacy rating of 125lm/W support compliance with the energy efficiency intent of Clause H1, allowing installers to select the appropriate output level for the application.
Other Performance Attributes
  • Complies with A/NZS 60598.1 and AS/NZS 60598.2.1
  • IP65 weatherproof rated
  • IK08 impact resistant rated
  • Adjustable wattage settings: 36/40/45/51W
  • Lumen output: 4460 to 6300lm dependent on wattage setting
  • Efficacy: 125lm/W
  • CRI Ra≥80
  • LED rated lifetime: 50,000 hours
  • Class 1 appliance — earth required
  • Constructed from recycled and bio-based polycarbonate (PC)
Documents
Data Sheet: Glacier LED
