Core Floorbox range
Description

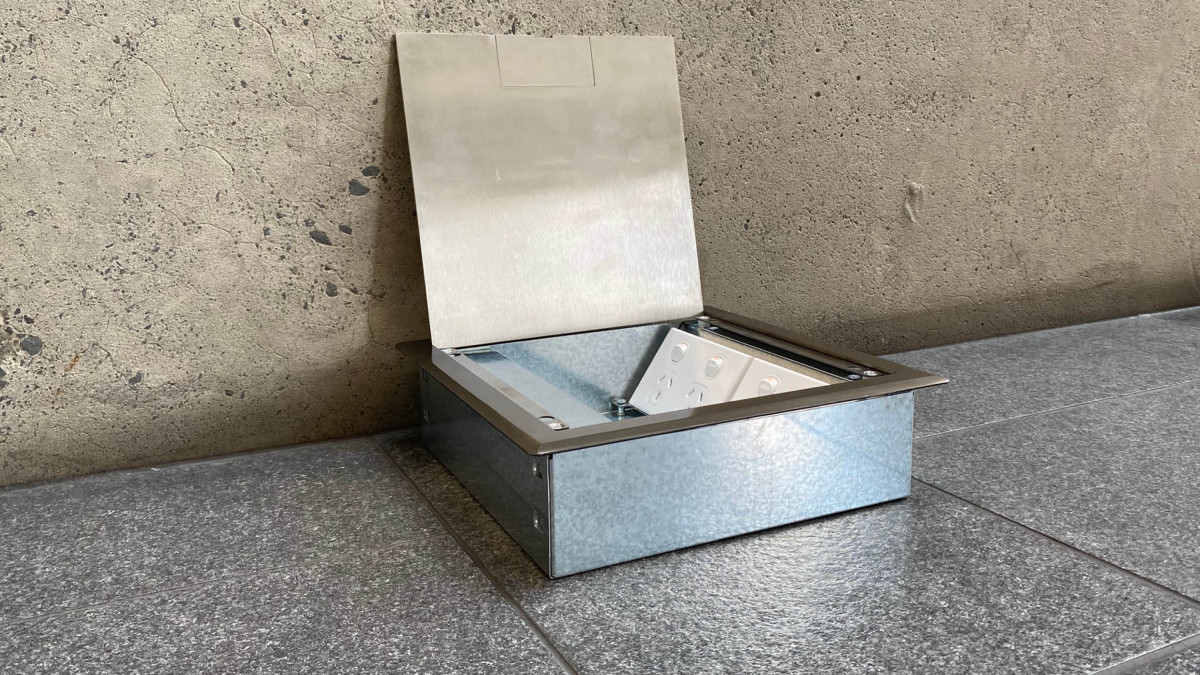

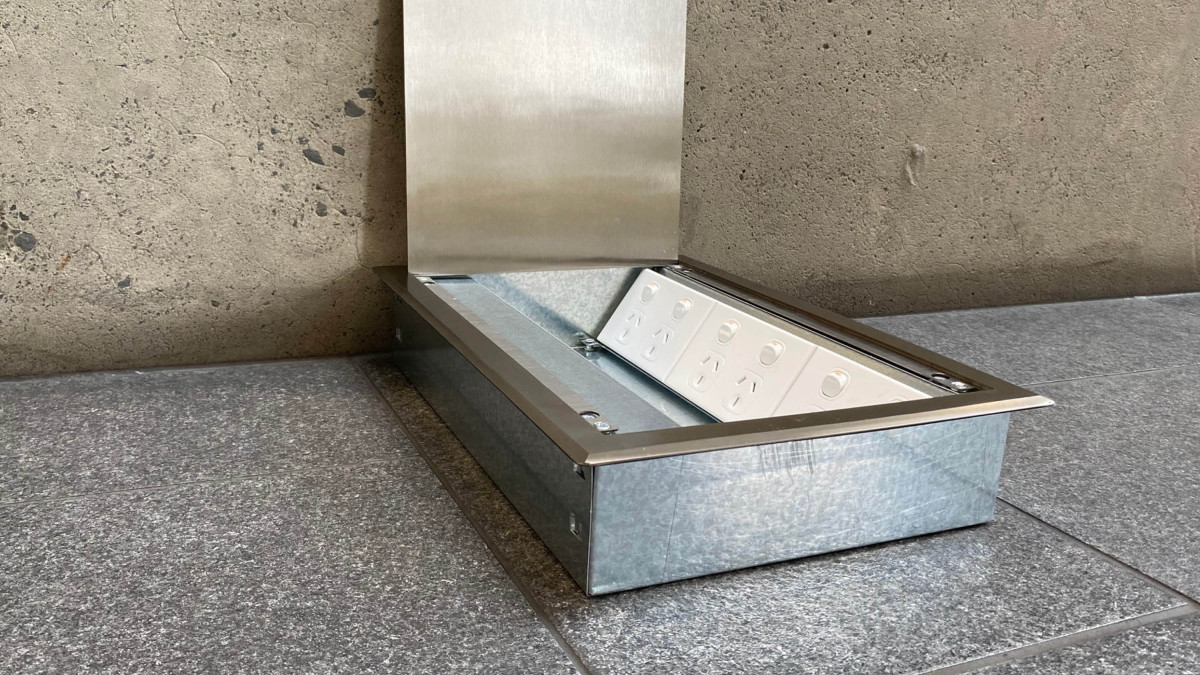

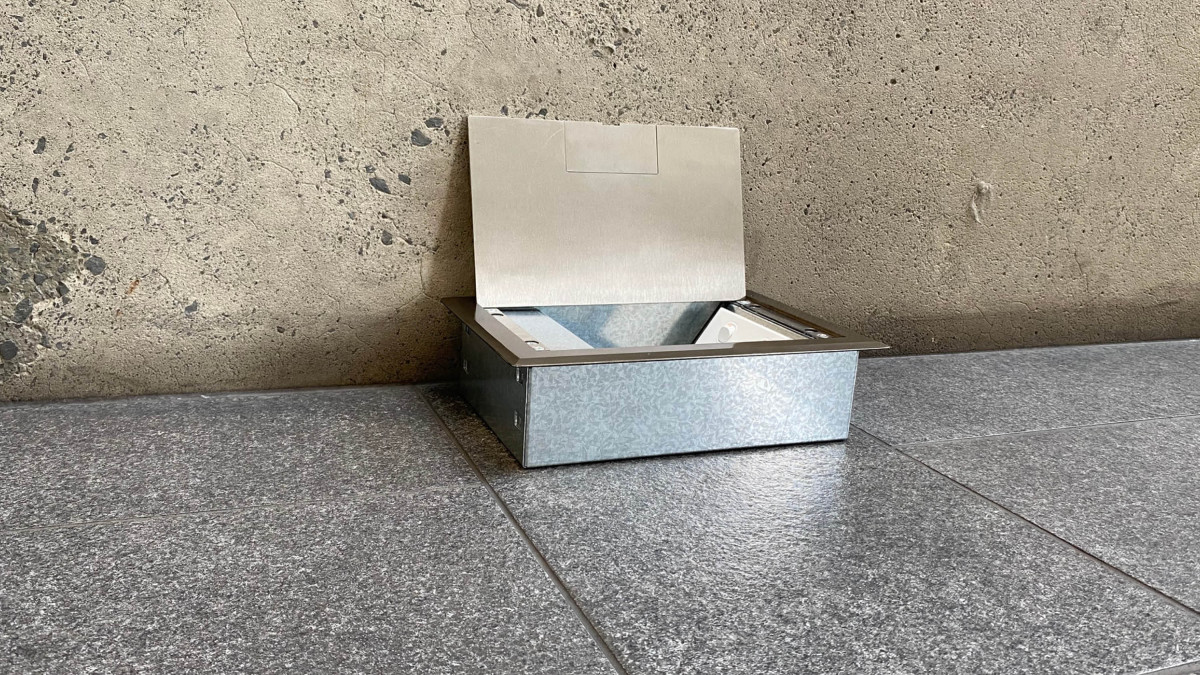

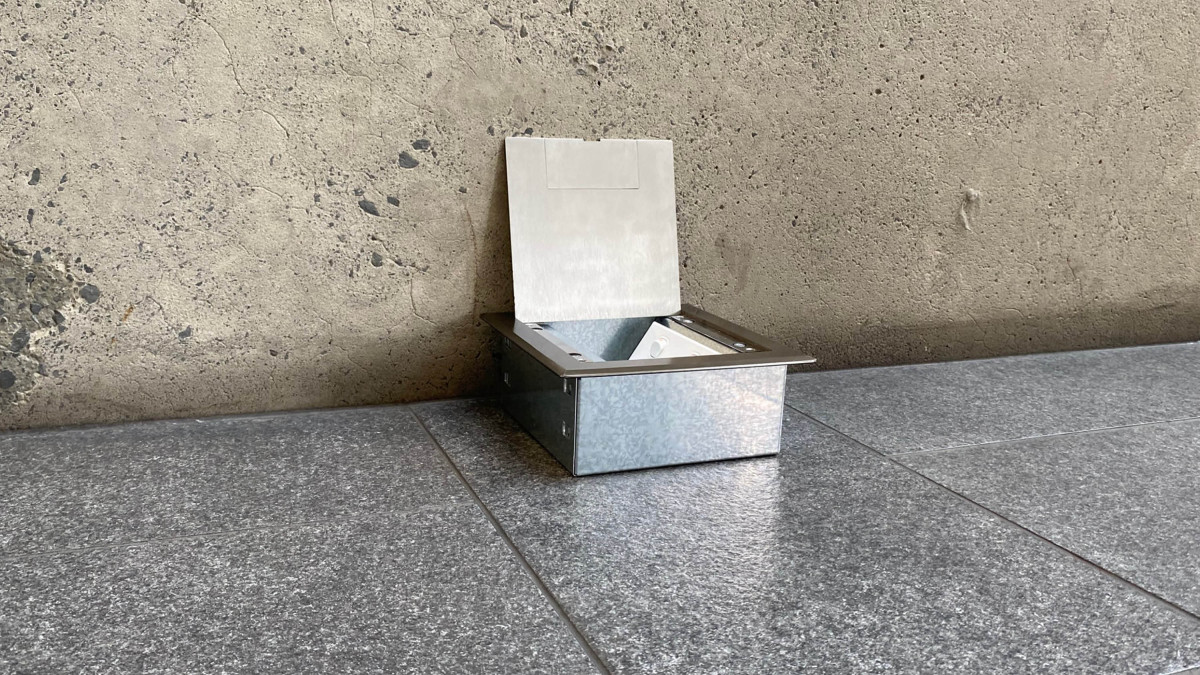

Vynco’s new Core Floor Box range delivers smart, durable power and data access for modern workplaces, retail spaces, and residential projects.

Made in Christchurch, New Zealand, the Vynco in-house metal fabrication plant means faster turnaround and lower costs. This allows for the installation of the bases at the construction stage, and then the lids to be added at fit-off — a simple, flexible solution that keeps projects moving.

The Core Floor box range – all function, no fuss — to deliver power where it's needed.

  • Sizes ranging from 2 power/4 data to 6 power/8 data
  • Power 10A double powerpoints
  • Separate Data Mounts for standard Cat5e and Cat6a modules
  • Zinc plated steel box
  • Temporary construction lid
  • Stainless steel lid with bevelled edge
  • Fast turnaround & readily available
  • Affordable, practical design
  • 70mm Depth
Key Features
  • Zinc plated steel box construction
  • Stainless steel surface lid with bevelled edge

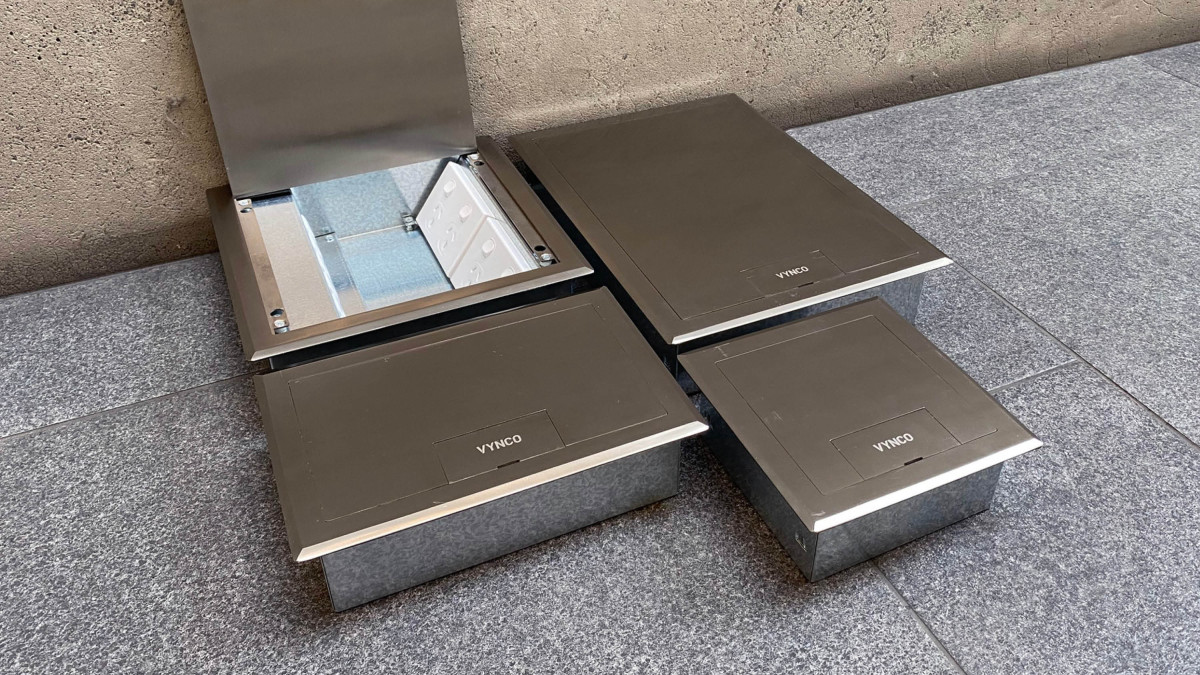

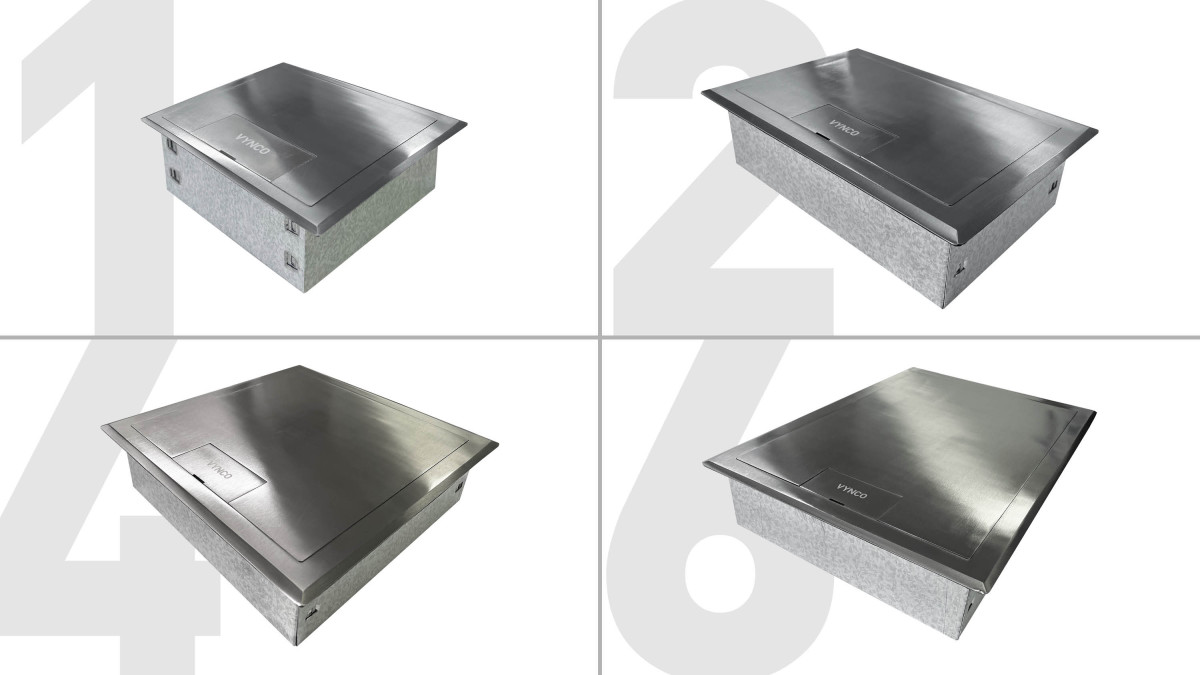

  • Available in four sizes: VFB1E, VFB2E, VFB4E, VFB6E
  • Power capacity ranging from 2 to 6 x 10A double power outlets
  • Data capacity ranging from 4 to 8 x 88PCM data mounts for standard Cat5e and Cat6a modules
  • Suitable for Cat 6A cabling Box and lid supplied as complete unit or available as separate components
  • Temporary construction lid supplied with box for installation at construction stage
  • Final stainless steel lid installed at fit-off stage
  • Box sizes ranging from 160x160x70mm (VFB1EB) to 360x250x70mm (VFB6EB)
  • Overall installed dimensions ranging from 190x190x75mm to 310x280x75mm
  • Lid thickness: 5mm stainless steel
  • Manufactured in Christchurch, New Zealand
Categories
Electrical
Ranges
Switchgear
NZ Made
NZ Made
NZ-Owned Business
NZ-Owned Business
Scope of Use
  • Suitable for residential, commercial, and retail floor installations where flush floor-level power and data access is required
  • Suitable for installation in concrete floors, raised access floors, and solid substrate floor construction
  • Zinc plated steel construction suitable for standard indoor corrosion environments - not recommended for high corrosion zones or areas subject to chemical exposure
  • Stainless steel lid suitable for high foot traffic areas including commercial, retail, and public space environments
  • Suitable for NZ 230V AC 50Hz electrical supply
  • Power outlets rated at 10A — suitable for standard general purpose power applications
  • Suitable for Cat 5e and Cat 6a data cabling installations
  • Size selection should be based on the required number of power and data outlets, with four sizes available to suit a range of installation requirements
Limitations on Use
  • Not suitable for outdoor or wet area installation
  • Not suitable for installation in floors subject to regular water ingress or flooding
  • Zinc plated steel construction suitable for standard indoor corrosion environments — not recommended for high corrosion zones or areas subject to chemical exposure
  • Not suitable for heavy vehicle traffic areas unless additional protective measures are in place
  • Not suitable for high current or three-phase applications
  • Not suitable for use as a distribution board or sub-board connection point Data outlets limited to Cat5e and Cat 6a data mounts — compatibility with other data mount formats should be confirmed prior to specification
Statement of Building Code Compliance
  • B1 Structure: When installed in accordance with the manufacturer's instructions and correctly set into a solid floor substrate, the product meets the structural performance requirements of Clause B1. The 5mm stainless steel lid and zinc plated steel box construction provide adequate structural integrity for pedestrian foot traffic loads under normal service conditions.
  • B2 Durability: The zinc plated steel box and stainless steel lid construction are appropriate for the intended indoor installation environment and support a service life consistent with the building in which they are installed. The two-stage installation process (temporary construction lid followed by stainless steel fit-off lid) protects the box during the construction phase, reducing the risk of damage or contamination prior to commissioning.
  • F4 Safety from Falling: The flush-mounted stainless steel surface lid with bevelled edge is designed to sit level with the finished floor surface, minimising trip hazard risk in pedestrian areas in accordance with the intent of Clause F4.
  • G9 Electricity: Electrical installation must be carried out by a registered electrician in accordance with AS/NZS 3000 Wiring Rules and the Electricity (Safety) Regulations 2010. When correctly installed, the product supports compliance with Clause G9 requirements for safe electrical installations within buildings.
