FleeceTank — Underslab Membrane
Description

Viking FleeceTank is a specialised damp-proofing and tanking system that protects the below-ground portion of a building structure from water ingress. Typical applications include under floor slabs, and on substrates of in-situ or pre-cast concrete.

It is applied as a single layer (down to a depth of 10.0 metres) and designed for no-flame application. With the use of a self-adhered lap, this system consists of a polyester and fibreglass modified bitumen membrane that can be used for vertical and horizontal waterproofing applications.

Viking FleeceTank is manufactured with a SBS rubberised bitumen compound that renders excellent cold flexibility, down to (-20°C) degrees, preventing splitting or cracking in extreme conditions.

Key Features
  • Exceptional adhesion to concrete
  • Self-sealing technology for added protection
  • Anti-root properties for long-term durability
  • Prevents lateral water migration
  • Made with high recycled content
  • Quick and efficient installation process
  • Installed exclusively by Viking Approved Applicators
  • Backed by a 20 year product warranty
Recycled Content (Pre-Consumer)
Pre-Consumer Recycled Content
Scope of Use

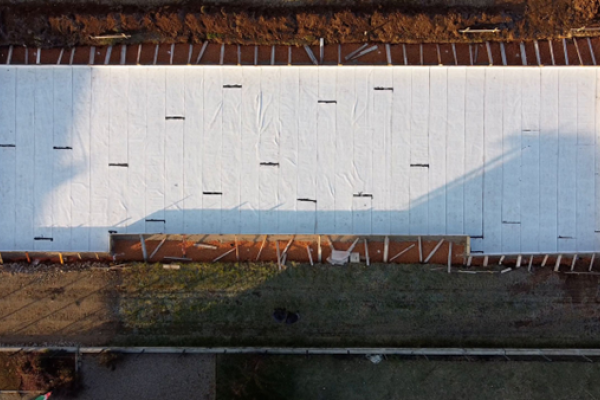

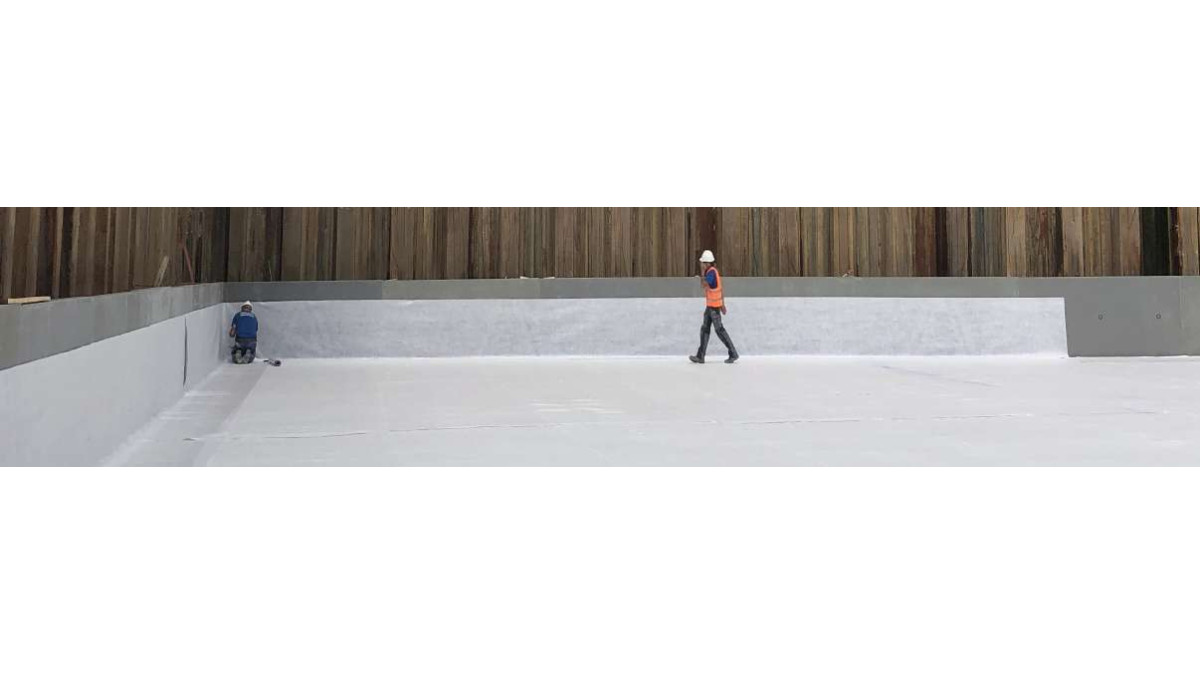

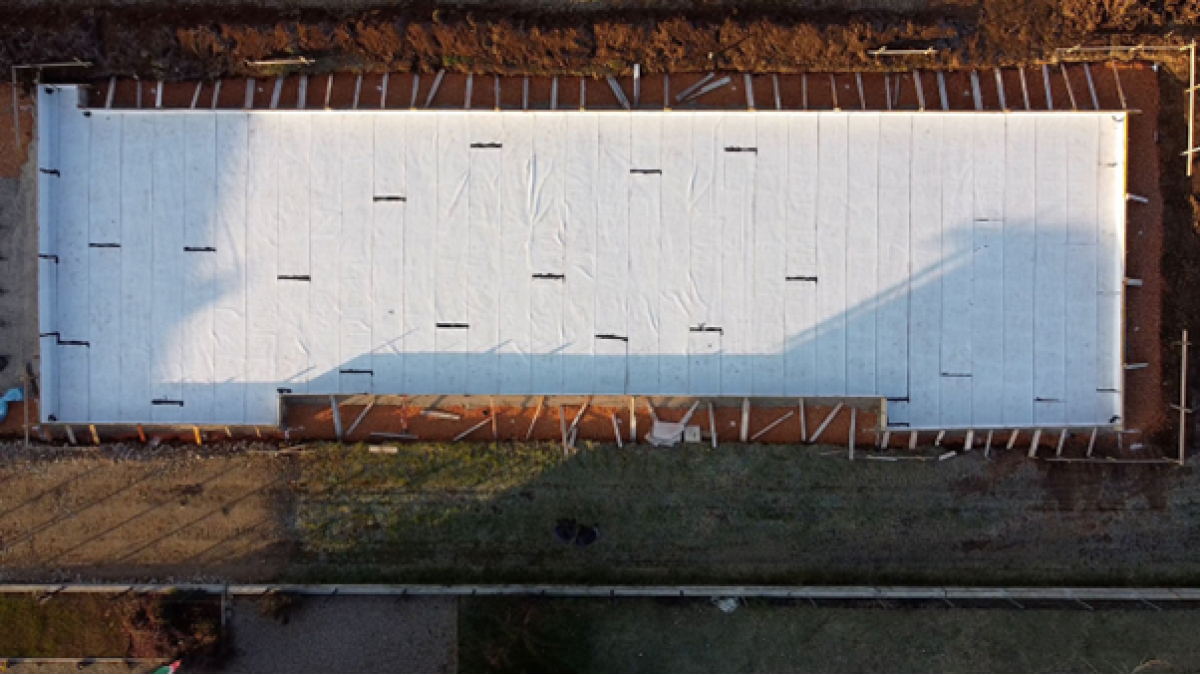

Viking FeeceTank is used for waterproofing under the slab and for foundation walls, fixing the membrane on a retaining wall or on formworks, before casting the concrete.

Other forms of tanking where FleeceTank can be used include: under footings, floor slabs or in situ or precast concrete;

On buildings subject to non-specific design under floor slabs complying with NZS 3604 and behind concrete masonry basement walls and under floor slabs complying with NZS 4229; and,

  • On buildings subject to specific design with substrates of in-situ or precast concrete complying with NZS 3101.
  • Where subsoil drainage and free draining granular backfill has been placed behind basement walls

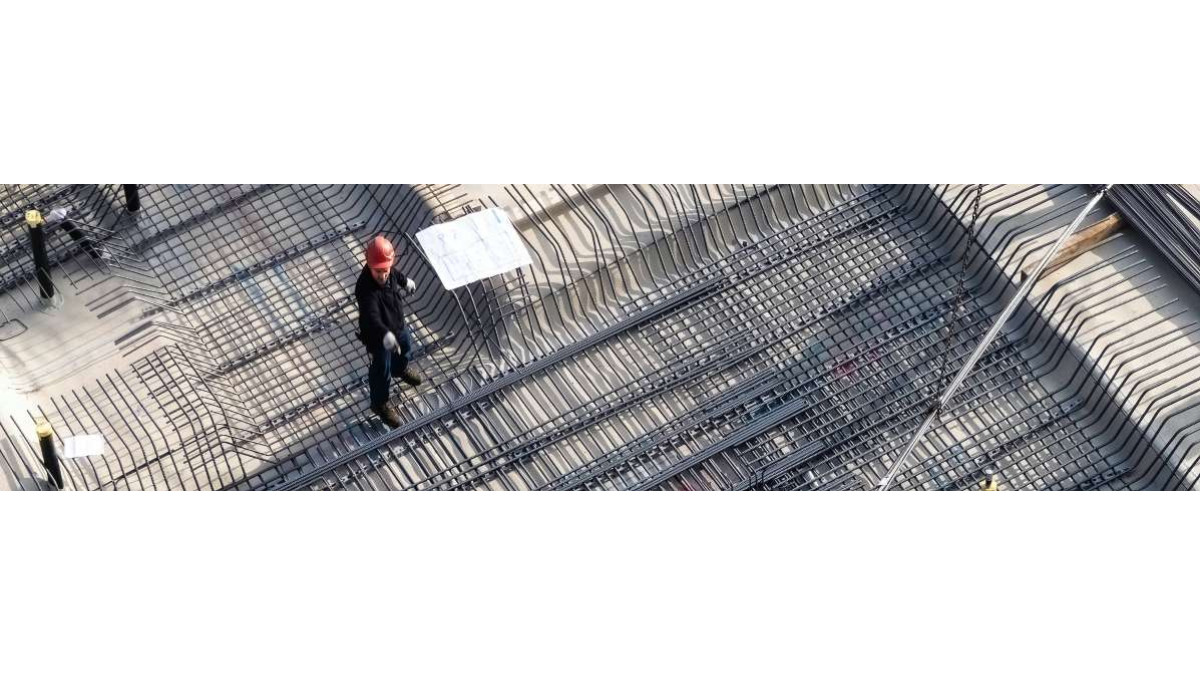

Viking FleeceTank must be adequately protected during the placement of re-bar.

Limitations on Use

Viking FleeceTank membrane must be installed by Viking Roofspec licensed and trained installers.

Statement of Building Code Compliance
  • Clause B1 STRUCTURE Performance B1.3.1. Viking FleeceTank meets this requirement.
  • Clause B2 DURABILITY Performance B2.3.1 (a) not less than 50 years. Viking FleeceTank meets this requirement.
  • Clause E2 EXTERNAL MOISTURE: Performance E2.3.3. Viking FleeceTank meets this requirement.
  • Clause F2 HAZARDOUS BUILDING MATERIALS: Performance F2.3.1. Viking FleeceTank meets this requirement and will not present a health hazard to people.
Other Performance Attributes
  • Viking FleeceTank has a 20 year product warranty
  • Made with high recycled content; the bitumen used in membrane is a bi-product of the oil refining process, providing a constructive use of this waste product
