Stickman Linear Panel Detailing System
Stickman
All products

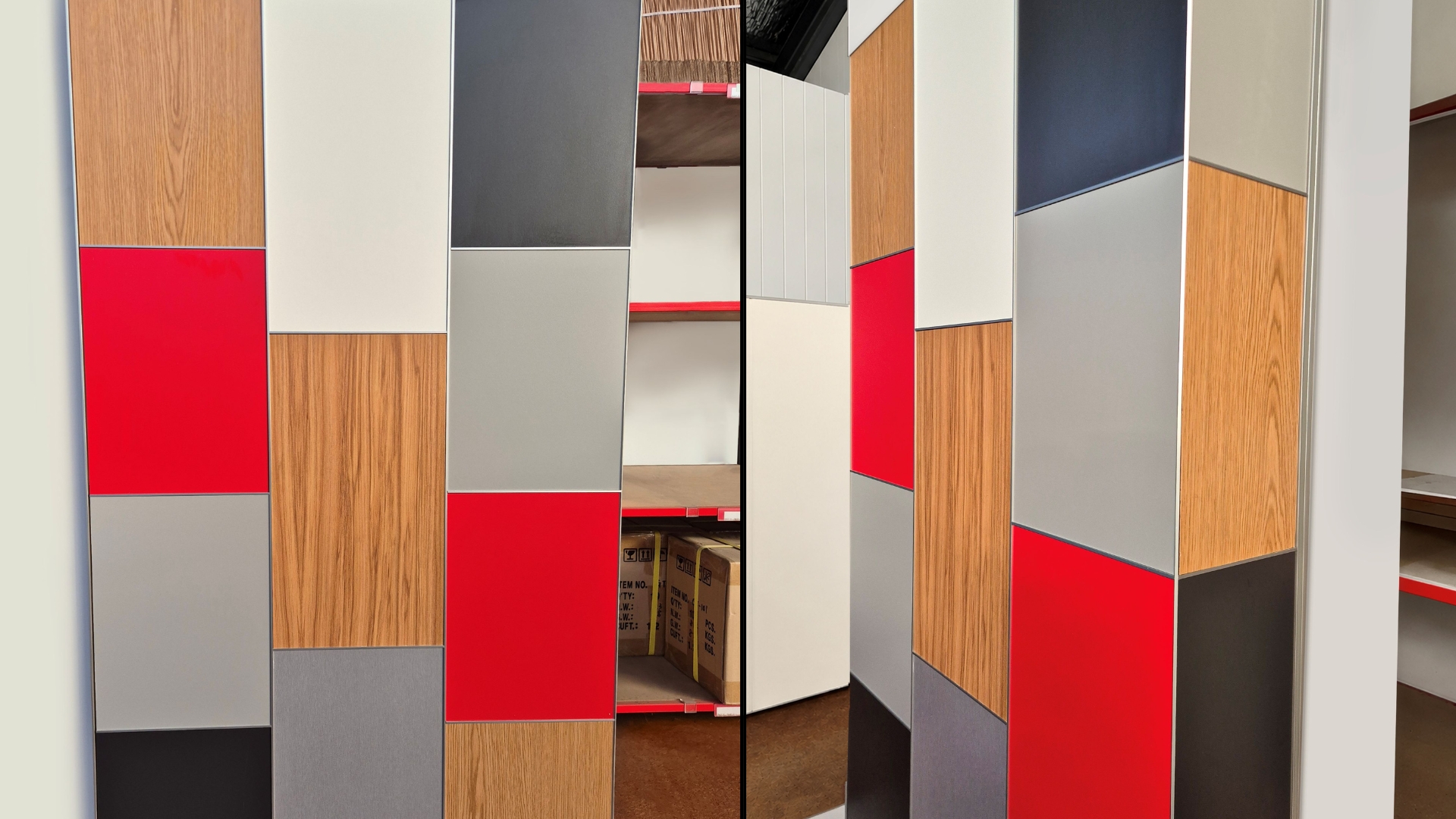

Stickmna Linear System Multicoloured panels
Stickman Linear System: Flush Set, silver anodised used in feature paneling
Stickman Linear System Negative Inset Black Foyer
Stickman Linear System: Negative Inset, Matte Black powdercoated. Render of Office Foyer
Stickman Linear Profile Range
Stickman Linear System Profile Range
Stickman Linear Profile Range different sets

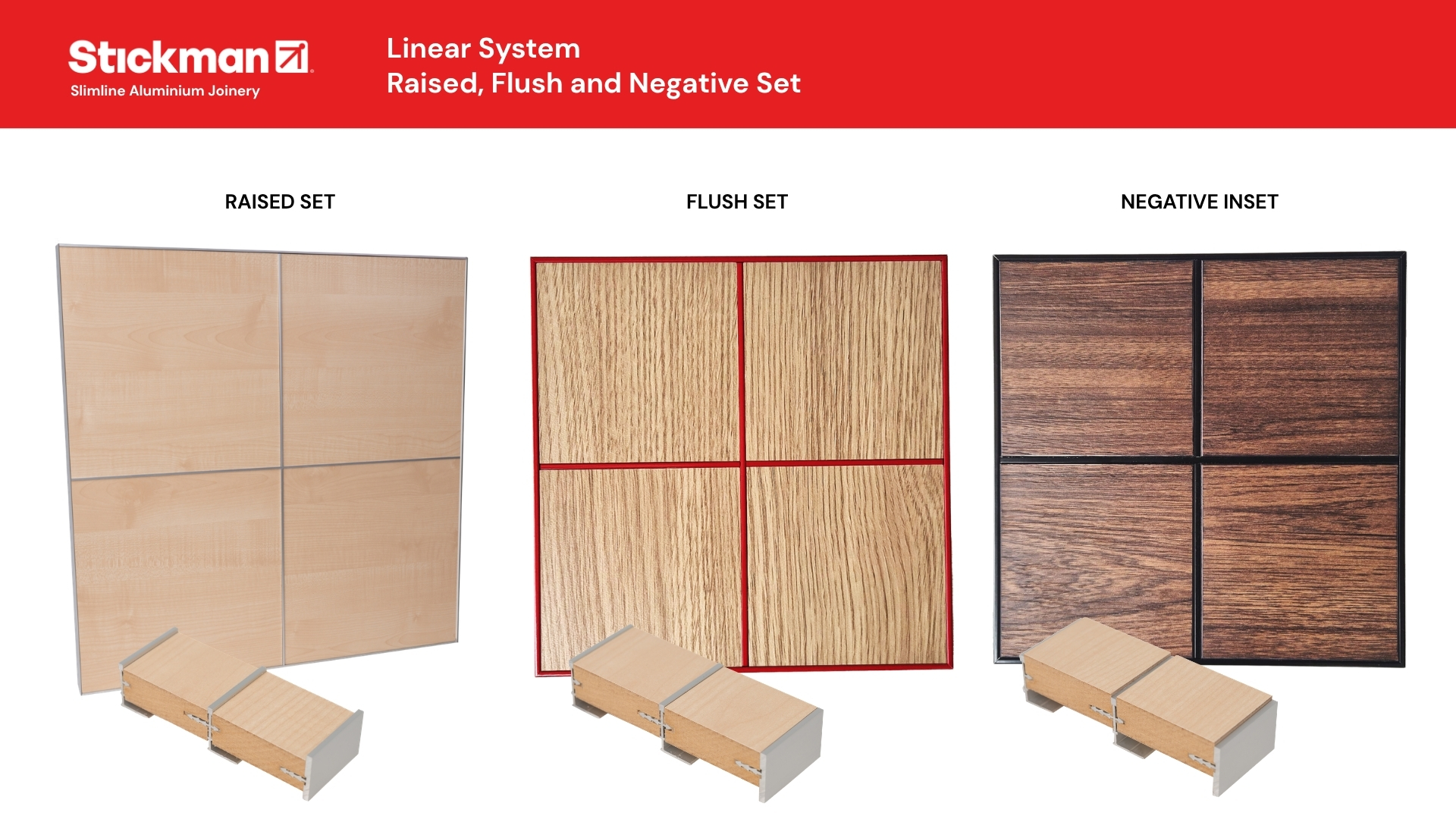

Stickman Linear System: Raised, Flush and Negative Inset examples

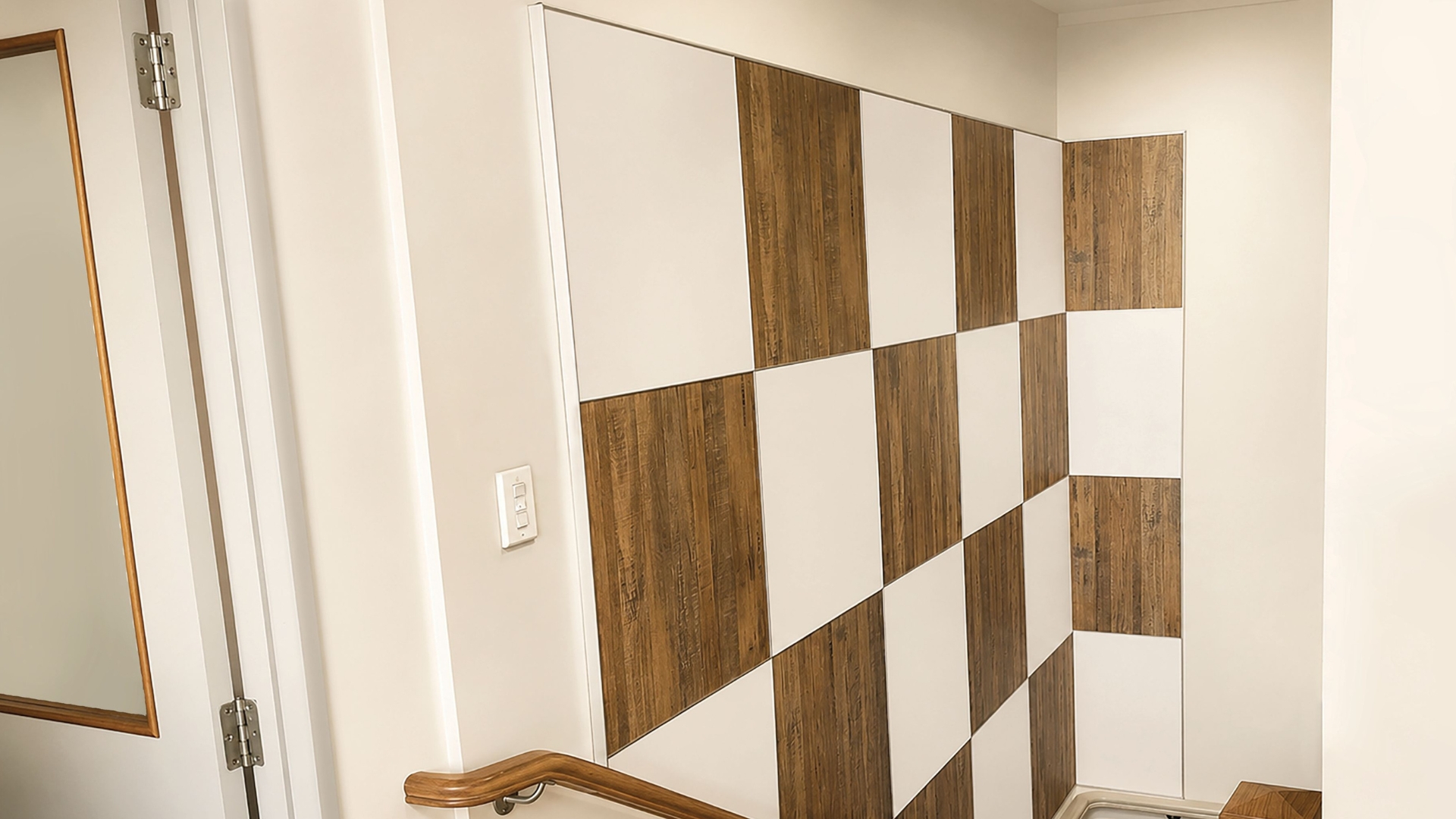

Stickman Linear System checker board hallway
Stickman Linear System: Raised Set, Silver Anodised used in panel checkerboard design in stairwell

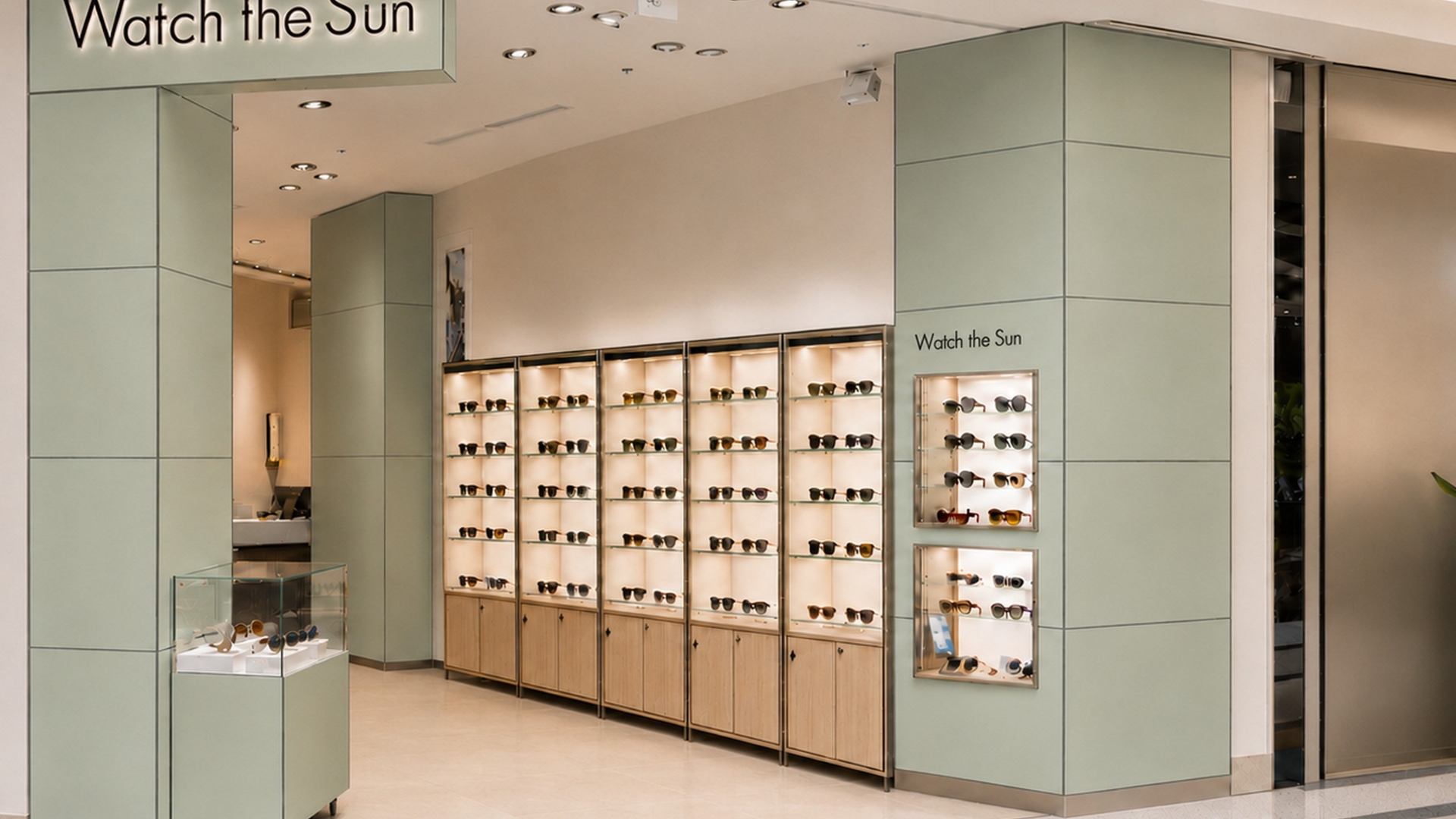

Stickman Linear System Retail store
Render of Stickman Linear System: Flush Set, Forest Green powdercoated in Retail Store fitout.

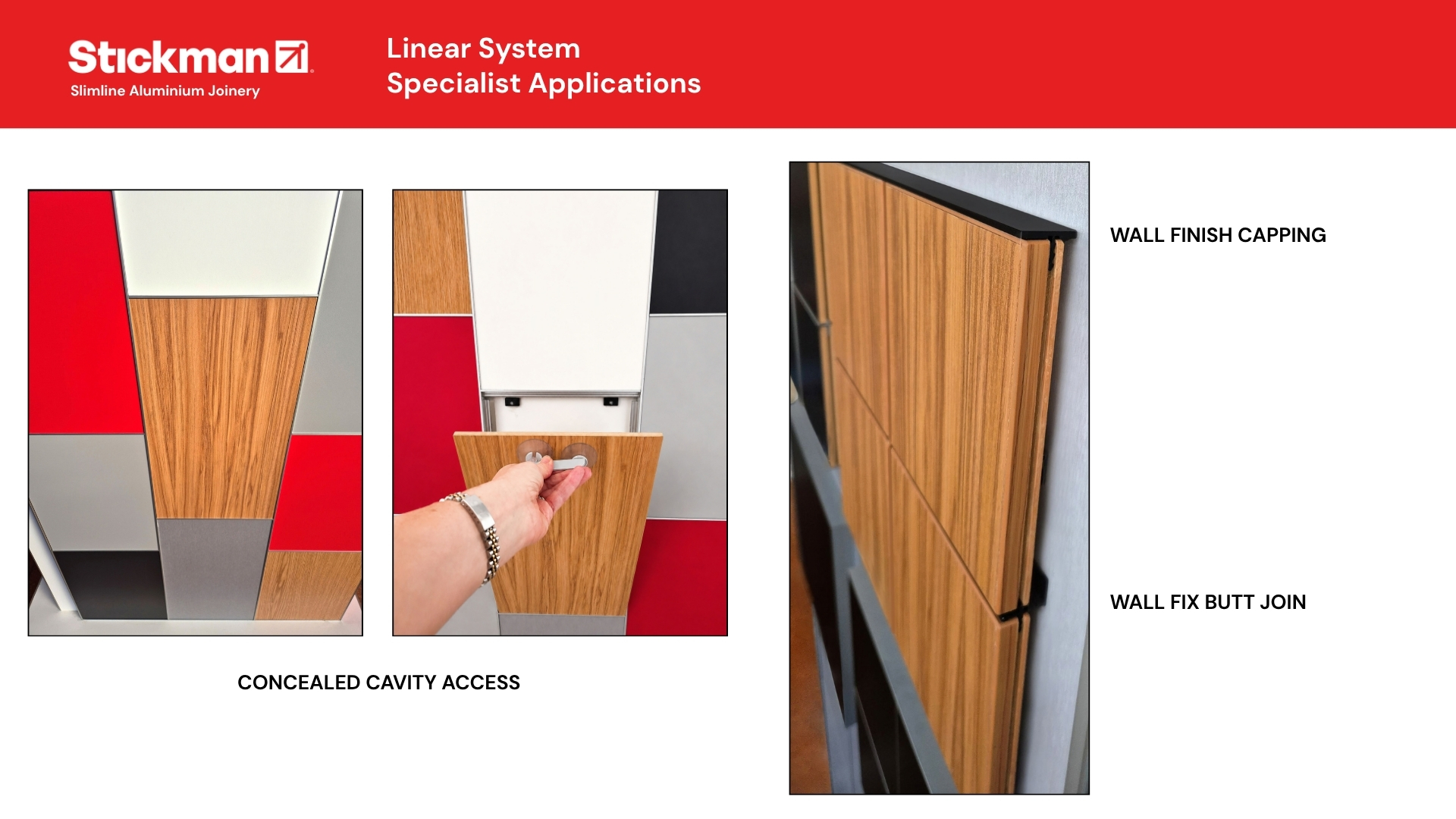

Stickman Linear System specialist applications
Linear System Specialist Applications
Description

Stickman Linear is a coordinated system of slimline aluminium profiles for joining, finishing and fixing MDF and other wood composite panels in architectural interiors.

The range includes corner joins, butt joins, wall fixing and capping profiles, providing consistent detailing across wall panelling, columns and cabinetry, with the option of raised, flush or recessed settings.

Profiles are available in anodised aluminium or mill finish suitable for powder coating to match or contrast surrounding materials.

Key Features

  • Linear profiles offer raised, flush or negative inset detailing to create subtle joins, expressed architectural lines or recessed shadow details.

  • Coordinated aluminium profiles create consistent linear detailing across panel corners, joins and terminations.
  • Aluminium profiles help align adjoining panels and protect exposed edges from wear and impact.
  • Mill finish aluminium can be powder coated to match surrounding panel finishes or create contrasting architectural details. Anodised finishes are also available.
  • Designed primarily for 18 mm MDF and wood composite panels, with standard capping options also suitable for 16 mm panels.

  • Compatible profiles can be combined to create integrated panel details, including direct wall fixing and concealed access applications.

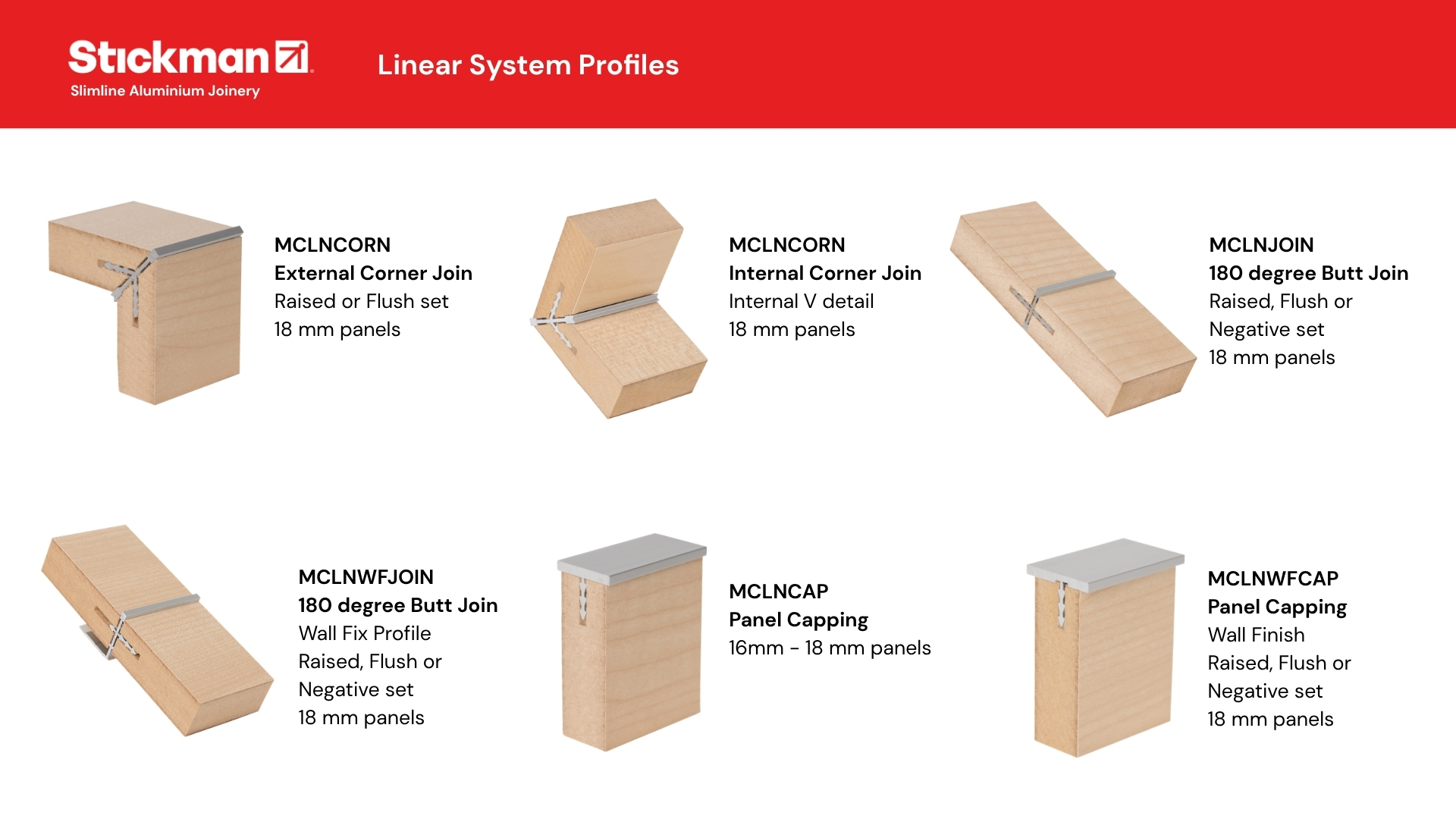

Linear System Proile Options:

  • MCLNCORN – 90-degree external corner joins with raised or flush detailing. Also suitable for exposed internal corners with a V-shaped detail.

  • MCLNJOIN – Butt join profile for adjoining flat panels, with raised, flush or negative inset detailing.

  • MCLNWFJOIN – Wall-fix butt join profile integrating direct wall fixing with raised, flush or negative inset detailing.

  • MCLNCAP – Standard capping profile for finishing exposed panel ends and junctions, suitable for 16 mm and 18 mm panels.

  • MCLNWFCAP – Wider wall-finish capping profile for concealing gaps at walls, ceilings and other junctions, with raised, flush or negative inset detailing.

Categories
Lining Ancillaries
Ranges
Architectural Panel Joining & Detailing
NZ Made
NZ Made
NZ-Owned Business
NZ-Owned Business
Recyclable Content (Post-Consumer)
Post-Consumer Recyclable Content
Recycled Content (Pre-Consumer)
Pre-Consumer Recycled Content
Scope of Use

Suitable for MDF and other wood composite panels in dry interior applications, including:

  • Architectural wall panelling and feature walls, providing consistent linear joins across large panelled surfaces.

  • Column cladding and external or internal corner detailing, with coordinated corner and butt join profiles.

  • Cabinetry, furniture and architectural joinery requiring defined, consistent panel junctions.

  • Panel terminations at walls, ceilings and adjoining surfaces, including wider capping profiles to conceal junction gaps.

  • Direct wall fixing of panels using the MCLNWFJOIN wall-fix profile.

  • Concealed service and storage access, where removable panels are incorporated into the joinery design.

  • Commercial interiors, retail fit-outs, hospitality spaces, offices and residential projects.

Limitations on Use

  • Intended for dry interior applications. Suitability for exterior, wet-area or other demanding environments must be confirmed with Stickman.

  • Profile selection must account for panel material, thickness and the required junction detail.

  • Not all Linear profiles offer raised, flush and negative inset settings. Refer to individual profile drawings for available configurations.

  • Panels must be accurately machined and profiles installed in accordance with the relevant technical drawings and installation instructions.

  • Wall-fix and removable panel applications require appropriate fixing and installation details for the intended use.

Documents
Stickman Specifier Brochure

August 2026

pdf
Stickman Range Overview

August 2026

pdf
CAD/PDF Details
View full
MCLNCAP Stickman Linear Capping Profile

MCLNCAP

1

dwg
MCLNCORN Stickman Linear External Corner Join - Flush Set

MCLNCORN Flush

1

dwg
MCLNCORN Stickman Linear Internal Corner Join

MCLNCORN Internal

1

dwg
MCLNCORN Stickman Linear External Corner Join - Raised Set

MCLNCORN Raised

1

dwg

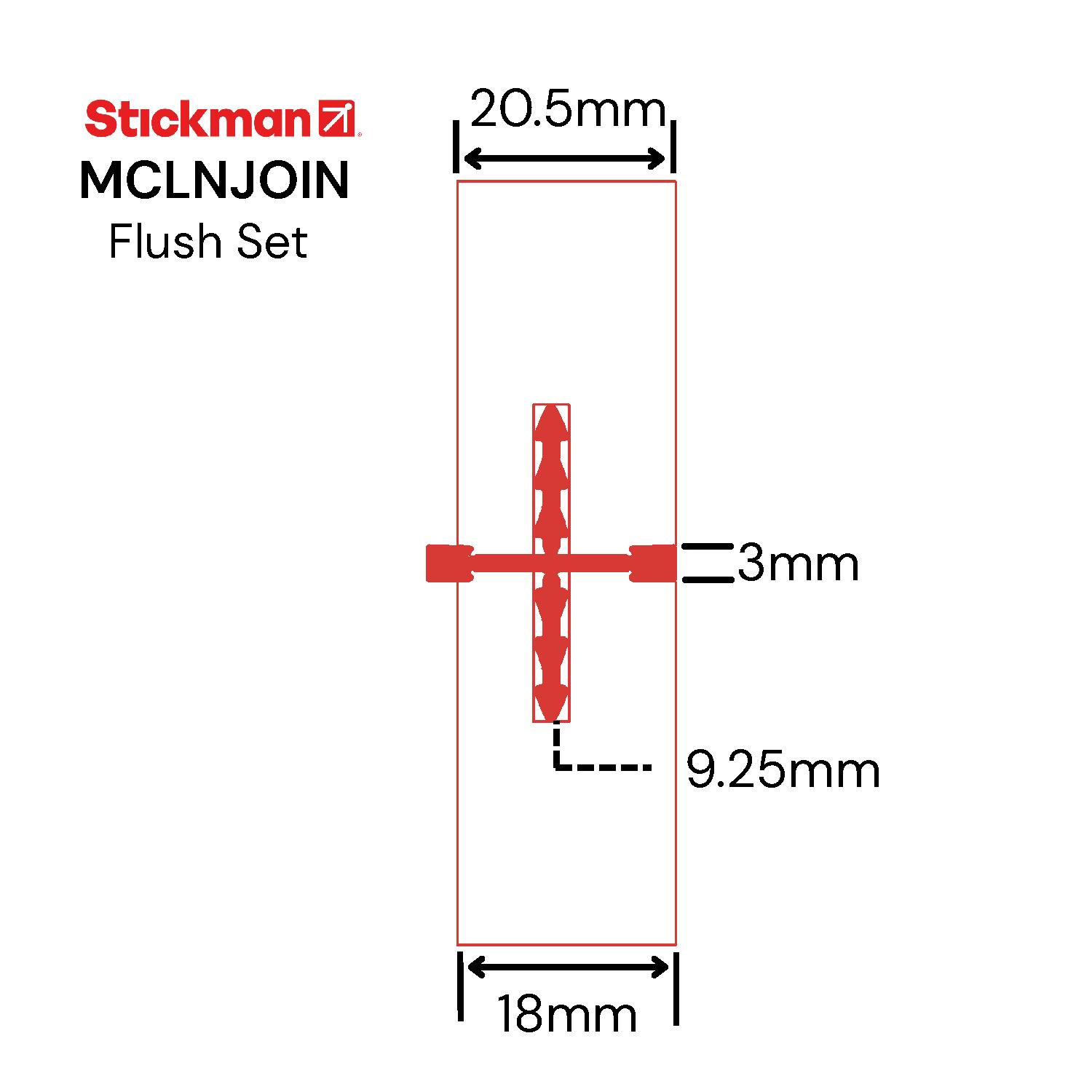

MCLNJOIN Stickman Linear Butt Join - Flush Set

MCLNJOIN Flush

1

dwg
MCLNJOIN Stickman Linear Butt Join - Negative Inset

MCLNJOIN Negative

1

dwg

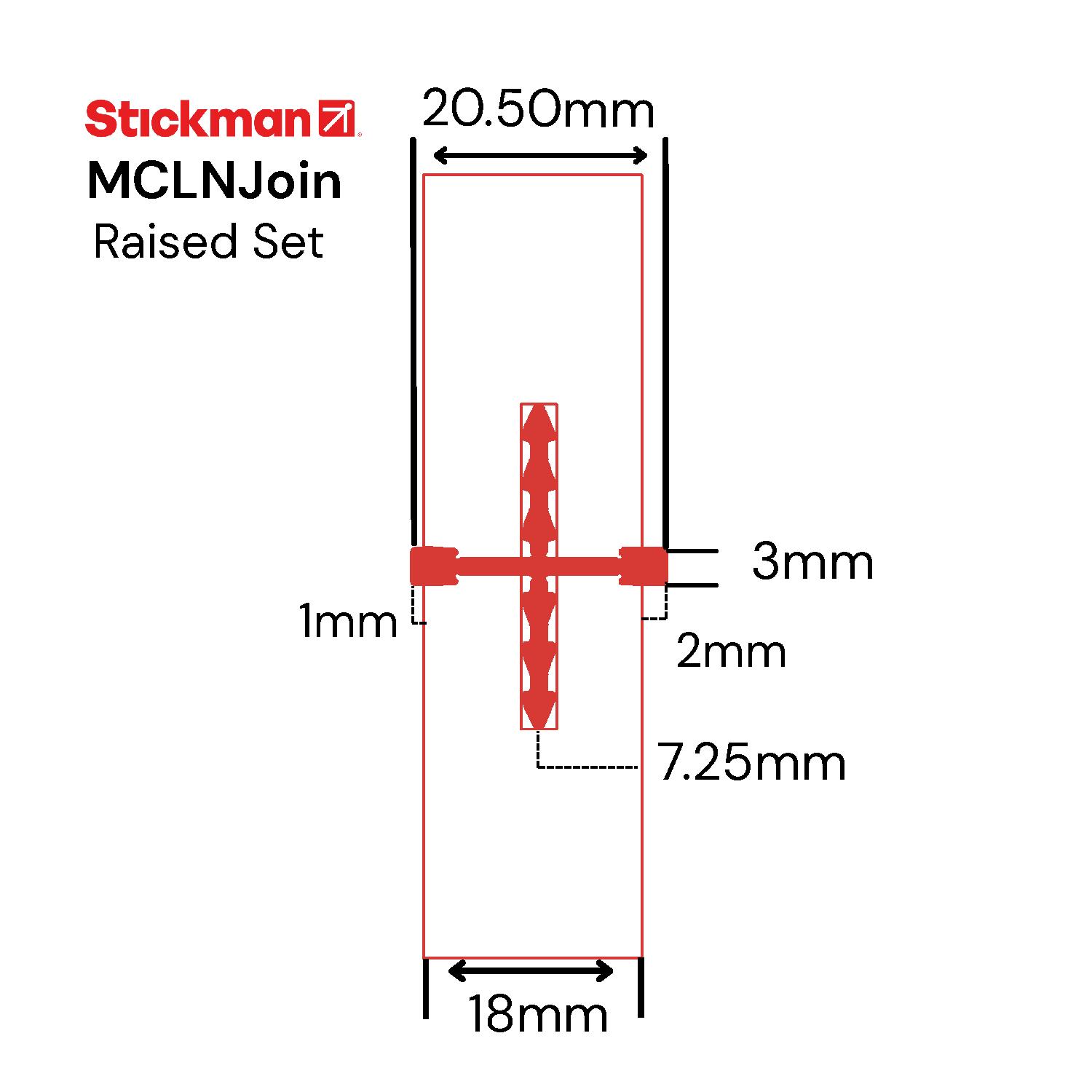

MCLNJOIN Stickman Linear Butt Join - Raised Set

MCLNJOIN Raised

1

dwg
MCLNWFCAP Stickman Linear Capping Profile - Wall Fix Flush Set

MCLNWFCAP Flush

1

dwg
MCLNWFCAP Stickman Linear Capping Profile - Wall Fix Negative Inset

MCLNWFCAP Negative

1

dwg
MCLNWFCAP Stickman Linear Capping Profile - Wall Fix Raised Set

MCLNWFCAP Raised

1

dwg
MCLNWFJOIN Stickman Linear Butt Join - Wall Fix Flush Set

MCLNWFJOIN Flush

1

dwg
MCLNWFJOIN Stickman Linear Butt Join - Wall Fix Negative Inset

MCLNWFJOIN Negative

1

MCLNWFJOIN Stickman Linear Butt Join Wall Fix - Raised Set

MCLNWFJOIN Raised

1

dwg
Installation Details
View full

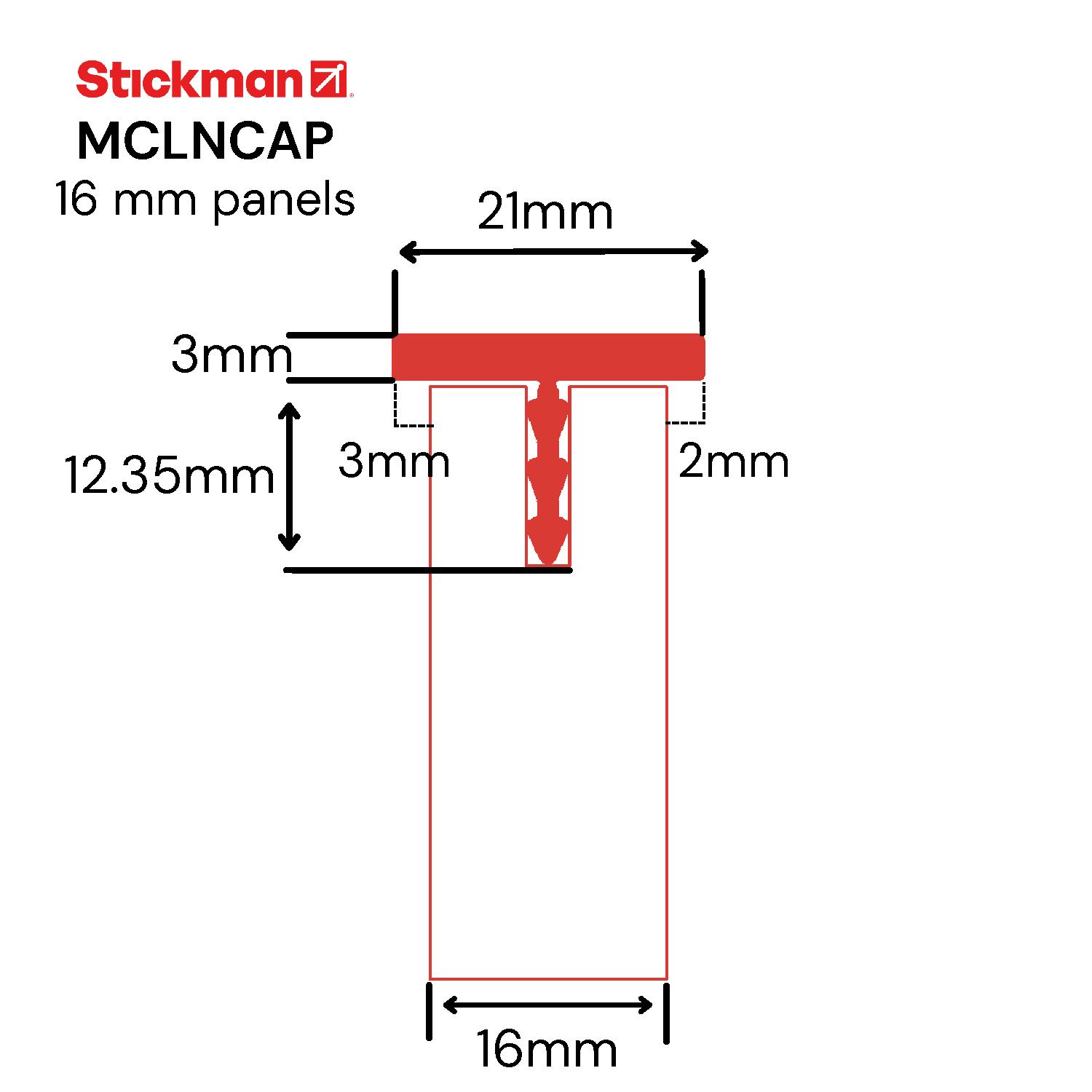

MCLNCAP 16mm DDrawing metric PDF pdf
MCLNCAP Stickman Linear Capping Profile - 16mm panels dimension drawing

MCLNCAP 16 mm

1

pdf
MCLNCAP 18mm DDrawing metric PDF pdf

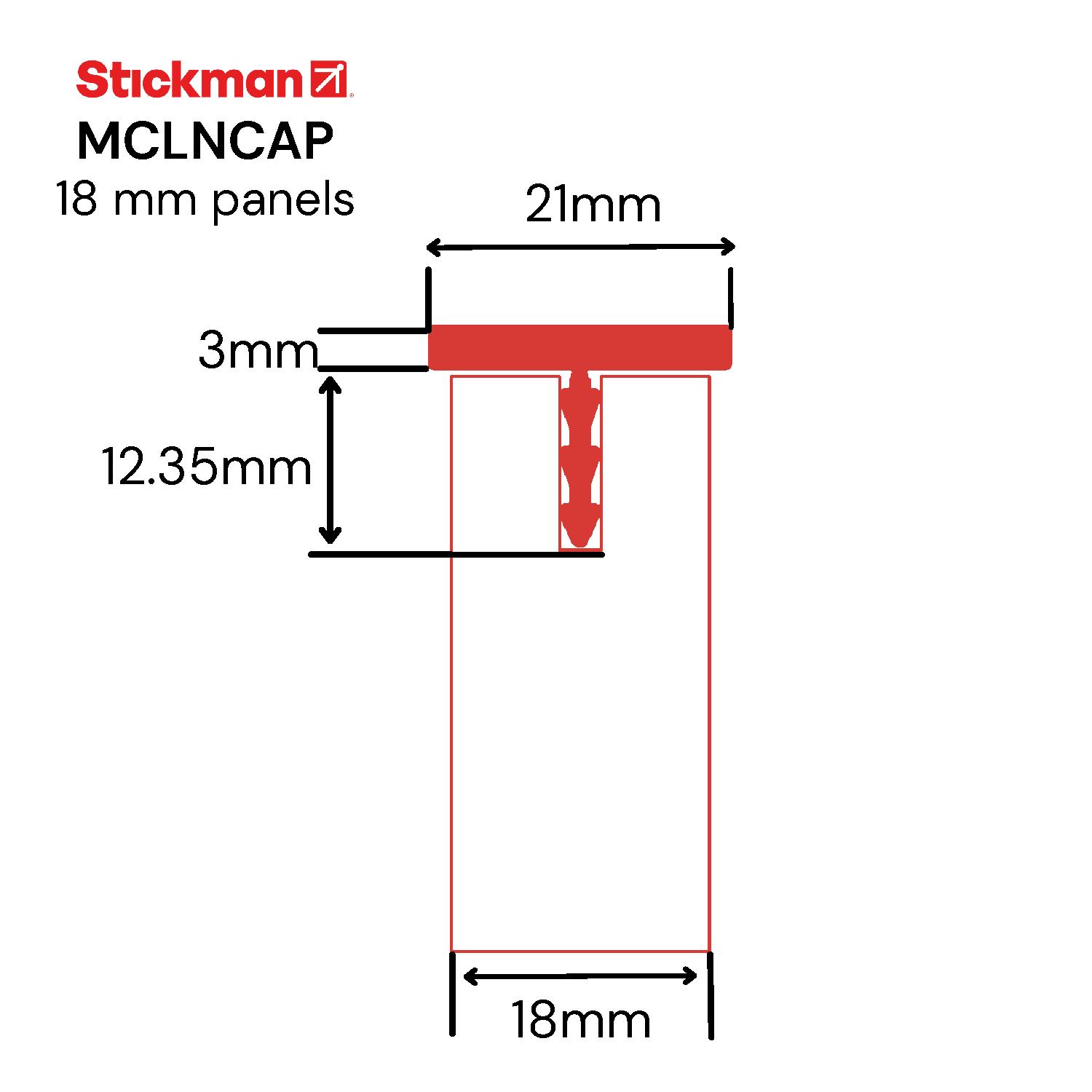

MCLNCAP Stickman Linear Capping Profile - 18mm panel dimension drawing

MCLNCAP 18 mm

1

pdf
MCLNCORN Flush DDrawing metric CC pdf
MCLNCORN Stickman Linear External Corner Join - Flush Set, 18mm panels

MCLNCORN Flush

1

pdf
MCLNCORN Raised internal DD metric CC pdf
MCLNCORN Stickman Linear Internal Corner Join, 18 mm panels

MCLNCORN Internal

1

pdf
MCLNCORN Raised DDrawing metric CC pdf
MCLNCORN Stickman Linear External Corner Join - Raised Set, 18mm panels

MCLNCORN Raised

1

pdf
MCLNJOIN Flush DDrawing metric PDF pdf
MCLNJOIN Stickman Linear Butt Join - Flush Set: 18 mm panels

MCLNJOIN Flush

1

pdf
MCLNJOIN Negative DDrawing metric PDF pdf

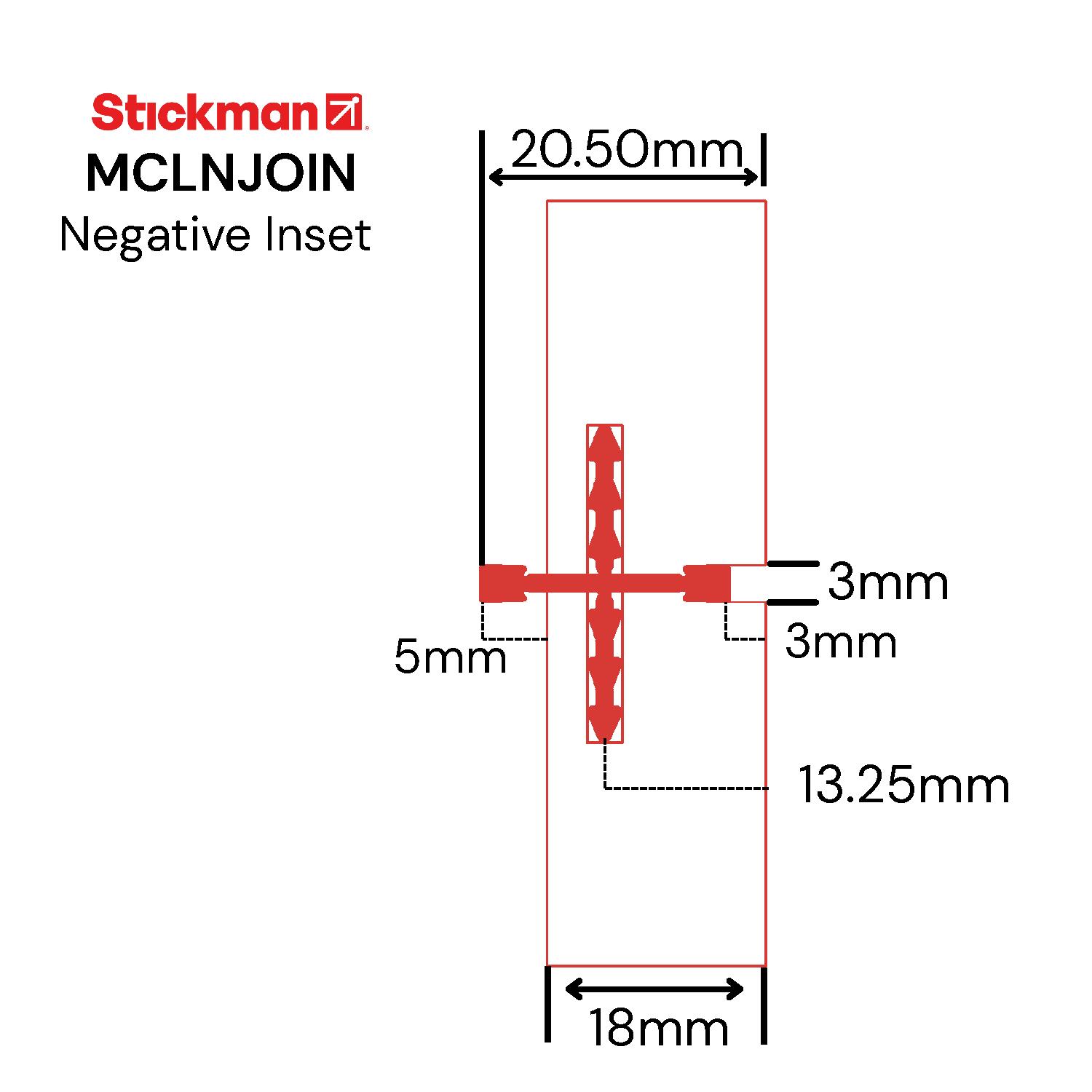

MCLNJOIN Stickman Linear Butt Join - Negative Inset: 18 mm panels

MCLNJOIN Negative

1

pdf
MCLNJOIN Raised DDrawing metric PDF pdf
MCLNJOIN Stickman Linear Butt Join - Raised Set: 18 mm panels

MCLNJOIN Raised

1

pdf
MCLNWFCAP Flush DDrawing metric PDF pdf

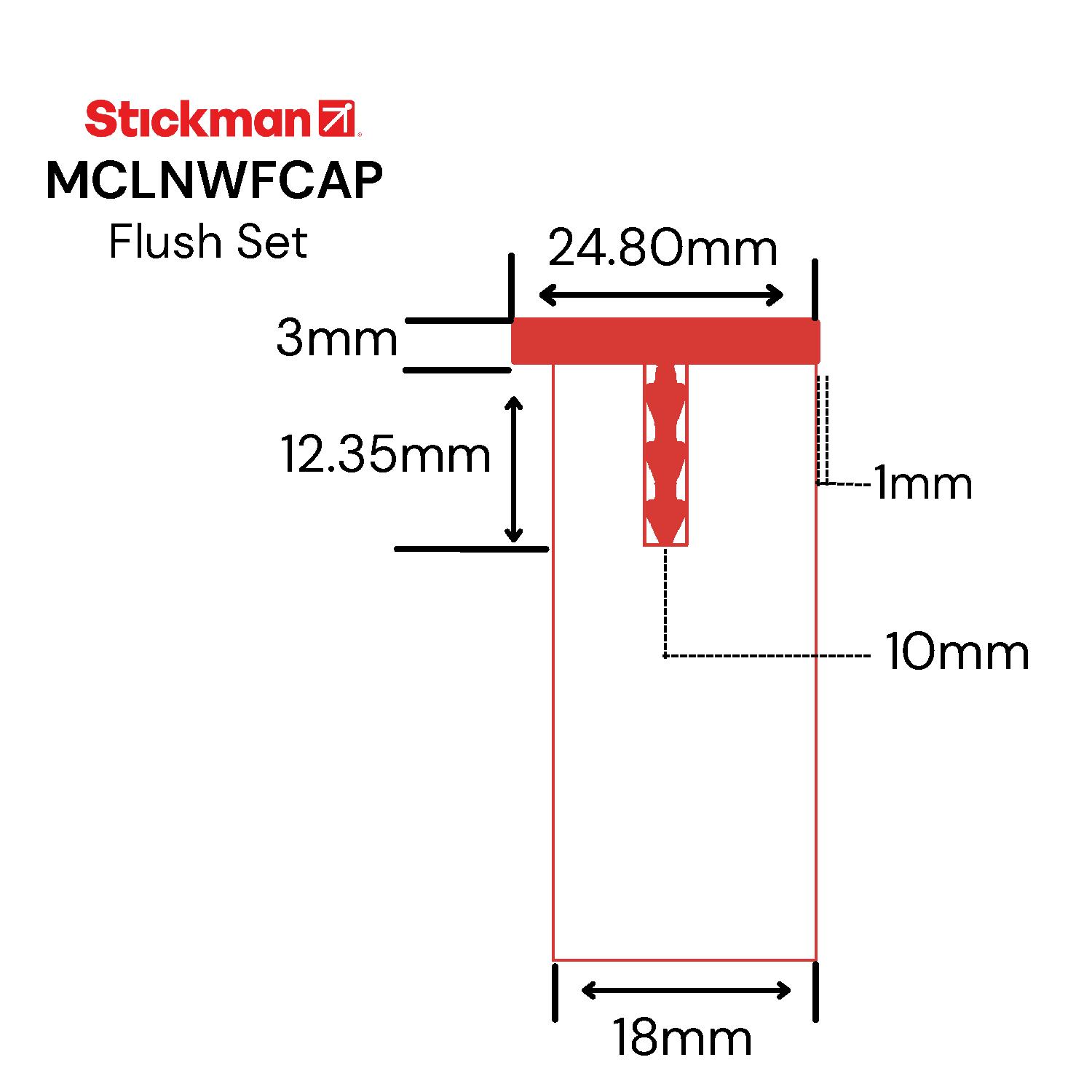

MCLNWFCAP Stickman Linear Capping Profile - Wall Fix Flush Set dimension drawing

MCLNWFCAP Flush

1

pdf
MCLNWFCAP Negative DDrawing metric PDF pdf

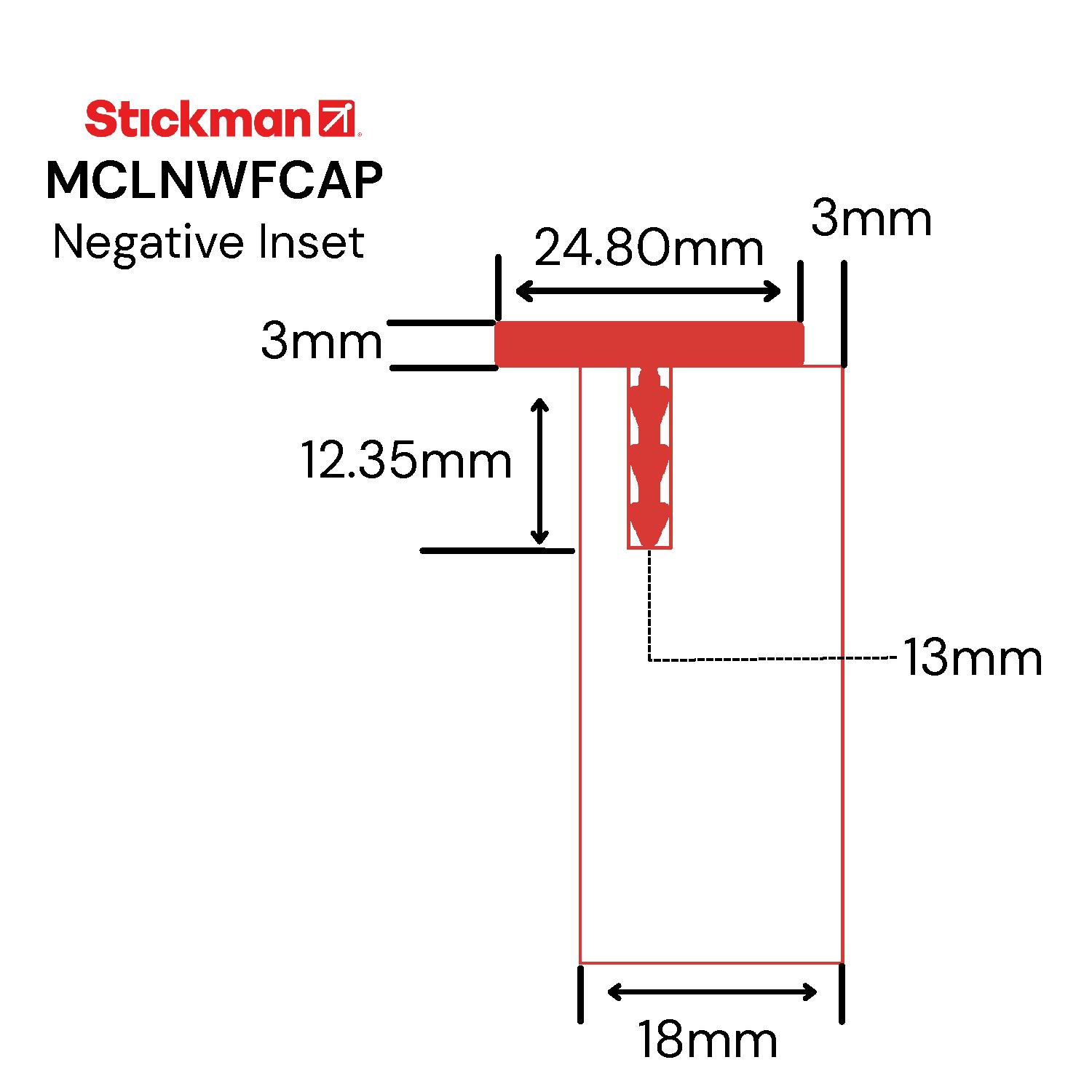

MCLNWFCAP Stickman Linear Capping Profile - Wall Fix Negative Inset dimension drawing

MCLNWFCAP Negative

1

pdf
MCLNWFCAP Raised DDrawing metric PDF pdf

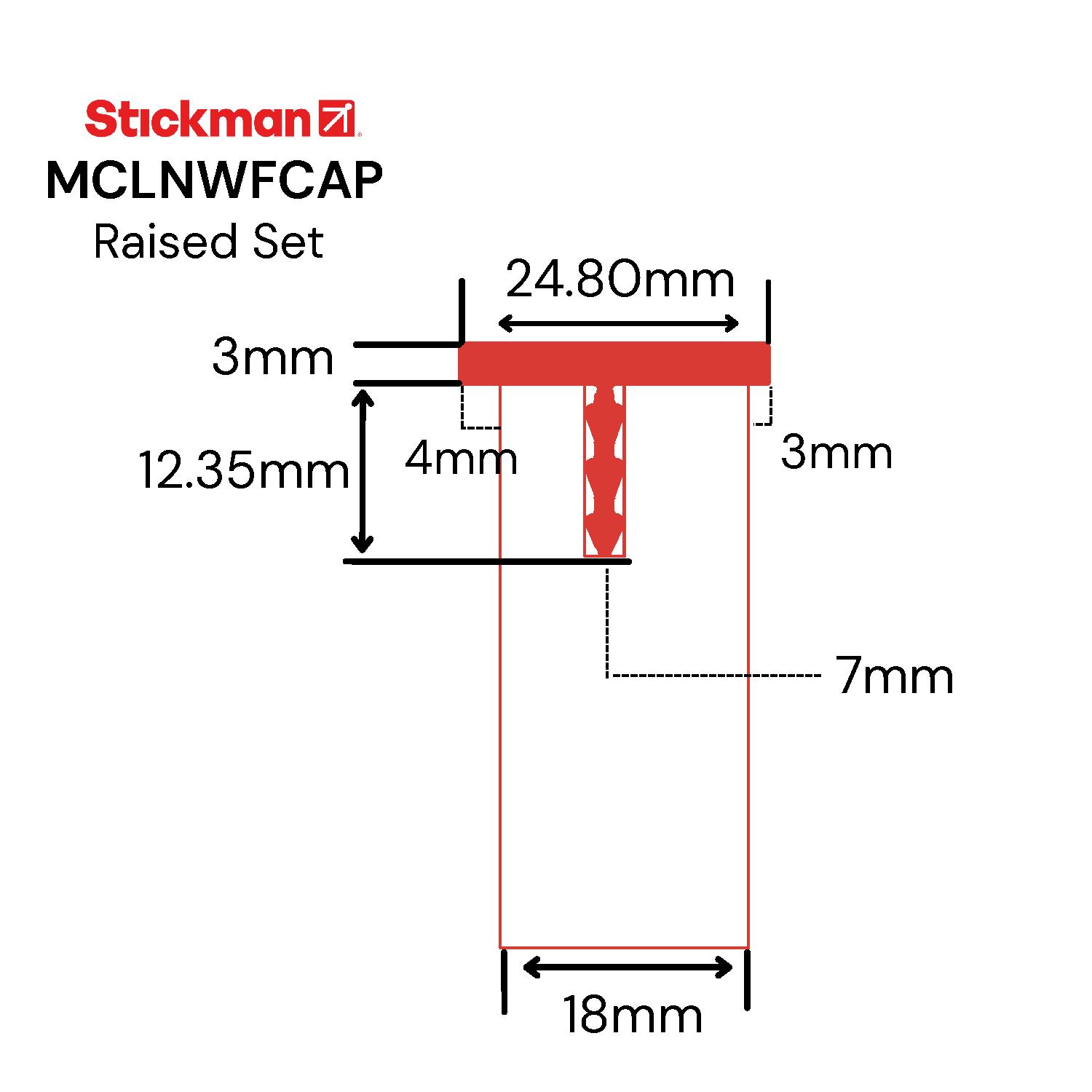

MCLNWFCAP Stickman Linear Capping Profile - Wall Fix Raised Set dimension drawing

MCLNWFCAP Raised

1

pdf

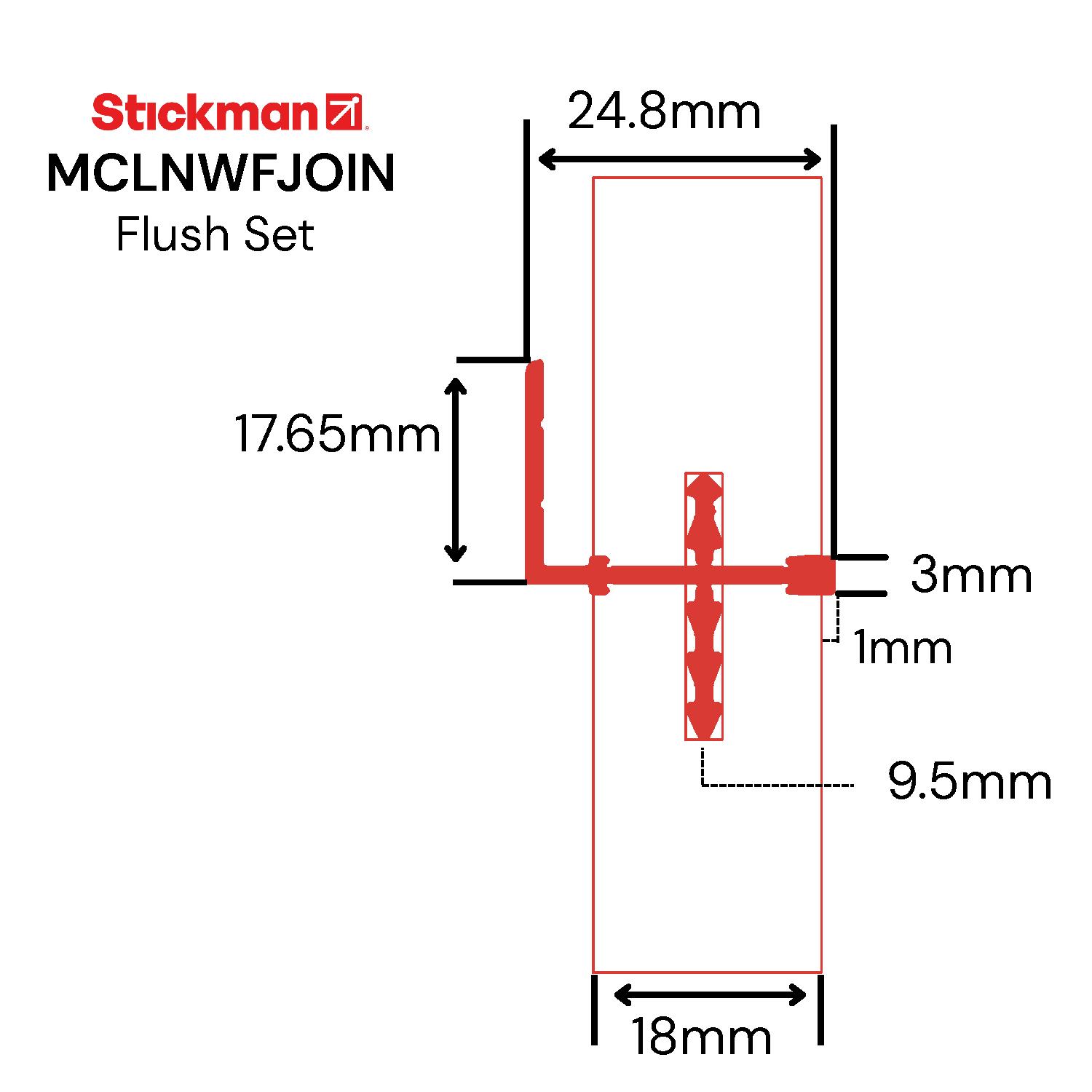

MCLNWFJOIN Flush DDrawing metric PDF pdf
MCLNWFJOIN Stickman Linear Butt Join - Wall Fix Flush Set: 18 mm panels

MCLNWFJOIN Flush

1

pdf
MCLNWFJOIN Negative DDrawing metric PDF pdf

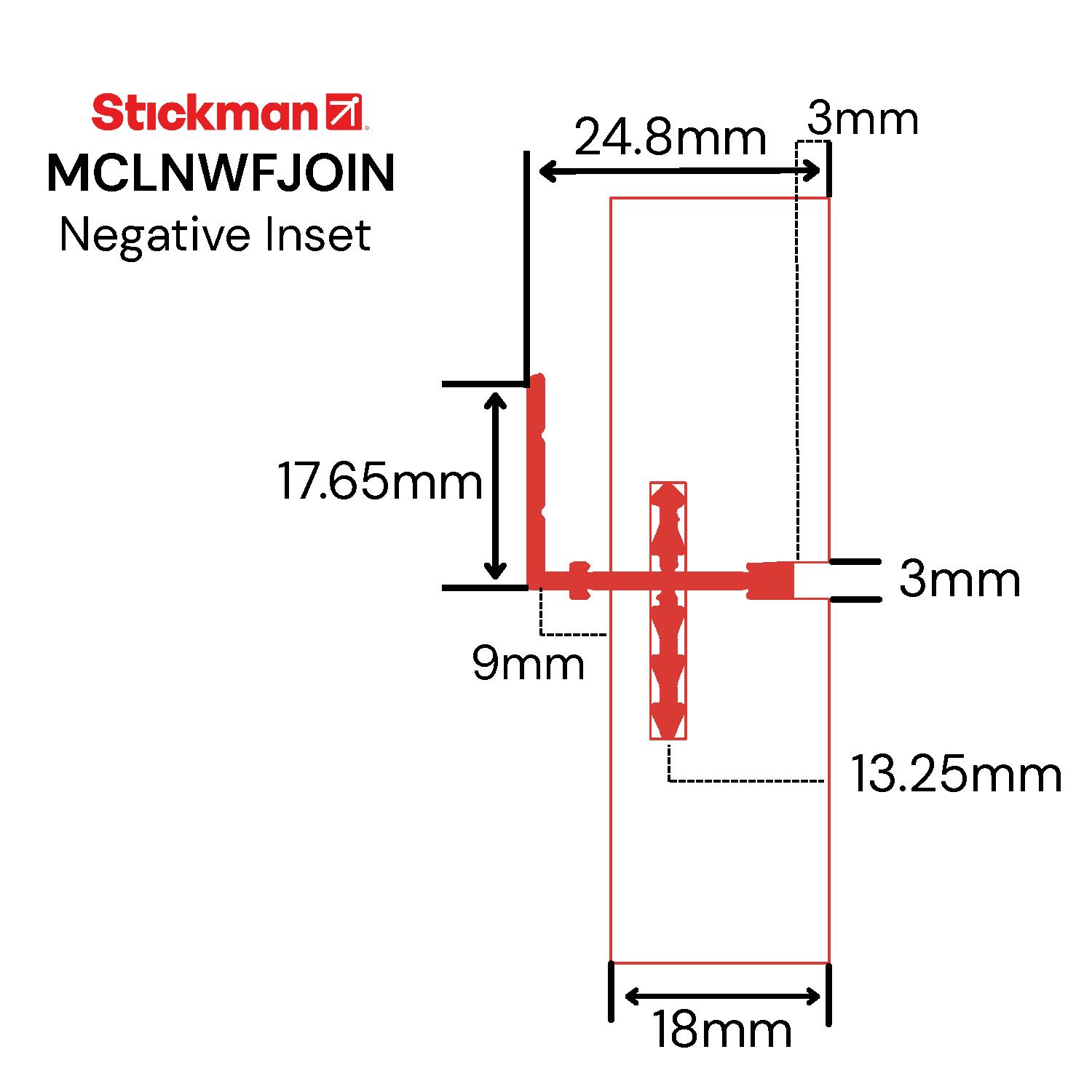

MCLNWFJOIN Stickman Linear Butt Join - Wall Fix Negative Inset: 18 mm panels

MCLNWFJOIN Negative

1

pdf

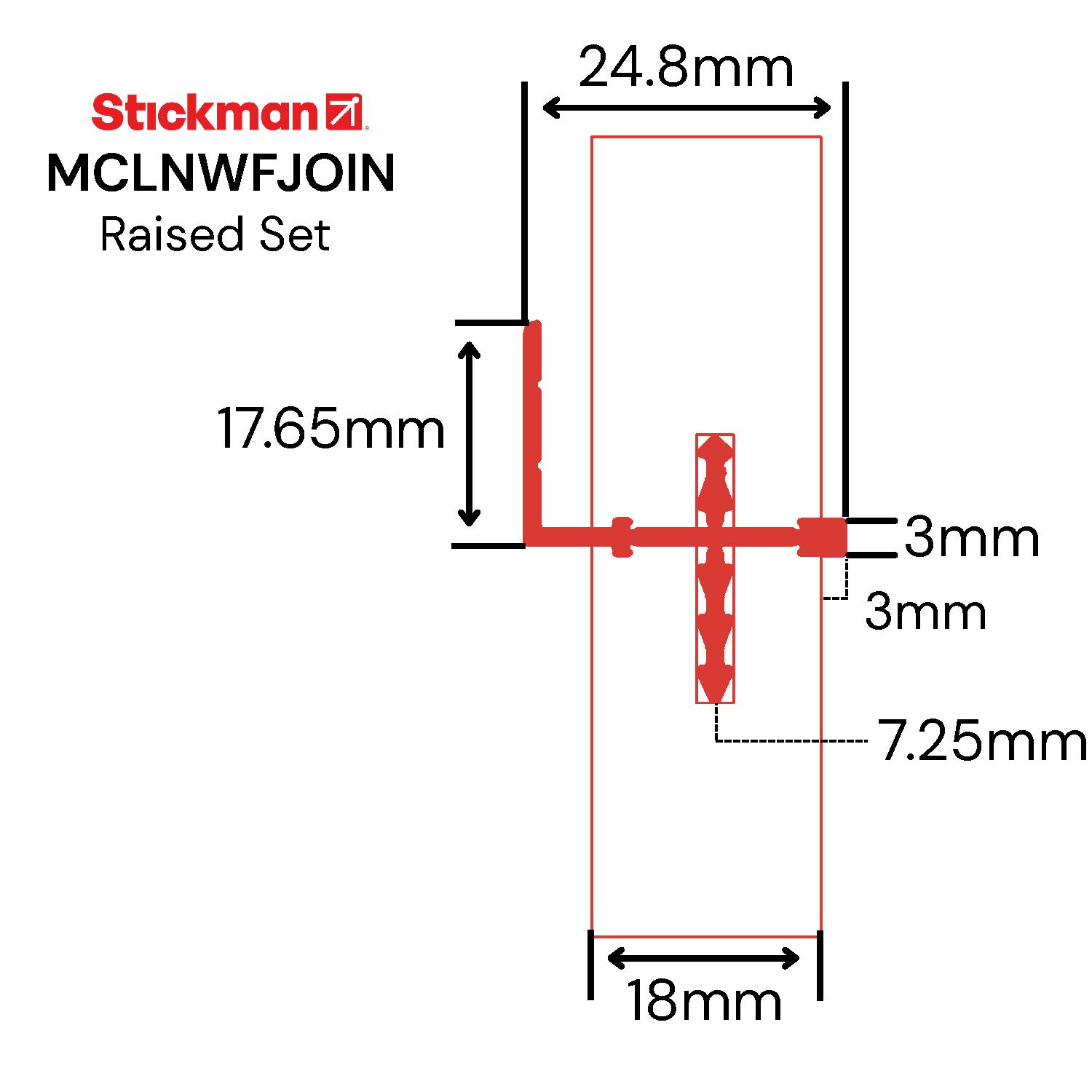

MCLNWFJOIN Raised DDrawing metric PDF pdf
MCLNWFJOIN Stickman Linear Butt Join Wall Fix - Raised Set: 18 mm panels

MCLNWFJOIN Raised

1

pdf

Stickman offers New Zealand-designed slimline aluminium profiles for joining, detailing and protecting MDF and wood composite panels, alongside concealed panel hanging systems.
