Aluminium Panel Edge Profiles
Description

Stickman aluminium panel edge profiles finish and protect exposed edges of MDF and other wood composite panels from wear and impact in interior applications.

Round and square head options provide durable edge detailing for wall panelling, cabinetry, counters and furniture.

Finishes include silver anodised aluminium and mill finish suitable for powder coating to match or contrast with surrounding materials.

Key Features
  • Protect vulnerable panel edges in high-traffic commercial and public environments, helping prevent chipping and damage from everyday knocks and impact.
  • Round head profiles provide a softer, more subtle edge detail, while square head profiles create a sharper, more defined architectural finish.
  • Slimline aluminium profiles provide durable protection without adding unnecessary bulk to exposed panel edges.
  • Profiles can be coordinated with matching Stickman corner joins to maintain consistent detailing across wall panelling, cabinetry and interior joinery.
  • Available in silver anodised aluminium or mill finish suitable for powder coating, allowing edge details to match surrounding surfaces or provide a contrasting finish.
  • Suitable for 12 mm, 16 mm, 18 mm and 25 mm MDF and other wood composite panels, depending on the selected profile.
  • Profiles are designed for accurately machined panel edges, with compatible cutting tools and technical drawings available.

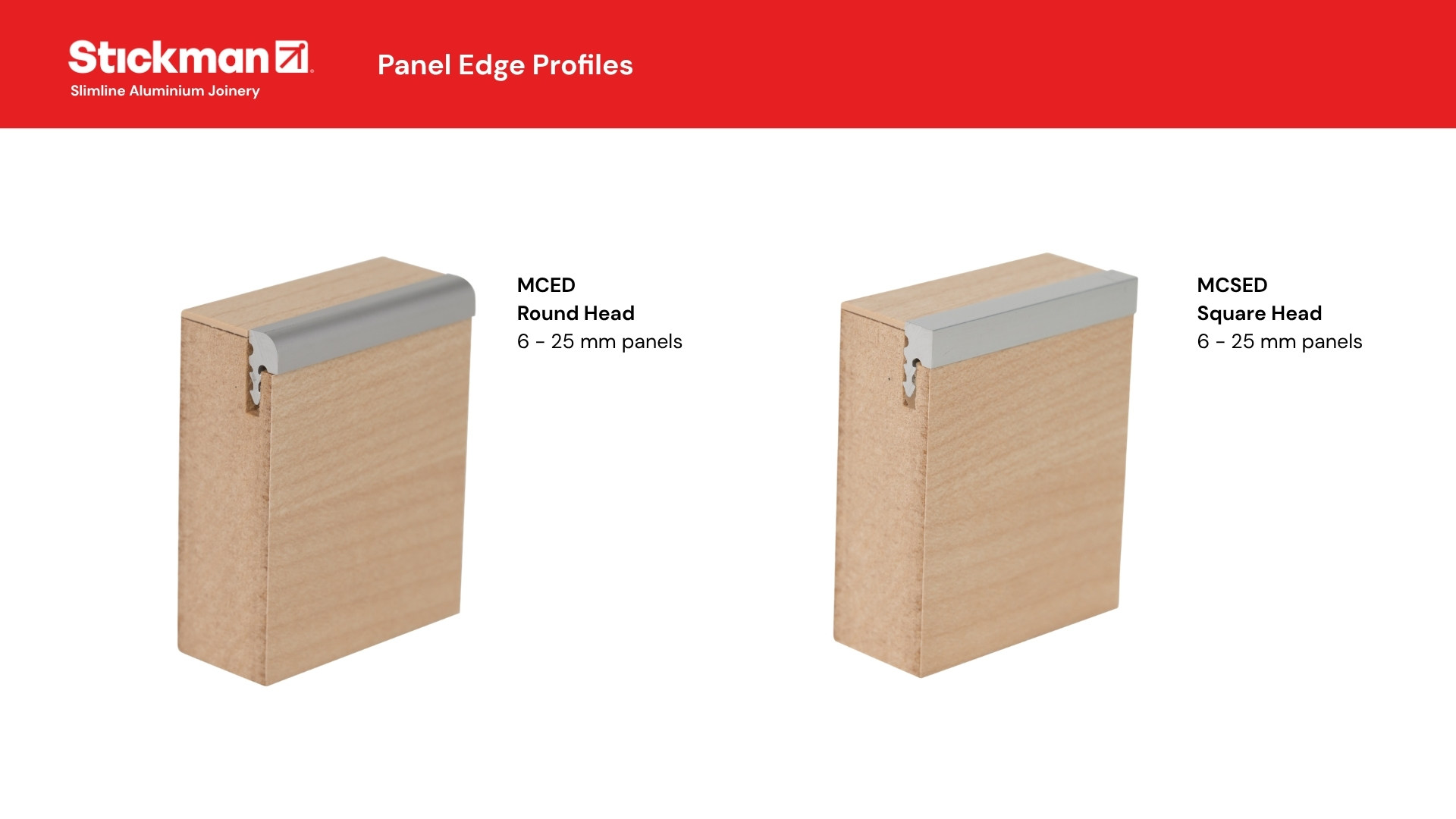

Panel Edge profile options:

  • MCED – Round head aluminium edge profile, providing a softer finished edge with durable protection. Can be coordinated with matching round-head Stickman corner joins, including MC12, MC16, MC18, MC90, MC135 and MC18X.
  • MCSED – Square head aluminium edge profile, providing a sharper, more defined edge detail. Can be coordinated with matching square-head Stickman corner joins, including MCS16, MCS18 and MCS90.
NZ Made
NZ Made
NZ-Owned Business
NZ-Owned Business
Recyclable Content (Post-Consumer)
Post-Consumer Recyclable Content
Recycled Content (Pre-Consumer)
Pre-Consumer Recycled Content
Scope of Use

Suitable for protecting and finishing exposed MDF and other wood composite panel edges in dry interior applications, including:

  • High-traffic commercial and public interiors where exposed panel edges are subject to regular contact, wear and impact.

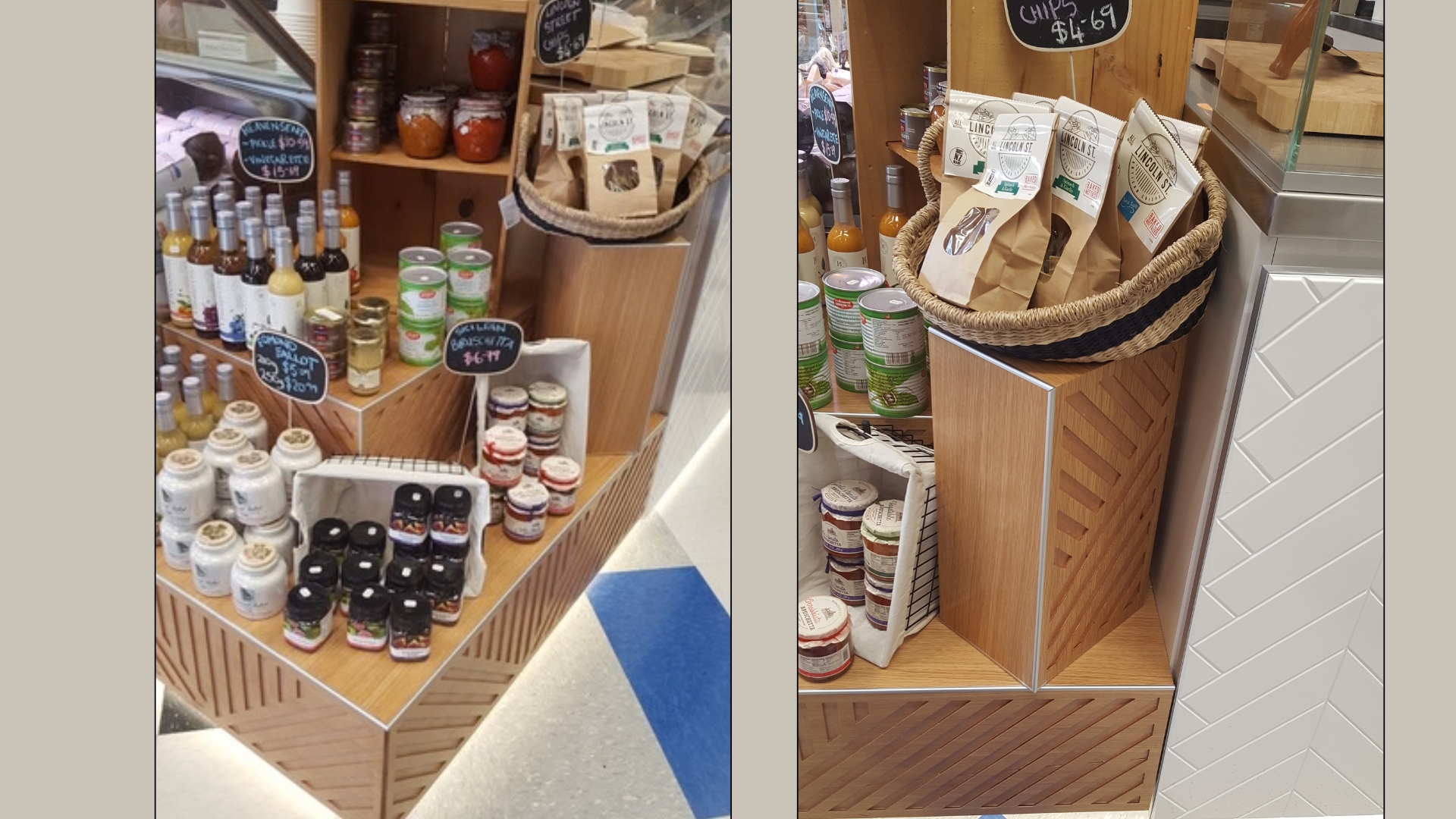

  • Retail stores, shopping centres and shopfitting, including display furniture, counters, shelving and customer-facing fixtures.

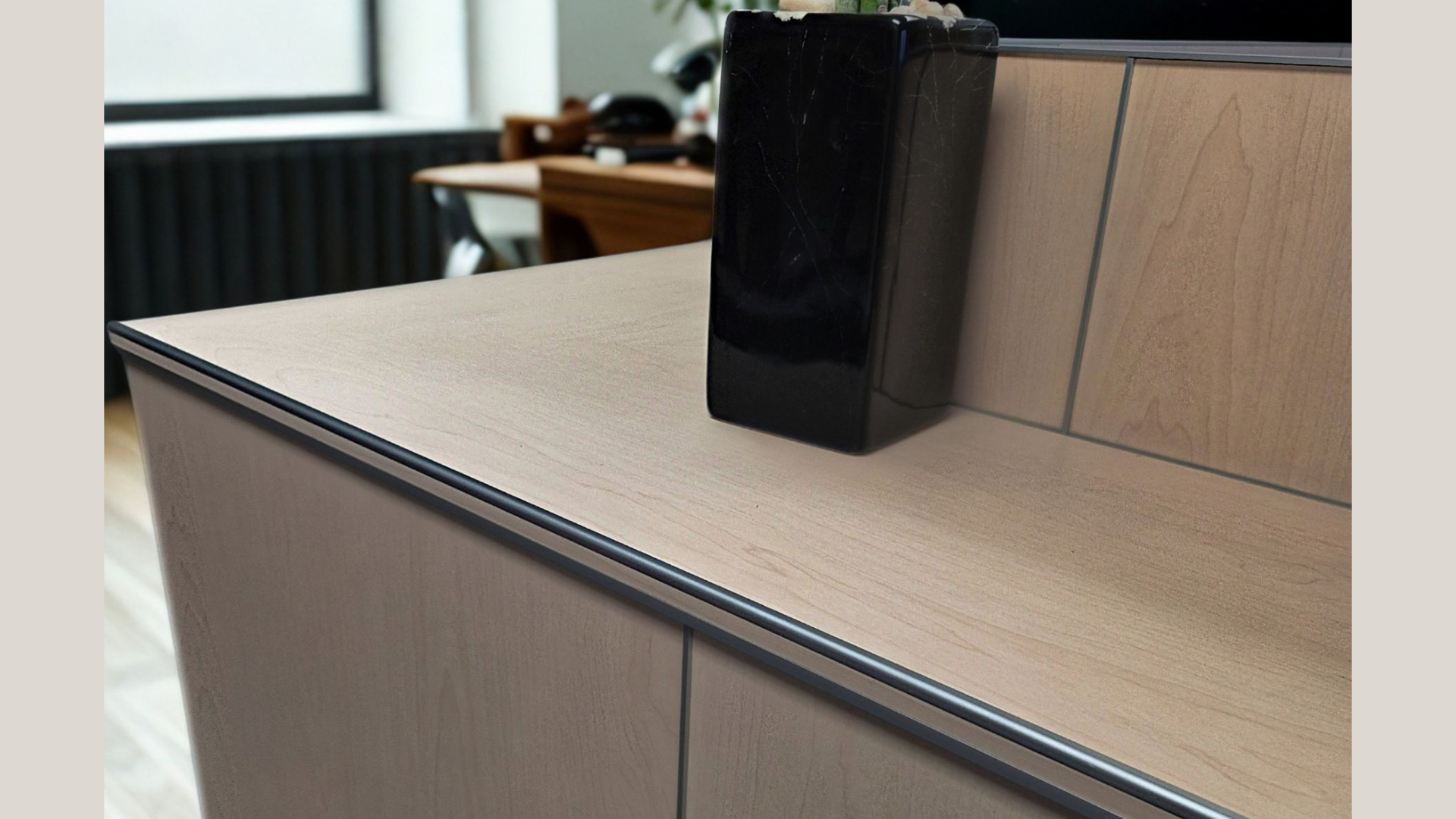

  • Hospitality environments, including hotels, restaurants, bars and reception counters.

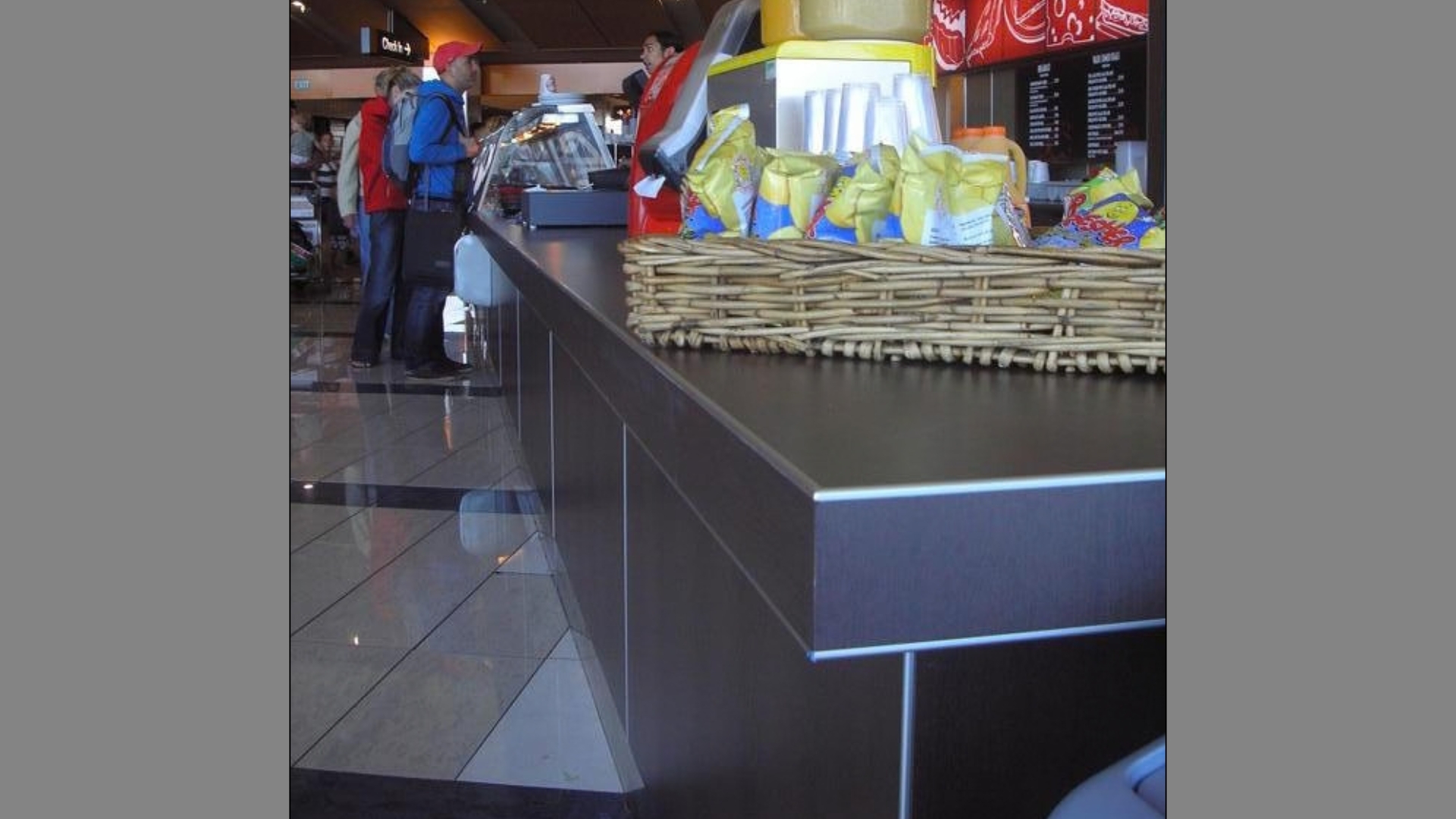

  • Airports, transport terminals and other public spaces where durable panel edge protection is required.
  • Education, healthcare and community facilities with frequently used fitted furniture and interior joinery.
  • Architectural wall panelling, feature panels and column details where exposed panel edges form part of the finished design.
  • Cabinetry, furniture, counters and built-in joinery requiring a durable edge finish.

Round and square edge profiles can be coordinated with compatible Stickman corner joins to maintain consistent detailing throughout an interior.

Limitations on Use
  • Intended for dry interior applications. Suitability for exterior, wet-area or other demanding environments must be confirmed with Stickman.
  • Profiles are designed for exposed panel edges and must be selected to suit the panel material, thickness and required edge detail.
  • Panels must be accurately machined and profiles installed in accordance with the relevant technical drawings and installation instructions.
  • Profile dimensions, fixing requirements and finish options should be confirmed before fabrication and installation.
  • Edge profiles provide localised protection to exposed panel edges and do not replace requirements for appropriate panel material selection or surface protection.
Documents
Stickman Specifier Brochure

August 2026

Stickman Range Overview

August 2026

CAD/PDF Details

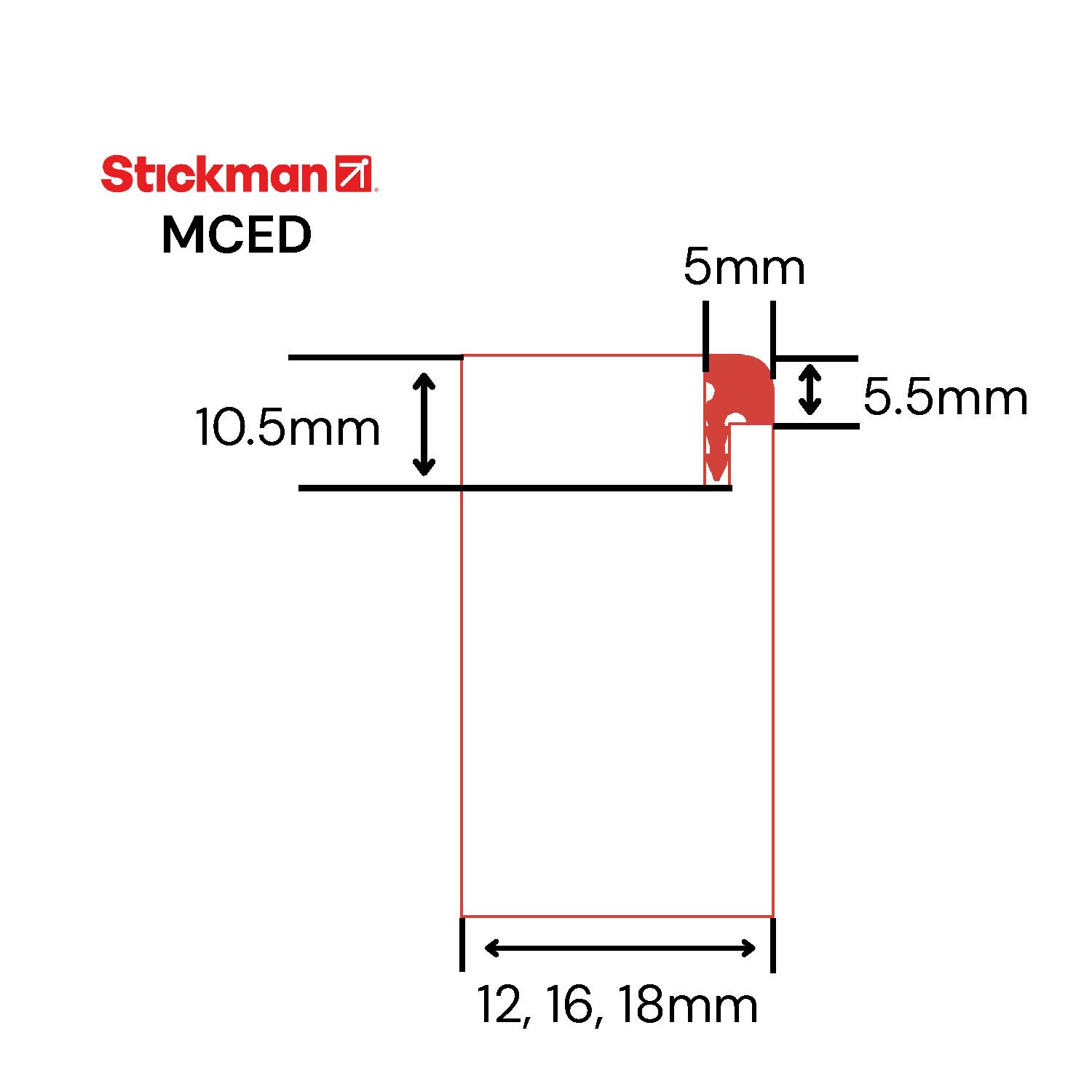

MCED: Round Head Panel Edge Profile: 6-25 mm panels

MCED

1

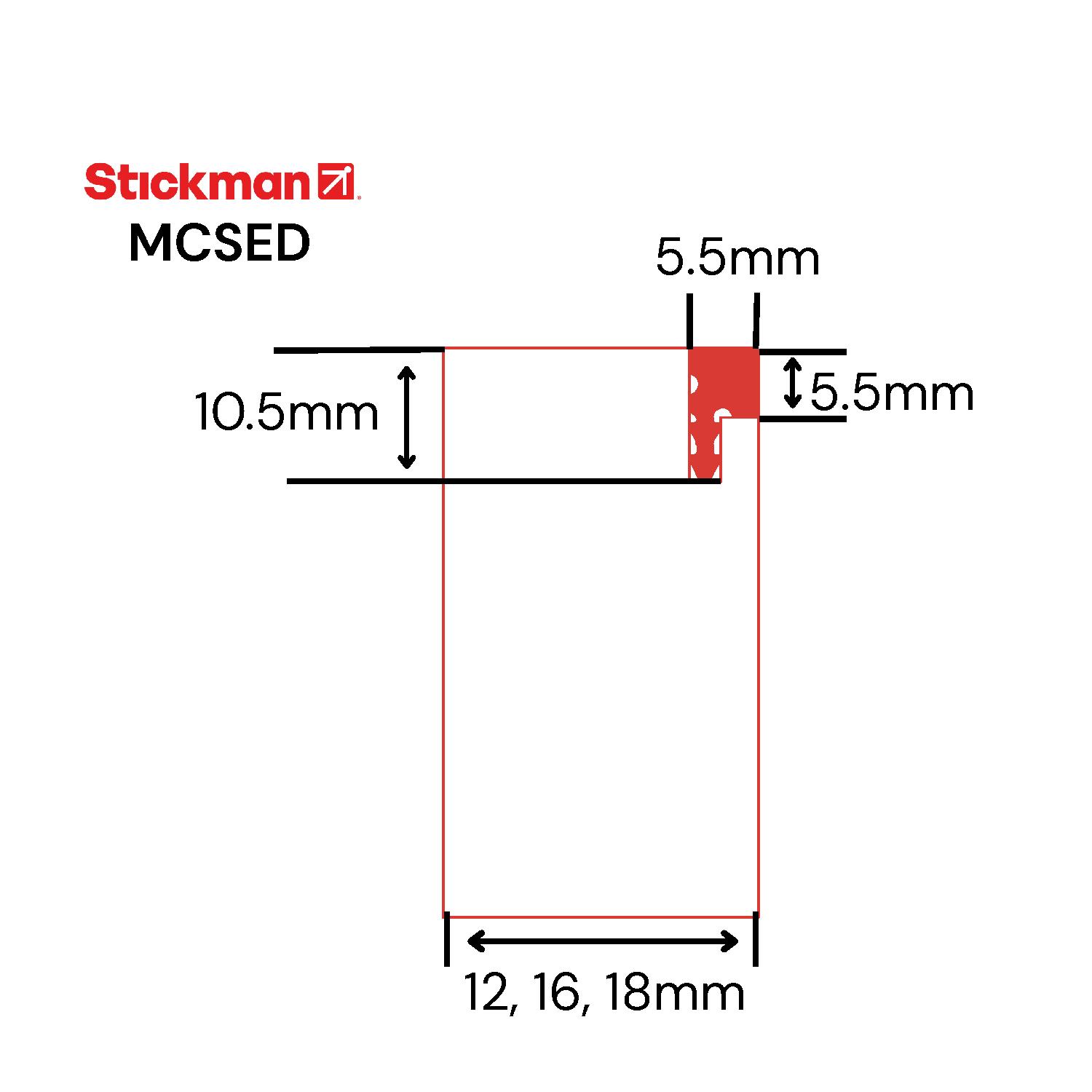

MCSED: Square Head Panel Edge Profile: 6-25 mm panels

MCSED

1

Installation Details
MCED: Round Head Panel Edge Profile: 6-25 mm panels

MCED

1

MCSED: Square Head Panel Edge Profile: 6-25 mm panels

MCSED

1

Stickman offers New Zealand-designed slimline aluminium profiles for joining, detailing and protecting MDF and wood composite panels, alongside concealed panel hanging systems.
