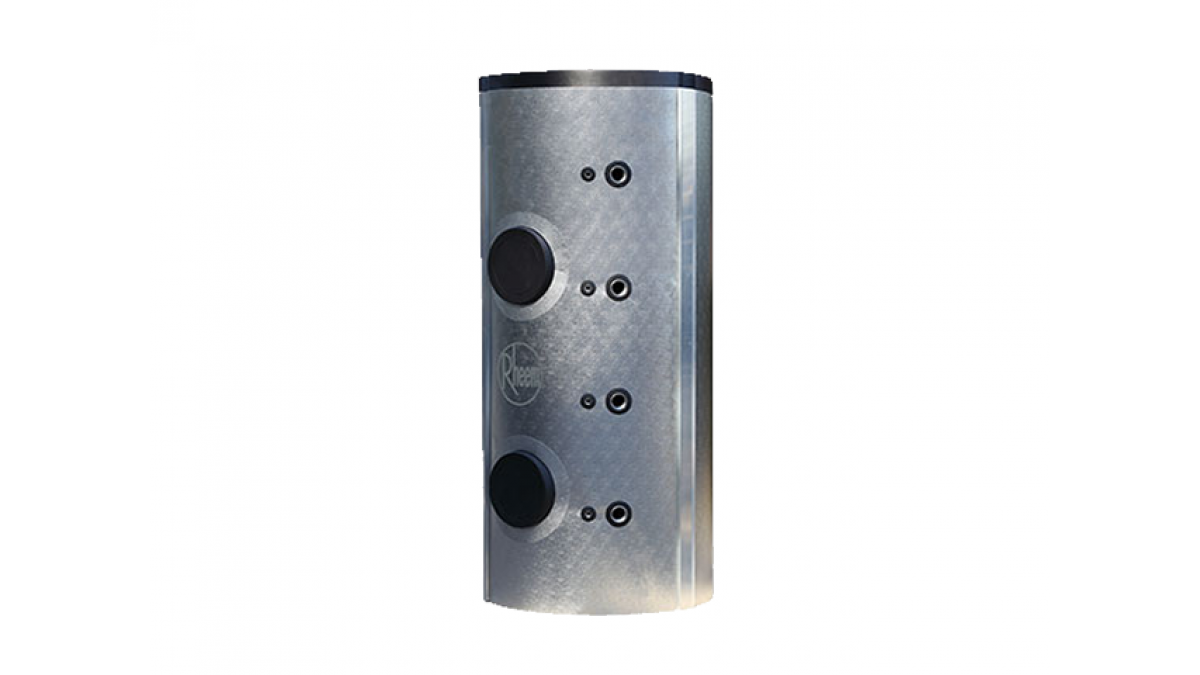

RT Series Commercial Storage Tanks
Description

Large capacity hot water storage tanks which can be coupled with the Rheem Electric Commercial Heating Unit which can be placed in the upper or lower tank flange. The upper flange providing solar boost options, or the lower flange being used as a stand alone electric water heater.

Key Features
  • Available in a range of sizes: 1000, 2000, 3000, 4000 and 5000 litre capacities;
  • Stainless Steel
  • Designed for manifolding and/or auxiliary heat sources
  • Can be coupled with the Rheem Electric Commercial Heating Unit which can be placed in the upper or lower tank flange — the upper flange providing solar boost options or the lower flange being used as a stand alone electric water heater.

Available in the following model configurations:

  • RT1000N9AL | 920 Litres | 1000 x 2200mm
  • RT2000N9AL | 2055 Litres | 1300 x 2565mm
  • RT3000N9AL | 2960 Litres | 1450 x 2845mm
  • RT4000N9AL | 3820 Litres | 1600 x 2918mm
  • RT5000N9AL | 5180 Litres | 1800 x 3128mm
Scope of Use
  • Can be coupled with the Rheem Electric Commercial Heating Unit which can be placed in the upper or lower tank flange — the upper flange providing solar boost options or the lower flange being used as a stand alone electric water heater
  • Industrial and commercial applications
  • Hospitals and care homes
  • Residential complexes and apartments
Limitations on Use
  • For carbon steel tanks in non potable water supplies when intending to use an element, care should be taken to ensure the water quality is suitable.
Documents
Installation Instructions & Owner's Guide
Brochure
Commercial and Industrial Hot Water Solutions Brochure
