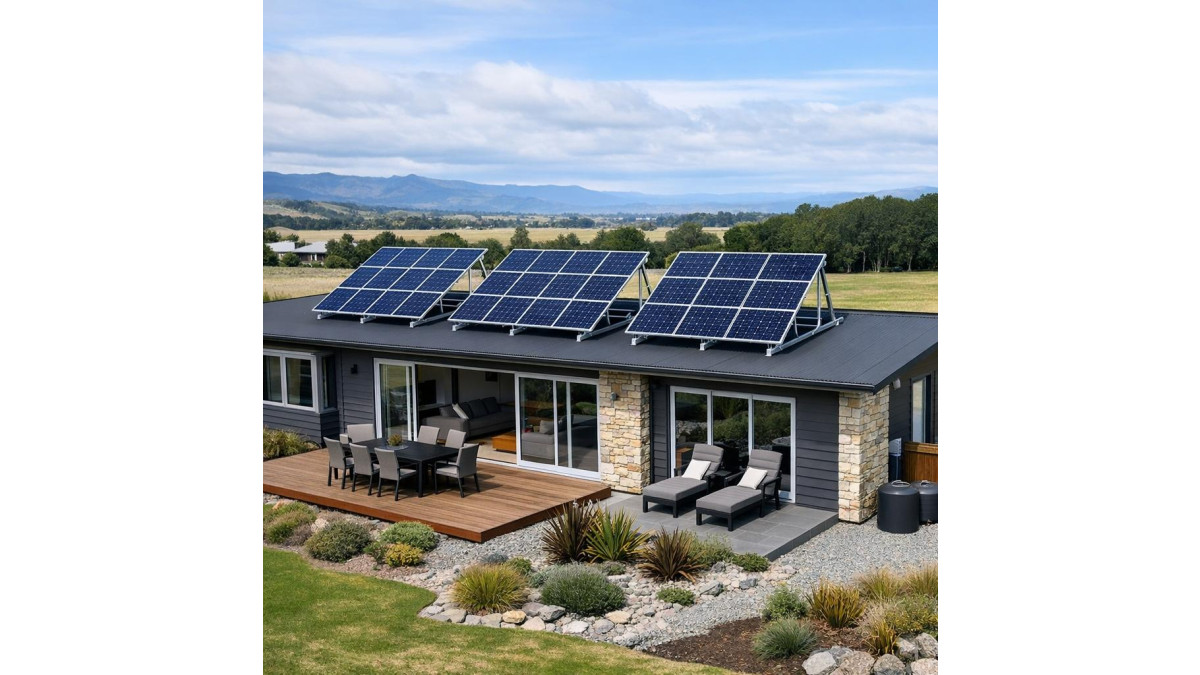

a house in NZ with a low pitch roof (about 5 degre

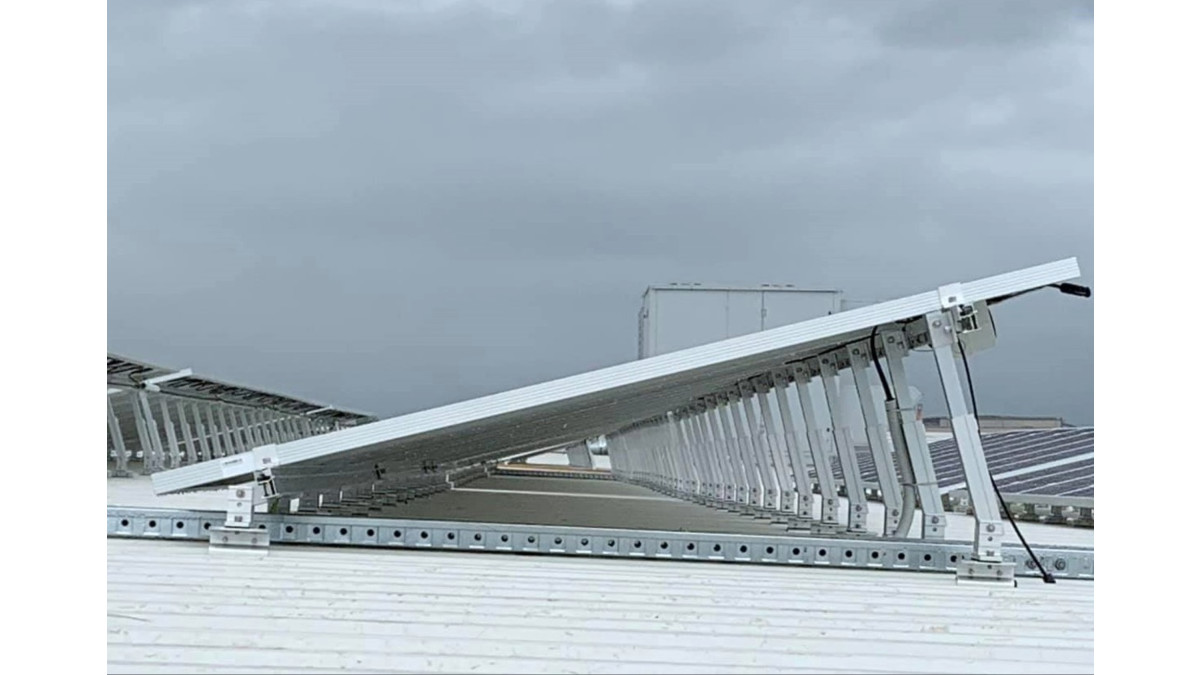

Clenergy PV ezRack Solar Roof Adjustable Tilts Solar Project Gardel Electrical

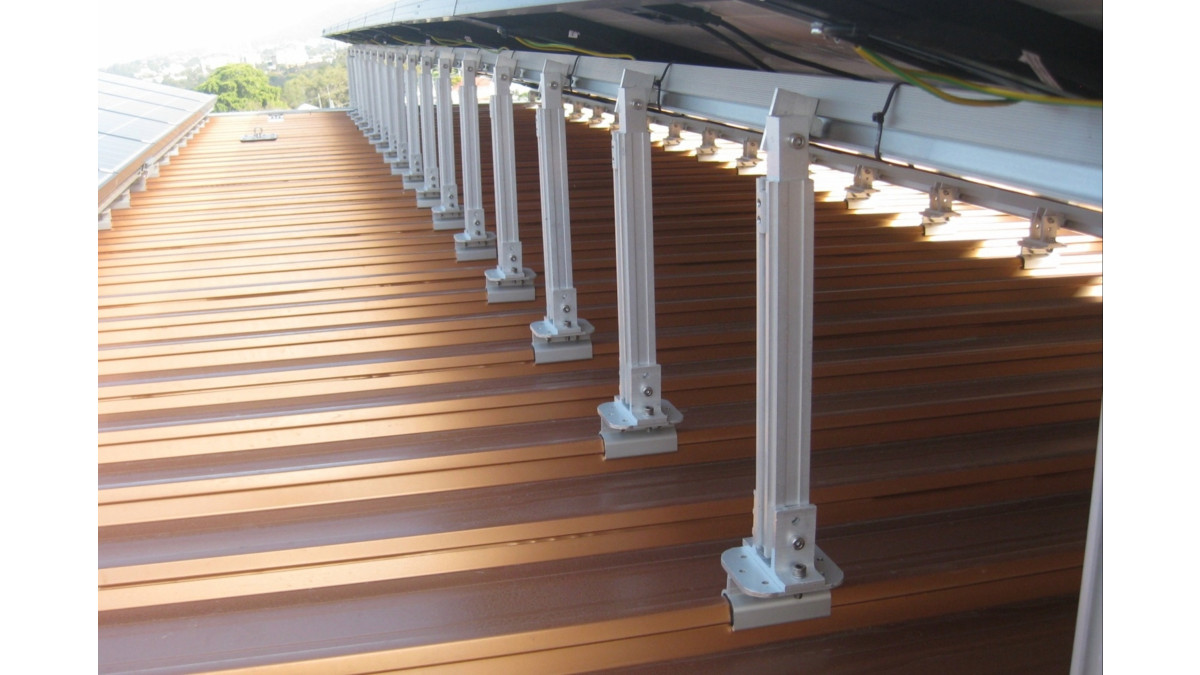

Clenergy Rooftop PV ezRack SolarRoof Non Penetrative Solar Project 01 1

Product Enquiries

Description

A flexible solution ideal for solar panel installation where the roof has been designed on a low pitch or flat. Tilt Legs has been developed as a universal PV-mounting system for pitched and flat roofs. With three adjustable tilt legs, these parts can tilt panels from between 10-60 degrees, for improved solar gain to maximise energy production.

Key Features

Designed for residential solar installations — suitable for tin and tile roofs across a wide range of roof types.
Fast and simple installation using Clenergy’s patented Z-Module technology, allowing components to be inserted anywhere along the rail and secured quickly with only three hand grips.
Versatile mounting options including a large range of roof hooks, tin fixings, tilt legs, and adapters.
Adjustable tilt angles from 10° to 60° for improved solar performance on flat or low‑pitch roofs. Tilt legs suit all common purlin distances.
Universal compatibility with most framed solar modules (30–46 mm frame height), with clamps also available for frameless and thin‑film modules.
High-quality materials including structural grade aluminium alloy and stainless steel for long-term durability and corrosion resistance.
Reduced fixing requirements with ECO-Rail design, providing stronger spans and faster installation.
Range of accessories such as cable clips, isolator shade brackets, grounding components, and rail end caps.

Ranges

Solar PV

Scope of Use

Suitable for flat roofs and low‑pitch roofs where adjustable tilt is required to optimise solar performance.
Compatible with tin and tiled roofs when using the appropriate interface components.
Designed for residential rooftop PV arrays; also applicable to small commercial installations using compatible roof types.
Adjustable tilt legs allow installation on buildings with standard purlin spacing and varied roof structures.
Suitable for regions requiring structural or wind-loading compliance, when specified with the correct Clenergy clamps and accessories

Limitations on Use

May not be suitable for large‑scale commercial or industrial systems without engineering review.
Larger spans may need ECO‑Rails, additional components, or upgraded structural engineering.
Angles outside of 10–60° are not supported.
Not ideal for membrane roofs or any roofs where penetration must be avoided.
