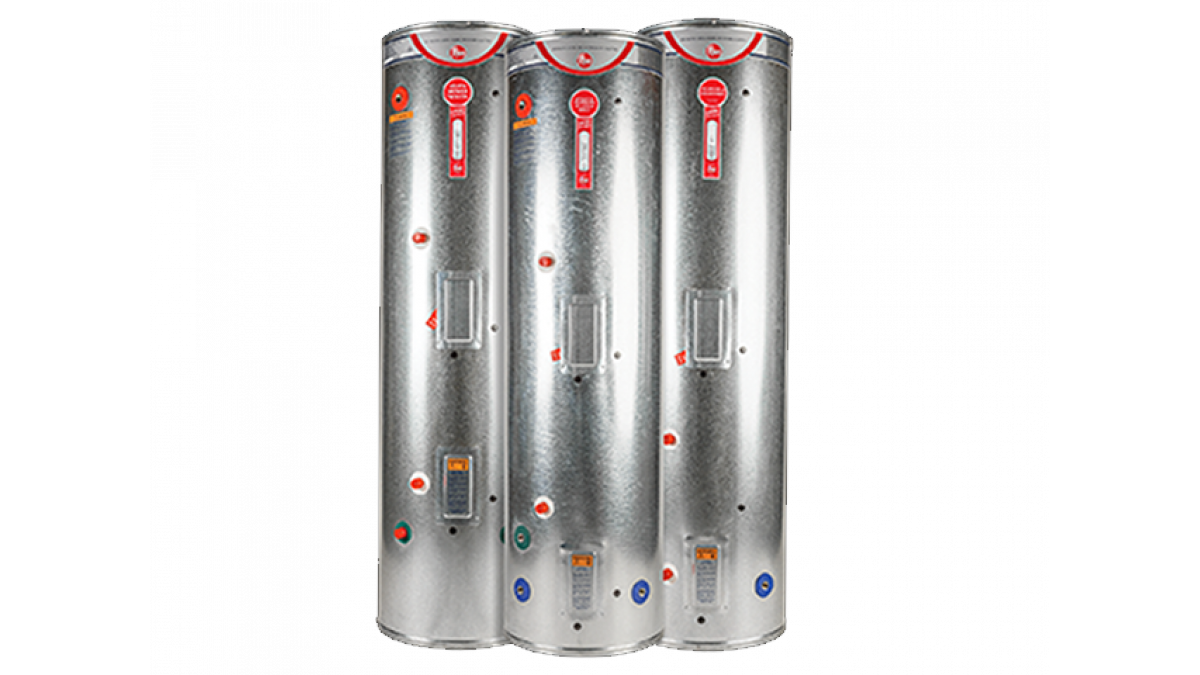

Mains Pressure Stainless Steel Coil Electric Hot Water Cylinders
Description

Rheem mains pressure stainless steel coil electric hot water cylinders feature an indirect stainless steel coil heat transfer system. Designed and engineered in New Zealand, this heat exchange system allows customers the flexibility to choose their heat sources. The various coil options enables the transfer of heat indirectly from wetback, solar, heat pump, or from a combination of thermosiphon/pumped sources. Available in 250L and 300L capacities.

Key Features
  • Abundant mains pressure hot water
  • Solar, heat pump and wetback compatible
  • Suitable for use across a wide range of water conditions
  • Future proofed hot water system
  • Indirect stainless steel coil heat transfer system
  • Comes with coil installed either at the bottom or middle of the unit, or with an option for dual coils.
  • Each unit comes with a lower element and thermostat installed. An upper element can also be installed to act as a back-up or booster (sold separately).
  • Solstice Green insulation helps maintain the optimum water temperature, reducing energy use and providing economic and environmental benefits
  • Designed and engineered in New Zealand
  • 10 year domestic cylinder warranty

Available in the following model configurations:

  • MPSSCOIL 35625015ML | 250L | Mid Coil (Left Connection)
  • MPSSCOIL 35625015MR | 250L | Mid Coil (Right Connection)
  • MPSSCOIL 35625015LL | 250L | Lower Coil (Left Connection)
  • MPSSCOIL 35625015LR | 250L | Lower Coil (Right Connection)
  • MPSSCOIL 35625015DL | 250L | Dual Coil (Left Connection)
  • MPSSCOIL 35630015ML | 300L | Mid Coil (Left Connection)
  • MPSSCOIL 35630015MR | 300L | Mid Coil (Right Connection)
  • MPSSCOIL 35630015LL | 300L | Lower Coil (Left Connection)
  • MPSSCOIL 35630015LR | 300L | Lower Coil (Right Connection)
  • MPSSCOIL 35630015DL | 300L | Dual Coil (Left Connection)
Scope of Use
  • Used in domestic dwellings
  • Suitable for all water pressures
  • Indoor installation
  • 250 litre model is suitable for 3-6 people in moderate climates
  • 300 litre model is suitable for 4-6 people in moderate climates
  • Wetback/thermosiphon mid coil
  • Pumped system lower coil
Limitations on Use
  • Not suitable for outdoor installation
  • All cylinders installed as part of a new build must have a safe tray fitted (sold separately)
High Pressure
High Pressure
Unequal Pressure
Unequal Pressure
NZS 3604 Earthquake Zone Low suitable
Low Earthquake Zone
Statement of Building Code Compliance
  • NZ MEPS Compliant
Other Performance Attributes
  • Domestic Warranty: Cylinder/Tank (Replacement): 10 Year
  • Domestic Warranty: Cylinder/Tank (Labour): 3 Year
  • Domestic Warranty: Parts (Parts/Labour): 1 Year
Documents
Data Sheet
Supplier Declaration of Conformity
Warranty
Installation Instructions & Owner's Guide
Brochure: Hot Water For Your Home
