Engineered Timber Wood Flooring — Haven Collection
Description

Haven tells a story of quality and care — responsibly sourced and crafted with integrity to stand the test of time. An engineered timber overlay flooring system suitable for residential and commercial applications, Haven is available in pre-finished 14mm, 15mm and 21mm thicknesses across Plank, Herringbone and Chevron formats, including a 240mm wide plank option in the 21mm range. Planks are installed via glue-down (preferred) or floating method onto a suitable substrate.

Key Features

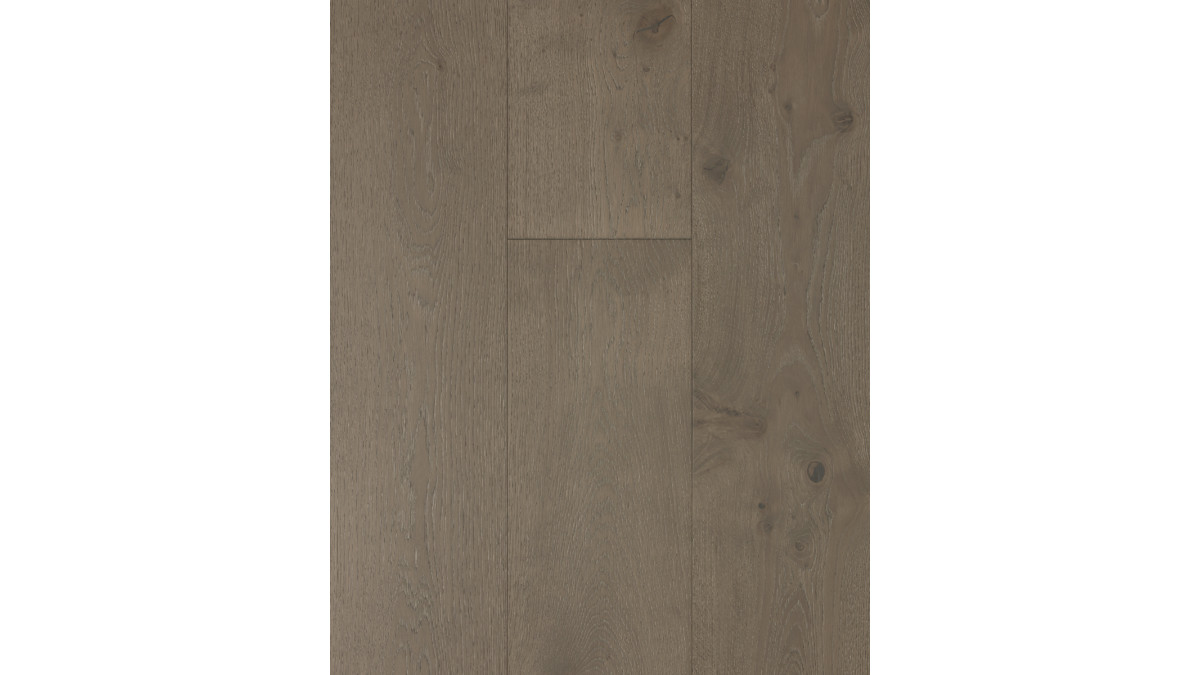

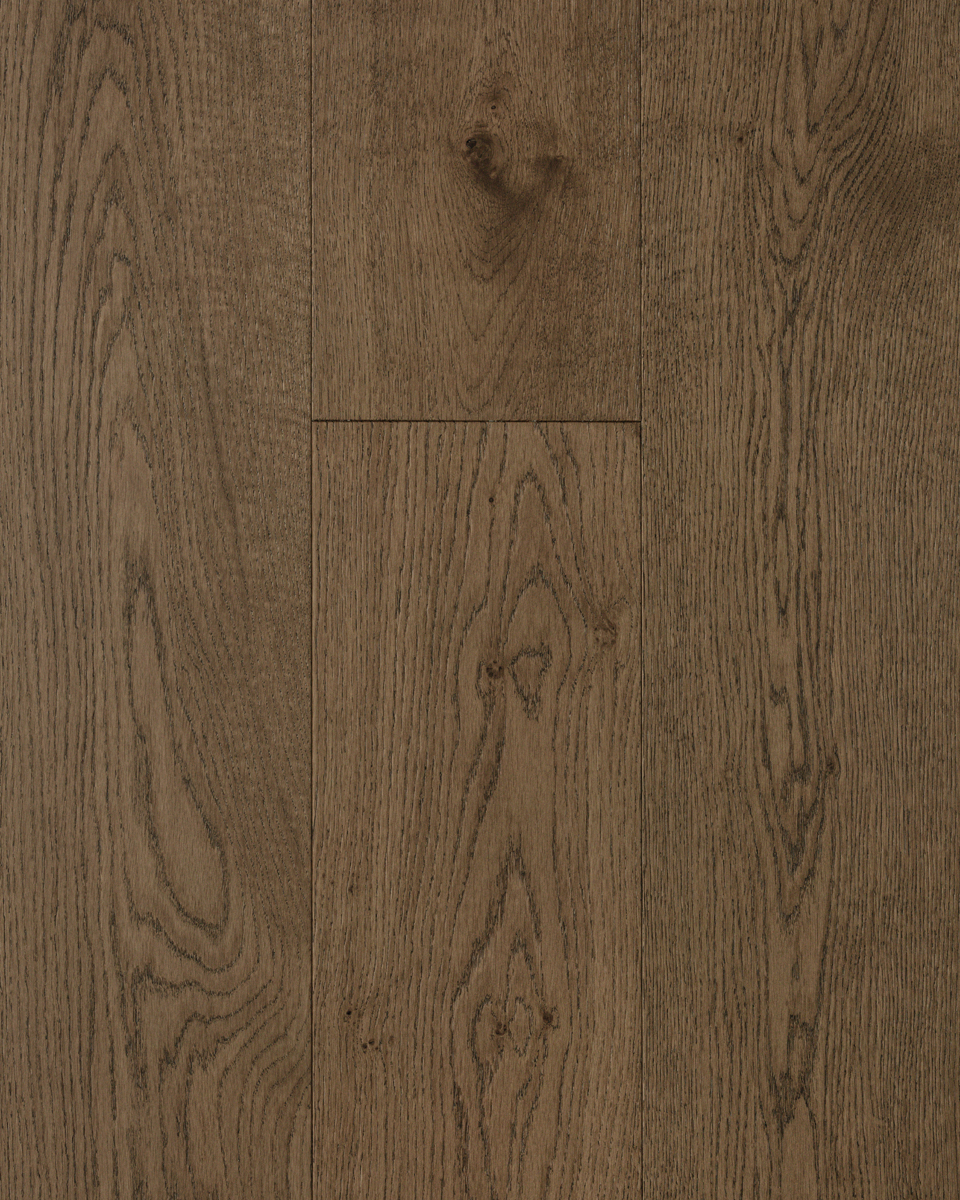

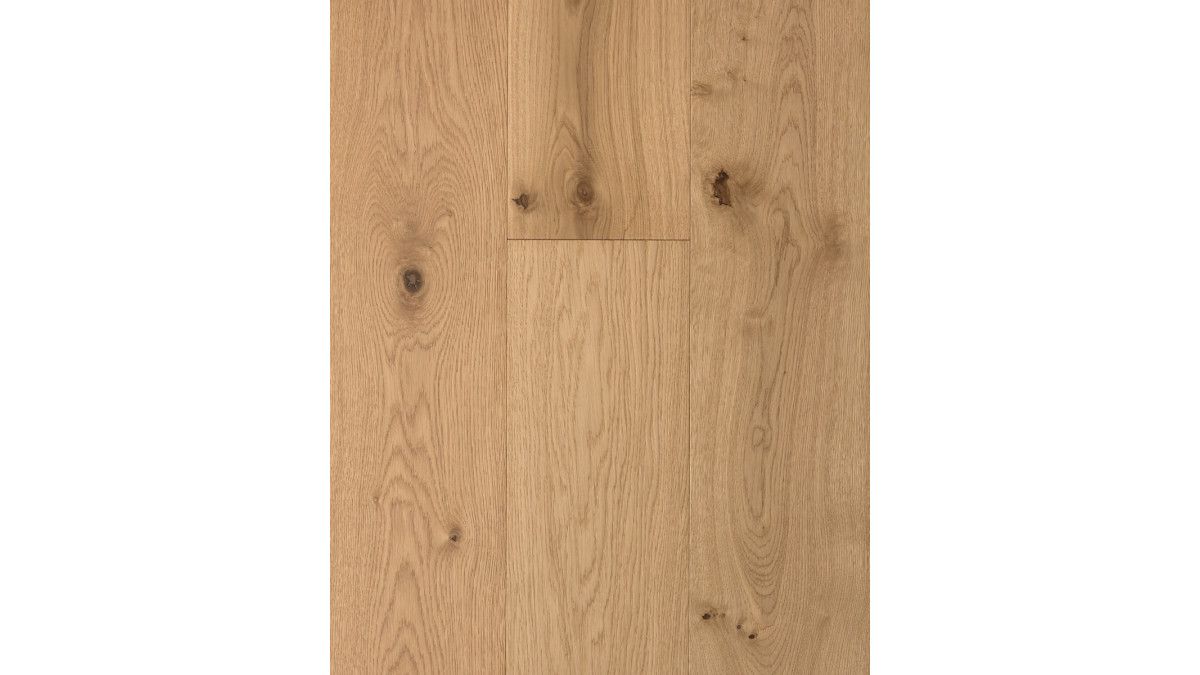

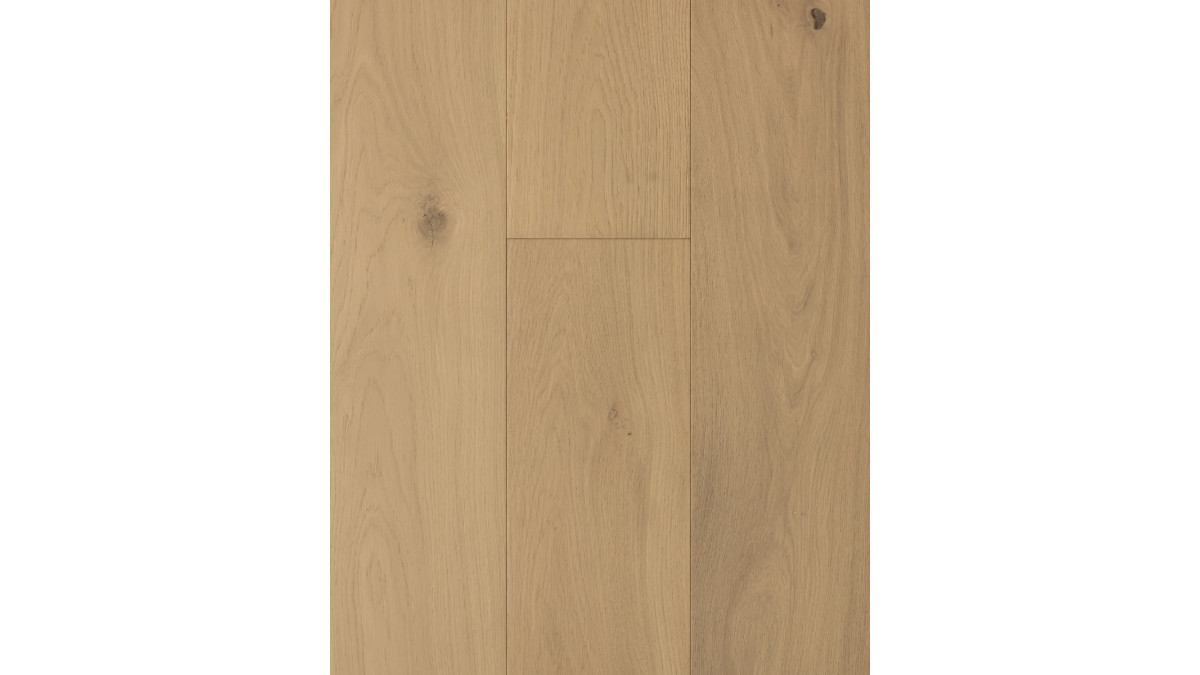

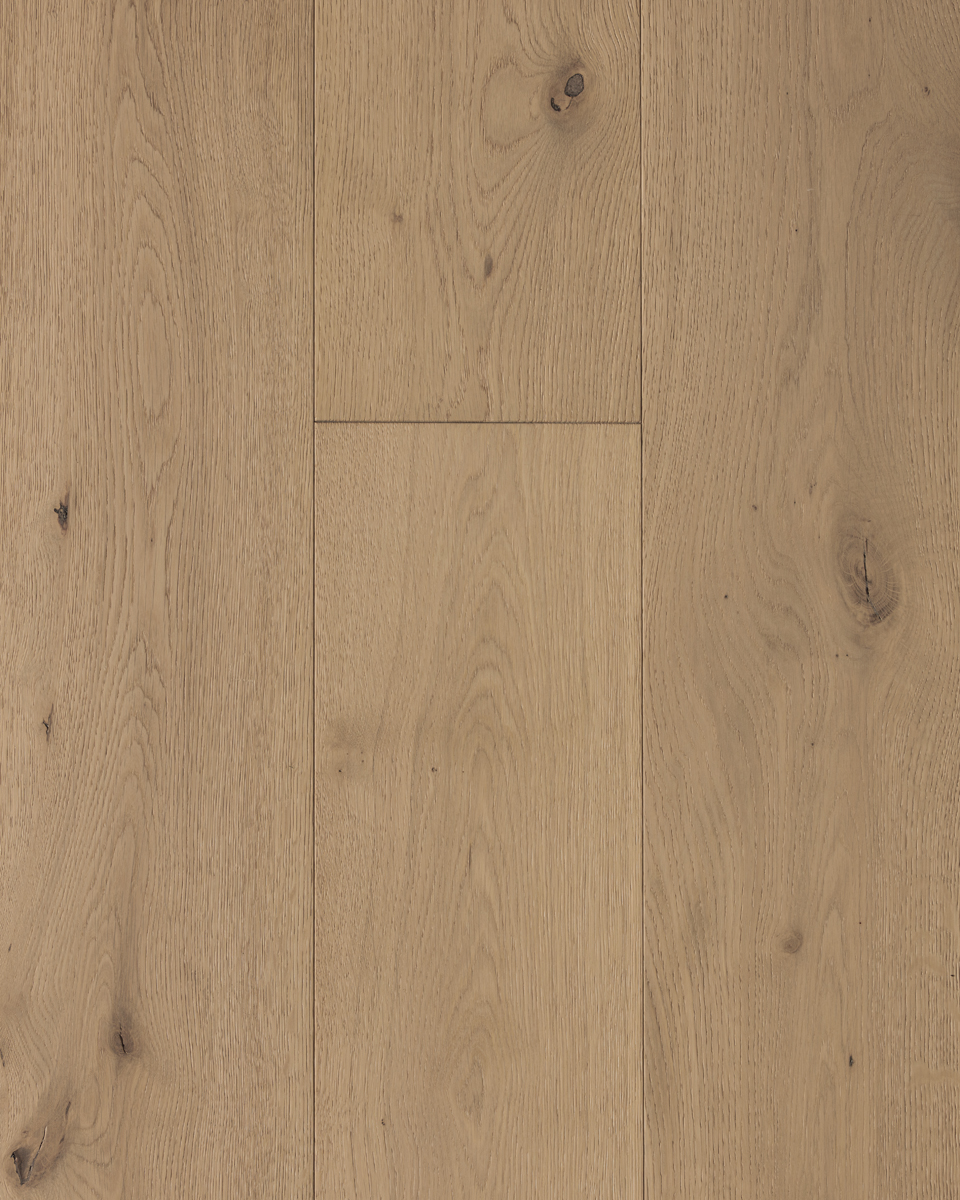

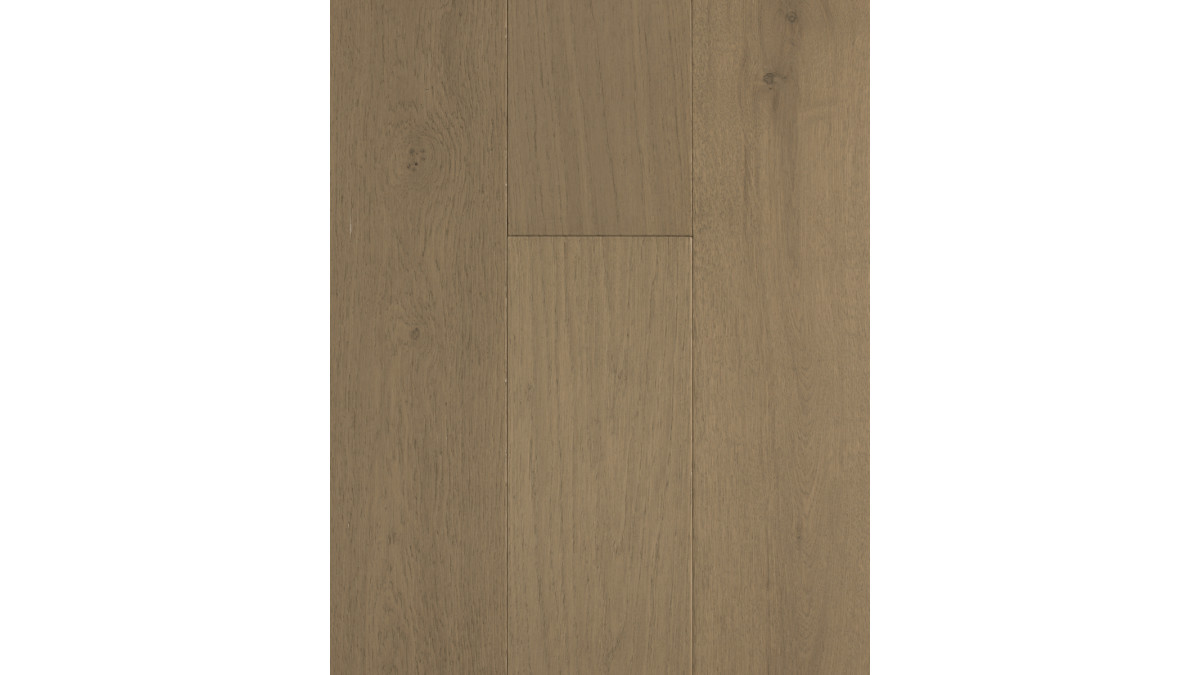

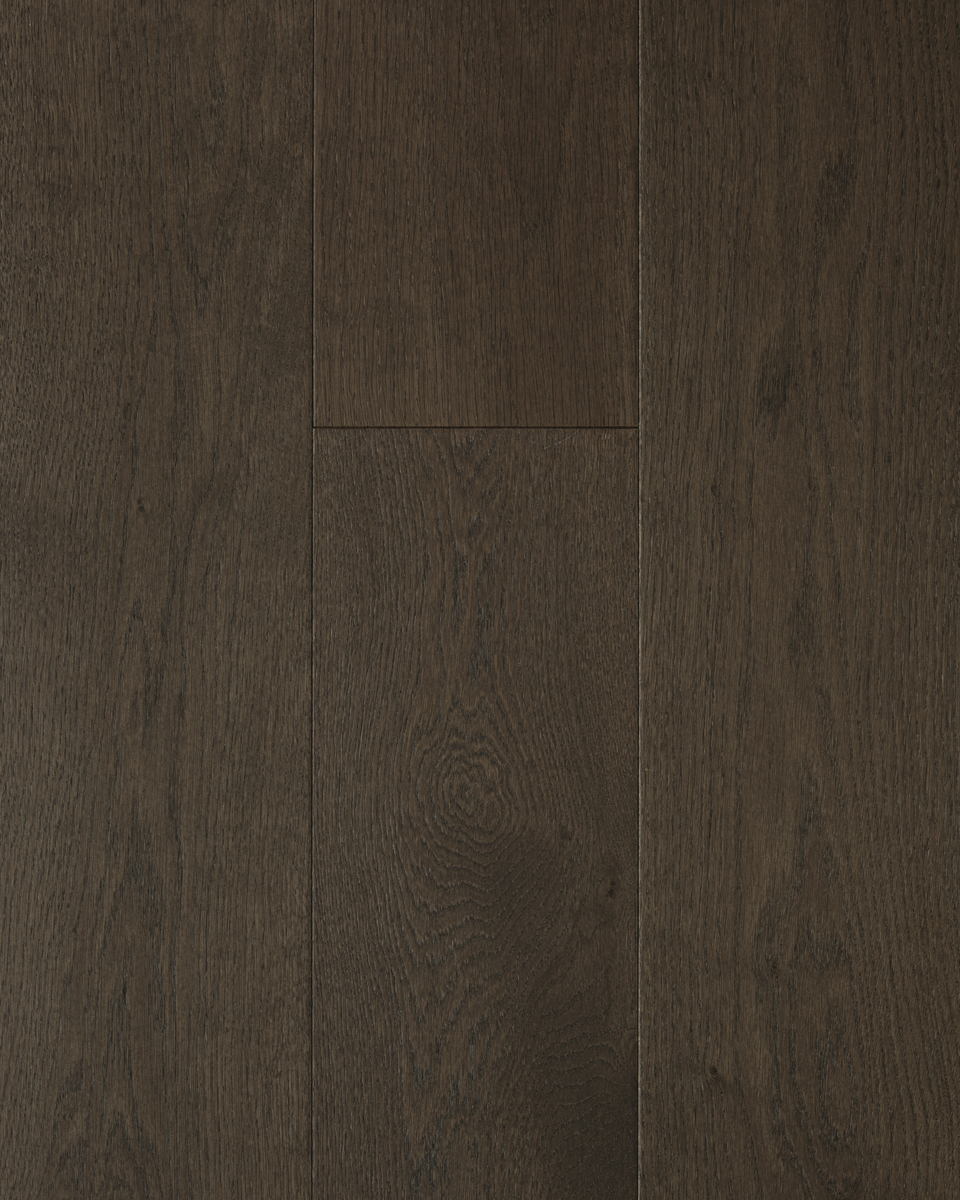

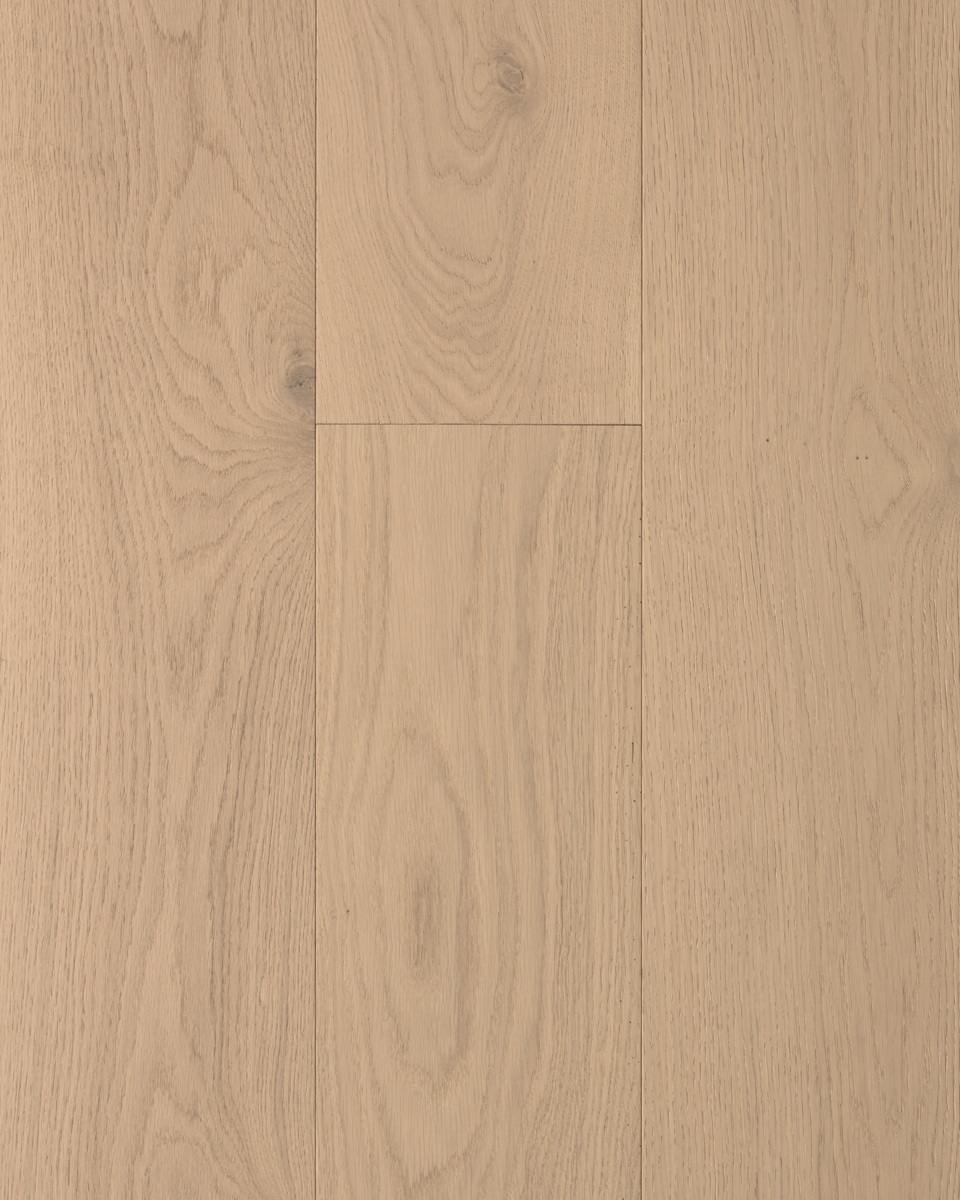

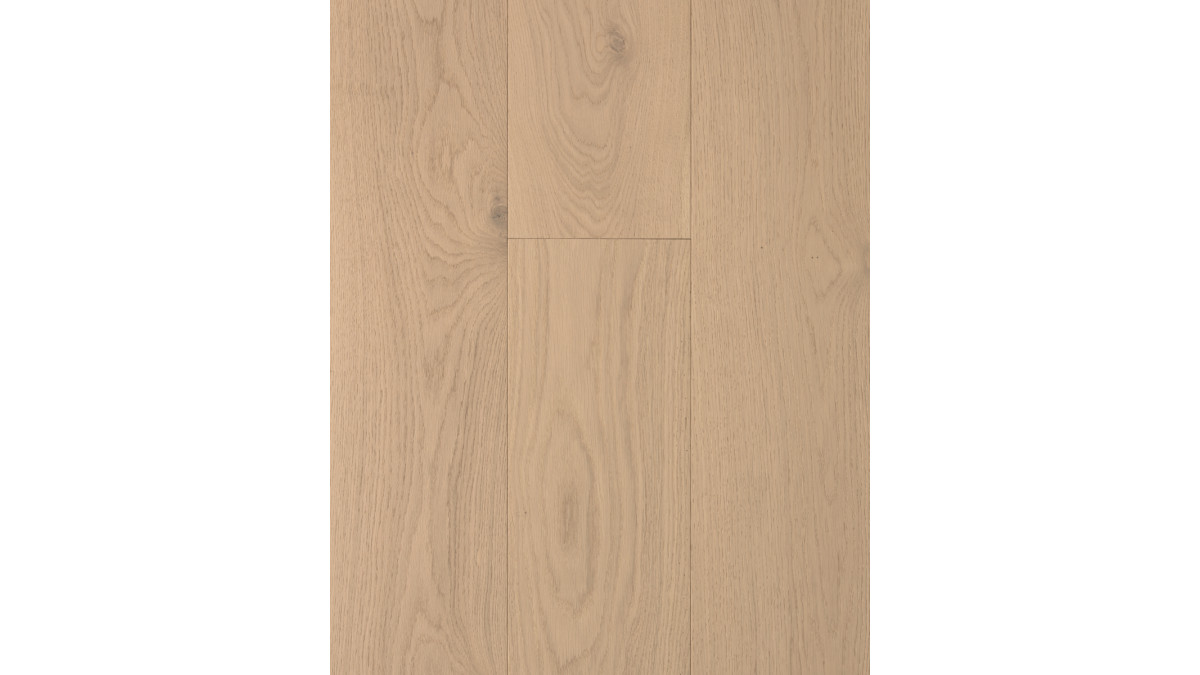

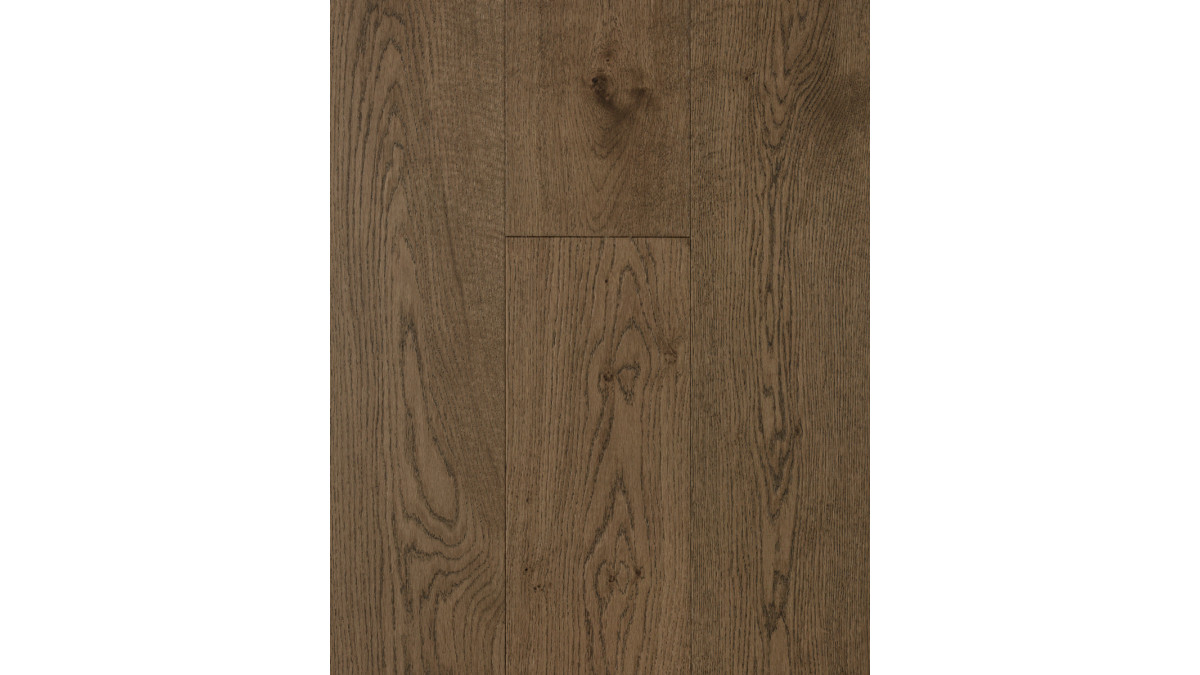

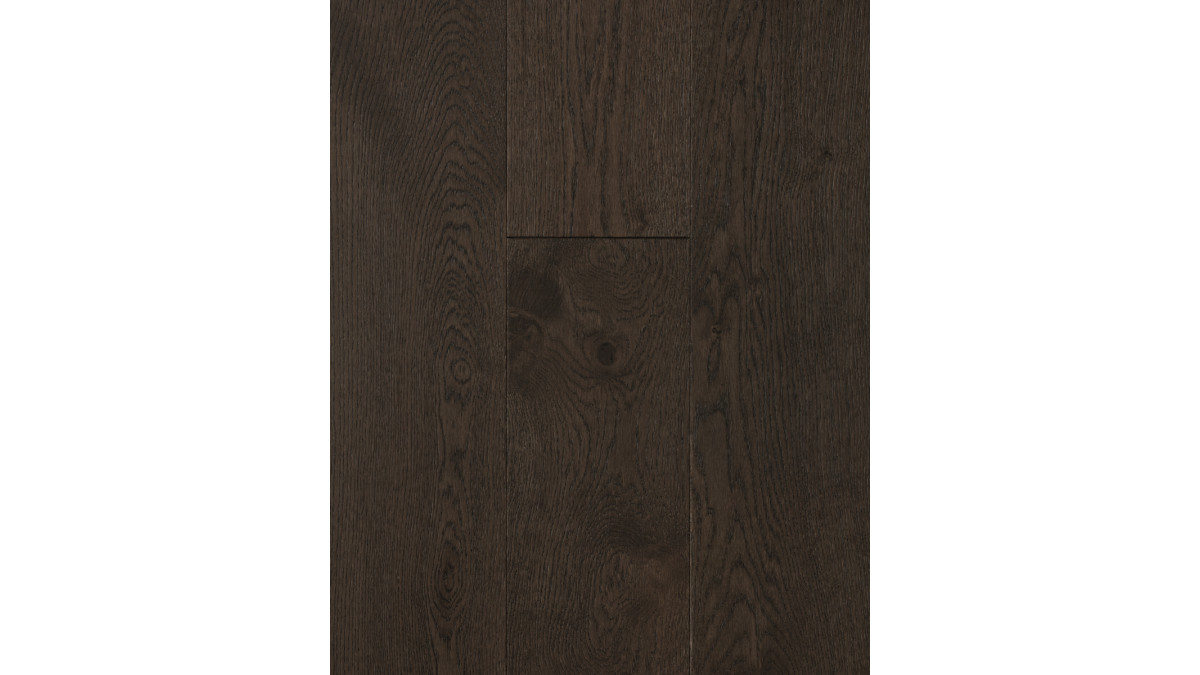

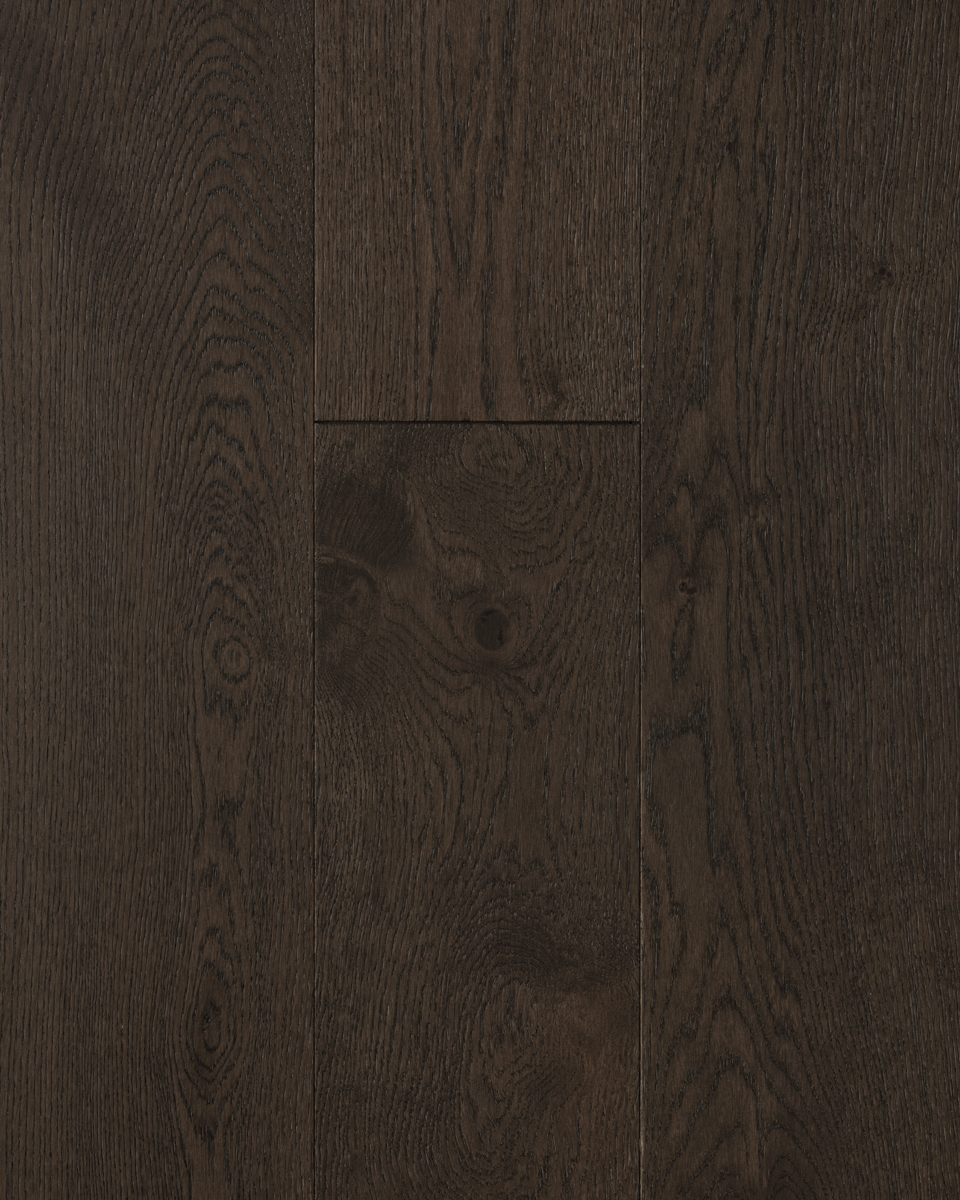

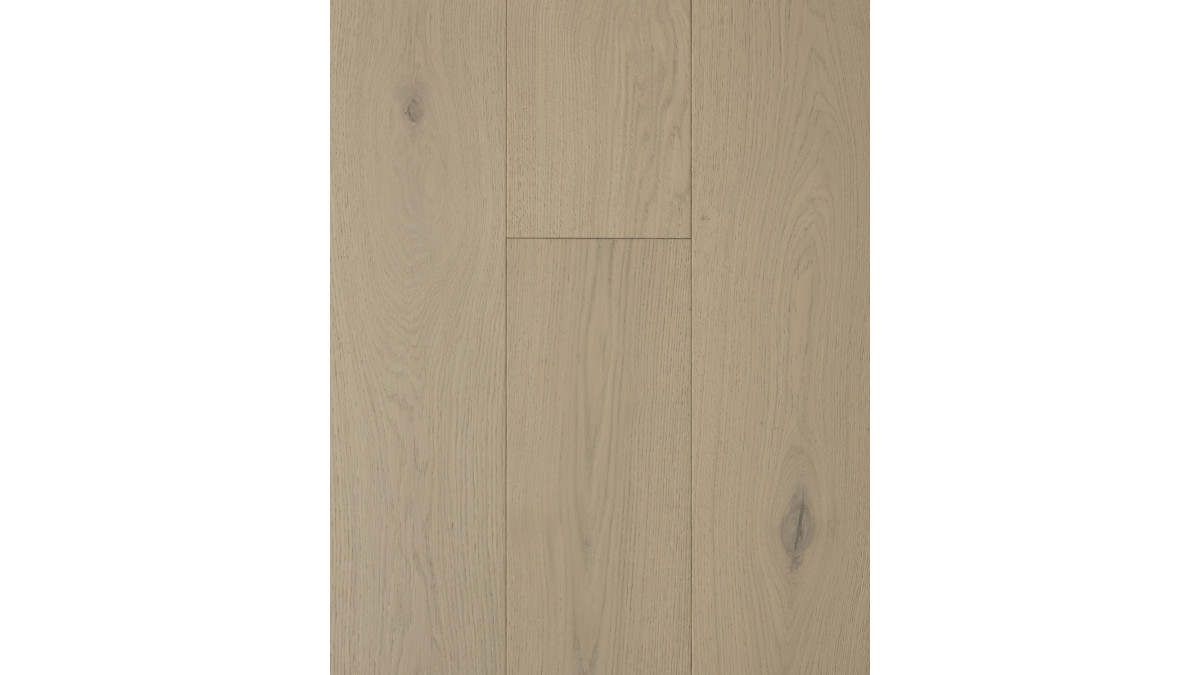

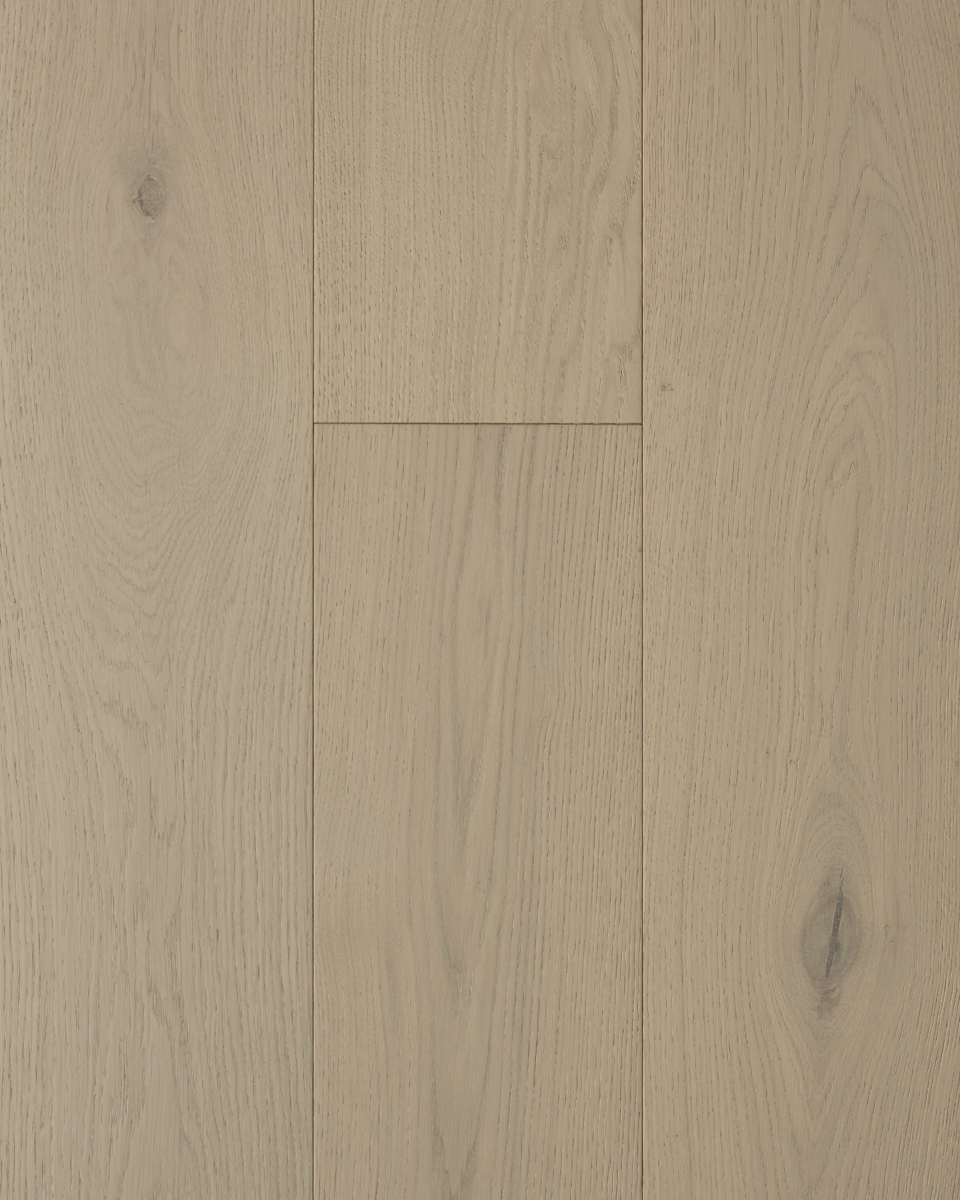

  • Nine colours across plank, herringbone and chevron formats, with options to suit a wide range of design briefs
  • Pre-finished UV Cured PureMatte Lacquer for durability and a natural matte appearance
  • Available in Feature and Light Feature grade
  • Available in 190mm and 240mm wide planks; 120mm wide herringbone and chevron
  • Matching stair nosings for a cohesive finish
  • Multi-layer engineered timber construction
  • 3mm, 4mm and 6mm European Oak wear layer — can be re-sanded up to 2x (3mm), 3x (4mm) or 5x (6mm)
  • Cross-Directional Plywood core
  • Sustainably sourced
  • E0 rated — ultra-low formaldehyde emission (0.13mg/L per AS/NZS 2098.11)
  • 25 year residential structural warranty; 7 year residential finish warranty
  • 10 year commercial structural warranty
Scope of Use

Overlay flooring suitable for residential and commercial applications.

  • Glue down installation over plywood, particle board, concrete, existing timber
  • 4-sided tongue and groove planks
  • Compatible with underfloor heating
  • Prefinished — 3mm wear layer can be re-sanded up to 2x; 4mm up to 3x; 6mm up to 5x
  • Matching stair nosing available

The Forté Timber Overlay Flooring System is certified for use in:

  • a) all buildings
  • b) in all areas, including level access routes likely to become wet, except:
    • i. garages and commercial kitchens, and
    • ii. unsprinklered sleeping areas and exitways in buildings where care or detention is provided, and
  • c) installed on the following substrates:
    • i. Concrete floors (slab-on-grade or suspended)
    • ii. Timber flooring (structural or overlay)
    • iii. Concrete floors with Hydronic Underfloor Heating system
    • iv. Electric underfloor heating system
    • v. Wet-Area Membrane systems
    • vi. Acoustic underlay
Limitations on Use

The Forté Timber Overlay Flooring System shall be:

  • a) designed in accordance with the design guide applicable to the product (Timber Overlay Flooring System Design Guide Edition 3.0 April 2023 or Timber Overlay Flooring System Design Guide Edition 4.0 December 2023), and
  • b) installed in accordance with the Timber Overlay Flooring System Installation Guide Edition 3.0 April 2023, with special reference to the specific requirements for installation in wet areas and with underfloor heating, and
  • c) separated from fuel burning appliances, flues, and chimneys in accordance with NZBC Section CAS/1.
Statement of Building Code Compliance
  • B2 Durability — By analysis and comparison with Verification Method B2/VM1
  • C3 Fire affecting areas beyond the fire source — By testing and comparison with Verification Method C/VM2
  • D1 Access routes — By testing and comparison with Acceptable Solution D1/AS1
  • E3 Internal moisture — By analysis and comparison with Acceptable Solution E3/AS1
  • F2 Hazardous building materials — By testing and comparison with the performance requirements of the New Zealand Building Code clause F2.3.1
Other Performance Attributes
  • 25 year residential structural warranty; 7 year residential finish warranty
  • 10 year commercial structural warranty
  • E0 rated — ultra-low formaldehyde emission (0.13mg/L per AS/NZS 2098.11)
  • Sustainably sourced
Documents
Haven Collection Data Sheet

03/25

Forté is a New Zealand-owned and family-run business specialising in refined timber flooring, interior panelling, decking and exterior cladding products for residential and commercial projects.

Product Enquiries

News from Forté

Specify with Certainty: Tested E3-compliant Engineered Timber Flooring for Wet Areas

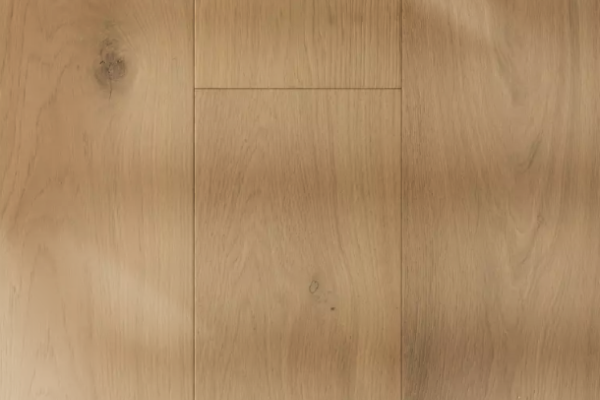

Haven Flooring Now Available in 240mm Plank Width NEW
