Heavy Duty Electric Storage
Rheem
All products
Heavy Duty Electric Storage
Description

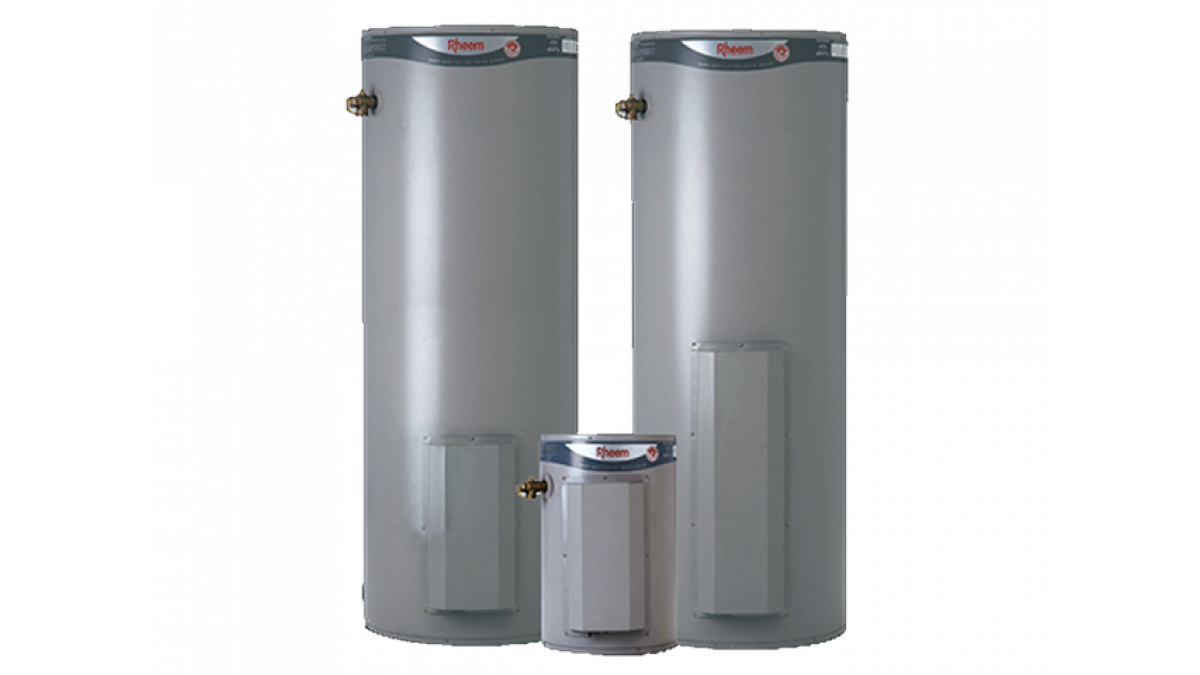

The Rheem range of heavy duty commercial electric water heaters come in either a 60L capacity or a generous 325L capacity and can be installed indoors or outdoors. These cylinders are made from a special grade of steel and lined with a double coat of vitreous enamel (which is better suited to a wider variety of water conditions) and comes with a larger anode to provide better corrosion protection.

The 325L cylinders can hold up to six heating elements and if a bank of 8 cylinders are manifolded together they can deliver up to 7480L of hot water in the first hour.

Key Features
  • Equa-Flow System provides flexibility and redundancy
  • Provides hot water at sanitising temperatures
  • A bank of 8 x 616315 Rheem commercial electric water heaters can deliver up to 7,480 litres of hot water in the first hour
  • Suitable for either indoor or outdoor installation

Available in the following model configurations:

  • Heavy Duty Electric A613050/3.6 | 60 Litres | 3 x 3.6 kW
  • Heavy Duty Electric A613050 | 60 Litres | 3 x 4.8 kW
  • Heavy Duty Electric A613315/3.6 | 325 Litres | 3 x 3.6 kW
  • Heavy Duty Electric A613315 | 325 Litres | 3 x 4.8 kW
  • Heavy Duty Electric A613315/6K | 325 Litres | 3 x 6.0 kW
  • Heavy Duty Electric A616315/3.6 | 325 Litres | 6 x 3.6 kW
  • Heavy Duty Electric A616315 | 325 Litres | 6 x 4.8 kW
  • Heavy Duty Electric A616315/6K | 325 Litres | 6 x 6.0 kW
Categories
Hot Water Heaters and Systems
Ranges
Hot Water Heating for Apartments & Residential Complexes Industrial & Commercial Water Heating Solutions Hot Water Heating for Hospitals and Care Homes
Scope of Use

The Rheem Equa-Flow system means there's enough flexibility to suit most water heating applications:

  • Apartments and residential complexes
  • Industrial and commercial applications
  • Hospitals and care homes
Limitations on Use
  • Use with low pressure systems is possible if required
Other Performance Attributes
  • Non-Domestic Warranty: Parts (Parts/Labour): 1 year
  • Non-Domestic Warranty: Cylinder/Tank (Labour): 1 year
  • Non-Domestic Warranty: Cylinder/Tank (Replacement): 5 year
Documents
Supplier Declaration of Conformity
URL
Installation Instructions & Owner's Guide
URL
Brochure
URL
Commercial and Industrial Hot Water Solutions Brochure
URL
Additional Information
URL
