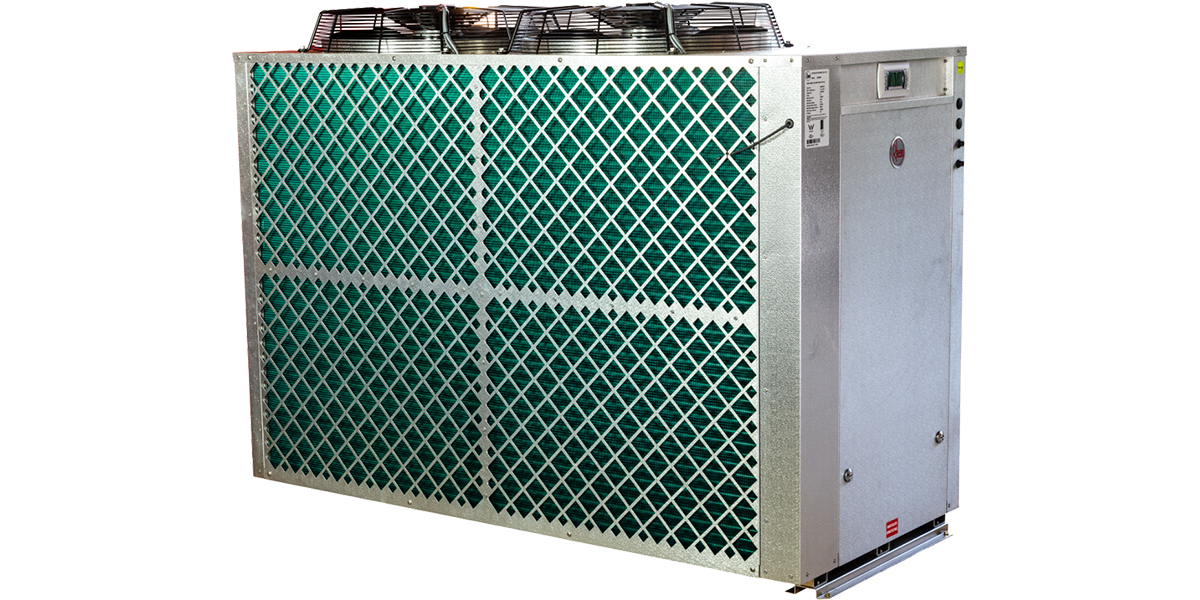

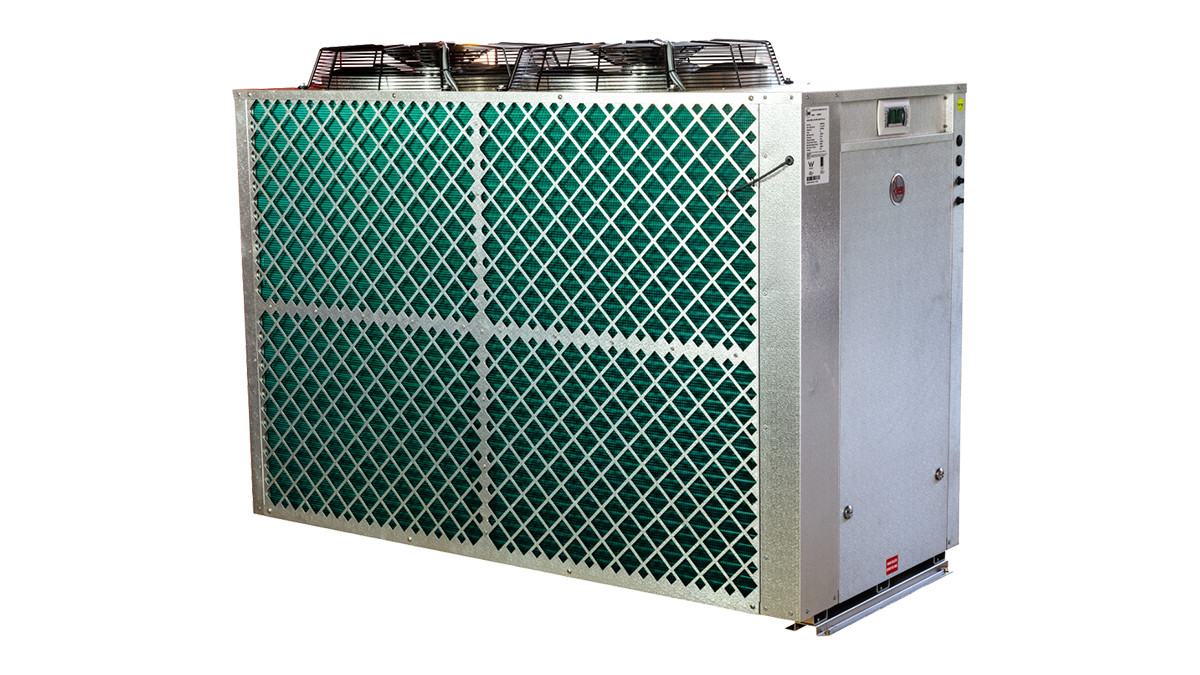

Air to Water (A2W) Heat Pump
Description

The Rheem Commercial Air to Water (A2W) range delivers hot water at 65°C with a system Coefficient of Performance (COP) up to 4.0. Non-ducted models are generally designed for outdoor installations.

Key Features
  • 65°C hot water in a super-efficient and super-compact package
  • Up to 25% of the operating cost of an electric water heater with a Coefficient of Performance (COP) of up to 4
  • This Air to Water (A2W) heat pump range is designed for both vertical or horizontal discharge options, with a discharge fan option available in both ducted and non-ducted versions. Horizontal discharge models can also be stacked two high to reduce plant footprint (suffix 'S')
  • The automatic defrost function allows continued performance in low ambient temperatures by diverting a portion of the hot refrigerant to evaporator coil to melt any ice which may form. In addition, the evaporator is dipped to provide extra protection in corrosive atmospheres.

Available in the following model configurations:

  • 953016H0 | Non-ducted Exhaust | Horizontal Discharge | Not Stackable | 4000L Max Storage Capacity
  • 952016H0 | Ducted Exhaust | Horizontal Discharge | Not Stackable | 4000L Max Storage Capacity
  • 953016HS | Non-ducted Exhaust | Horizontal Discharge| Stackable | 4000L Max Storage Capacity
  • 952016HS | Ducted Exhaust | Horizontal Discharge | Stackable | 4000L Max Storage Capacity
  • 95301600 | Non-ducted Exhaust | Vertical Discharge | Not Stackable | 4000L Max Storage Capacity
  • 95201600 | Ducted Exhaust | Vertical Discharge | Not Stackable | 4000L Max Storage Capacity
  • 953035H0 | Non-ducted Exhaust | Horizontal Discharge | Not Stackable | 8000L Max Storage Capacity
  • 953035HS | Non-ducted Exhaust | Horizontal Discharge | Stackable | 8000L Max Storage Capacity
  • 952035HS | Ducted Exhaust | Horizontal Discharge | Stackable | 8000L Max Storage Capacity
  • 952035H0 | Ducted Exhaust | Horizontal Discharge | Not Stackable | 8000L Max Storage Capacity
  • 95303500 | Non-ducted Exhaust | Vertical Discharge | Not Stackable | 8000L Max Storage Capacity
  • 95203500 | Ducted Exhaust | Vertical Discharge | Not Stackable | 8000L Max Storage Capacity
Scope of Use
  • Suitable for apartments and residential complexes, hospitals and healthcare facilities, and commercial applications
  • Non-ducted models may be installed indoors, without ducting, if a sufficient supply of heat energy is available
  • Designed for both vertical or horizontal discharge options, with a discharge fan option available in both ducted and non-ducted versions
  • Horizontal discharge models can also be stacked two high to reduce plant footprint (suffix 'S')
  • The automatic defrost function allows continued performance in low ambient temperatures; the evaporator is dipped to provide extra protection in corrosive atmospheres
Other Performance Attributes
  • The automatic defrost function allows continued performance in low ambient temperatures by diverting a portion of the hot refrigerant to evaporator coil to melt any ice which may form. In addition, the evaporator is dipped to provide extra protection in corrosive atmospheres.
