For use as an external wall cladding or ventilated rainscreen façade over flexible or rigid membrane.

Location:

• Up to a design wind pressure (ULS) of 4.5 kPa, which includes all wind zones defined in NZS 3604:2011.
• In all exposure zones as defined in NZS 3604:2011.
• Any proximity to a relevant boundary.

Building:

• In conjunction with a primary structure that complies with the NZ Building Code or where the designer and/or installer have established that the existing structure is suitable for the intended building work and local site.
• On timber or lightweight steel framing.
• As an external cladding. Induraplate must be installed over a drained and ventilated cavity.
• On buildings of any building height.

• Maximum design wind pressure (ULS) for flexible membrane is 4 kPa.
• For use where adverse microclimatic conditions apply (refer to paragraph 4.2.4, NZS3604:2011), refer to Paneltec.
• All other parts of the external wall assembly must comply with all relevant NZ Building Code Protection from fire clauses.
• Where the design wind pressure exceeds 2.5 kPa, the primary structure is subject to specific design.
• Induraplate must be installed over a drained and ventilated cavity.
• A weathertight, flexible or rigid underlay must be installed that meets the characteristics of Table C.2.2.1 of E2/AS1.

If designed, installed, and maintained in accordance with all Paneltec New Zealand Ltd’s requirements, Induraplate will comply with or contribute to
compliance with the following performance claims:

• B1 Structure B1.3.1, B1.3.2, B1.3.3 (a, b, c, e, h, j, m, q), B1.3.4 (a, b, c, d, e) — B1/VM1
• B2 Durability B2.3.1 (b) — Alternative Solution
• C3 Fire affecting areas beyond the fire source C3.5, C3.7 (a) — Acceptable Solution C/AS2
• E2 External Moisture E2.3.2, E2.3.5, E2.3.7 (a, b, c) — Alternative Solution
• F2 Hazardous Building Materials F2.3.1

See PASS 19216 for full information.

Projects include:

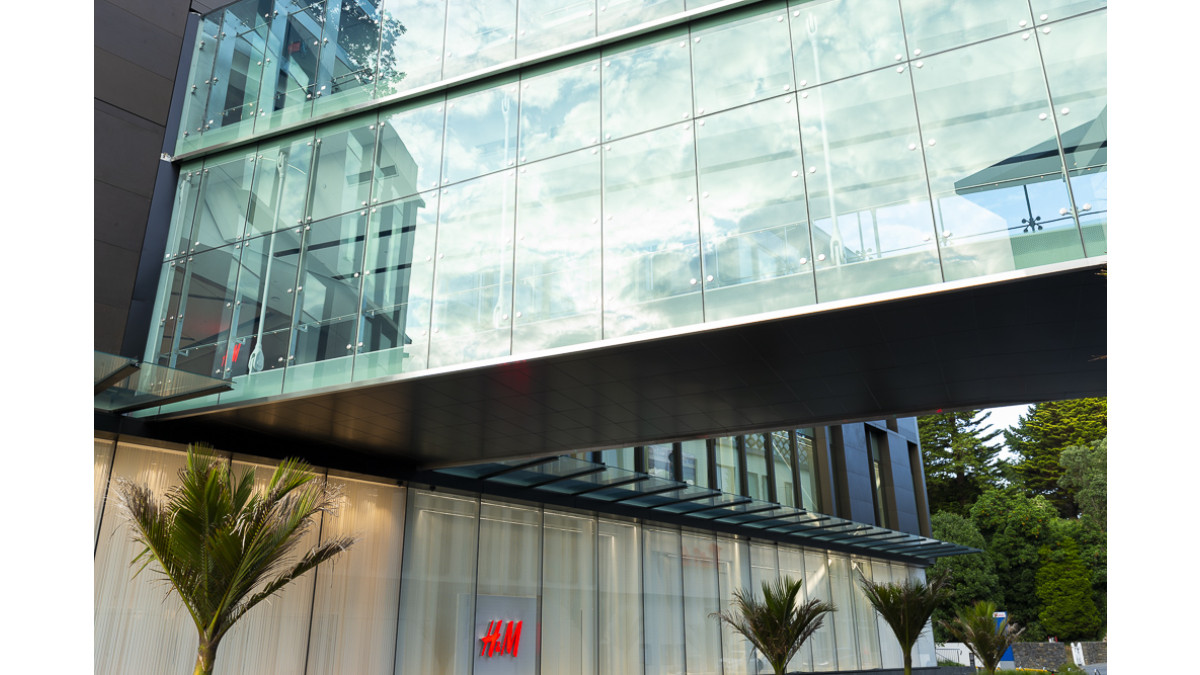

• 277 Westfield Newmarket, Auckland

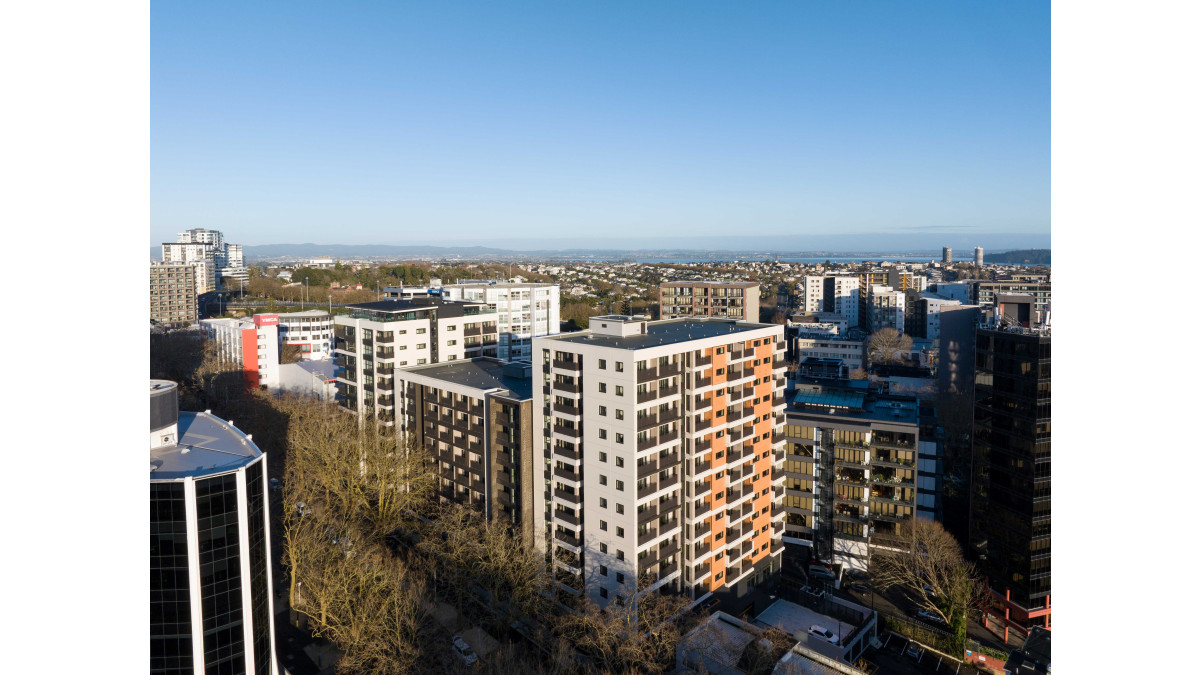

• Te Mātāwai, Greys Avenue, Auckland

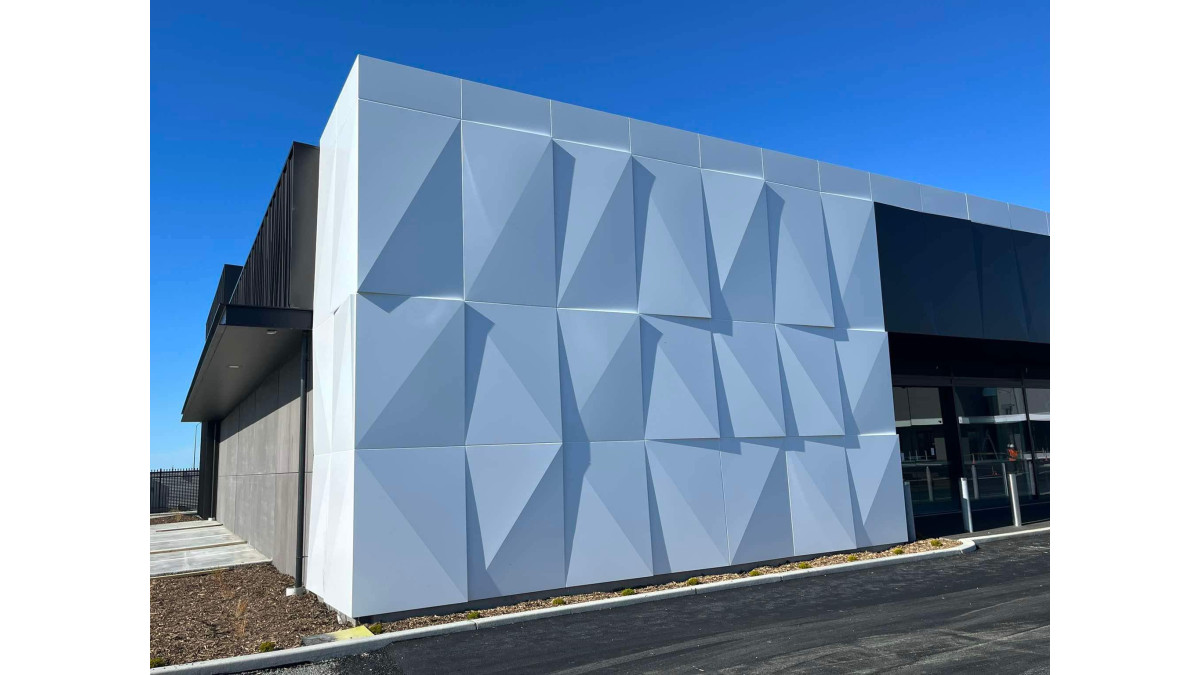

• Harvey Norman, Christchurch

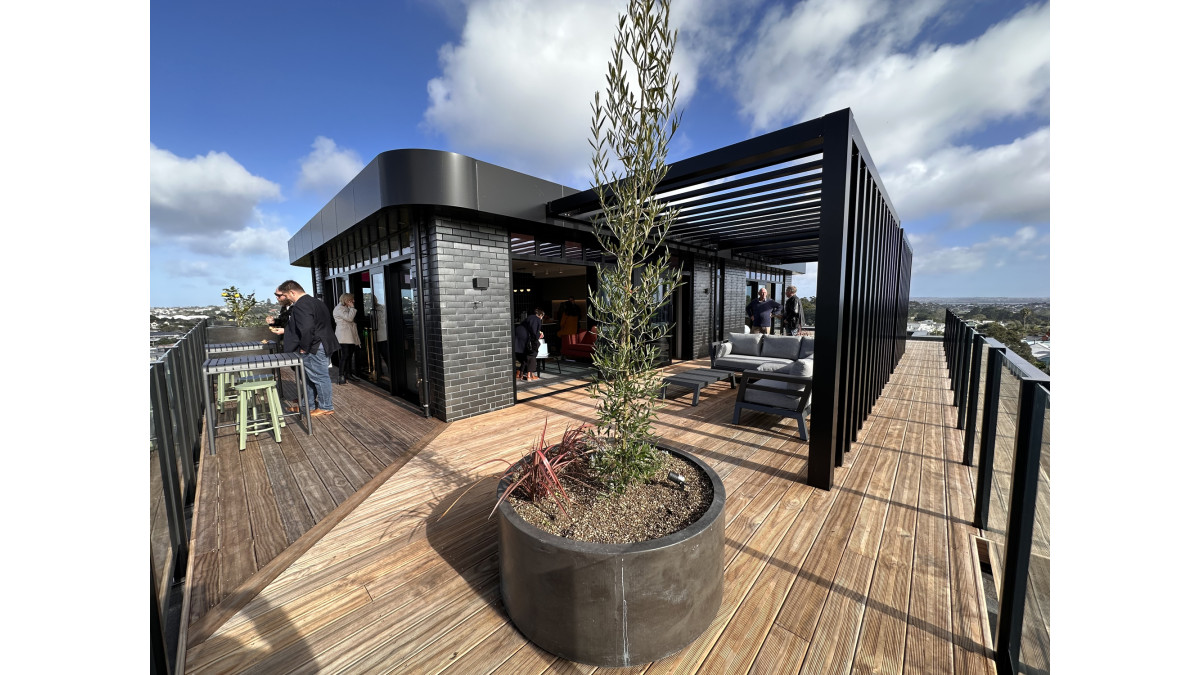

• Aalto Apartments, Auckland

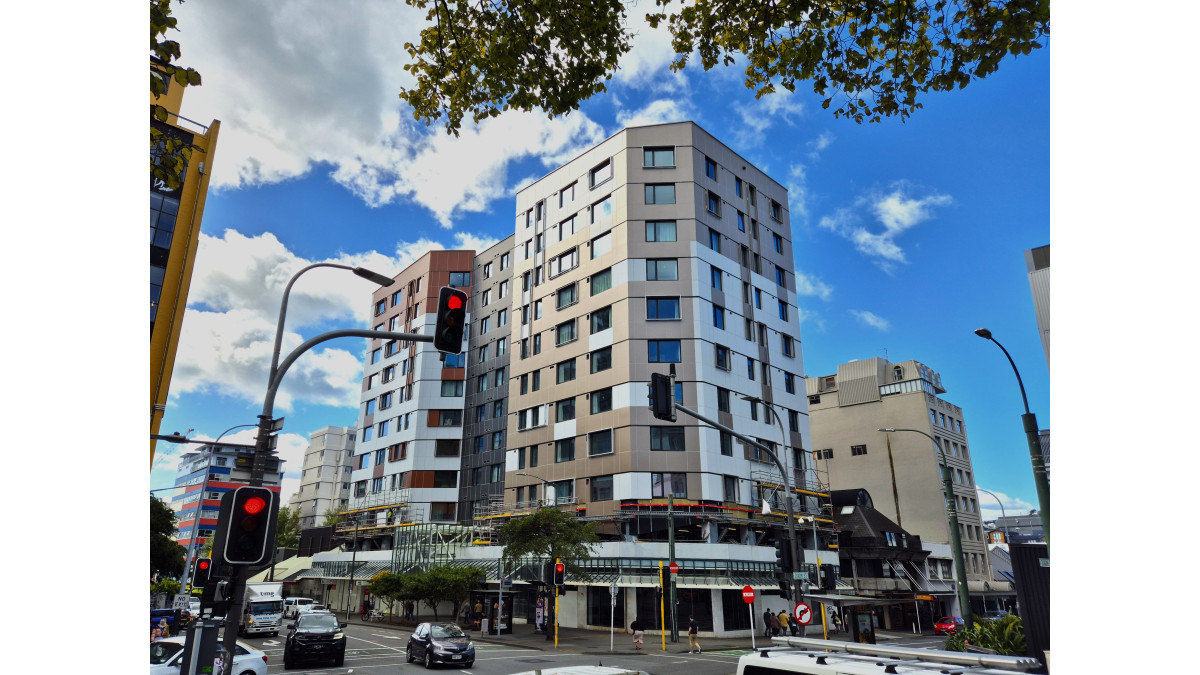

• Cheops Apartments, Wellington

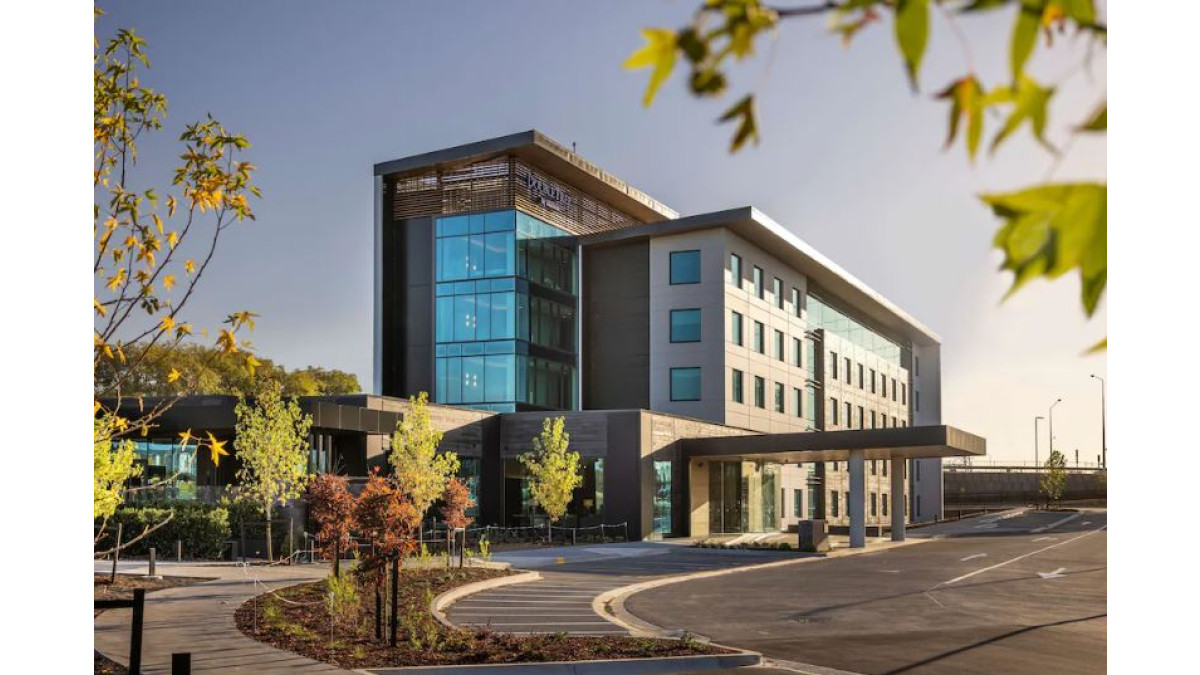

• Double Tree by Hilton, Karaka

• Global GreenTag EPD Program
• Tested to AS1530.1 and is non-combustible.
• 15 year warranty when correctly installed and maintained as stated on Paneltec’s warranty document.
