For use as an external or internal wall panel.

Location (where used as an external wall panel):

• In all wind zones up to and including extra high as defined in NZS 3604:2011 or to a calculated design wind pressure (ULS) of 4.15 kPa.
  In all exposure zones as defined in NZS 3604:2011.

Building:

• In conjunction with a primary structure that complies with the NZ Building Code or where the designer has established that the existing structure is suitable for the intended building work.
• As an external wall cladding, on buildings up to 10m in building height and in conjunction with a drained and ventilated cavity
• As an internal lining.

• The system is not suitable for use where adverse microclimatic conditions apply (refer to paragraph 4.2.4, NZS 3604:2011).
• The panel may not be installed within 1m of a relevant boundary
• Up to a maximum building height of 10m unless subject to specific fire engineering.
• Installation must be in accordance with façadelab AS/NZS 4284:2008, testing assembly.
• Up to a maximum design wind pressure (ULS) of 4.0 kPa.

As an internal lining.

• The panel must be earthed where surrounding or touching an electric installation or power source.
• In wet areas, installation must be in accordance with E3/AS1.

If designed, installed, and maintained in accordance with all Paneltec New Zealand Ltd’s requirements, Indurabond will comply with or contribute to
compliance with the following performance claims:

• B1 Structure: B1.3.1, B1.3.2, B1.3.3 (a), (b), (c), (e), (f), (h), (i), (j), (q) & (m), B1.3.4 (a), (b), (c), (e) — Alternative Solution.
• B2 Durability: B2.3.1 (b), B2.3.2 (a) — Alternative Solution.
• C3 Fire affecting areas beyond the fire source: C3.4 (a)  C/VM2 — Achieves Material Group Number 2-S.
• E2 External Moisture: E2.3.2, E2.3.5, E2.3.7(a, b, c) — Alternative Solution.
• F2 Hazardous Building Materials: F2.3.1

See PASS 19092 for full information.

Indurabond was introduced into the NZ market in 2017, following extensive use in Australia.

Projects include:

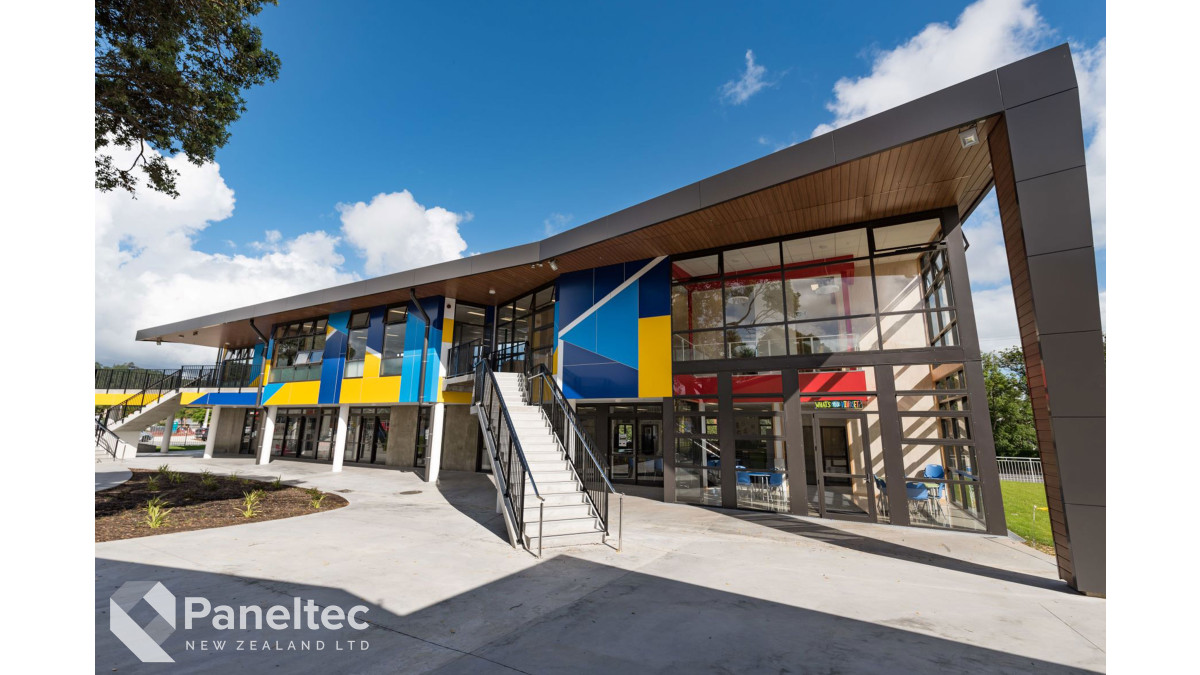

• Girls High, Whangarei

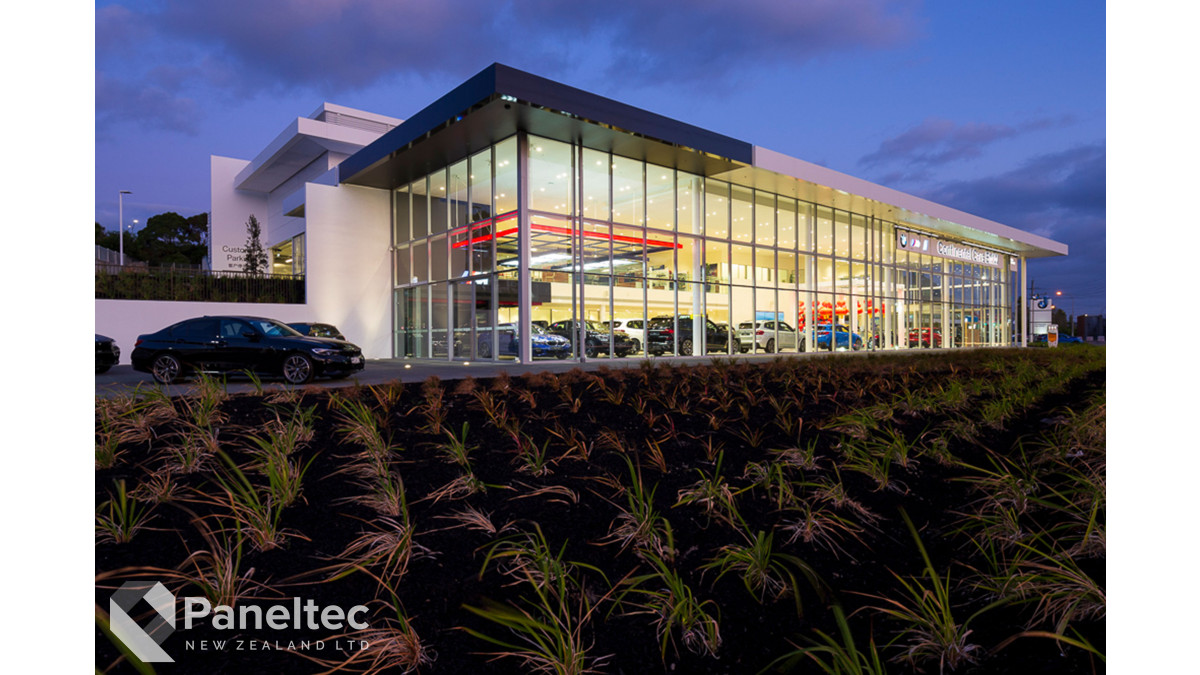

• Continental Cars BMW, Wairau, Auckland

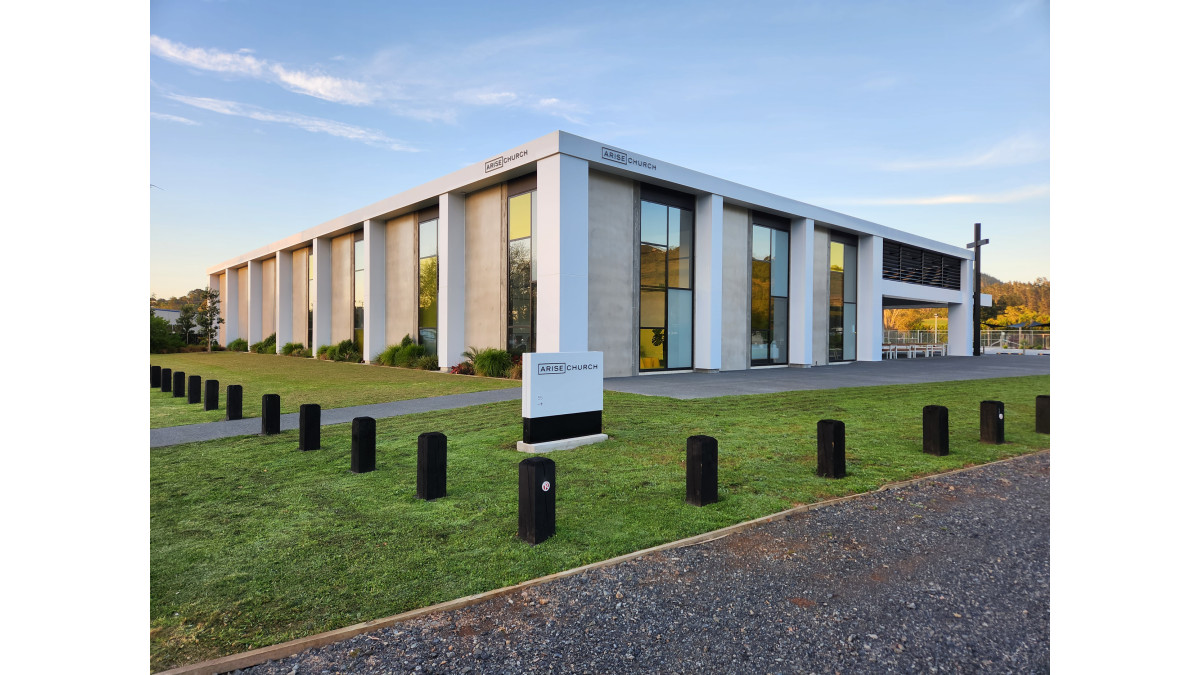

• Arise Church, Whangarei

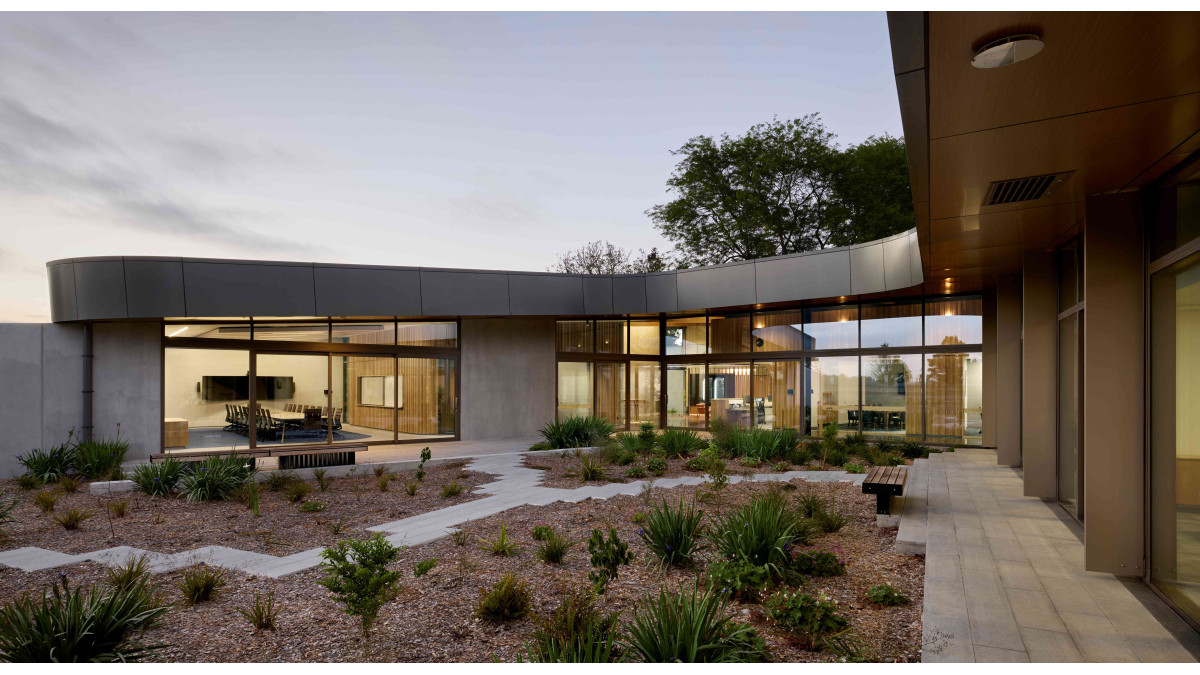

• The Wedge, Hamilton

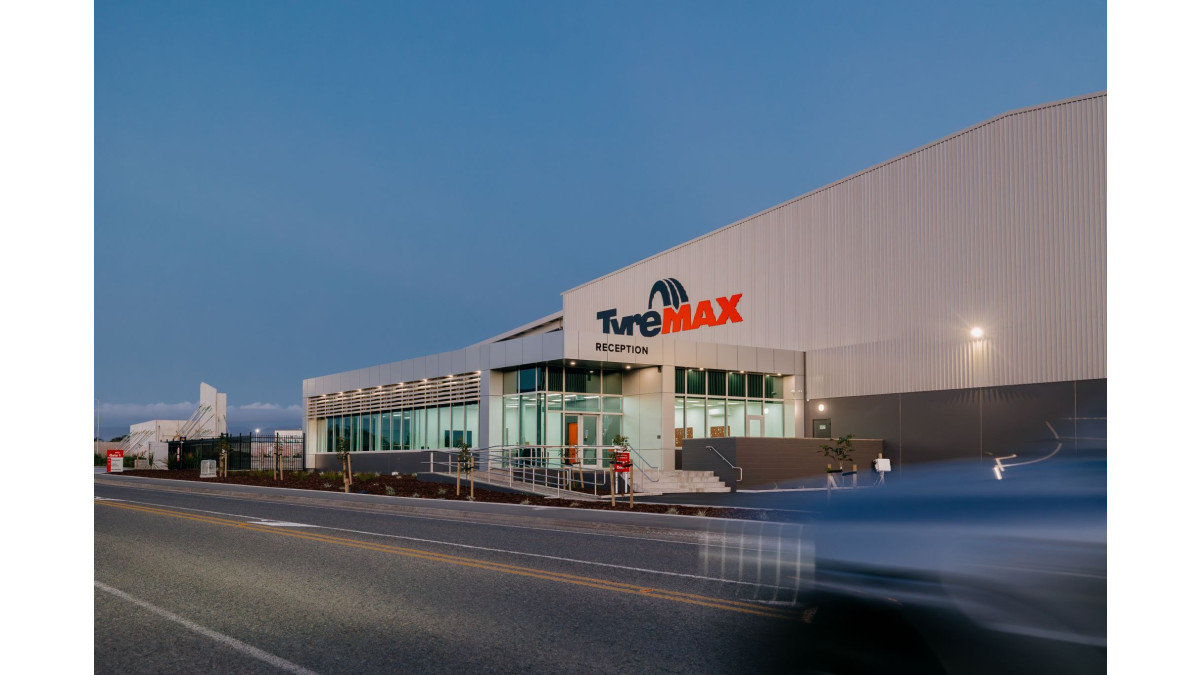

• Tyremax, Palmerston North

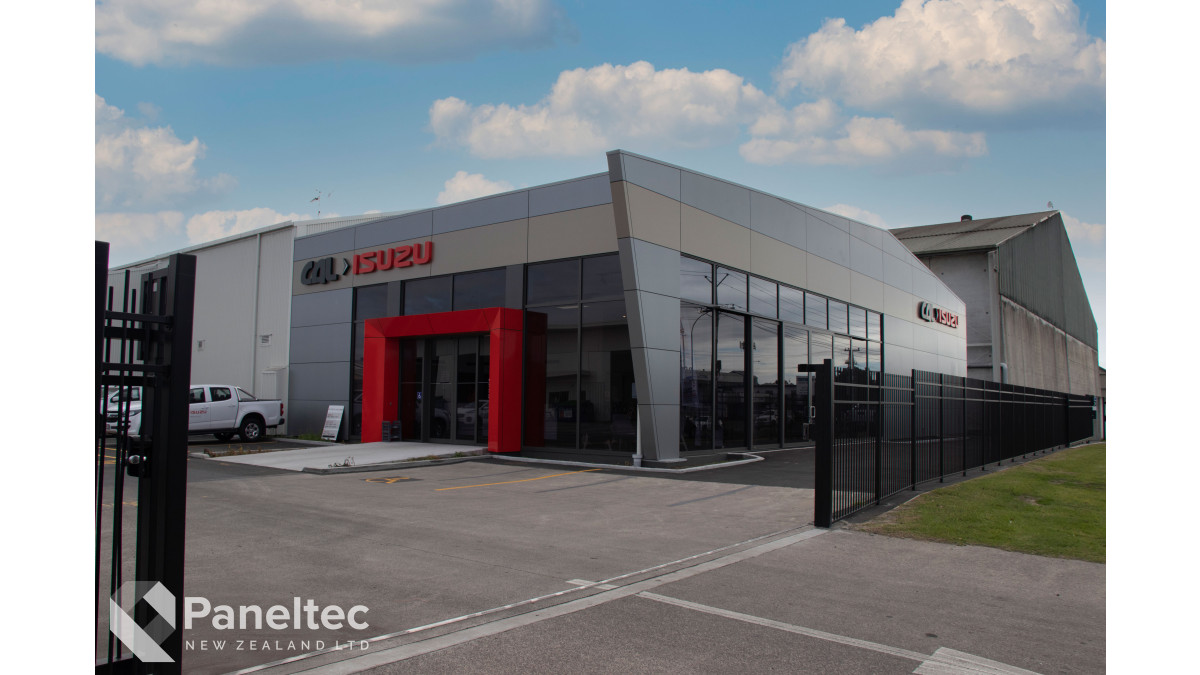

• CAL Isuzu, Tauranga

• Indurcore G2 is backed by a 15 year warranty, when correctly installed and maintained as stated on Paneltec's warranty document.
