VP120-FH Fire Rated Floor Hatch
Pacific Doors
All products
Screenshot 2025 06 25 104954
Description

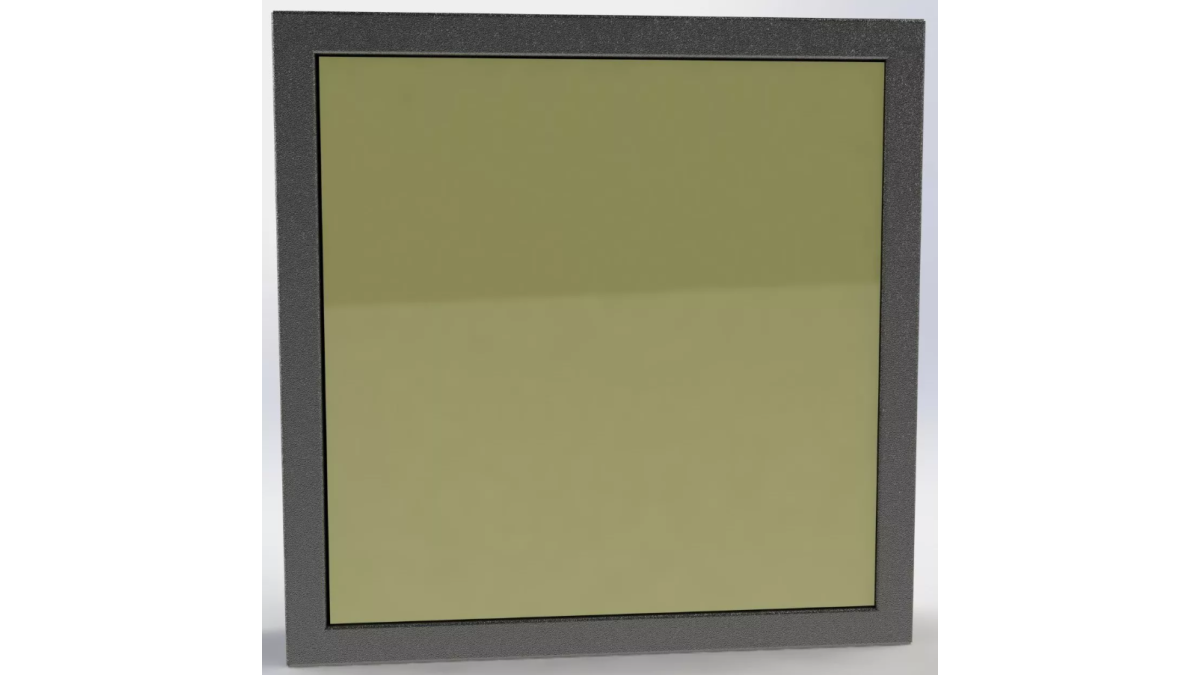

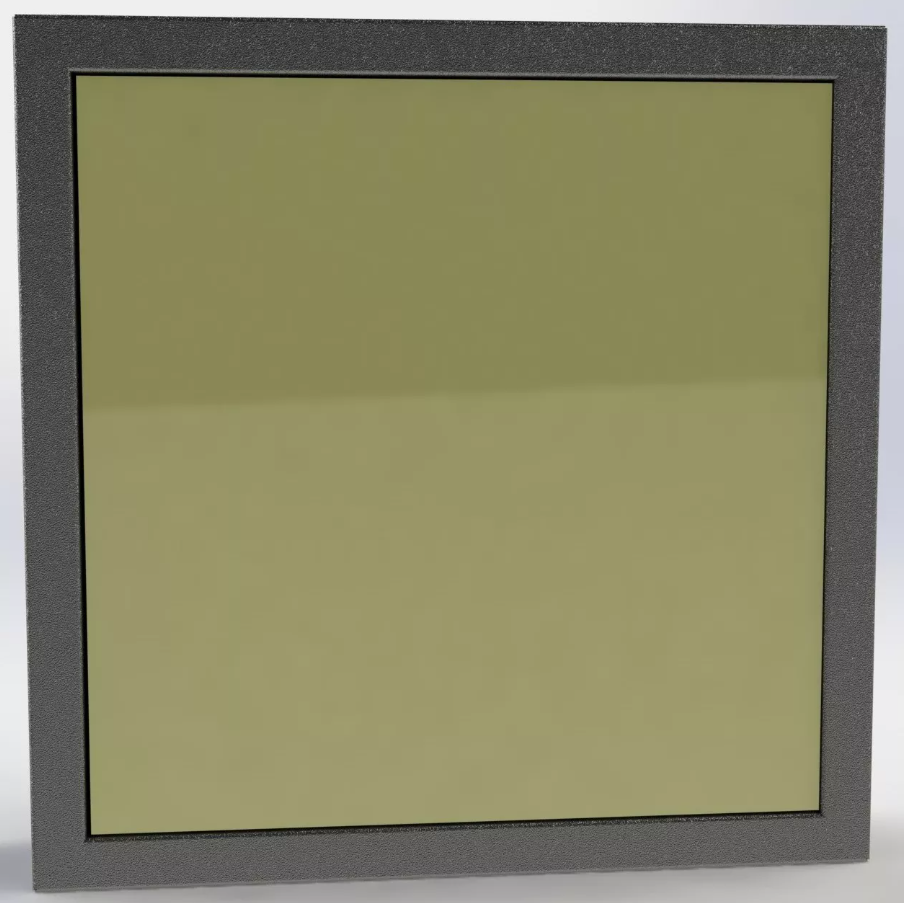

The Pacific VP120-FH Fire-Rated Floor Hatch consists of one or two proprietary fire-rated non-load-bearing panels resting in a pressed steel frame. The steel frame is fixed to a concrete floor.

The access hatch permits the installation of relatively large plant into the ceiling cavity or the removal of that equipment for maintenance purposes.

Key Features
  • The access hatch permits the installation of relatively large plant into the ceiling cavity or the removal of that equipment for maintenance purposes.
  • Floor hatches are outside the scope of NZS 4520 and are therefore not labelled.
Categories
Fire-Rated Interior Doors, Windows and Partitions
NZ Made
NZ Made
Scope of Use
  • Pyropanel VP90-FH Fire Rated Floor Hatch may be installed into a fire rated Gib Board® floor/ceiling system of appropriate FRR provided:
    • Maximum live load = 0kg
    • Joist system must be adequate to support the hatch weight at 100kg maximum.
    • There are no additional service penetrations in the ceiling system.
  • A reed switch could be fitted to the assembly to monitor closed status.
Limitations on Use
  • Panel may not be hinged.
Documents
Data Sheet

6/25/25

pdf
Additional Information
URL

Pacific Doors specialise in the bespoke manufacture of high strength, performance door and window systems for fire, acoustic, security, hospital, ballistic and commercial purposes.
