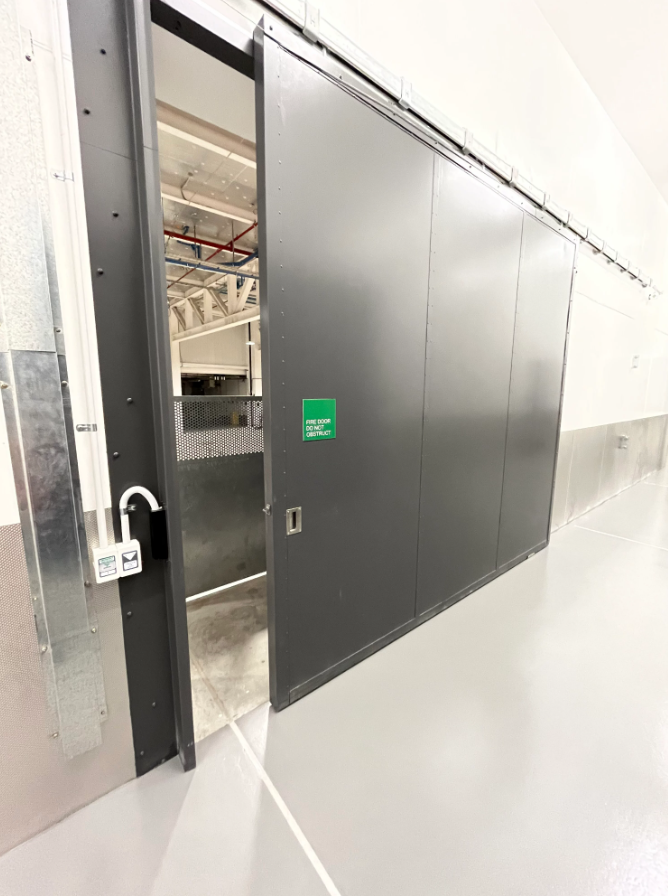

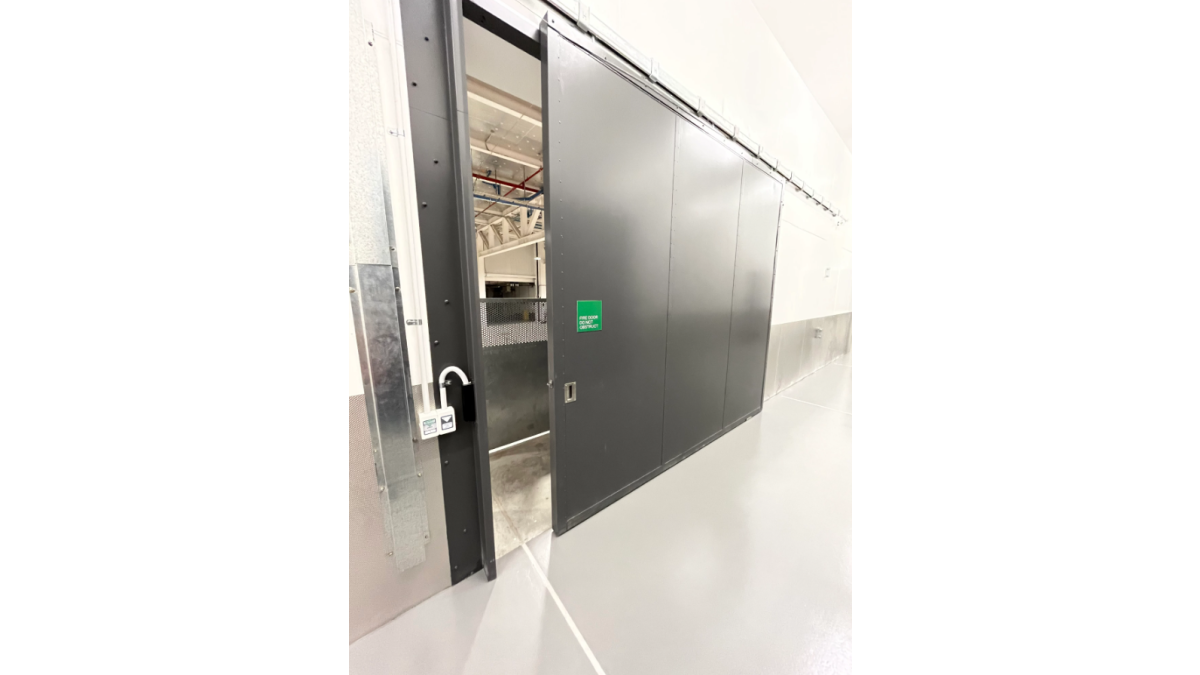

The VP90-S sliding fire door set is used where a large opening in a fire separation (up to 10m2) is required to be closed off in the event of a fire and/or in daily use.
Product Features
· 90min fire rating
· Single leaf
· 2 facing options
· Compatible with masonry wall
· Suitable for interior only
· Available as a cavity wall system
· Supplied with standard hardware
· Meets NZS4520.2010 standard
The VP Slider may be hung from a concrete or masonry wall either of precast concrete (thickness 100mm minimum) or grouted blockwork (thickness 190mm minimum).
Installation on plasterboard walls no longer compliant as of February 2024.
Leaf size
For higher fire ratings and larger-sized doors, refer to the VP240-S slider.
VP90-S is not available as a smoke control door set.
This door type is suitable for interior installation only.
The thickness of the VP90-S door leaf is 65mm with an approximate leaf weight of at least 31kg/m2.
Thermal insulation
This door leaf has a thermal insulation rating (R-value) of 0.692 Km2/W.
Pacific Doors specialise in the bespoke manufacture of high strength, performance door and window systems for fire, acoustic, security, hospital, ballistic and commercial purposes.
