Pacific VP60DA Premium Fire Door
Description

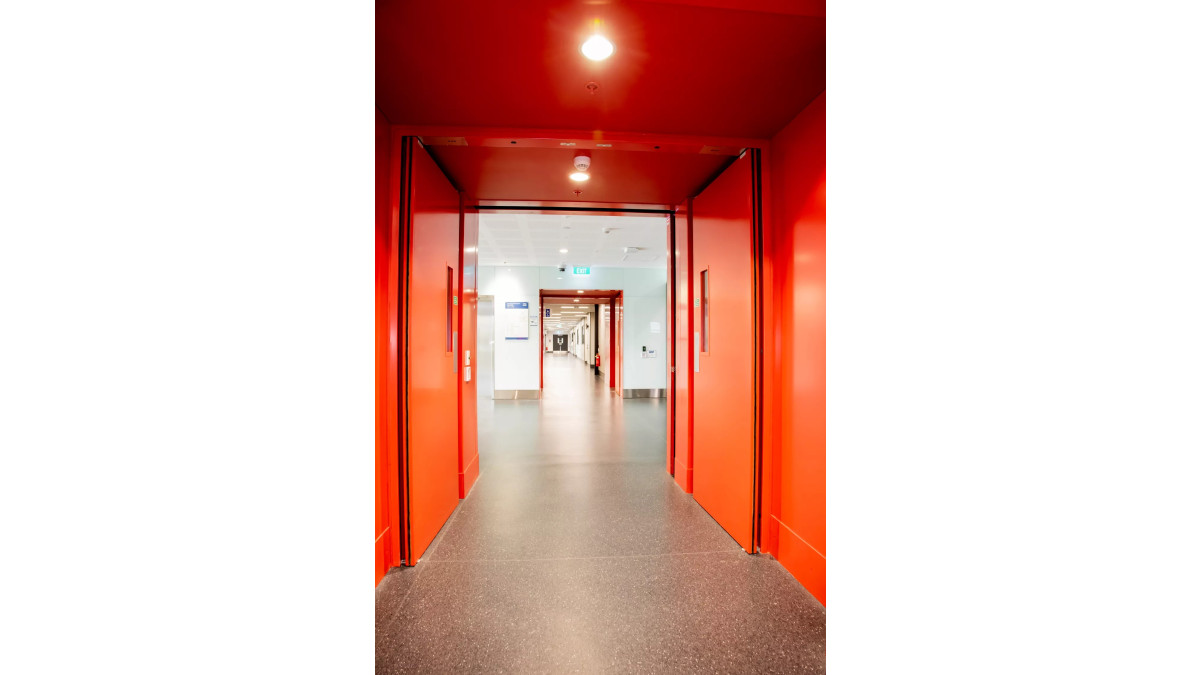

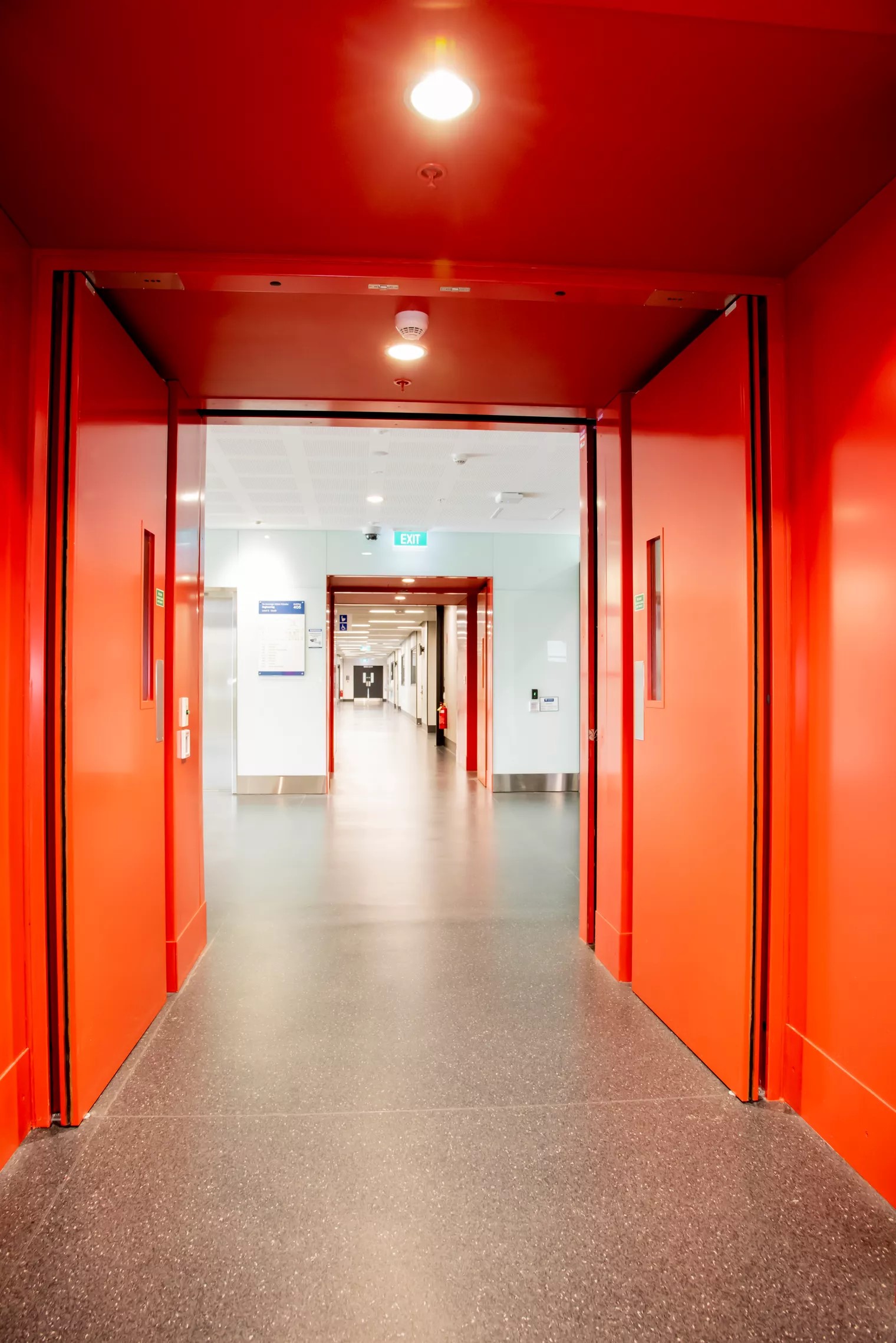

The VP60DA is a pivoted double action (double swing) fire door set that is hung in a steel frame. This door set offers a wide variety of leaf facings, glazing and hardware options.

Key Features
  • 60min fire rating
  • Single or pair
  • 8 facing options
  • 1 frame option
  • 5 glass options
  • Compatible with timber stud, steel stud and masonry wall
  • Meets NZS4520.2010 standard
NZ Made
NZ Made
Scope of Use
  • Compatible with timber stud, steel stud and masonry wall
  • Double action (double swing)
Limitations on Use
  • Pacific Double Action door sets are 180° pivoting doors suitable for interior installation only
  • Timber veneer requires FRR -/60/60 and is only available with a grouted steel frame
  • Standard frames are three-sided only with no sill. Four-sided frames and/or custom sills may be available on request.
Statement of Building Code Compliance
  • Meets NZS4520.2010 standard
  • 60min fire rating
Other Performance Attributes
  • This door leaf has a thermal insulation rating (R-value) of 0.645 Km²/W.
Documents
Data Sheet

7/7/2025

Additional information

Pacific Doors specialise in the bespoke manufacture of high strength, performance door and window systems for fire, acoustic, security, hospital, ballistic and commercial purposes.
