Typical applications:

·         Institutional Detention door set

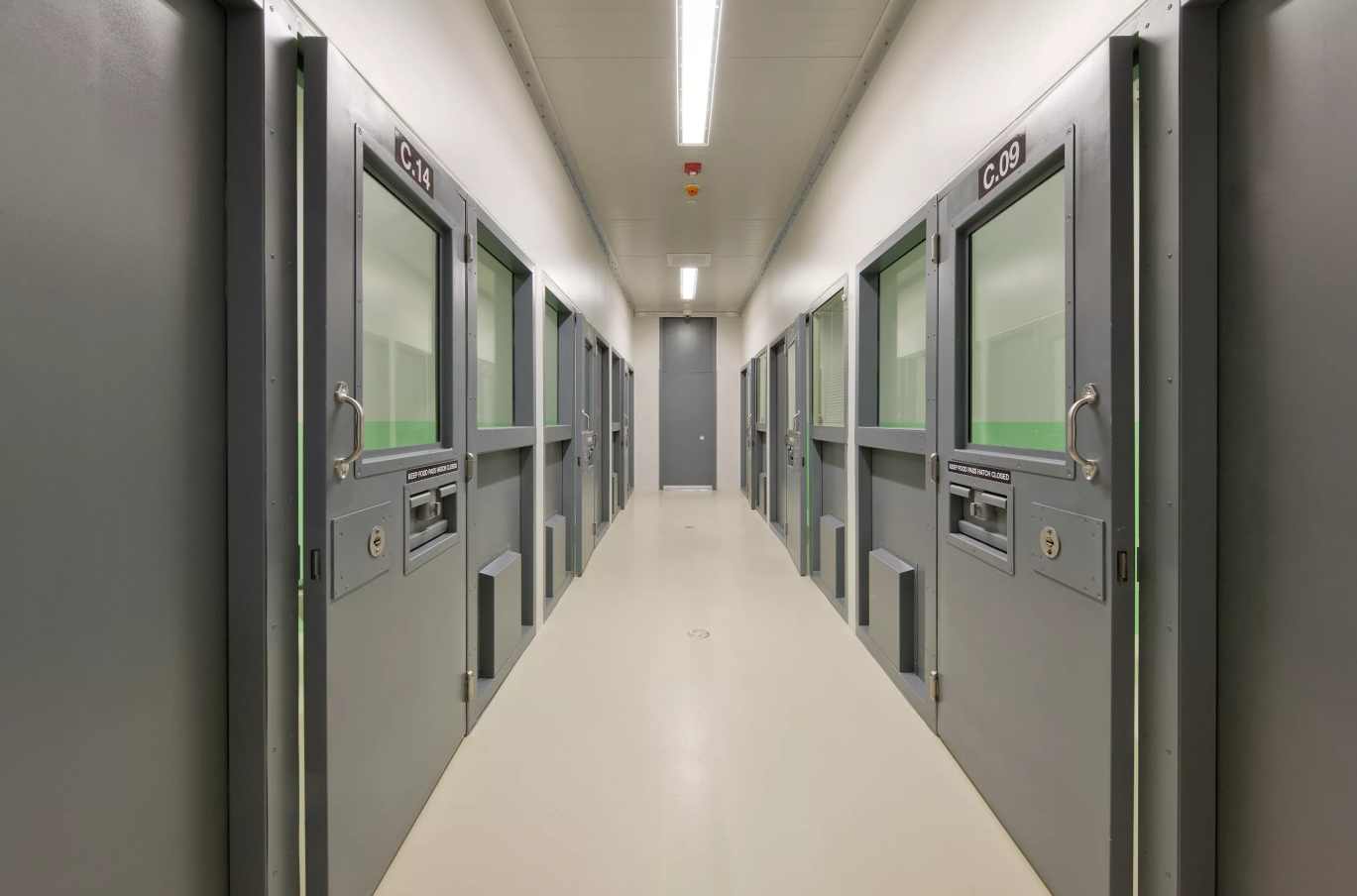

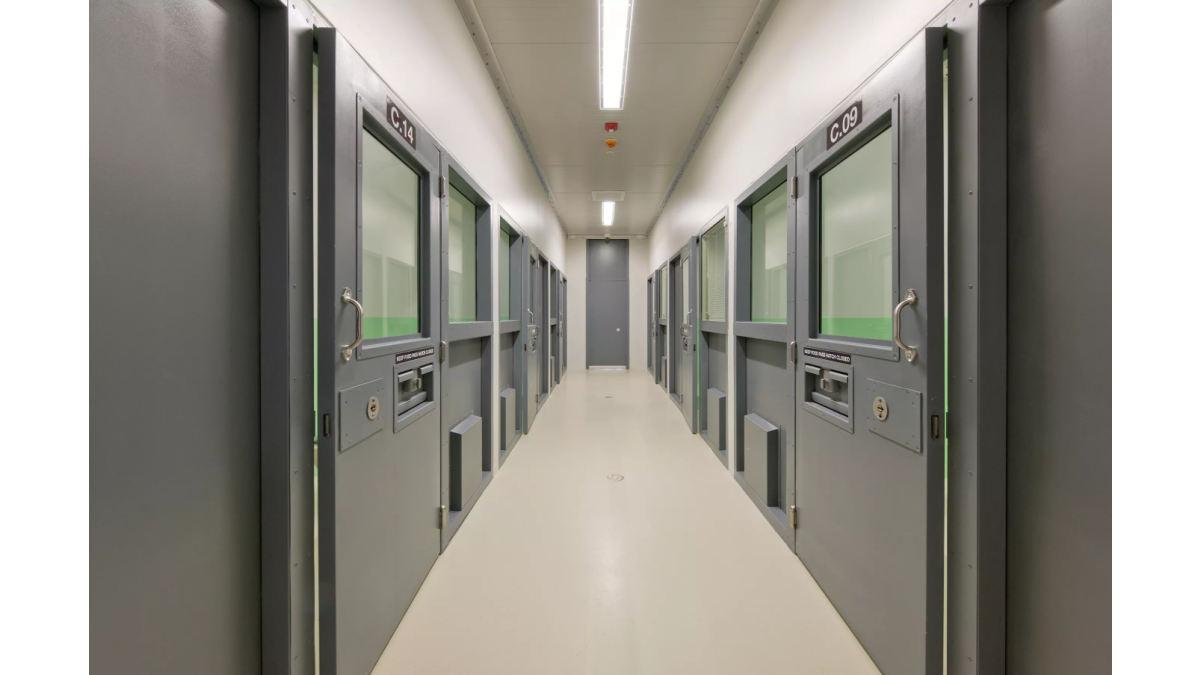

·         Prison Cell Door

·         Commercial Security fire door

·         Stairwell door in multi-level buildings

Wall type

This door set is suitable for installation into a timber or masonry wall of equal security construction as the door type.

Timber stud walls

A timber stud subframe can be factory fitted to the main frame for connection to a timber stud security wall.

Masonry walls

Frames may be installed during or after the construction of masonry walls. Several proven connection systems are available.

Steel stud wall

It is recommended to trim out the door opening in a steel stud wall with double timber studs to full height.

Performance

Security Testing

The SPS1 door set was subjected to 50 impacts from a 200kg cement-filled bag at 4.8m/s, in the direction of opening of the door. The door was able to be opened at the end of the test and was substantially undamaged.

Ballistic Testing

The SPS1-FR door set has been successfully tested to AS 2343:1984 “Bullet-resistant panels for interior use” with ratings of:

·         G1 .357 Magnum

·         S0 Shotgun 12 gauge SG shot

Thermal Insulation

This door leaf has a thermal insulation rating (R-value) of 0.615km2/W.
