InteriorInterior

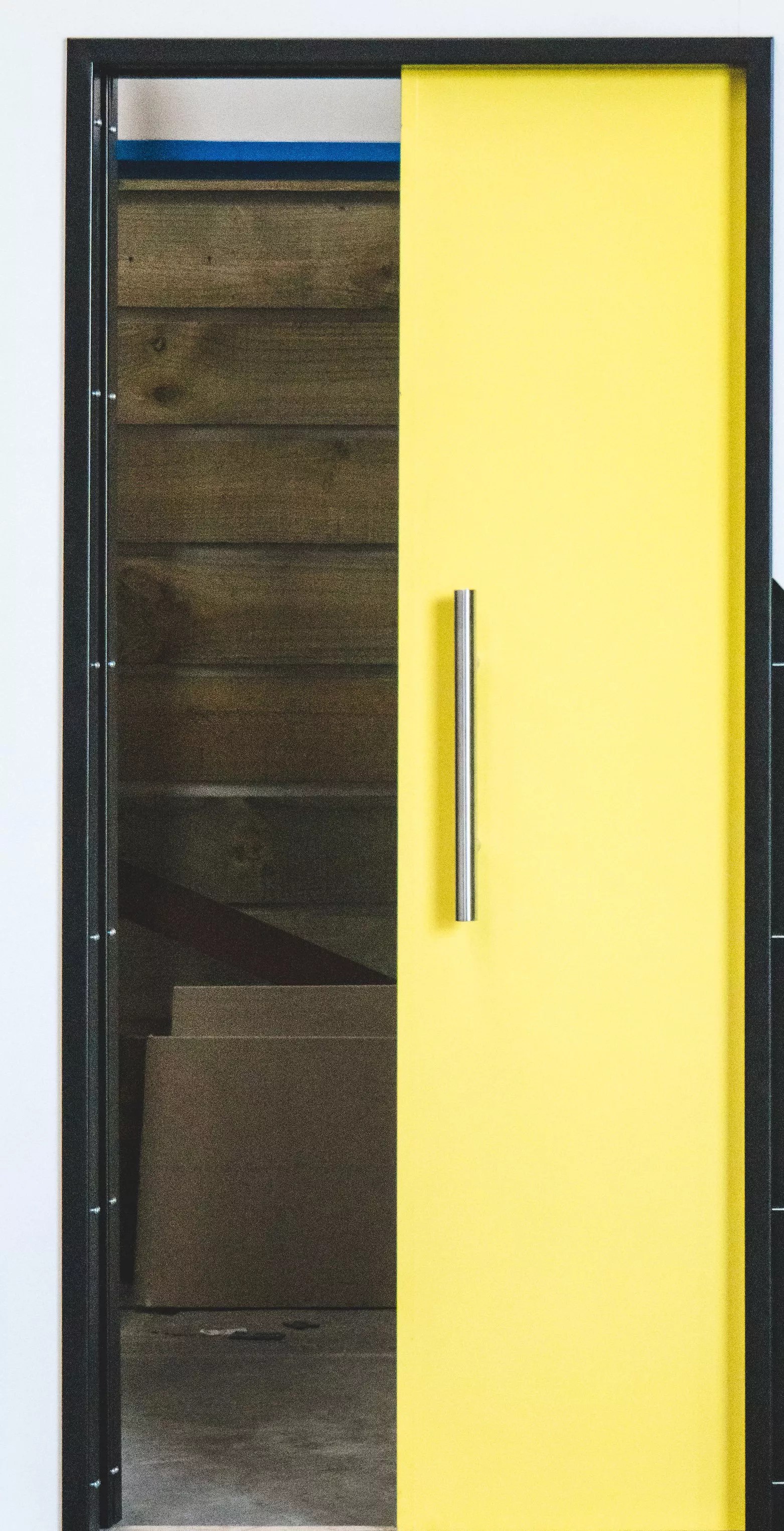

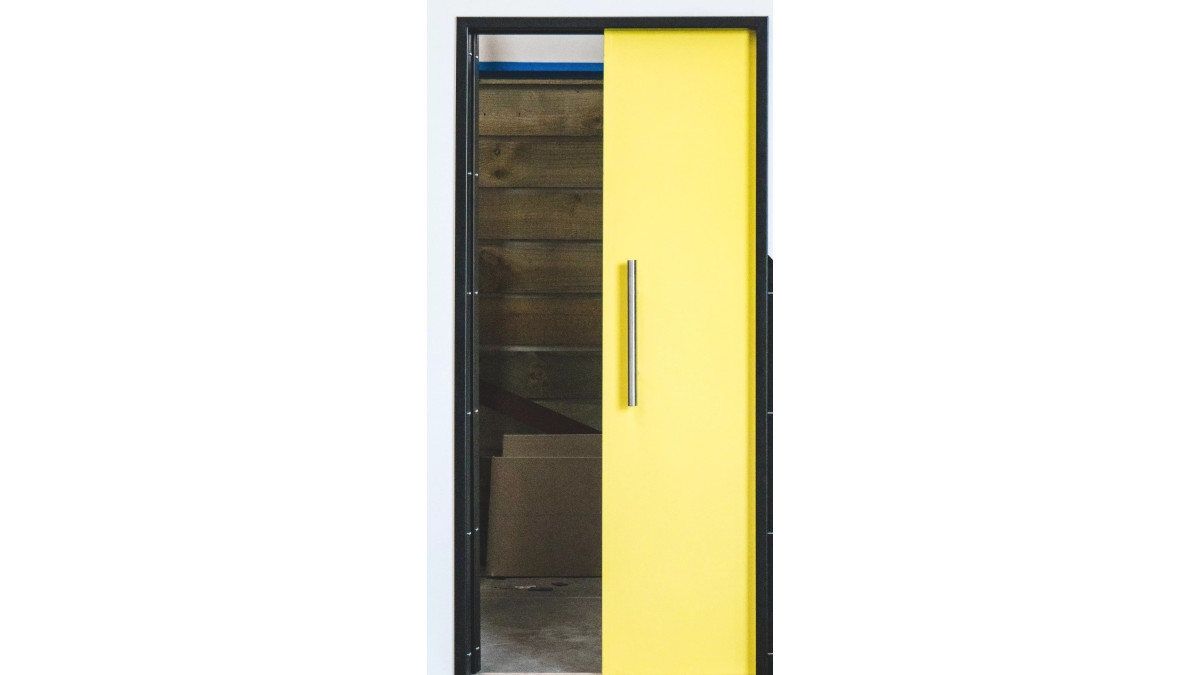

Pacific FS60 Fire Rated Cavity Sliding Door
Description

The FS60 Fire rated cavity sliding door set is suitable for interior use and is available in a steel frame. This door set is the only fire rated cavity sliding door set available in the New Zealand market.

Key Features
  • 60min fire rating
  • Single
  • 3 facing options
  • 1 standard frame option
  • 1 glass option
  • Compatible with timber stud and steel stud wall
  • Meets NZS4520.2010 standard
Scope of Use
  • This door set is the only fire rated cavity sliding door set available in the New Zealand market.
  • Compatible with timber stud and steel stud wall
Limitations on Use
  • This door set is not available in a pair configuration.
  • Timber frames are not available for this door set.
  • Circular vision panels are not an option on this door set.
  • Kickplates are not an option on this door type.
  • Ventillation grilles are not an option.
  • Overpanels are not an option on this door set.
  • Sidelight and overlights are not an option on this door set.
Statement of Building Code Compliance
  • Meets NZS4520.2010 standard
  • 60min fire rating
Other Performance Attributes
  • This door leaf has a thermal insulation rating (R-value) of 0.596 Km²/W.
Documents
Data Sheet

7/7/2025

Additional information

Pacific Doors specialise in the bespoke manufacture of high strength, performance door and window systems for fire, acoustic, security, hospital, ballistic and commercial purposes.
