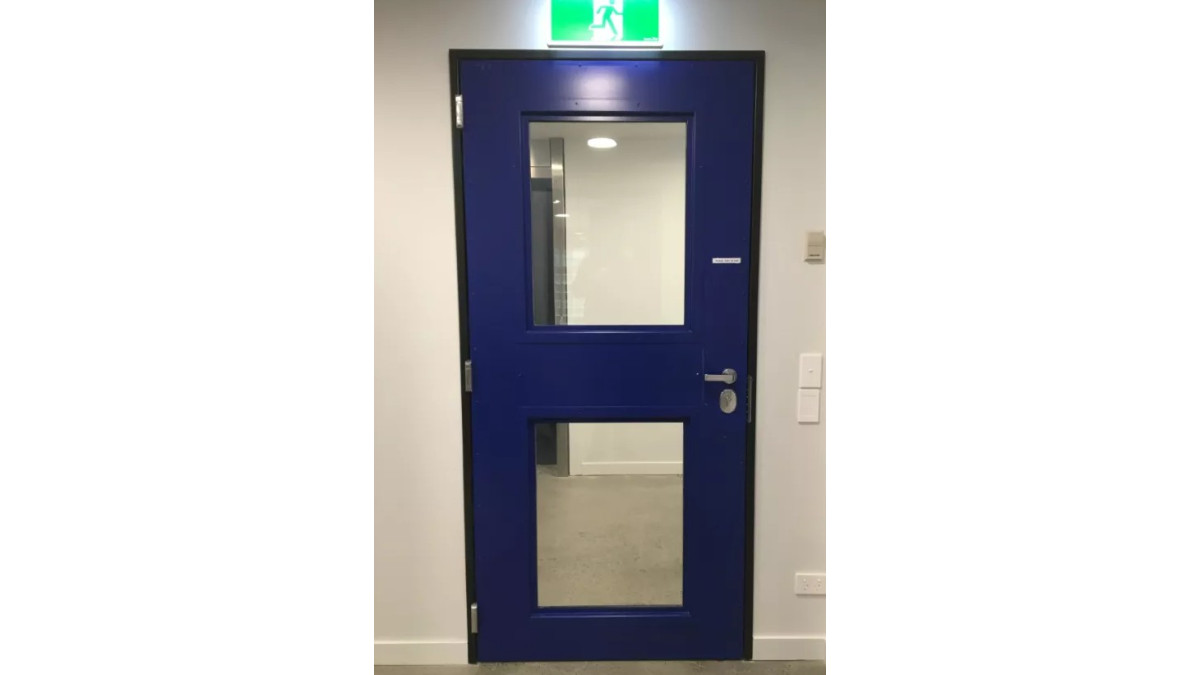

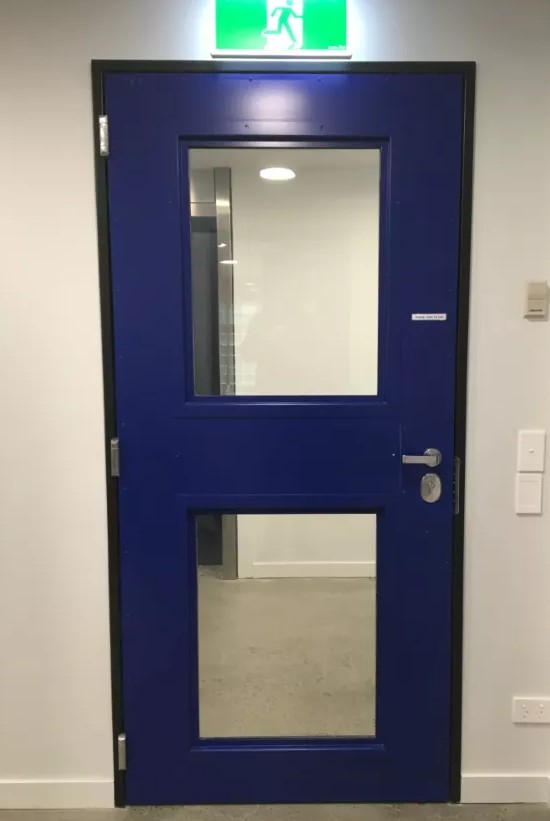

• This door set is suitable for both interior and sheltered exterior use.
• Compatible with masonry wall.
• The thickness of the Armashield door leaf is 48mm, with an approximate leaf weight of 80kg/m².
• A version of the Armashield is available, tested to R2 rating.

• Test results apply to a single door only, with the specification and hardware described.
• Vision panels are not an option for blast resistant doorsets. Hardware is limited.

Security Testing:

• A hinged Armashield door set with Surelock McGill D4 three point locking was subjected to a Level 4 attack according to AS3555-1988 "Building Elements — Testing and Rating for Intruder Resistance".
• Two men attacked the door set with common hand & power tools and succeeded in removing the door leaf from its frame (thus forming an opening in the door set) after 27 minutes 30 seconds.

Ballistic Testing:

• The standard Armashield door set has been successfully tested to AS/NZS 2343:1997 “Bullet resistant panels and elements” with ratings of:
  • G2 .44 Magnum
  • S0 Shotgun 12 gauge 32g SG shot
• Ballistic rated door sets require either a fully-grouted frame installation to masonry or concrete walls, or else ballistic protection built into the frame during manufacture. Matching Ballistic Wall Panels are described in a separate section.

Explosive Blast Testing:

• The Pacific ARMASHIELD single leaf doorset is tested to level EXR 2 of EN 13124:2004 “Windows, doors and shutters – Explosion resistance”.
• An explosive charge of 3kg TNT was detonated 3 metres away from the door.
• The Pacific ARMASHIELD pair doorset is tested to level EXR 1 (3kg TNT at 5 metres).
• Note: Vision panels are not an option for blast resistant doorsets. Hardware is limited.

Thermal Insulation:

• This door leaf has a thermal insulation rating (R-value) of 0.029 Km²/W.
• A version of the Armashield is available tested to R2 rating.
