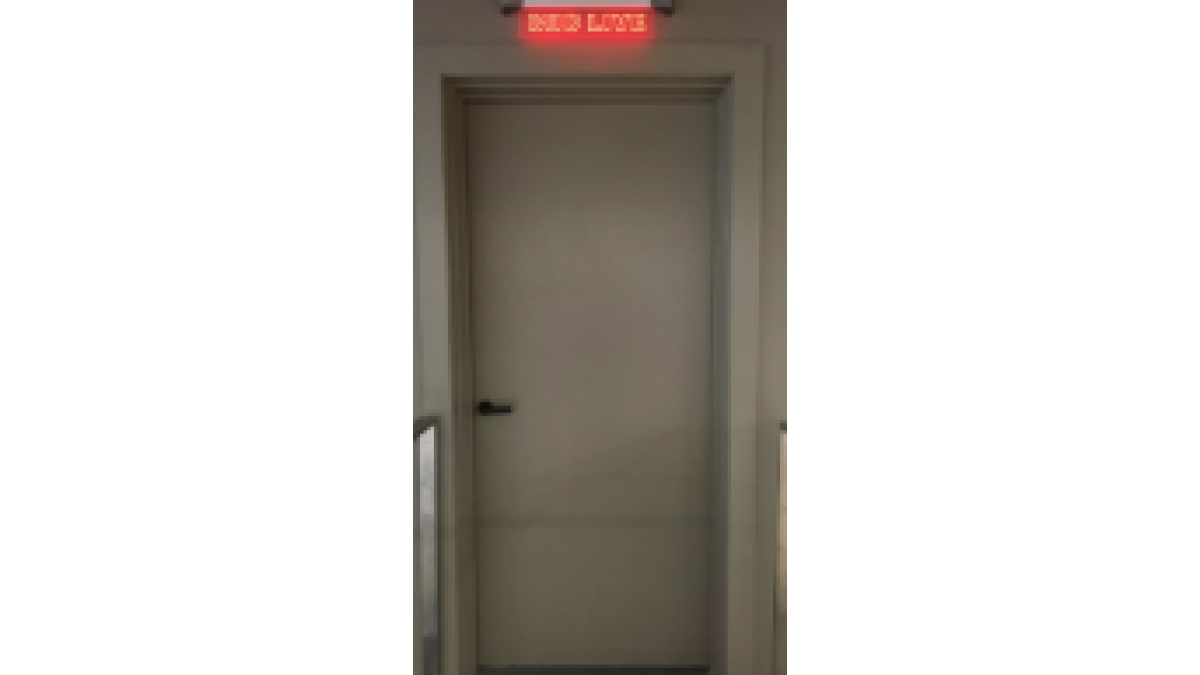

The thickness of the AD200 door leaf is 47mm with an approximate leaf weight of 24kg/m2.

Wall Types

Door sets must be installed carefully, with particular attention to sealing gaps, including around the frame-to-wall junction.

Leaf Facings

The facings listed below are available for the AD200 door set

·         MDF

·         Timber Veneer

·         HPL decorative laminate (e.g. Formica)

·         Sheet Vinyl

·         Metal Sheet, Galv or stainless (0.9mm)*

Smoke control

AD-series acoustic doors are available with a smoke control rating (-/-/-/ SM). These doors comply with the NZBC C/AS2 C6.1.2 definition of smoke control doors.

Thermal insulation

This door leaf has a thermal insulation rating (R-value) of 0.7751 Km2/W.
