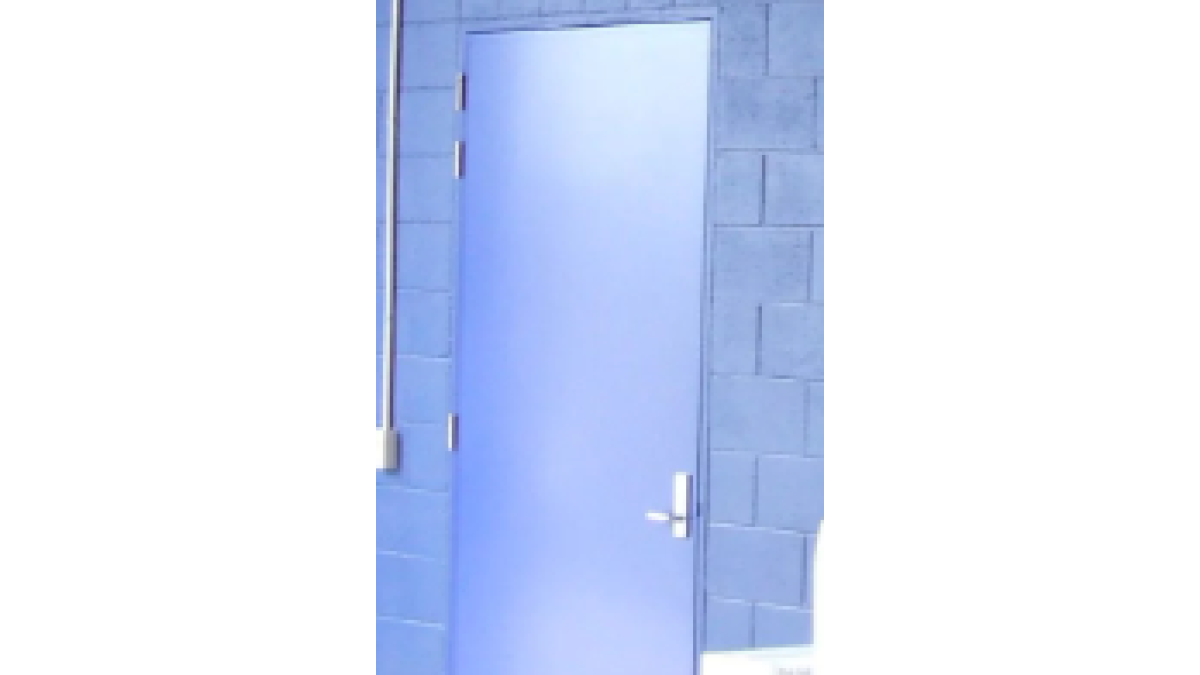

• The thickness of the AD200-E door leaf is 51mm with an approximate leaf weight of 35kg/m²
• Suitable for both interior and exterior.
• Compatible with timber stud, steel stud and masonry wall

• AD-series acoustic doors are available with a smoke control rating (-/-/-/ SM).
• These doors comply with the NZBC C/AS2 C6.1.2 definition of smoke control doors.

• STC 40 acoustic rating
• Certified acoustic performance to ISO 140-3

Thermal insulation:

• This door leaf has a thermal insulation rating (R-value) of 0.811 Km²/W.
