Enertherm PIR
Outright Continuous Insulation
All products

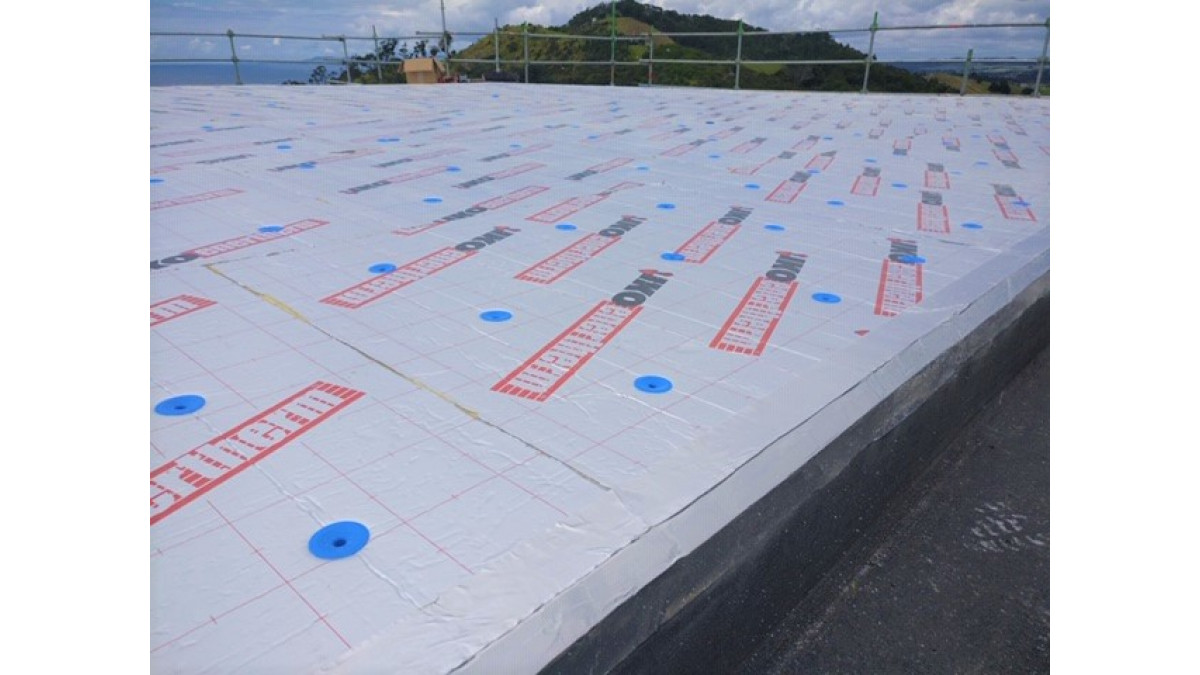

IMG 0816 1
143534 8169059
CS3770
amay 2 1 web

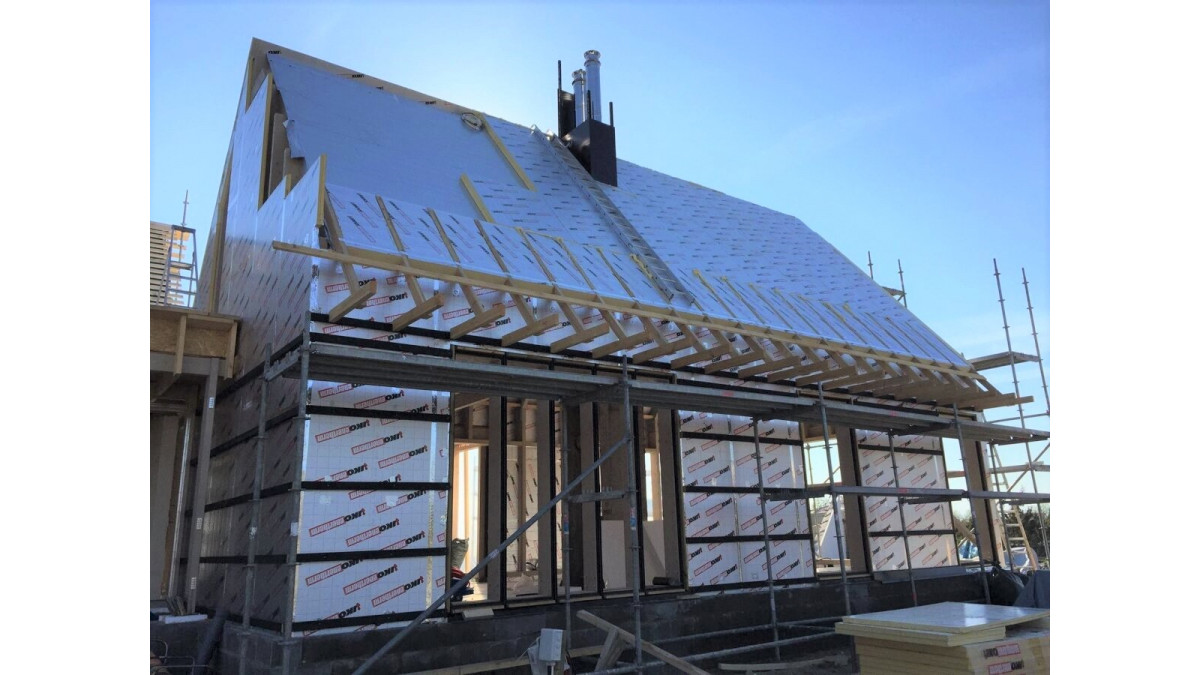

Outright House
Good
IMG 0992
platdak1

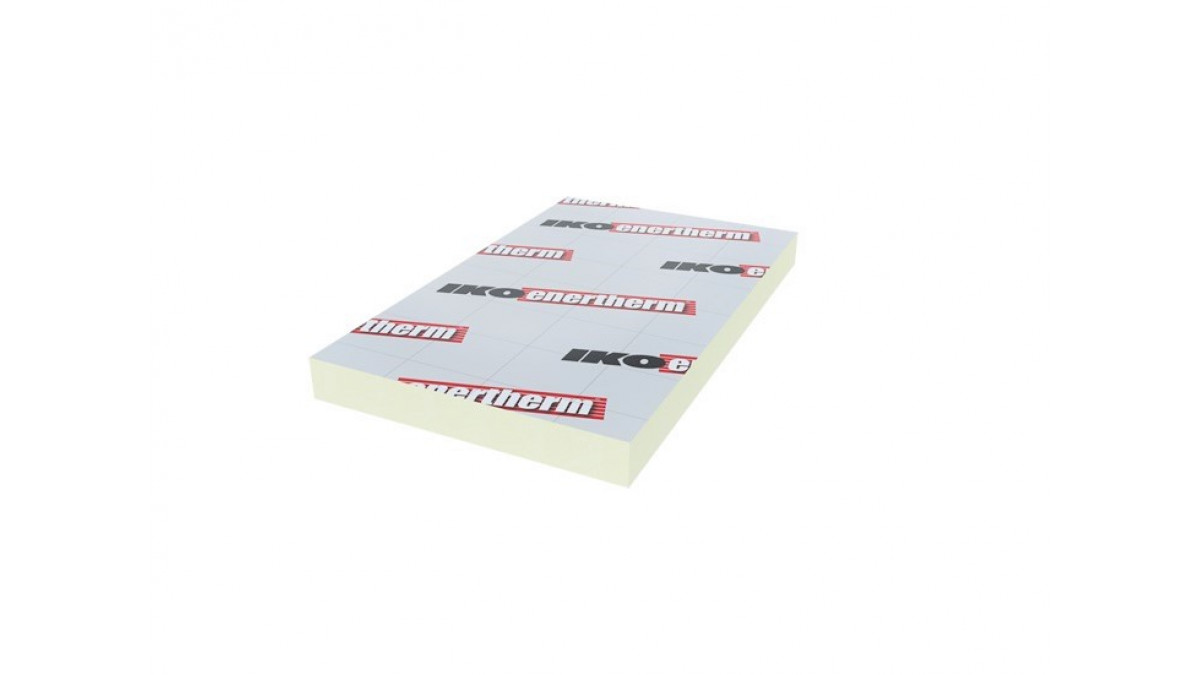

PIR Insulation Boards

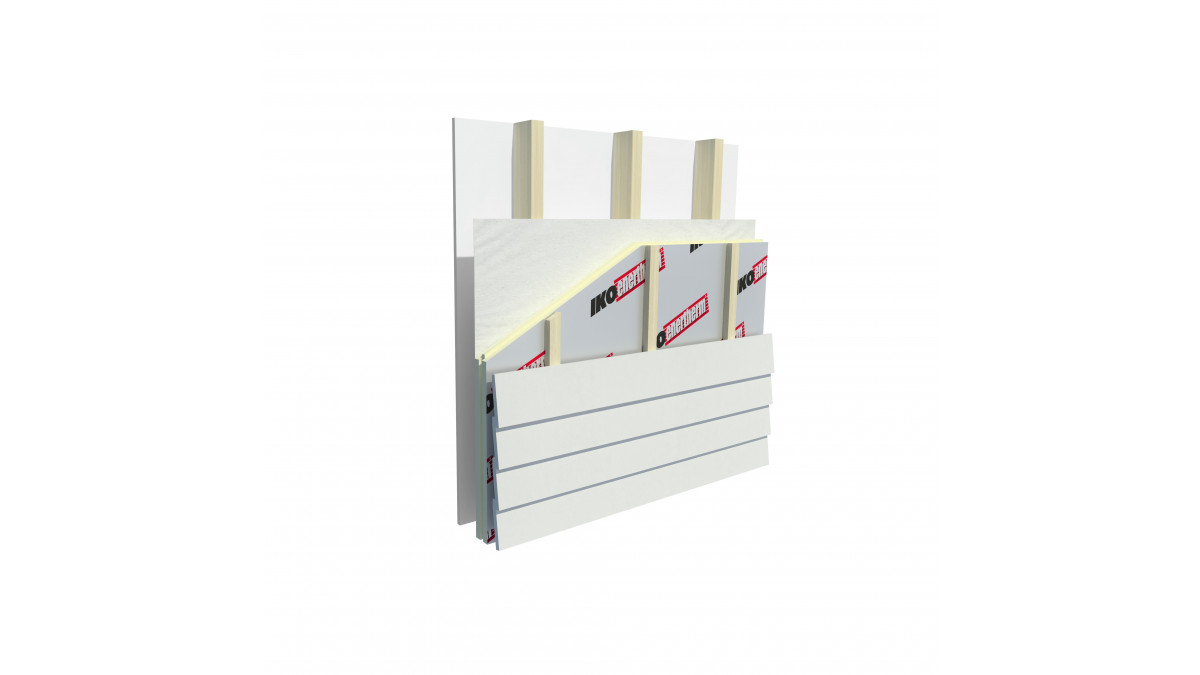

timber framing

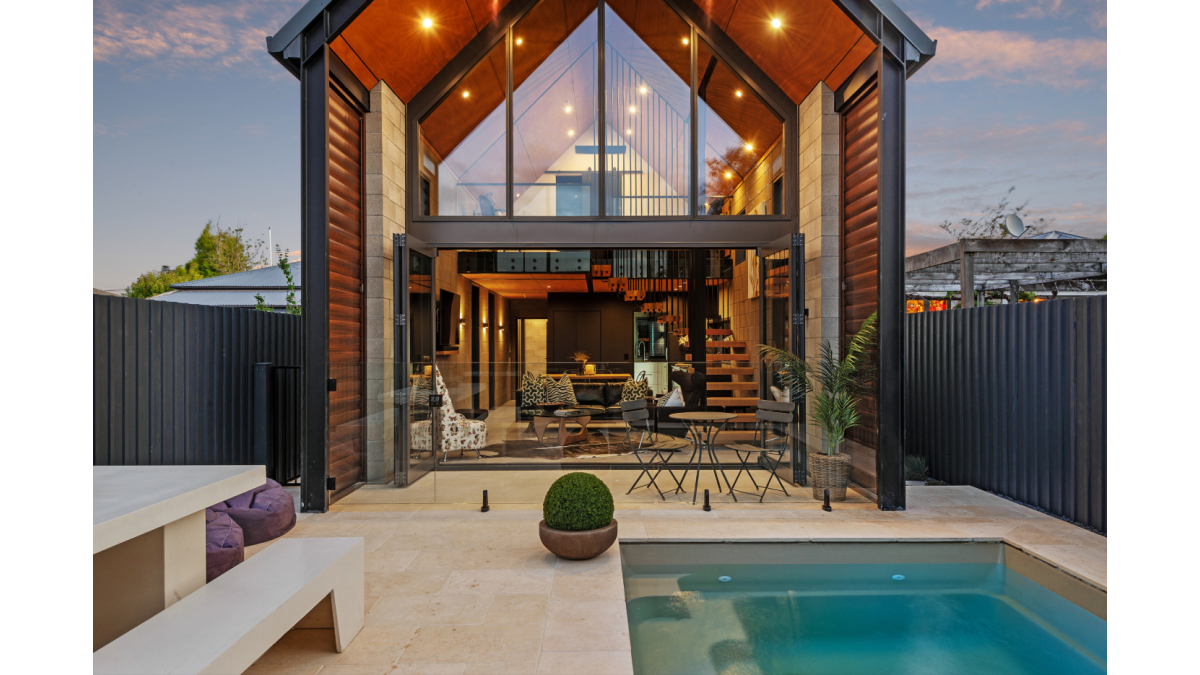

St Albans House 2 2
AP1678 1 1
Description

IKO Enertherm, provided by Outright Continuous Insulation is a high-performance, fibre-free rigid PIR insulation, faced on both sides with a low emissivity composite foil bonded to the insulation during manufacture. It is designed to thermally insulate the whole building envelope. These include applications for walls: concrete, block and framed, roofs: flat, pitched and tapered, floors and basements.

This high-quality reflecting facing to the PIR board consists of no fewer than seven layers, combined into a single layer. It is tested under extreme conditions in respect of water absorption, mechanical properties, corrosion resistance and emissivity.

Key Features
  • High density product: bulk density ± 32 kg/m²
  • High compressive strength at 10% deformation: 175 kPa (17,5 ton/m²)
  • Thermal conduction coefficient: (EN 13165) D: 0,022 W/(m.K)
  • Flame propagation: The insulation complies with NZ 2122.1-1993
  • Water vapour diffusion: PIR foam: μ = 60 - ALU facing: μ > 100,000
  • Moisture Absorption Rate: < 1%
  • Behaviour under uniformly distributed loading: class C (≤ 5 % deformation at 80°C and 40 kPa loading)
  • High R Value for its thickness: example 100mm = R4.55
Categories
Thermal Insulation
Ranges
Enertherm PIR Boards
Scope of Use

Enertherm PIR boards can be installed in various applications:

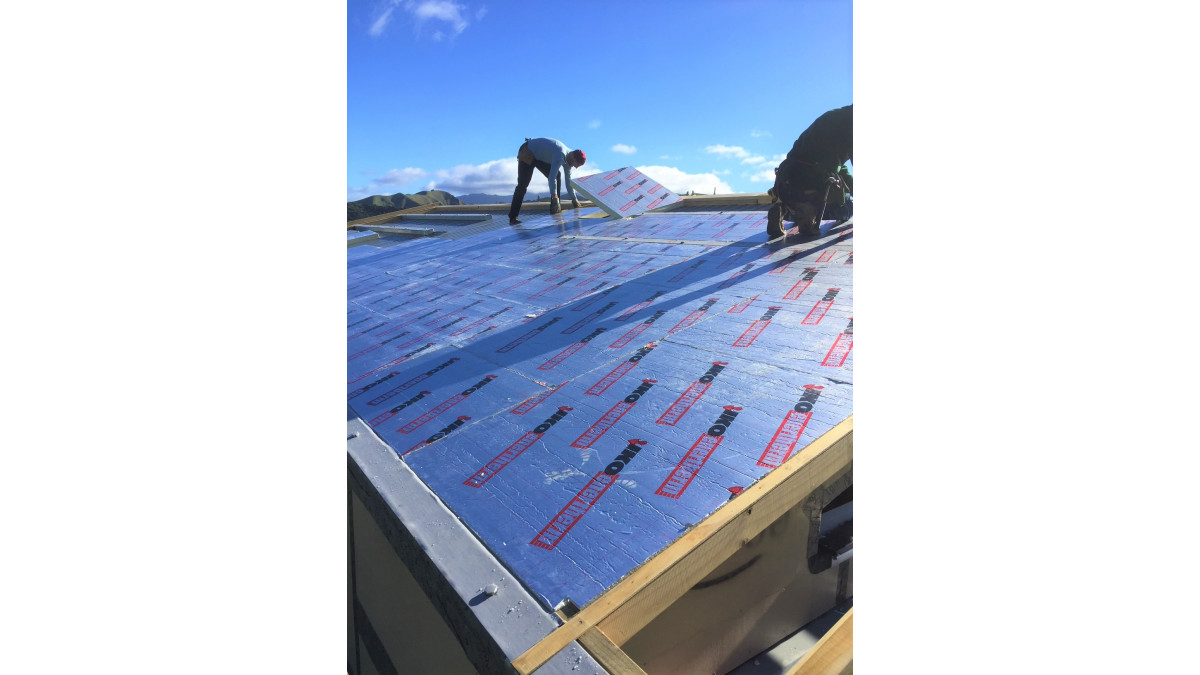

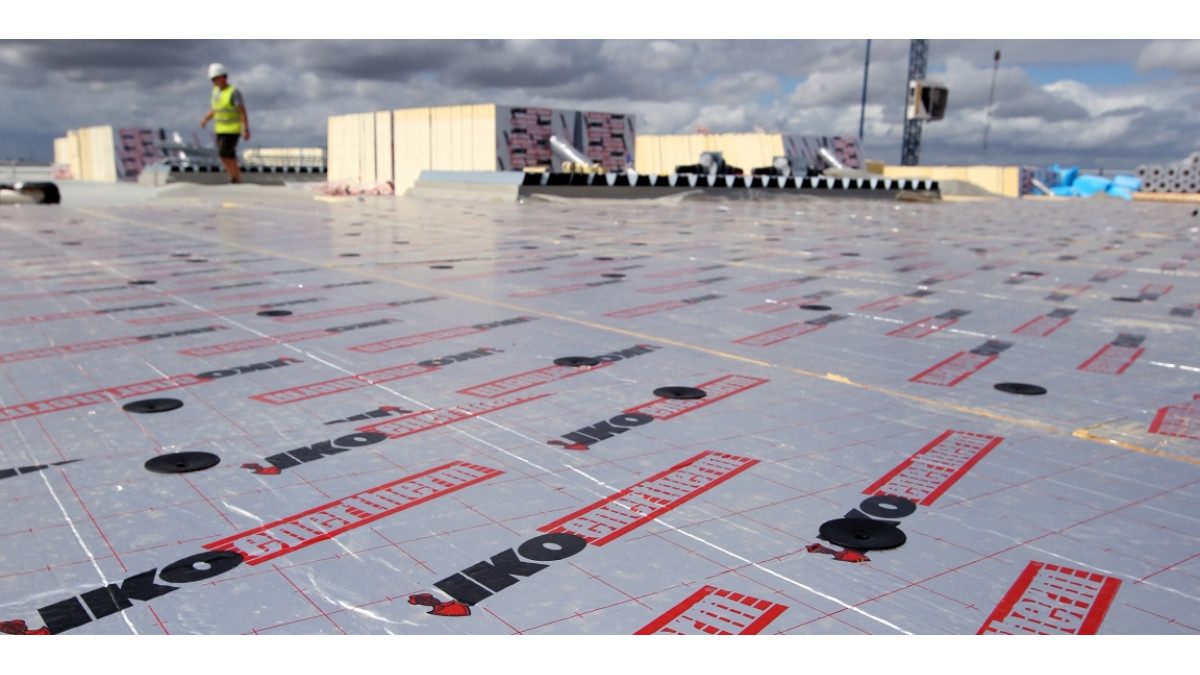

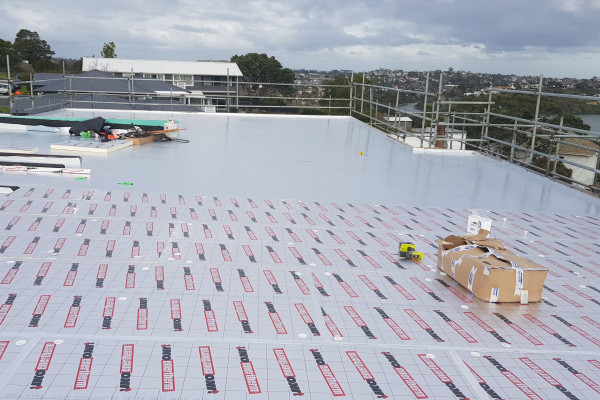

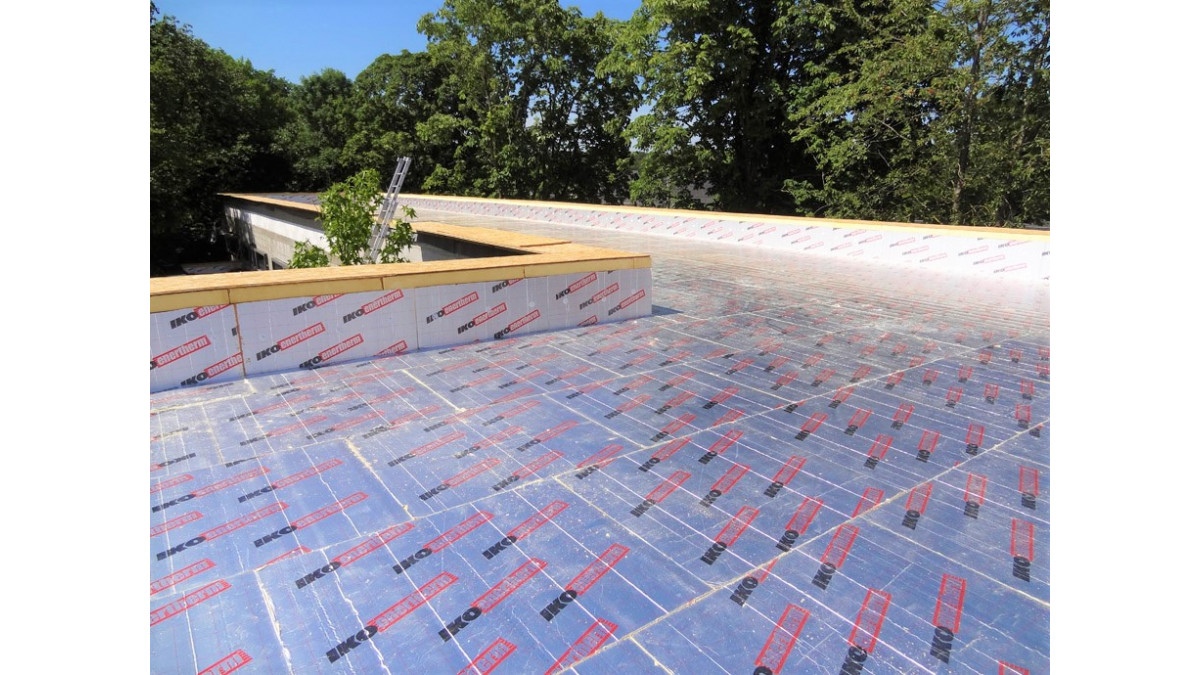

  • Flat Roof: insulation for timber, concrete and steel deck and covered in a roofing membrane. Also includes tapered insulation to create a fall

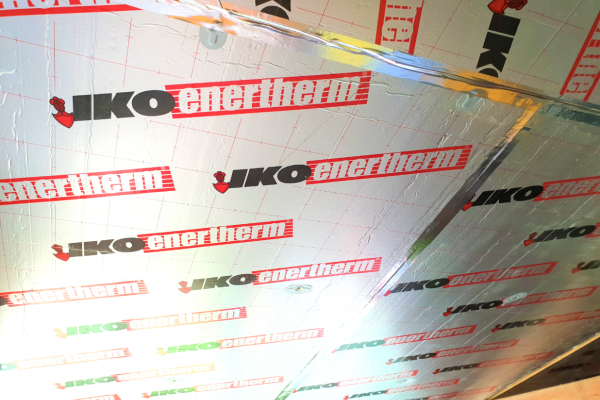

  • Pitched Roof: Incorporated into the TriCore system: pitched roof insulation under metal

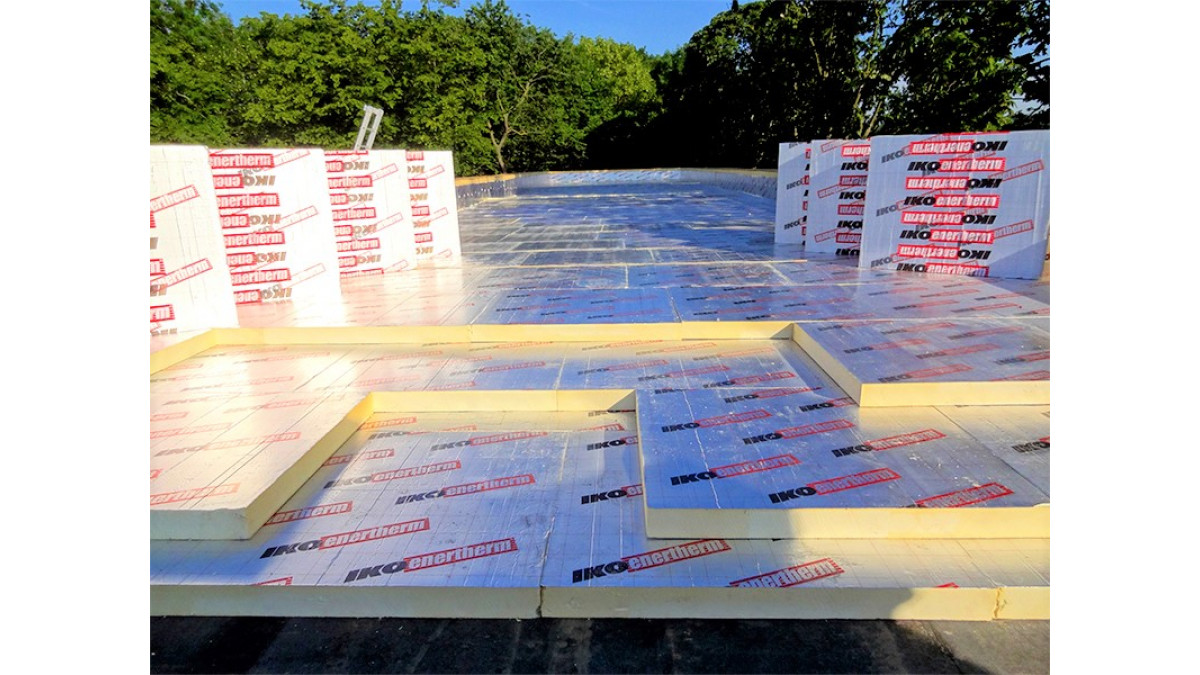

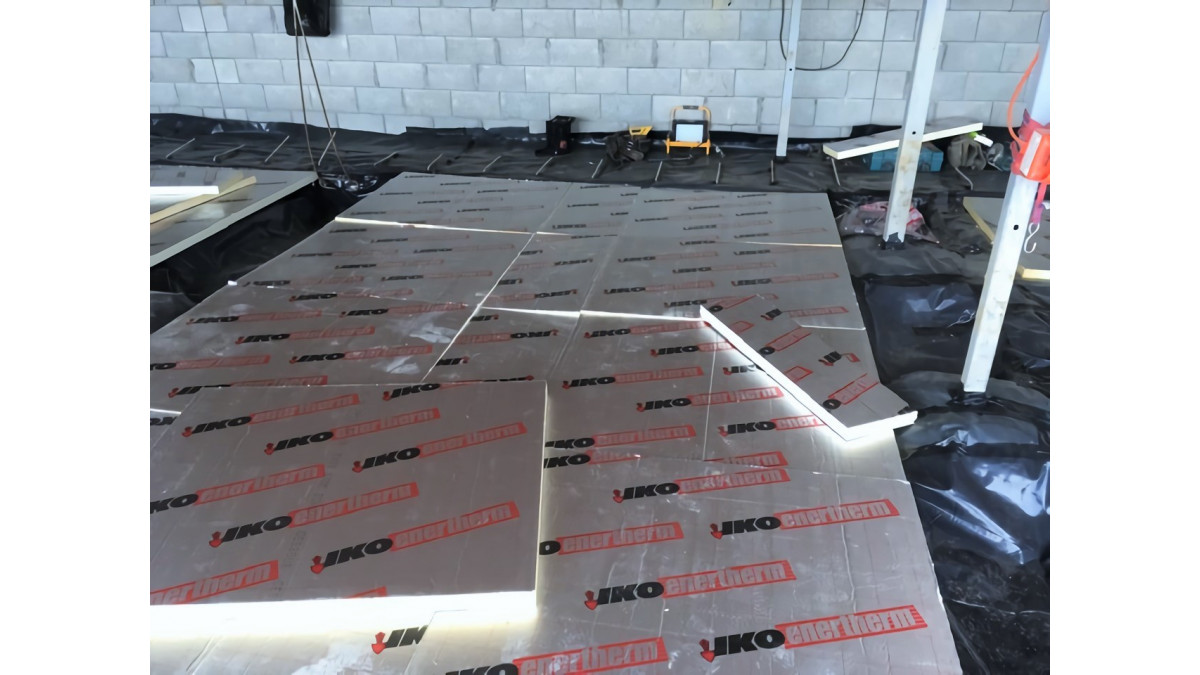

  • Floor: floor insulation (underfloor heating and concrete floors)

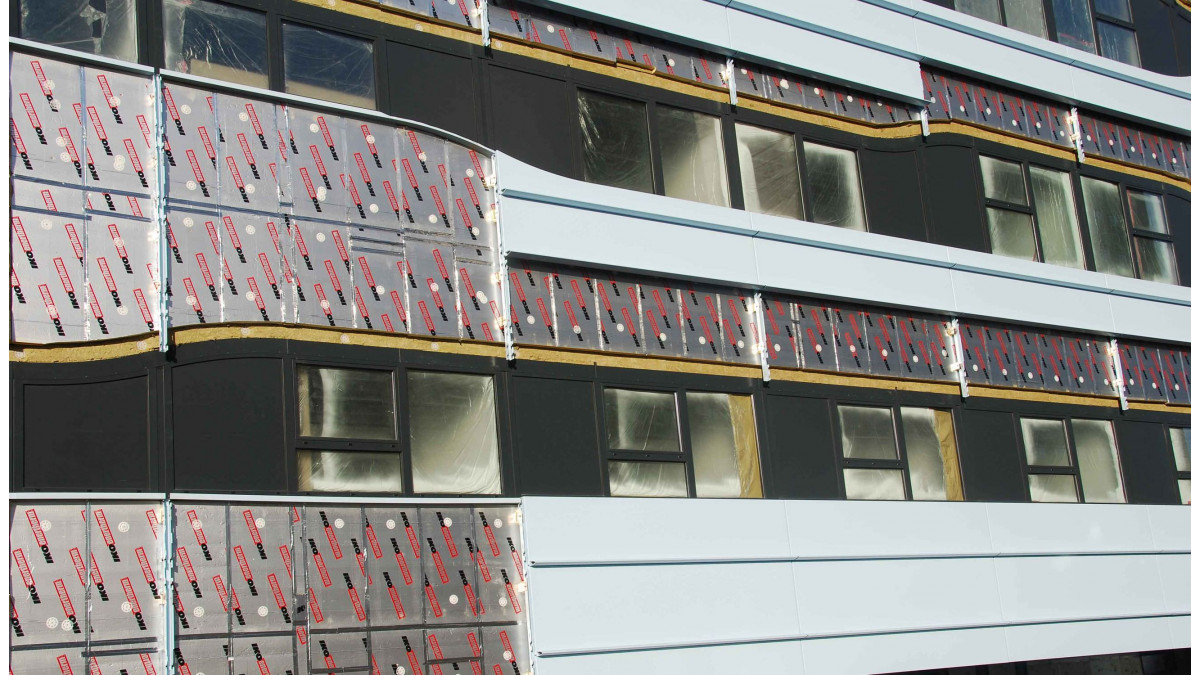

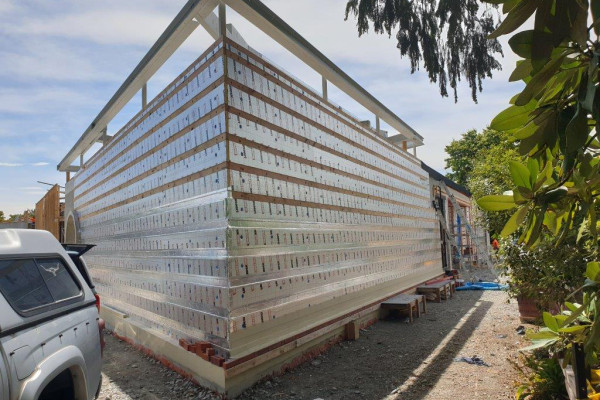

  • Exterior Wall: outside wall insulation (closed joints)
  • Basement: basement and cavity insulation
Statement of Building Code Compliance
  • NZBC B2/AS1 Durability
  • NZBC C/AS1 Protection from fire
  • NZBC E3/AS1 Internal moisture
  • NZBC F2/AS1 Hazardous building materials
  • NZBC H1/AS1 Energy efficiency
In-Service History

Outright Continuous Insulation is part of the New Zealand owned and operated company, Nuralite Waterproofing Ltd. They have provided membrane roofing, decking and tanking solutions within the architectural industry for over 50 years.

IKO Enertherm has been used throughout New Zealand for over 15 years on many projects.

Other Performance Attributes
  • 20 year warranty
  • Case Studies
  • News
Documents
BPIR Product Information: Enertherm PIR
pdf
Specification Guide
pdf
IKO Enertherm Brochure
pdf
Configurations
pdf
Additional information
URL

Outright Continuous Insulation (OCI) supplies high-performance continuous insulation solutions that enhance thermal efficiency, moisture management, acoustic comfort, and fire resilience.
