Horizon Concrete Tile

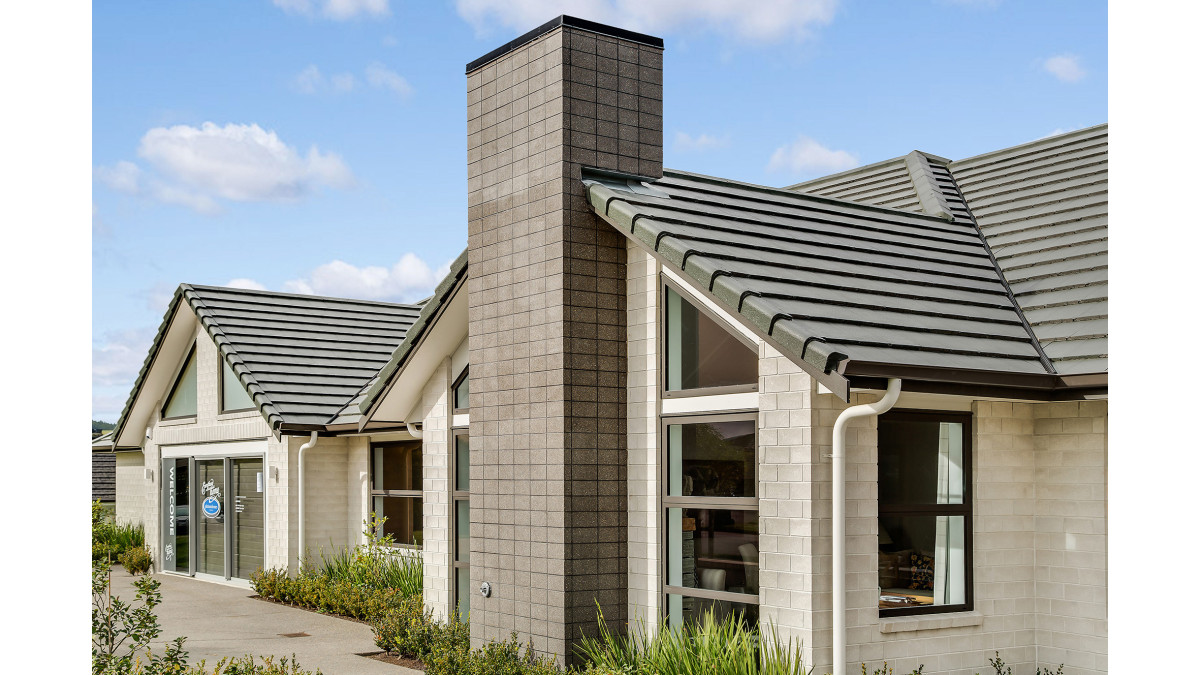

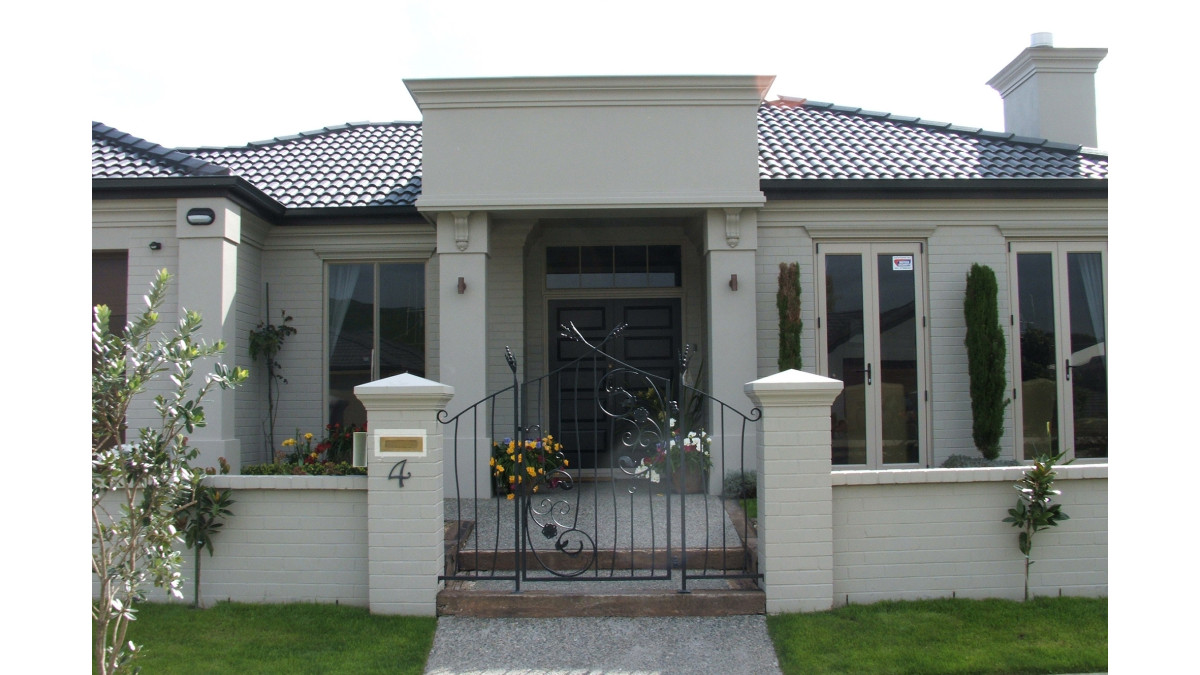

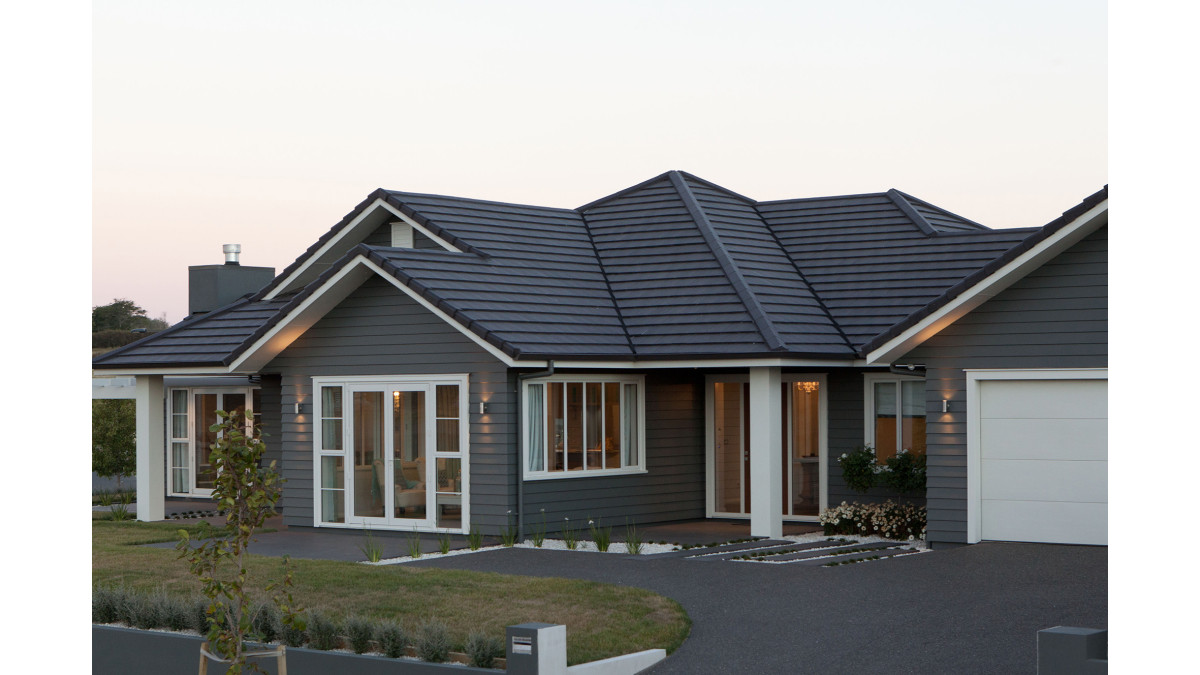

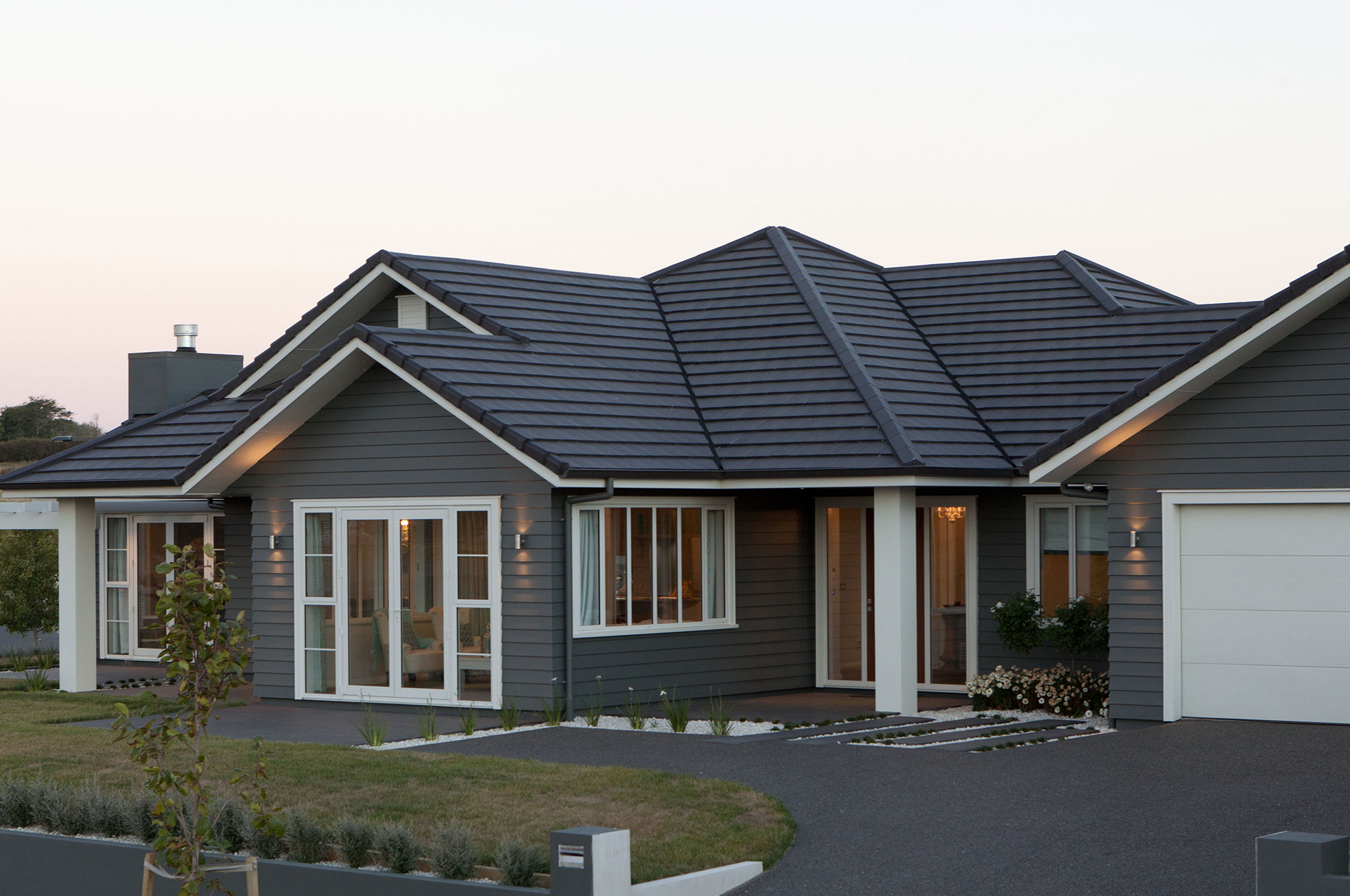

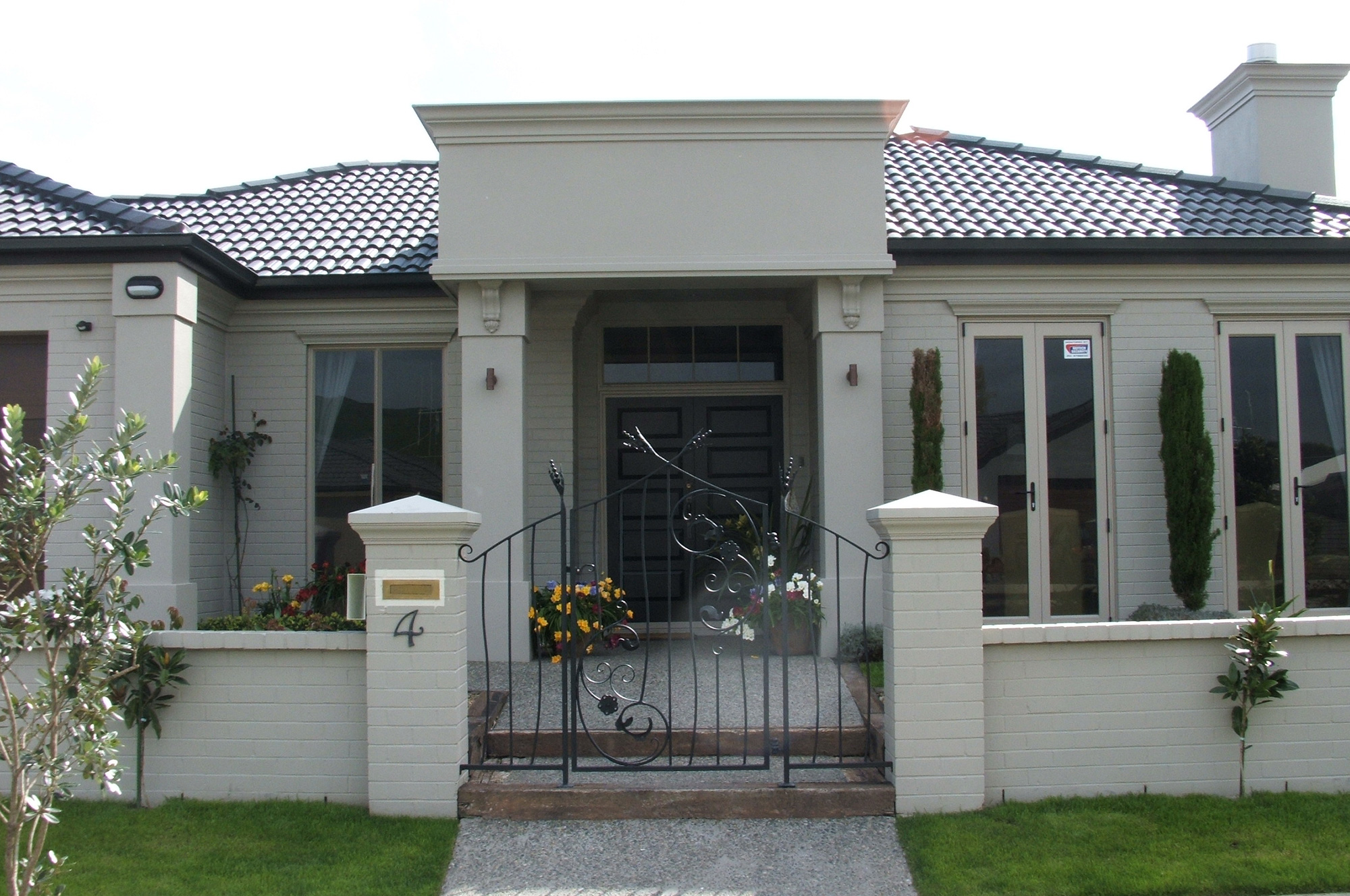

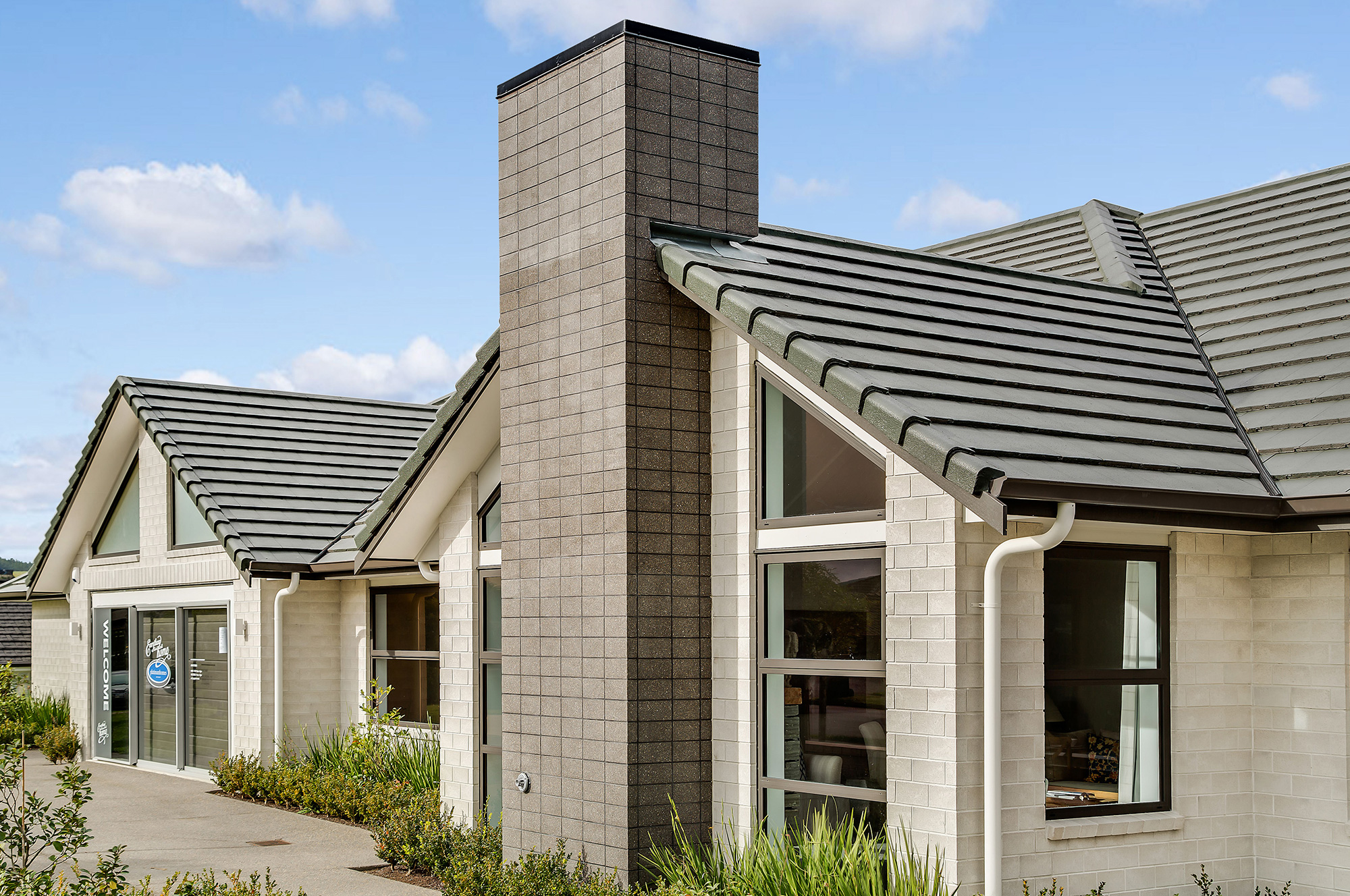

The Horizon Tile is a contemporary flat concrete roof tile supplied by Monier.  Designed to deliver a streamlined look that integrates seamlessly with current trends in New Zealand architecture.

Available in a wide range of colours.

Key Features
  • Developed to deliver stylish, clean lines for streamlined roof design
  • Incorporates A Line ridging and barges to complete the look
  • Available in 12 colours
  • Backed by Monier's 50 Year Performance Guarantee

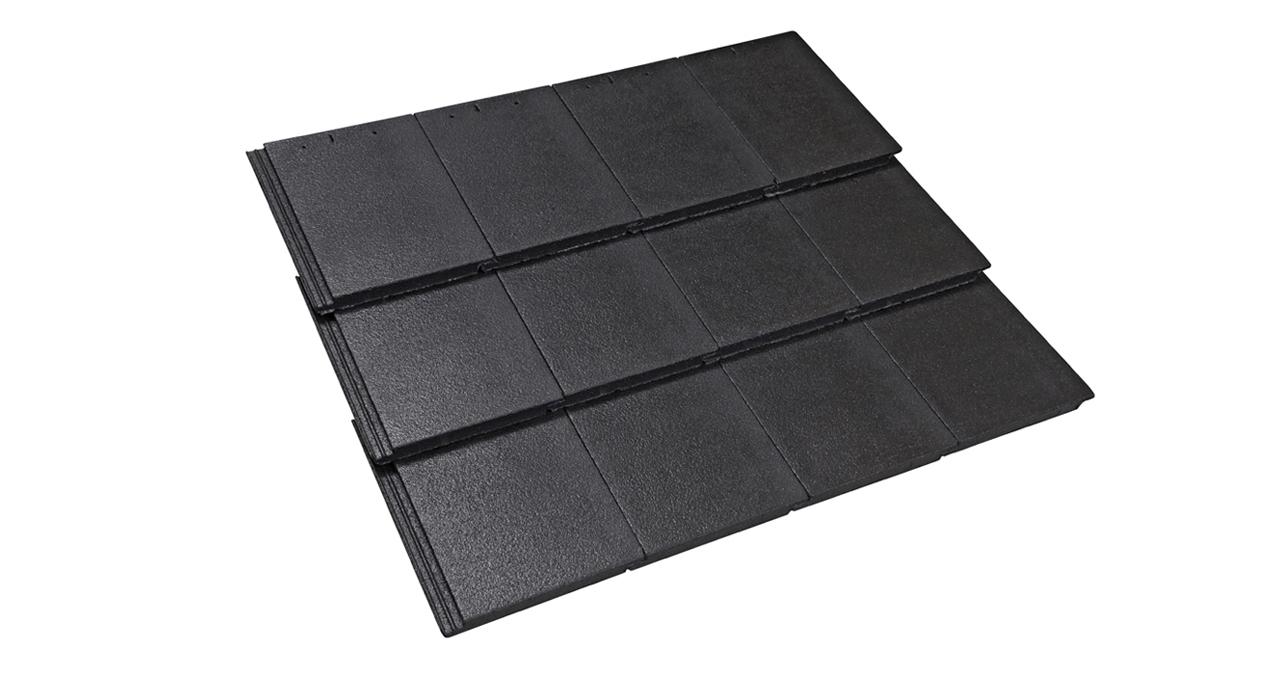

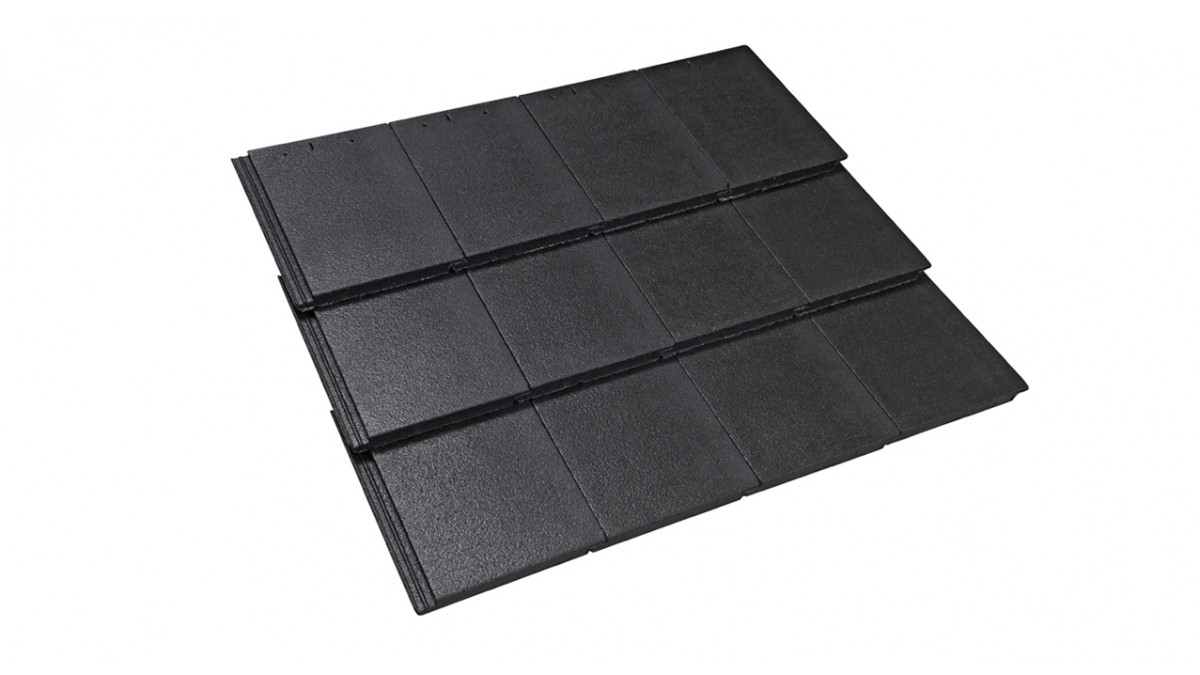

  • 329 x 420mm (W x L) approx. 11 tiles/m²
Tile Roofing
Scope of Use
  • Suitable for coastal locations & cold climates
  • Cross bond
  • 329 x 420mm (W x L) approx. 11 tiles/m²
Limitations on Use

Specific design requirements for Horizon Tiles:

  • Minimum roof pitch 25°
  • Roof underlay is required in all installations
  • Maximum rafter length varies with roof pitch — see Product Technical Statement
Statement of Building Code Compliance

Monier Horizon Concrete Roof Tiles conform to the NZBC (New Zealand Building Code) requirements and when installed according to Monier's instructions and NZBC, meet the following provisions:

  • Clause B2 Durability
  • Clause E2 External Moisture
Other Performance Attributes
  • Tiles are manufactured to AS 2049 / NZS 4206
  • Salt Safe — will not corrode over time
  • Impervious to frost and ice — will not warp
  • Will not rust, warp, or corrode
  • C-LOC Colour Lock Technology — fade resistances and retains gloss for longer


Monier Horizon Roof Tiles are structurally guaranteed to perform their function for 50 years and are a low maintenance roof cladding option.

Monier Technical Resources
Product Technical Statement: Concrete Horizon


Colour Range
Additional Information

Monier has a proud history in the New Zealand building industry, from the original terracotta tile to the extensive range available today, Monier tiles have long been a trusted roofing solution.
