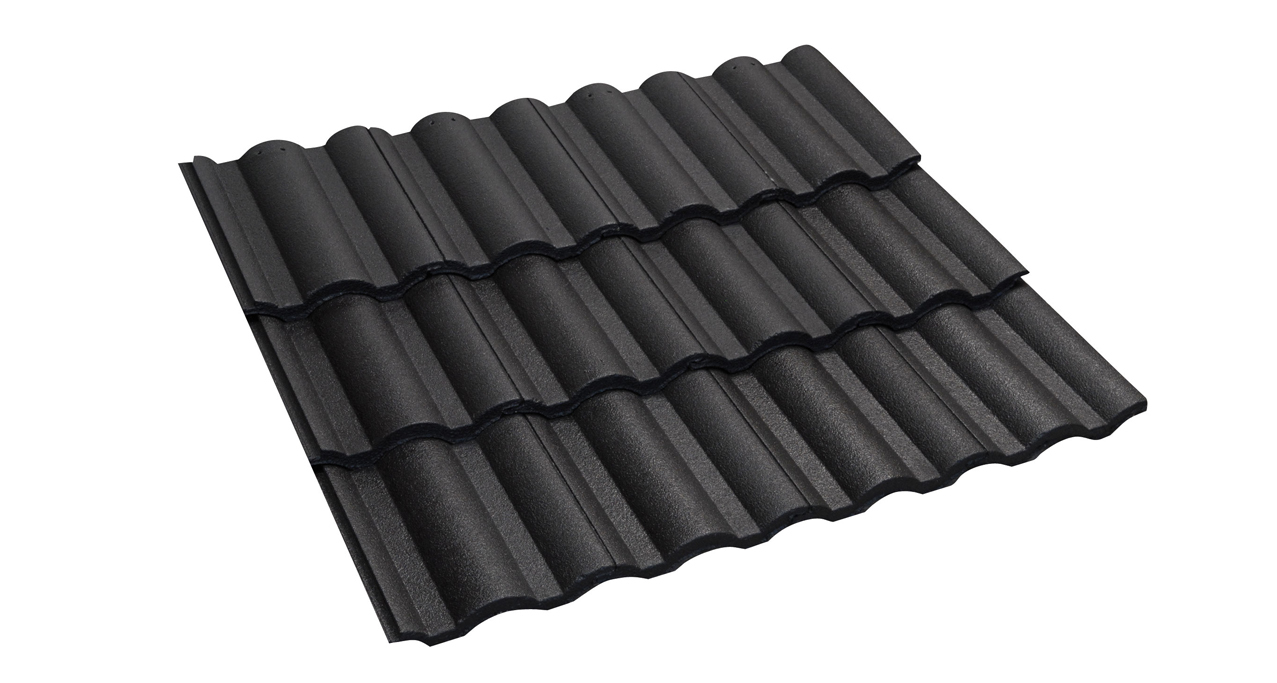

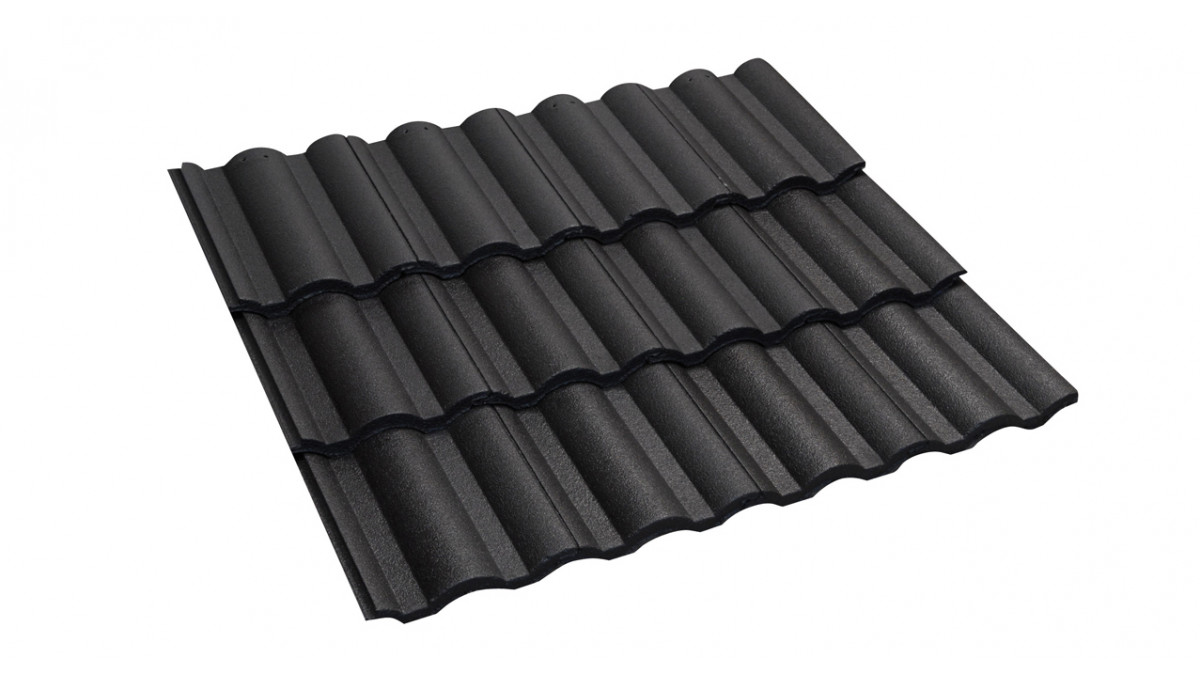

Hacienda Concrete Tile
Description

The Hacienda Tile is a concrete roof tile supplied by Monier. It has a versatile profile that combines traditional good looks with exceptional product performance.

Available in a wide range of colours.

Key Features
  • Enhance classic and Mediterranean designs with the prominent roll of the Hacienda tile
  • Available in 12 colours
  • Backed by the Monier's 50 Year Performance Guarantee
  • 329 x 420mm (W x L) approx. 11 tiles/m²
Categories
Tile Roofing
Scope of Use
  • Suitable for coastal locations & cold climates
  • Straight bond
  • 329 x 420mm (W x L) approx. 11 tiles/m²
Limitations on Use

Specific design requirements for Hacienda Tiles:

  • Minimum roof pitch 15°
  • Roof underlay is highly recommended in all installations, and is mandatory for any roof:
    • receiving discharge from a spreader,
    • on a skillion roof,
    • on roofs in wind zone Very High or Extra High, or
    • where roof pitch is below 20°
  • Maximum rafter length varies with roof pitch — see Product Technical Statement
Statement of Building Code Compliance

Monier Hacienda Concrete Roof Tiles conform to the NZBC (New Zealand Building Code) requirements and when installed according to Monier's instructions and NZBC, meet the following provisions:

  • Clause B2 Durability
  • Clause E2 External Moisture
Other Performance Attributes
  • Tiles are manufactured to AS 2049 / NZS 4206
  • Salt Safe — will not corrode over time
  • Impervious to frost and ice — will not warp
  • Will not rust, warp, or corrode
  • C-LOC Colour Lock Technology — fade resistances and retains gloss for longer

Warranty

Monier Hacienda Roof Tiles are structurally guaranteed to perform their function for 50 years and are a low maintenance roof cladding option.

Documents
CAD
Monier Technical Resources
Product Technical Statement: Concrete Hacienda

2022

Colour Range
Additional Information

Monier has a proud history in the New Zealand building industry, from the original terracotta tile to the extensive range available today, Monier tiles have long been a trusted roofing solution.
