Urban Shingle Terracotta Tile

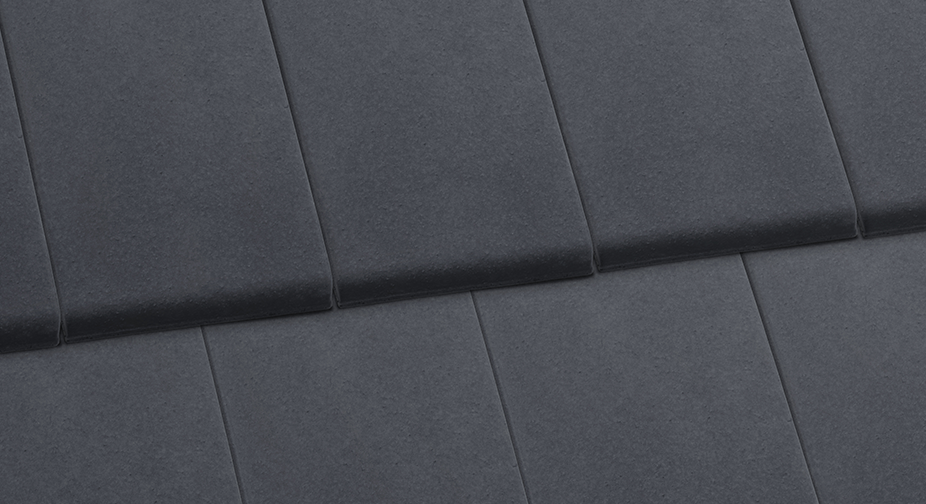

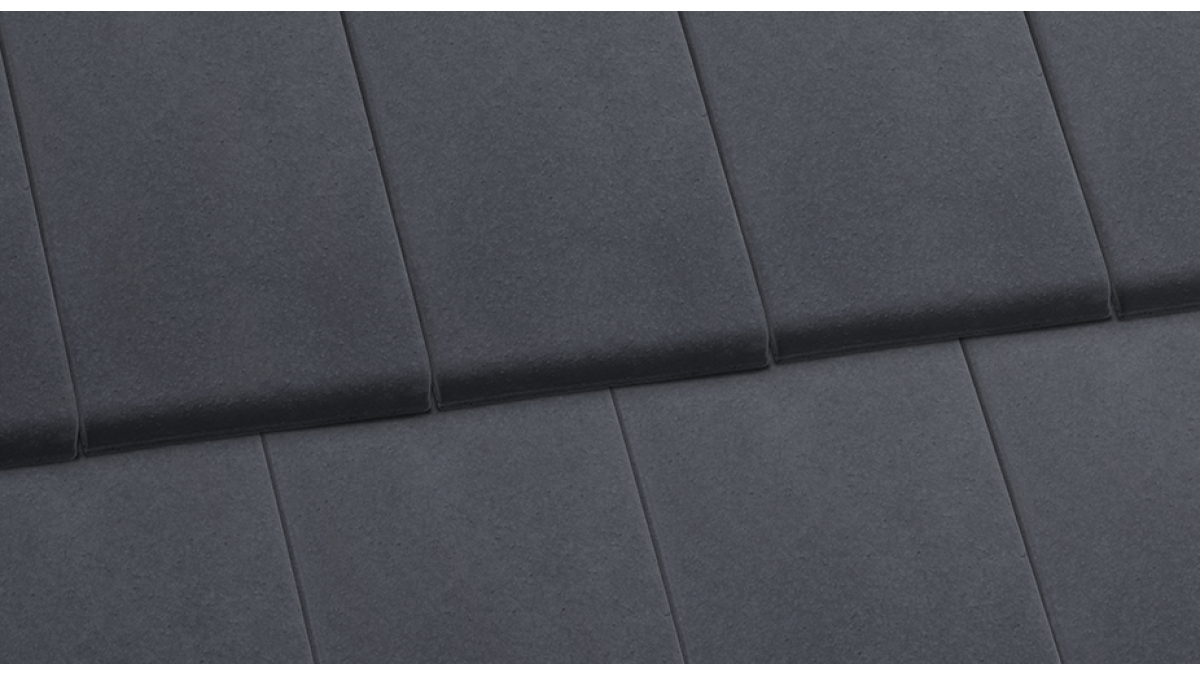

Urban Shingle is a terracotta roof tile with a flat and seamless profile, delivering contemporary styling, With a unique rolled nose, this tile is ideally suited to the Hamptons and Mid-Century Modern home-designs.

Key Features
  • Flat & seamless, mid-century and modern style
  • Lasting colour that does not fade
  • Available in 5 colours
  • Made from natural clay — sustainable and energy efficient
  • Backed by Monier's 50 Year Performance and Colour Guarantee
  • 271 x 442mm (W x L) approx. 12.7 tiles/m²
Tile Roofing
Scope of Use
  • Suitable for coastal locations & cold climates
  • Suitable for use with potable water collection
  • Cross bond
  • 271 x 442mm (W x L) approx. 12.7 tiles/m²
Limitations on Use

Specific design requirements for Portuguese Tiles:

  • Minimum roof pitch 25°
  • Roof underlay is required in all installations
  • Maximum rafter length varies with roof pitch — see Product Technical Statement
Statement of Building Code Compliance

Monier Urban Shingle Terracotta Roof Tiles conform to the NZBC (New Zealand Building Code) requirements and when installed according to Monier's instructions and NZBC, meet the following provisions:

  • Clause B2 Durability
  • Clause E2 External Moisture
Other Performance Attributes
  • Tiles are manufactured to AS 2049
  • Colour does not fade
  • Tank water safe
  • Salt Safe — will not corrode over time
  • Impervious to frost and ice — will not warp
  • Will not rust, warp, or corrode


Monier Urban Shingle Terracotta Roof Tiles are structurally guaranteed to perform their function and retain their colour for 30 years and are a low maintenance roof cladding option.

Monier Technical Resources
Product Technical Statement: Urban Shingle


Colour Range
Additional Information

Monier has a proud history in the New Zealand building industry, from the original terracotta tile to the extensive range available today, Monier tiles have long been a trusted roofing solution.

Product Enquiries

News from Monier

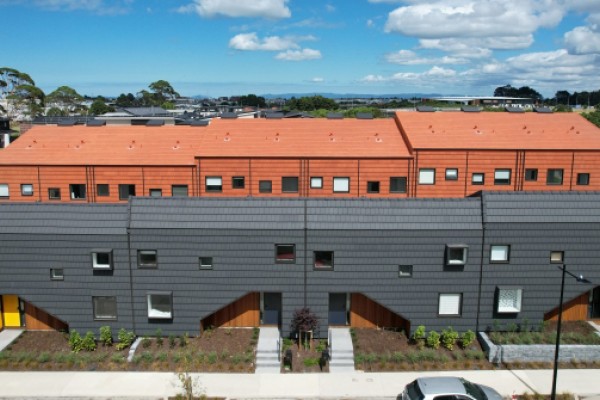

Award-Winning Kōtuitui Development Features Monier Terracotta Tiles
