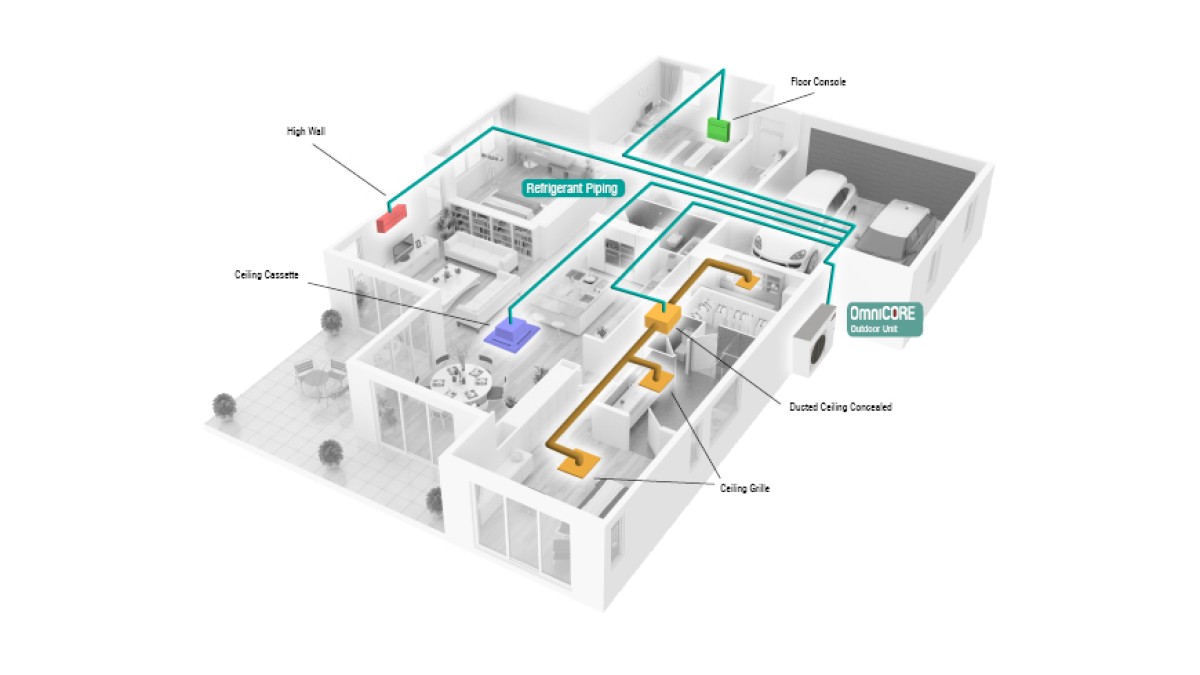

A Mitsubishi Electric OmniCore Multi Room Heat Pump System offers the flexibility to choose the perfect heat pump for each room with just one OmniCore outdoor unit. Intended to minimise the clutter of having several outdoor units outside while also offering flexible design opportunities and individual room temperature control — it's an ideal solution for small to medium-sized homes, townhouses and apartments.

OmniCore Classic — MXZ Range (R32) of Outdoor Units:

• MXZ-2F52 (6.1 kW Heating) Connect 2 indoors
• MXZ-3F54 (7.0 kW Heating) Connect 2-3 indoors
• MXZ-4F71 (8.0 kW Heating) Connect 2-4 indoors
• MXZ-4F80 (8.8 kW Heating) Connect 1-4 indoors
• MXZ-5F100 (10.0 kW Heating) Connect 1-5 indoors
• MXZ-6F120 (13.2 kW Heating) Connect 1-6 indoors

Final outdoor unit selection will be affected by several different factors:

• The combination of rooms and their location, as well as operating use, will determine which of the proposed models required
• In many cases, an outdoor unit with a lower heating capacity may be adequate where not all indoor units are required to operate at full capacity simultaneously
• If considering adding more indoor units in the future, in the interests of future-proofing, it may be best to select an outdoor unit capable of providing more heating capacity than is currently required

Also note:

• OmniCore Classic refrigerant piping is extendable up to 25m per indoor unit (MXZ-2F52 up to 20m)
• Optional Corrosion Protection Service to reduce the likelihood of premature corrosion in coastal environments

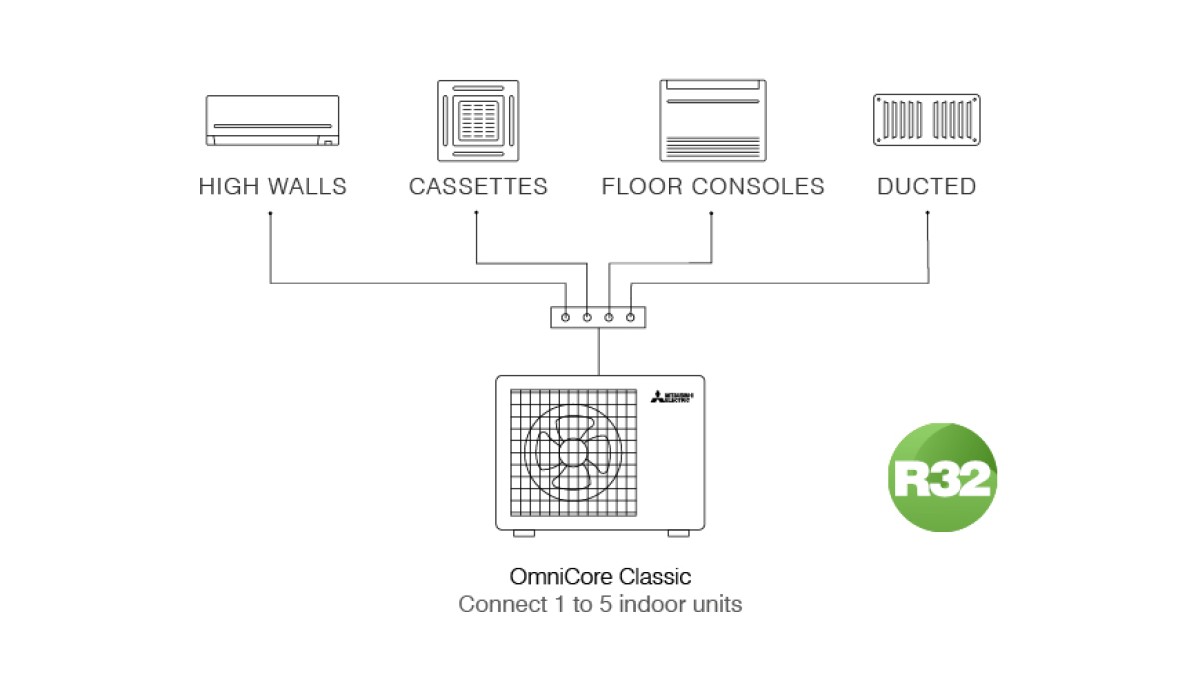

Every OmniCore Classic Multi Room outdoor unit has three parameters that determine the number and size of indoor units that can be connected to it:

• 1. The number of indoor units that can be connected. Ranging from 1 to 6 indoor units dependent on outdoor unit (for more than 6 indoor units please refer to the OmniCore Pro Multi Room Heat Pump Series)
• 2. The maximum individual indoor class rating that can be connected. Ranging from 15 to 80
• 3. The maximum total class rating of all units that can be connected. Ranging from 75 to 180 dependent on unit

This product should not be used in the following situations:

• In an area affected by heavy snowfall or blowing snow — in areas with heavy snow please install a canopy, a pedestal and/ or some baffle boards.
• Within 3 metres from an antenna of TV set or radio. Operation of the air conditioner may interfere with radio or TV reception in areas where reception is weak. An amplifier may be required for the affected device.
• Where there is risk of combustible gas leakage.

For larger homes, offices and other light commercial applications, please refer to the OmniCore Pro Multi Room Heat Pump Series.

The full range of Mitsubishi Electric products have been tested and registered in accordance with MEPS (Minimum Energy Performance Standards) requirements.

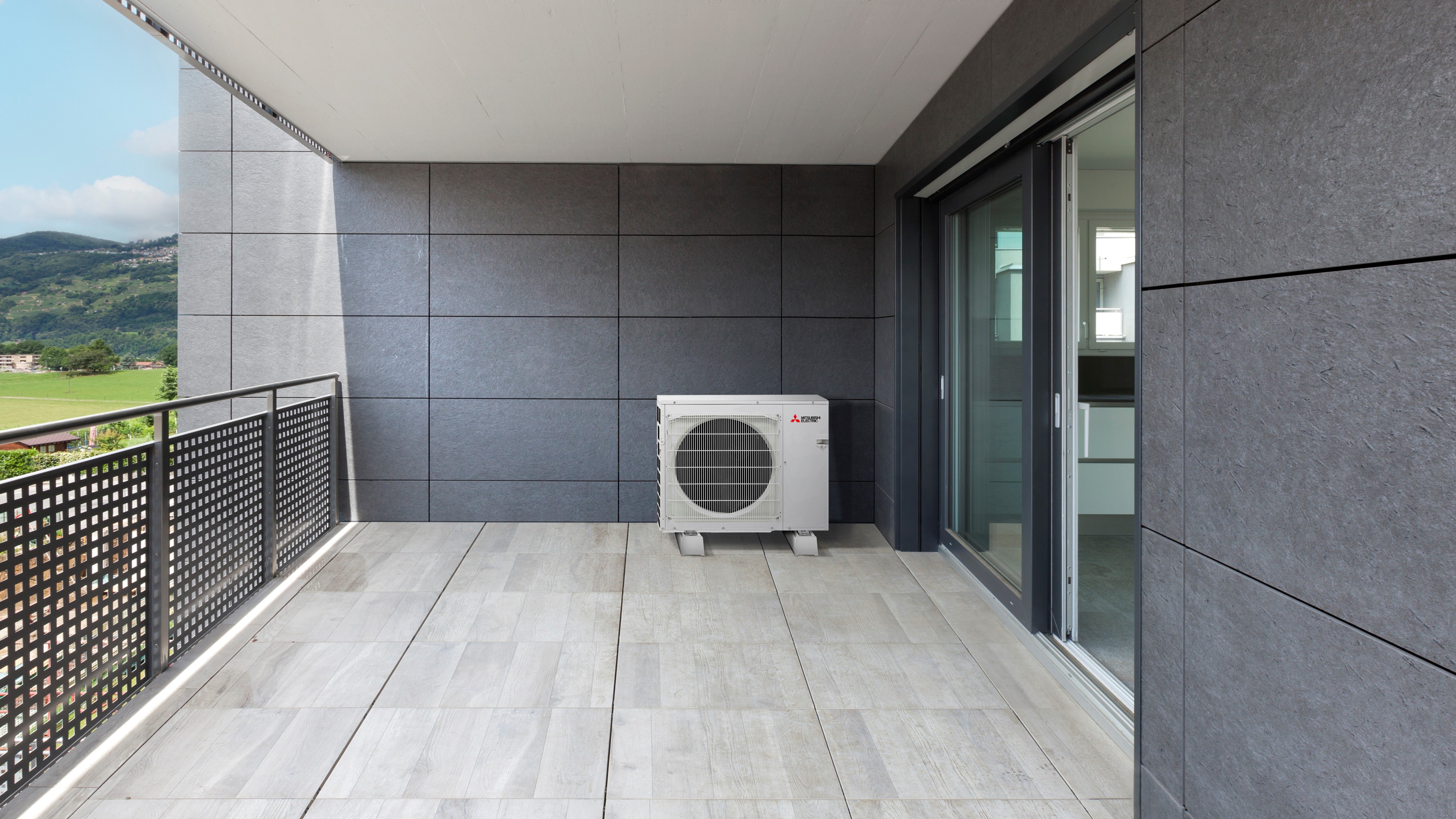

It is also important to note that any heat pump outside unit installed without a compliant cover within 1.2m of a balcony rail will fall outside of these requirements.

Mitsubishi Electric highly recommend Heat Pump Covers Ltd products in these situations, and have many examples of successful OmniCore installations on multi-story apartment balcony spaces using Heat Pump Covers Ltd products.

Current R32 OmniCore Classic Multi Room MXZ models have been installed in New Zealand homes since 2020.

The Mitsubishi Electric Product Range has been exclusively distributed by 100% locally owned and operated Black Diamond Technologies Limited for over 40 years in New Zealand.

Optional Upgrades:

• NYALIC Surface Treatment and Silicon PCB Treatment (on request) will help increase the life of the product as well as reduce the likelihood of unsightly premature corrosion in less-than-deal environmental conditions.
• Plasma Quad Connect air filtration technology (on request) has been designed to integrate with a range of Mitsubishi Electric High Wall and Ducted units. This high-performance two- stage advanced air filtration module, cleans and minimises dust and other allergens for better indoor air quality, all year round.
• Maximise comfort by combining an OmniCore Multi Room Heat Pump System with Lossnay Fresh Air Balanced Pressure Ventilation for a complete heating, cooling and ventilation solution. The two systems work together to further increase energy savings while also ventilating the home to remove stale air and help control moisture. The Lossnay system will recover the energy from stale air to pre-heat or pre-cool incoming fresh air, reducing the amount of additional heating or cooling required from the OmniCore system.

Warranty

Units are supported by a 5-year warranty, including parts and labour.
