Ecodan Hot Water Heat Pumps are a heat source for hydronic space heating such as underfloor circuits and radiators as well as domestic hot water.

Ecodan Hot Water Heat Pumps can be retrofitted to existing hydronic/water underfloor systems.

Underfloor heating is evenly distributed; radiant heating that provides the ultimate in unobtrusive comfort. Hidden from view, underfloor heating is particularly suited to modern open plan layouts with higher stud and exposed ceilings as well as bathrooms.

• Available in a wide range of capacities, from 5kW to 23kW (with the option to cascade up to 6 units of the same capacity for up to 138kW)
• Specific models with Zubadan Technology provide guaranteed heating in temperatures as low as -25°C
• Low outdoor unit noise levels — ideal for medium density residential areas

• Only used in combination with Hydronic underfloor heating (not electric wire).

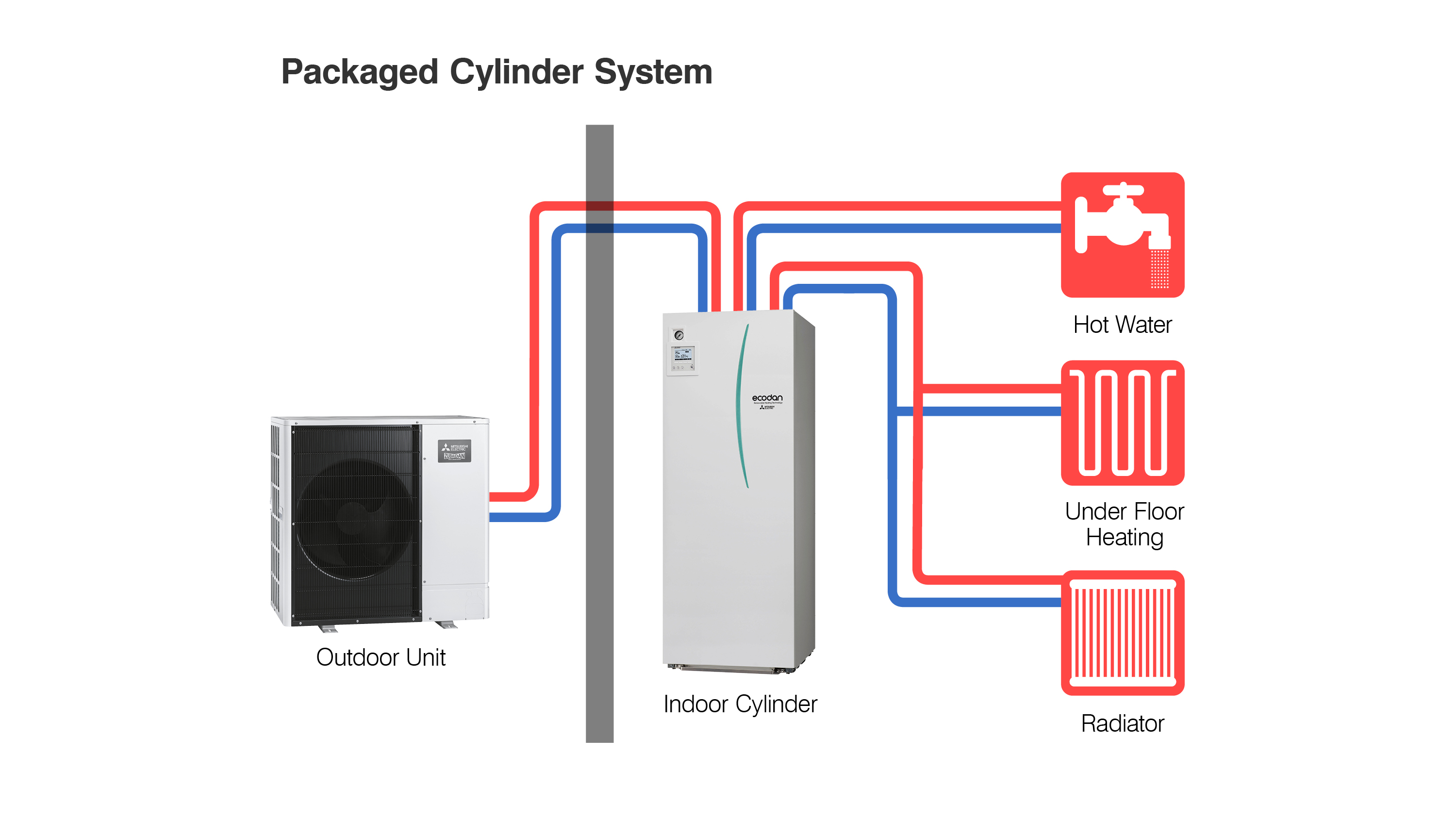

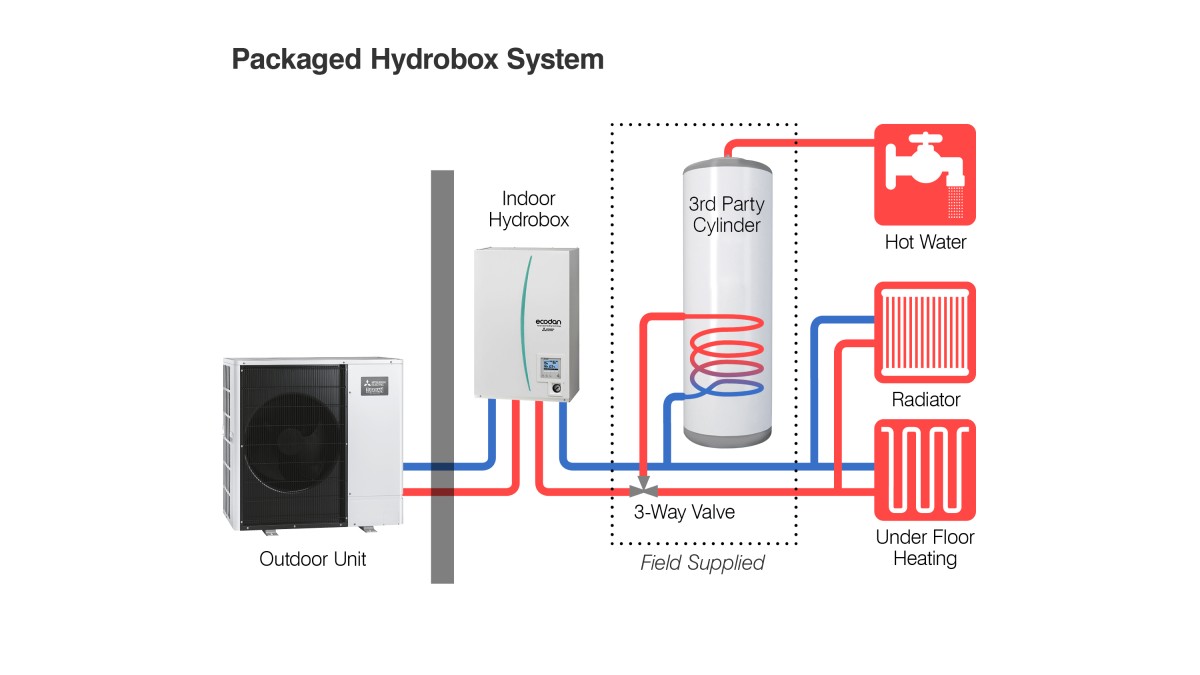

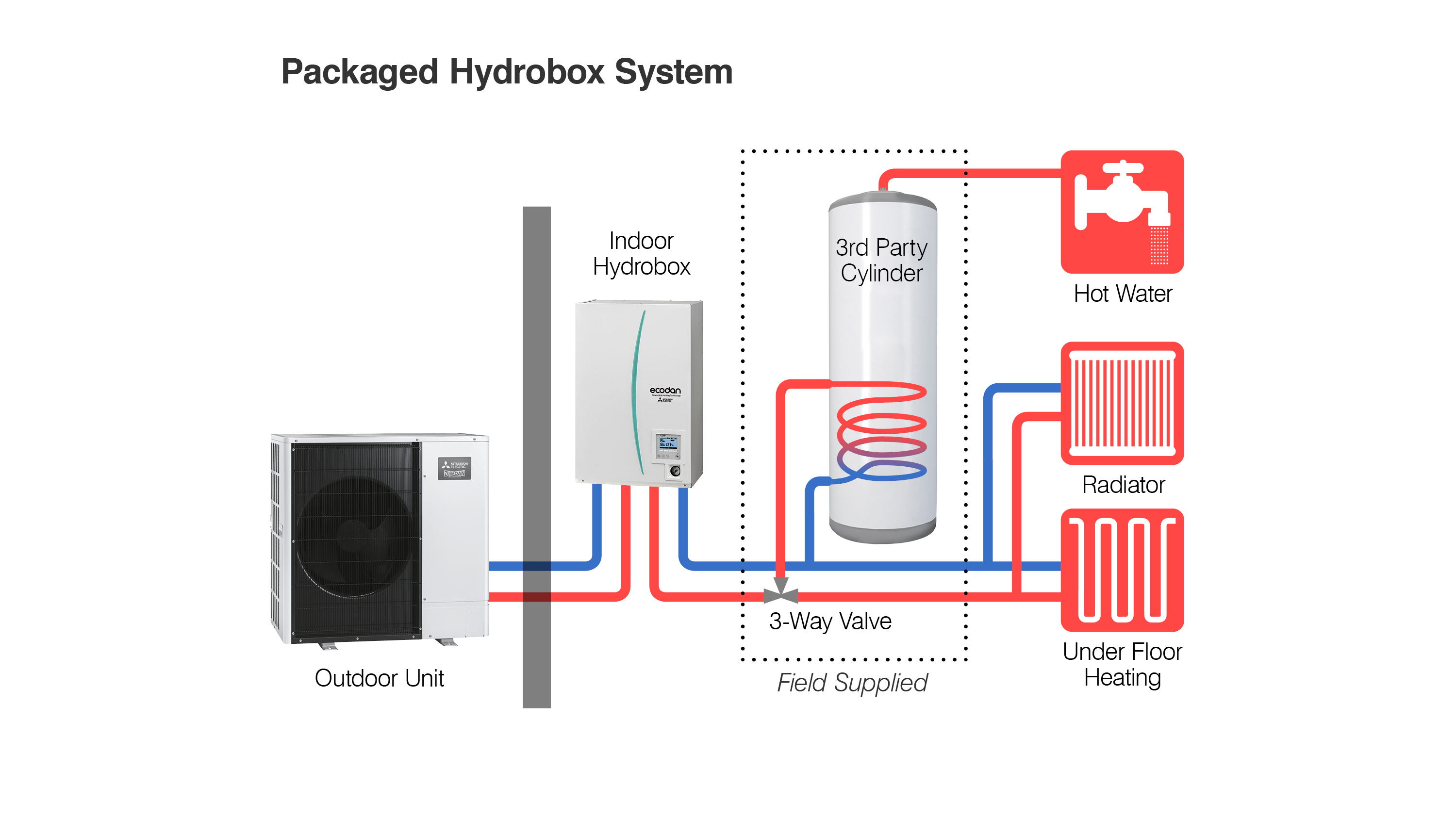

• System contains an indoor and outdoor component. Internal space is a requirement for indoor cylinder or Hydrobox.
• It is recommended heat load calculations are completed to ensure system has adequate capacity for the installation (for other capacity options see the Ecodan Hot Water Heat Pump range). Mitsubishi Electric has a team ready to assist with calculations and design plans.

Ecodan Hot Water Heat Pumps comply with the latest requirements for electrical products sold in New Zealand.

The Ecodan Hot Water Heat Pump range has been sold in New Zealand for over 10 years and has a long record of success in a variety of New Zealand climates.

Mitsubishi Electric Hot Water Heat Pumps are installed through an extensive network of trained specialist dealers. This ensures projects are supported with a high level of product and installation quality.

The Mitsubishi Electric Product Range has been exclusively distributed by 100% locally owned and operated Black Diamond Technologies Limited for over 40 years in New Zealand.

• High efficiency with COPs up to 5.06*¹
• An Ecodan Heat Pump System can help reduce heating and hot water costs when compared to gas and direct electric systems.
• Features fast heat-up times from 15°C – 55°C in one hour for a three-bedroom house, or 30 minutes to heat only half the tank (100 litres).
• Models featuring Zubadan Inverter Technology ensure rated heating capacity is maintained even in outdoor temperatures as low as -15°C, with guaranteed heating operation at -25°C.
• Proven track record in New Zealand and in some of the world's coldest climates, including Mount Ruapehu.
• Low outdoor unit noise levels — ideal for medium density residential areas (operating as low as 45dBa*²)

*¹ Applicable to PUZ-WM60VAA-BS under normal heating conditions at outdoor temp: 7°CDB / 6°CWB, outlet water temp 35°C, inlet water temp 30°C as tested to BS EN1451.

*² Measured at 1m from the front of the outdoor unit and 1.5m from ground level. Applicable to PUZ-WM60VAA and PUZ-WM85VAA.

Warranty

Ecodan Hot Water Heat Pumps come with a full 5 year warranty as standard, subject to the following conditions:

• The Ecodan purchase and installation is registered with Black Diamond Technologies Limited (BDT).
• The Ecodan must be installed and commissioned by a trained BDT installer.

Please see warranty card for more information.
