Air curtains are ideal for commercial and industrial spaces such as supermarkets, hotels, hospitals, restaurants, and retail stores. They help maintain a clean, comfortable space while reducing heating and cooling energy costs in areas where entryways are frequently open to external environments.

• Designed to be used in doorways ranging from 900mm – 1200mm wide.

Air curtains should not be installed in bathrooms or areas with excessive moisture readings of more than 90% relative humidity.

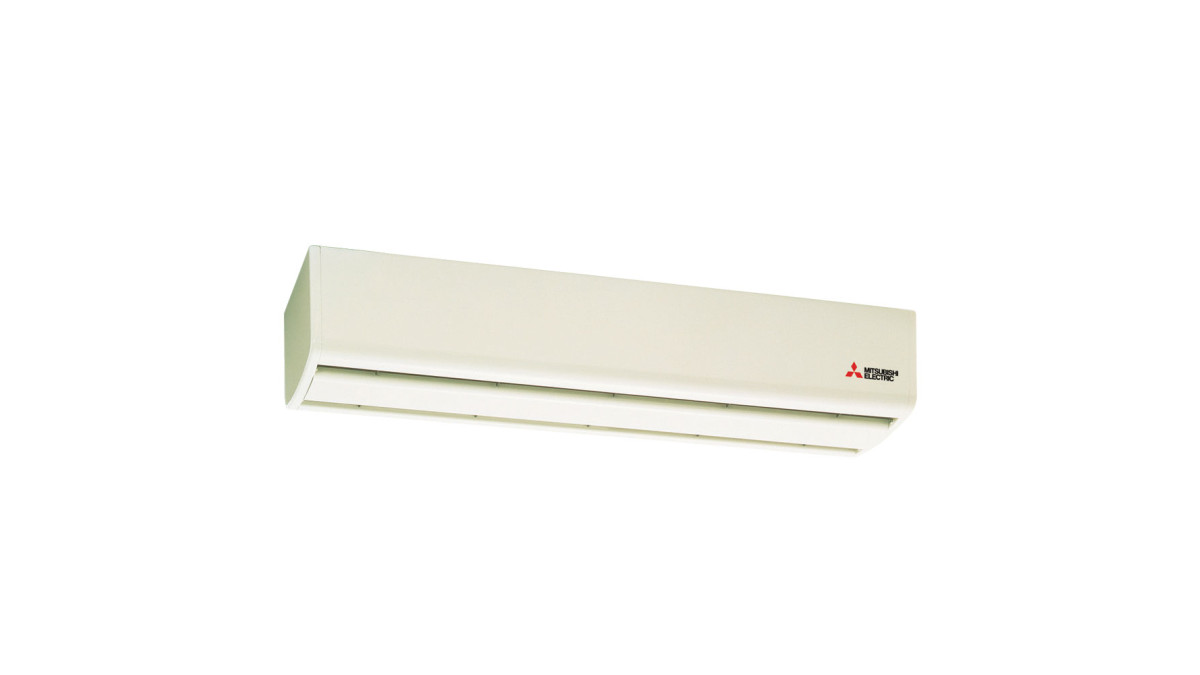

Mitsubishi Electric GK Series Air Curtains comply with the supplier declaration on conformity in accordance with IEC60335-2-80:2002, AMD 1:2004, AMD 2:2008, IEC60335-1:2010 AMD 1:2013, and AMD 2:2016 standards.

To evaluate the performance of the air curtain a shut-out test was carried out using CO₂. Both the interior and exterior of a test room, measuring just over 5 metres wide, 8 metres deep, and 2.5 metres high, were filled with CO₂. The indoor temperature was set to 20°C, while the outside was 8°C. The model tested was the GK-2509.

The door was then opened, and the air curtain was turned on. Researchers measured how much CO₂ stayed inside to assess the barrier effect. The results showed that the air curtain blocked approximately 70% to 90% of the heat, compared to a glass plate that blocks 100%.

Warranty and Maintenance

• 1-year parts and labour warranty.
• Maintenance should happen when the unit gets dirty, which, as a general rule, is roughly every 3 months.
