MITEK Posi-STRUT – Purlin, Floor and Rafter Truss System
Description

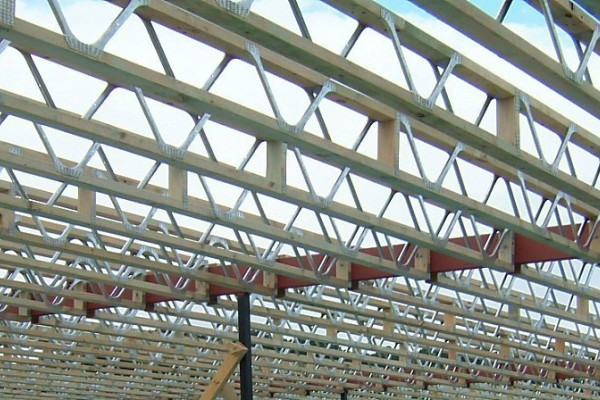

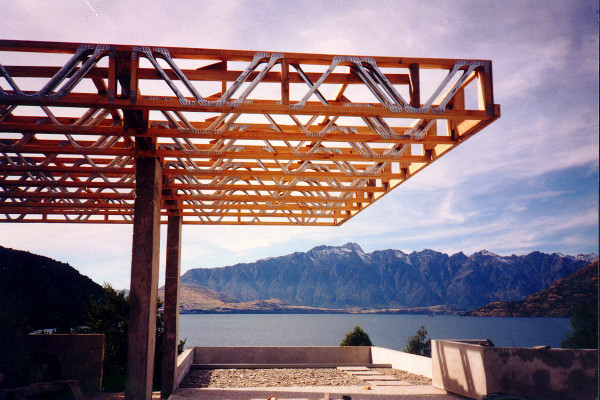

The MITEK Posi-STRUT system is a light economical method of providing large clear spans in rafters, purlins or floor joist situations. Frames and supports can be further apart to facilitate open spaces below.

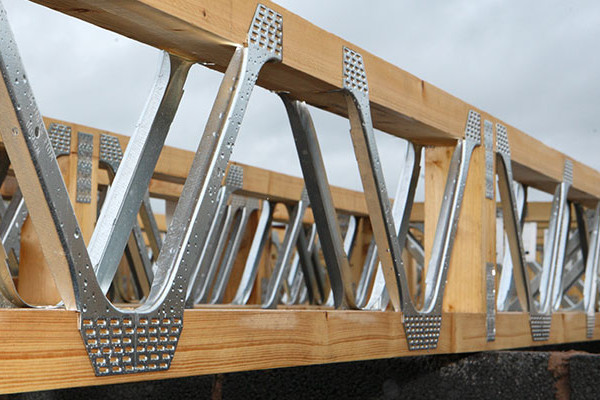

The heart of the MITEK Posi-STRUT truss is the Posi-STRUT web, which is a V-shaped folded metal web with nail plate type connector ends. This metal web is attached to timber chords on both sides to form a very effective parallel chord truss.

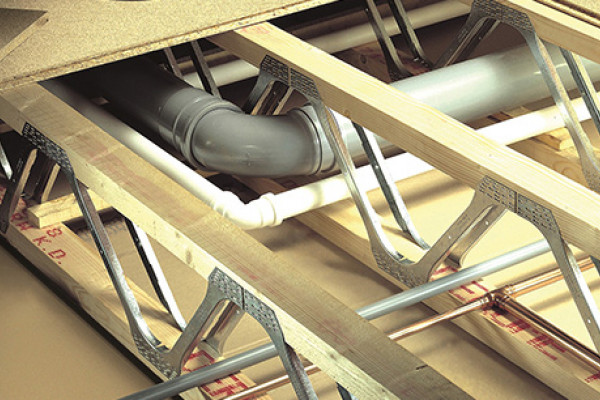

The open-web pattern enables services and ducting to pass through the joist, rafter or purlin with ease. Posi-STRUTs are a truly customised, totally engineered flooring or roofing system, which combines the versatility of timber with the strength of steel, and offering a wide range of real advantages and savings to the architect, engineer and builder.

Posi-STRUT is available through MiTek accredited fabricators.

Key Features
  • Ideal for flooring
  • Ideal for roofing
  • Easy access for services
  • An engineered solution
  • Large, clear spans
  • Optional top chord support
  • Lightweight and easy to handle
Scope of Use
  • Suitable for flooring or roofing
  • NZS 3064: Extra High Wind
NZS 3604 Wind Zone Extra High suitable
Extra High Wind Zone
NZS 3604 Wind Zone Specific Design suitable
Specific Design Wind Zone
Statement of Building Code Compliance

The Posi-STRUTs' system is widely accepted by Councils when issued with a PS1-Design from the Posi-STRUT Website design tool, from MiTek new Zealand Limited.

B1 Structure compliant
Structure
Documents
Download Technical Data
CAD/PDF Details

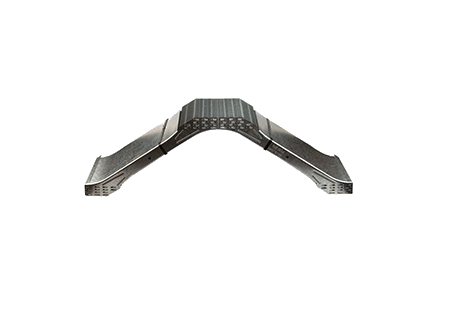

PosiStrut Web PS20

PS20 Web Depth 184mm

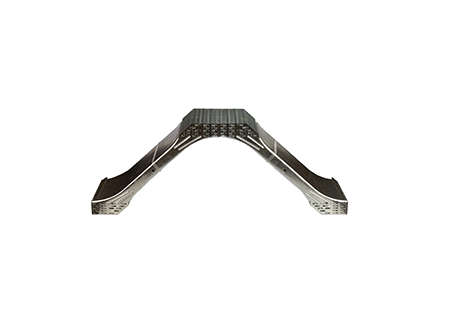

PS25

PS25 Web Depth 227mm

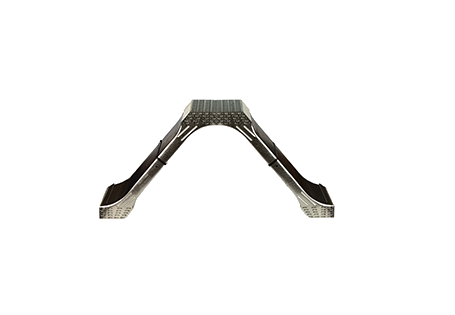

PS30

PS30 Web Depth 284mm

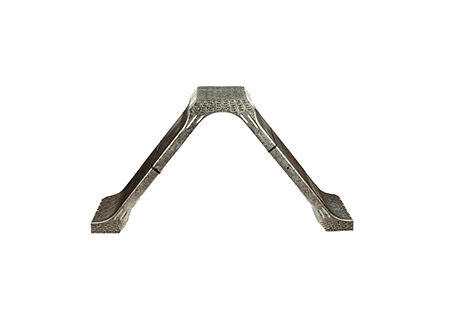

PS40

PS40 Web Depth 392mm

Installation Details
