Description

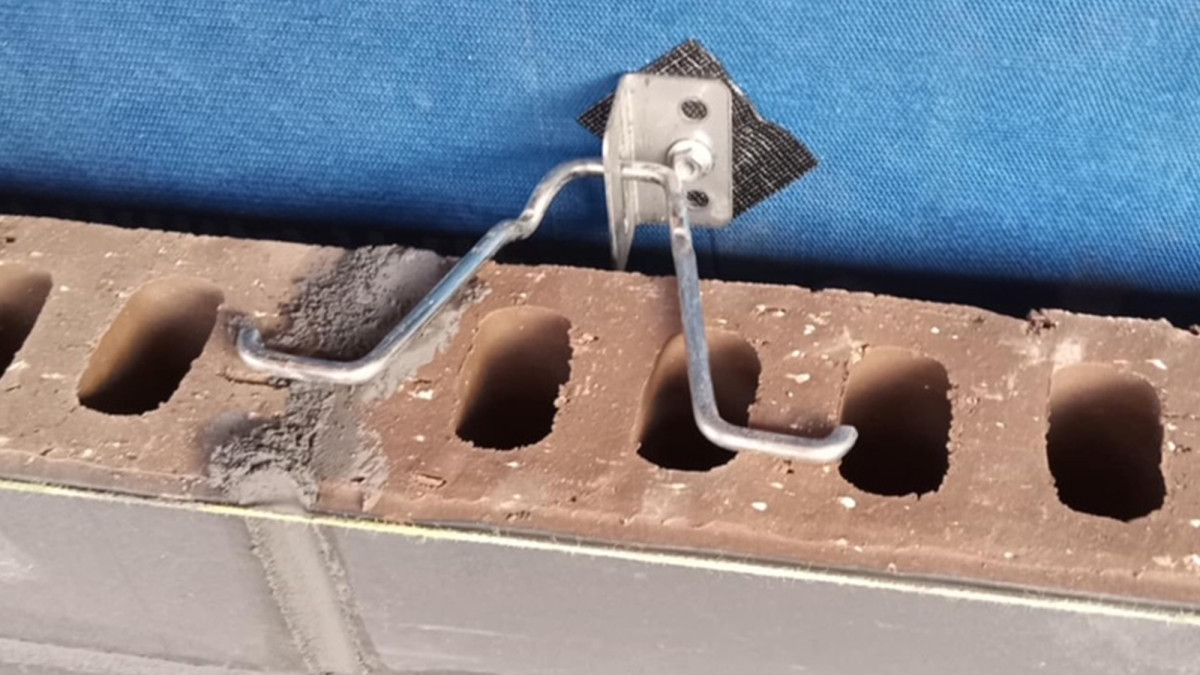

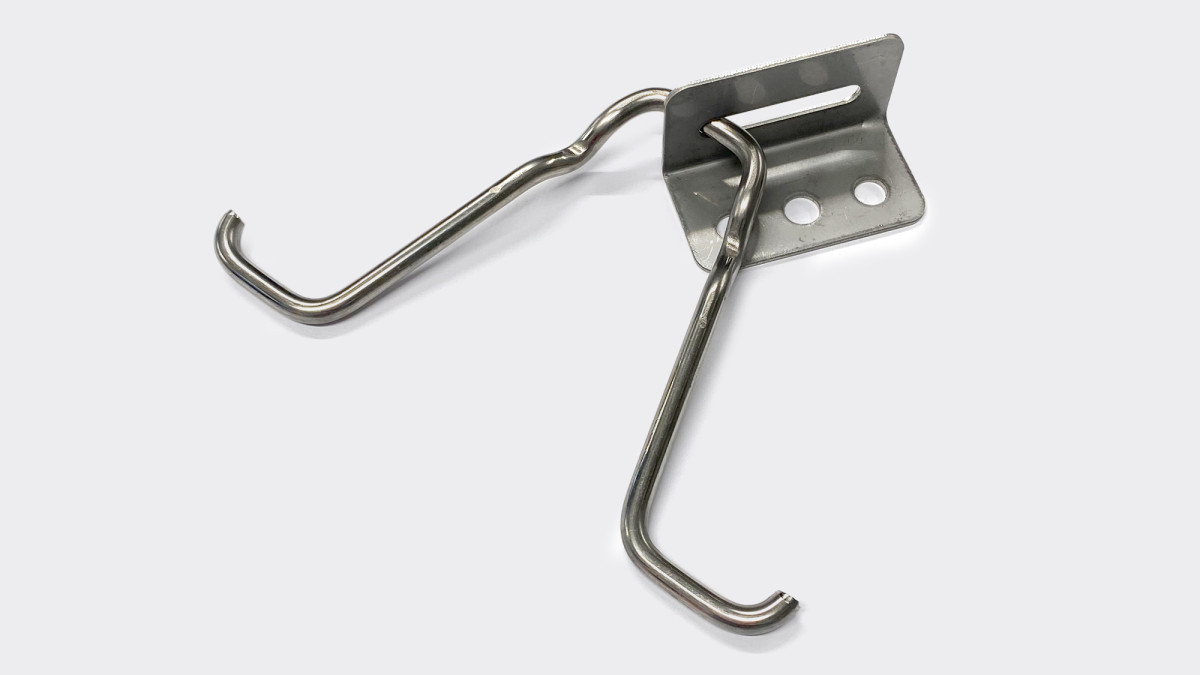

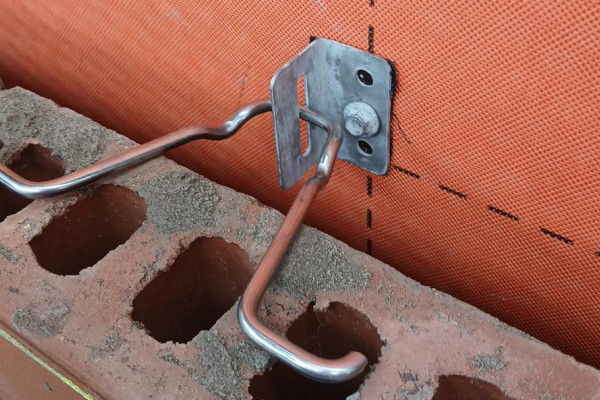

A Type B veneer tie manufactured from 5mm diameter 316 stainless steel wire with mechanical keying into the mortar and water shed features. Slot and holes in base bracket allow placement adjustment.

Key Features

316 stainless steel
Provides a mechanical link between veneer and the frame or support structure
Available in 2 x sizes: 95mm and 115mm overall
Complies to AS/NZS2699.1.2000
Mechanical keying into mortar and water-shed design
Base bracket with slots and holes for placement adjustment
Engineered for strong mortar hold and designed to lock into mortar
Medium duty
Approx. 8 brick ties per m²*

*Facade/structural engineer to confirm the number required per m² of brick course.

Ranges

Masons Brick Products

Scope of Use

Provides a mechanical link between veneer and the frame or support structure
Available in 2 x sizes: 95mm and 115mm overall
Medium duty

Limitations on Use

Approx. 8 brick ties per m² — Facade/structural engineer to confirm the number required per m² of brick course.

Statement of Building Code Compliance

B1 Structure – Provides mechanical restraint to masonry veneer
B2 Durability – Stainless steel 316 construction contributes to durability (50 years or life of masonry cladding)
E2 External Moisture – Contributes to weather-tightness by enabling correct veneer support and water-shedding features
F2 Hazardous Building Materials – Stainless steel is non-hazardous in normal use
Complies to AS/NZS2699.1.2000
